The post EXEN HV60ZB Pendulous Internal Vibrator first appeared on Kouei Japan Trading | Get Quotation.]]> Products Made In Japan
Manufacturer: EXEN
Model: HV60ZB

Features

Strong but compact 4 cycle, air-cooled engine (maximum output: 2.8 kW) is designed to drive all HV vibrators.

Vibrator with high placing capability

3 or 4stroke of hitting are dealt by shaft 1 rotation, and a strong shock generates a vibration of 158-200Hz. The best for hard concrete placing.

A shaft and an axle hole are long-life lives

Shaft rotations is as low as 1/3 compared with frequency, there is little wear of a shaft and an axle hole, and is a long-life.

Power source is selectable

Either Gas engine and a electric motor can be chosen as a power source. A motor is used in the spot of environmental priority and engine is used in the spot without a power supply. Moreover, engine can be used same as a power unit for submersible pumps.

Attach and Detach is one-motion

Flexible shaft can be connected to the power source in one motion without using any tool.

Adoption of a special bearing

Self-aligning type bearing which connects an flexible shaft and a vibration shaft.High durability and stabilized vibration is generated.

Light and Easy

They are light and easy to use.

Frame

The engine comes with frame or rotary table.

Application

The model HVE engine drives EXEN EFP submersible pump with flexible shaft as well.

Specification

HV Vibrator specification(Hose 6M)

Model Hose length
(m)		 Frequency
(Hz)		 Overall length
(mm)		 Head (Dia,×L)
（mm)		 Weight
(kg)
HV28ZB 6 158～200 6559 28×420 14.1
HV32ZB 6 158～201 6562 32×423 14.1
HV38ZB 6 158～202 6585 38×440 15.2
HV45ZB 6 158～203 6596 45×451 16.1
HV60ZB 6 150～200 6593 60×448 19.1

(Imperial System)

Model Hose length
(ft)		 Frequency
(Hz)		 Overall length
(ft)		 Head (Dia,×L)
（in×ft)		 Weight
(lb)
HV28ZB 19’8″ 158～200 21’6″ 1.1×1’5″ 31.1
HV32ZB 19’8″ 158～201 21’6″ 1.3×1’5″ 31.1
HV38ZB 19’8″ 158～202 21’7″ 1.5×1’5″ 33.5
HV45ZB 19’8″ 158～203 21’8″ 1.8×1’6″ 35.5
HV60ZB 19’8″ 150～200 21’8″ 2.4×1’6″ 42.1

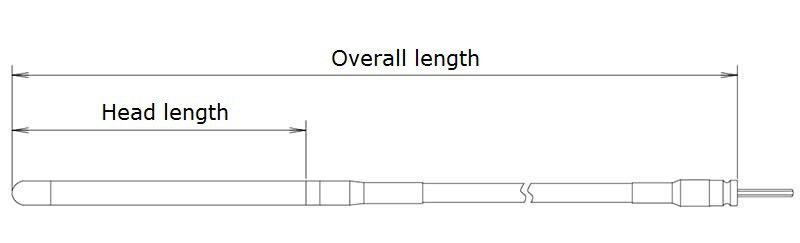

Product dimensional drawings

Product dimensional table

Model Hose length
(m)		 Overall length
(mm)		 Head (Dia,×L)
（mm)
HV28ZB 6 6559 28×420
HV32ZB 6 6562 32×423
HV38ZB 6 6585 38×440
HV45ZB 6 6596 45×451
HV60ZB 6 6593 60×448

(Imperial System)

Model Hose length
(ft)		 Overall length
(ft)		 Head (Dia,×L)
（in×ｆｔ)
HV28ZB 19’8″ 21’6″ 1.1×1’5″
HV32ZB 19’8″ 21’6″ 1.3×1’5″
HV38ZB 19’8″ 21’7″ 1.5×1’5″
HV45ZB 19’8″ 21’8″ 1.8×1’6″
HV60ZB 19’8″ 21’8″ 2.4×1’6″
The post EXEN HV60ZB Pendulous Internal Vibrator first appeared on Kouei Japan Trading | Get Quotation.]]> EXEN HVNFA Pendulous Internal Vibrator https://koueitrading.com/global/product/exen-hvnfa-pendulous-internal-vibrator/ Thu, 10 Dec 2020 03:37:00 +0000 https://koueitrading.com/global/?post_type=product&p=23207 Products Made In Japan Manufacturer: EXEN Model: HVNFA Features Strong but compact 4 cycle, air-cooled engine (maximum output: 2.8 kW) is designed to drive all HV vibrators. Vibrator with high placing capability 3 or 4stroke of hitting are dealt by shaft 1 rotation, and a strong shock generates a vibration of 158-200Hz. The best for […]

The post EXEN HVNFA Pendulous Internal Vibrator first appeared on Kouei Japan Trading | Get Quotation.]]> Products Made In Japan
Manufacturer: EXEN
Model: HVNFA

Features

Strong but compact 4 cycle, air-cooled engine (maximum output: 2.8 kW) is designed to drive all HV vibrators.

Vibrator with high placing capability

3 or 4stroke of hitting are dealt by shaft 1 rotation, and a strong shock generates a vibration of 158-200Hz. The best for hard concrete placing.

A shaft and an axle hole are long-life lives

Shaft rotations is as low as 1/3 compared with frequency, there is little wear of a shaft and an axle hole, and is a long-life.

Power source is selectable

Either Gas engine and a electric motor can be chosen as a power source. A motor is used in the spot of environmental priority and engine is used in the spot without a power supply. Moreover, engine can be used same as a power unit for submersible pumps.

Attach and Detach is one-motion

Flexible shaft can be connected to the power source in one motion without using any tool.

Adoption of a special bearing

Self-aligning type bearing which connects an flexible shaft and a vibration shaft.High durability and stabilized vibration is generated.

Light and Easy

They are light and easy to use.

Frame

The engine comes with frame or rotary table.

Application

The model HVE engine drives EXEN EFP submersible pump with flexible shaft as well.

Specification

Model Output
（W）		 Voltage
（V）		 Current
（A）		 Frequency
（Hz）		 Revolution
（min-1）		 Weight
（kg）
HVNFA 1000 200 4.3 50/60 2850/3350 15.5

(Imperial System)



Model Output
（W）		 Voltage
（V）		 Current
（A）		 Frequency
（Hz）		 Revolution
（min-1）		 Weight
（lb）
HVNFA 1000 200 4.3 50/60 2850/3350 34.2



The post EXEN HVNFA Pendulous Internal Vibrator first appeared on Kouei Japan Trading | Get Quotation.]]> EXEN HV45ZB Pendulous Internal Vibrator https://koueitrading.com/global/product/exen-hv45zb-pendulous-internal-vibrator/ Thu, 10 Dec 2020 02:57:33 +0000 https://koueitrading.com/global/?post_type=product&p=23192 Products Made In Japan Manufacturer: EXEN Model: HV45ZB Features Strong but compact 4 cycle, air-cooled engine (maximum output: 2.8 kW) is designed to drive all HV vibrators. Vibrator with high placing capability 3 or 4stroke of hitting are dealt by shaft 1 rotation, and a strong shock generates a vibration of 158-200Hz. The best for […]

The post EXEN HV45ZB Pendulous Internal Vibrator first appeared on Kouei Japan Trading | Get Quotation.]]> Products Made In Japan
Manufacturer: EXEN
Model: HV45ZB

Features

Strong but compact 4 cycle, air-cooled engine (maximum output: 2.8 kW) is designed to drive all HV vibrators.

Vibrator with high placing capability

3 or 4stroke of hitting are dealt by shaft 1 rotation, and a strong shock generates a vibration of 158-200Hz. The best for hard concrete placing.

A shaft and an axle hole are long-life lives

Shaft rotations is as low as 1/3 compared with frequency, there is little wear of a shaft and an axle hole, and is a long-life.

Power source is selectable

Either Gas engine and a electric motor can be chosen as a power source. A motor is used in the spot of environmental priority and engine is used in the spot without a power supply. Moreover, engine can be used same as a power unit for submersible pumps.

Attach and Detach is one-motion

Flexible shaft can be connected to the power source in one motion without using any tool.

Adoption of a special bearing

Self-aligning type bearing which connects an flexible shaft and a vibration shaft.High durability and stabilized vibration is generated.

Light and Easy

They are light and easy to use.

Frame

The engine comes with frame or rotary table.

Application

The model HVE engine drives EXEN EFP submersible pump with flexible shaft as well.

Specification

HV Vibrator specification(Hose 6M)

Model Hose length
(m)		 Frequency
(Hz)		 Overall length
(mm)		 Head (Dia,×L)
（mm)		 Weight
(kg)
HV28ZB 6 158～200 6559 28×420 14.1
HV32ZB 6 158～201 6562 32×423 14.1
HV38ZB 6 158～202 6585 38×440 15.2
HV45ZB 6 158～203 6596 45×451 16.1
HV60ZB 6 150～200 6593 60×448 19.1

(Imperial System)

Model Hose length
(ft)		 Frequency
(Hz)		 Overall length
(ft)		 Head (Dia,×L)
（in×ft)		 Weight
(lb)
HV28ZB 19’8″ 158～200 21’6″ 1.1×1’5″ 31.1
HV32ZB 19’8″ 158～201 21’6″ 1.3×1’5″ 31.1
HV38ZB 19’8″ 158～202 21’7″ 1.5×1’5″ 33.5
HV45ZB 19’8″ 158～203 21’8″ 1.8×1’6″ 35.5
HV60ZB 19’8″ 150～200 21’8″ 2.4×1’6″ 42.1

Product dimensional drawings

Product dimensional table

Model Hose length
(m)		 Overall length
(mm)		 Head (Dia,×L)
（mm)
HV28ZB 6 6559 28×420
HV32ZB 6 6562 32×423
HV38ZB 6 6585 38×440
HV45ZB 6 6596 45×451
HV60ZB 6 6593 60×448

(Imperial System)

Model Hose length
(ft)		 Overall length
(ft)		 Head (Dia,×L)
（in×ｆｔ)
HV28ZB 19’8″ 21’6″ 1.1×1’5″
HV32ZB 19’8″ 21’6″ 1.3×1’5″
HV38ZB 19’8″ 21’7″ 1.5×1’5″
HV45ZB 19’8″ 21’8″ 1.8×1’6″
HV60ZB 19’8″ 21’8″ 2.4×1’6″
The post EXEN HV45ZB Pendulous Internal Vibrator first appeared on Kouei Japan Trading | Get Quotation.]]> EXEN HVE-RFA Pendulous Internal Vibrator https://koueitrading.com/global/product/exen-hve-rfa-pendulous-internal-vibrator/ Thu, 10 Dec 2020 02:30:09 +0000 https://koueitrading.com/global/?post_type=product&p=23205 Products Made In Japan Manufacturer: EXEN Model: HVE-RFA Features Strong but compact 4 cycle, air-cooled engine (maximum output: 2.8 kW) is designed to drive all HV vibrators. Vibrator with high placing capability 3 or 4stroke of hitting are dealt by shaft 1 rotation, and a strong shock generates a vibration of 158-200Hz. The best for […]

The post EXEN HVE-RFA Pendulous Internal Vibrator first appeared on Kouei Japan Trading | Get Quotation.]]> Products Made In Japan
Manufacturer: EXEN
Model: HVE-RFA

Features

Strong but compact 4 cycle, air-cooled engine (maximum output: 2.8 kW) is designed to drive all HV vibrators.

Vibrator with high placing capability

3 or 4stroke of hitting are dealt by shaft 1 rotation, and a strong shock generates a vibration of 158-200Hz. The best for hard concrete placing.

A shaft and an axle hole are long-life lives

Shaft rotations is as low as 1/3 compared with frequency, there is little wear of a shaft and an axle hole, and is a long-life.

Power source is selectable

Either Gas engine and a electric motor can be chosen as a power source. A motor is used in the spot of environmental priority and engine is used in the spot without a power supply. Moreover, engine can be used same as a power unit for submersible pumps.

Attach and Detach is one-motion

Flexible shaft can be connected to the power source in one motion without using any tool.

Adoption of a special bearing

Self-aligning type bearing which connects an flexible shaft and a vibration shaft.High durability and stabilized vibration is generated.

Light and Easy

They are light and easy to use.

Frame

The engine comes with frame or rotary table.

Application

The model HVE engine drives EXEN EFP submersible pump with flexible shaft as well.

Specification

Model Engine model Continuous rated output
(kW/min-１)		 Weight
(kg)
HVE-RFA EY203DC0450 2.5/3,400 25

(Imperial System)

Model Engine model Continuous rated output
(kW/min-１)		 Weight
(Ib)
HVE-RFA EY203DC0450 2.5/3,400 55.1

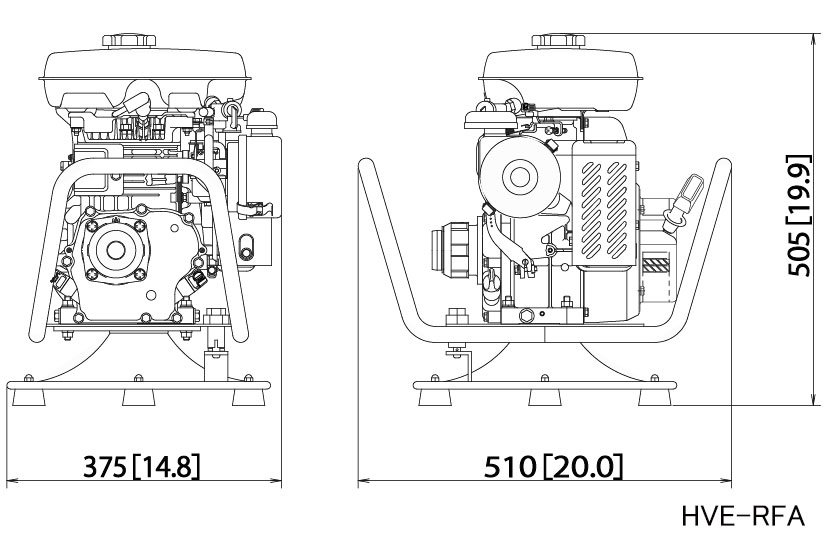

Dimensions, installation, control panel

The post EXEN HVE-RFA Pendulous Internal Vibrator first appeared on Kouei Japan Trading | Get Quotation.]]> EXEN HV38ZB Pendulous Internal Vibrator https://koueitrading.com/global/product/exen-hv38zb-pendulous-internal-vibrator/ Thu, 10 Dec 2020 00:52:27 +0000 https://koueitrading.com/global/?post_type=product&p=23189 Products Made In Japan Manufacturer: EXEN Model: HV38ZB Features Strong but compact 4 cycle, air-cooled engine (maximum output: 2.8 kW) is designed to drive all HV vibrators. Vibrator with high placing capability 3 or 4stroke of hitting are dealt by shaft 1 rotation, and a strong shock generates a vibration of 158-200Hz. The best for […]

The post EXEN HV38ZB Pendulous Internal Vibrator first appeared on Kouei Japan Trading | Get Quotation.]]> Products Made In Japan
Manufacturer: EXEN
Model: HV38ZB

Features

Strong but compact 4 cycle, air-cooled engine (maximum output: 2.8 kW) is designed to drive all HV vibrators.

Vibrator with high placing capability

3 or 4stroke of hitting are dealt by shaft 1 rotation, and a strong shock generates a vibration of 158-200Hz. The best for hard concrete placing.

A shaft and an axle hole are long-life lives

Shaft rotations is as low as 1/3 compared with frequency, there is little wear of a shaft and an axle hole, and is a long-life.

Power source is selectable

Either Gas engine and a electric motor can be chosen as a power source. A motor is used in the spot of environmental priority and engine is used in the spot without a power supply. Moreover, engine can be used same as a power unit for submersible pumps.

Attach and Detach is one-motion

Flexible shaft can be connected to the power source in one motion without using any tool.

Adoption of a special bearing

Self-aligning type bearing which connects an flexible shaft and a vibration shaft.High durability and stabilized vibration is generated.

Light and Easy

They are light and easy to use.

Frame

The engine comes with frame or rotary table.

Application

The model HVE engine drives EXEN EFP submersible pump with flexible shaft as well.

Specification

HV Vibrator specification(Hose 6M)

Model Hose length
(m)		 Frequency
(Hz)		 Overall length
(mm)		 Head (Dia,×L)
（mm)		 Weight
(kg)
HV28ZB 6 158～200 6559 28×420 14.1
HV32ZB 6 158～201 6562 32×423 14.1
HV38ZB 6 158～202 6585 38×440 15.2
HV45ZB 6 158～203 6596 45×451 16.1
HV60ZB 6 150～200 6593 60×448 19.1

(Imperial System)

Model Hose length
(ft)		 Frequency
(Hz)		 Overall length
(ft)		 Head (Dia,×L)
（in×ft)		 Weight
(lb)
HV28ZB 19’8″ 158～200 21’6″ 1.1×1’5″ 31.1
HV32ZB 19’8″ 158～201 21’6″ 1.3×1’5″ 31.1
HV38ZB 19’8″ 158～202 21’7″ 1.5×1’5″ 33.5
HV45ZB 19’8″ 158～203 21’8″ 1.8×1’6″ 35.5
HV60ZB 19’8″ 150～200 21’8″ 2.4×1’6″ 42.1

Product dimensional drawings

Product dimensional table

Model Hose length
(m)		 Overall length
(mm)		 Head (Dia,×L)
（mm)
HV28ZB 6 6559 28×420
HV32ZB 6 6562 32×423
HV38ZB 6 6585 38×440
HV45ZB 6 6596 45×451
HV60ZB 6 6593 60×448

(Imperial System)

Model Hose length
(ft)		 Overall length
(ft)		 Head (Dia,×L)
（in×ｆｔ)
HV28ZB 19’8″ 21’6″ 1.1×1’5″
HV32ZB 19’8″ 21’6″ 1.3×1’5″
HV38ZB 19’8″ 21’7″ 1.5×1’5″
HV45ZB 19’8″ 21’8″ 1.8×1’6″
HV60ZB 19’8″ 21’8″ 2.4×1’6″
The post EXEN HV38ZB Pendulous Internal Vibrator first appeared on Kouei Japan Trading | Get Quotation.]]> EXEN HVE-HS Pendulous Internal Vibrator https://koueitrading.com/global/product/exen-hve-hs-pendulous-internal-vibrator/ Thu, 10 Dec 2020 00:16:06 +0000 https://koueitrading.com/global/?post_type=product&p=23203 Products Made In Japan Manufacturer: EXEN Model: HVE-HS Features Strong but compact 4 cycle, air-cooled engine (maximum output: 2.8 kW) is designed to drive all HV vibrators. Vibrator with high placing capability 3 or 4stroke of hitting are dealt by shaft 1 rotation, and a strong shock generates a vibration of 158-200Hz. The best for […]

The post EXEN HVE-HS Pendulous Internal Vibrator first appeared on Kouei Japan Trading | Get Quotation.]]> Products Made In Japan
Manufacturer: EXEN
Model: HVE-HS

Features

Strong but compact 4 cycle, air-cooled engine (maximum output: 2.8 kW) is designed to drive all HV vibrators.

Vibrator with high placing capability

3 or 4stroke of hitting are dealt by shaft 1 rotation, and a strong shock generates a vibration of 158-200Hz. The best for hard concrete placing.

A shaft and an axle hole are long-life lives

Shaft rotations is as low as 1/3 compared with frequency, there is little wear of a shaft and an axle hole, and is a long-life.

Power source is selectable

Either Gas engine and a electric motor can be chosen as a power source. A motor is used in the spot of environmental priority and engine is used in the spot without a power supply. Moreover, engine can be used same as a power unit for submersible pumps.

Attach and Detach is one-motion

Flexible shaft can be connected to the power source in one motion without using any tool.

Adoption of a special bearing

Self-aligning type bearing which connects an flexible shaft and a vibration shaft.High durability and stabilized vibration is generated.

Light and Easy

They are light and easy to use.

Frame

The engine comes with frame or rotary table.

Application

The model HVE engine drives EXEN EFP submersible pump with flexible shaft as well.

Specification

Model Engine model Output (max)
(kW)		 Continuous rated output
(kW/rpm-1)		 Weight
(kg)
HVE-HS GX160H2 KHJE 3.6 2.8/3,400 25

(Imperial System)

Model Engine model Output (max)
(kW)		 Continuous rated output
(kW/rpm-1)		 Weight
（lb）
HVE-HS GX160H2 KHJE 3.6 2.8/3,400 55.1

Dimensions, installation, control panel

The post EXEN HVE-HS Pendulous Internal Vibrator first appeared on Kouei Japan Trading | Get Quotation.]]> EXEN HV32ZB Pendulous Internal Vibrator https://koueitrading.com/global/product/exen-hv32zb-pendulous-internal-vibrator/ Wed, 09 Dec 2020 23:50:31 +0000 https://koueitrading.com/global/?post_type=product&p=23186 Products Made In Japan Manufacturer: EXEN Model: HV32ZB Features Strong but compact 4 cycle, air-cooled engine (maximum output: 2.8 kW) is designed to drive all HV vibrators. Vibrator with high placing capability 3 or 4stroke of hitting are dealt by shaft 1 rotation, and a strong shock generates a vibration of 158-200Hz. The best for […]

The post EXEN HV32ZB Pendulous Internal Vibrator first appeared on Kouei Japan Trading | Get Quotation.]]> Products Made In Japan
Manufacturer: EXEN
Model: HV32ZB

Features

Strong but compact 4 cycle, air-cooled engine (maximum output: 2.8 kW) is designed to drive all HV vibrators.

Vibrator with high placing capability

3 or 4stroke of hitting are dealt by shaft 1 rotation, and a strong shock generates a vibration of 158-200Hz. The best for hard concrete placing.

A shaft and an axle hole are long-life lives

Shaft rotations is as low as 1/3 compared with frequency, there is little wear of a shaft and an axle hole, and is a long-life.

Power source is selectable

Either Gas engine and a electric motor can be chosen as a power source. A motor is used in the spot of environmental priority and engine is used in the spot without a power supply. Moreover, engine can be used same as a power unit for submersible pumps.

Attach and Detach is one-motion

Flexible shaft can be connected to the power source in one motion without using any tool.

Adoption of a special bearing

Self-aligning type bearing which connects an flexible shaft and a vibration shaft.High durability and stabilized vibration is generated.

Light and Easy

They are light and easy to use.

Frame

The engine comes with frame or rotary table.

Application

The model HVE engine drives EXEN EFP submersible pump with flexible shaft as well.

Specification

HV Vibrator specification(Hose 6M)

Model Hose length
(m)		 Frequency
(Hz)		 Overall length
(mm)		 Head (Dia,×L)
（mm)		 Weight
(kg)
HV28ZB 6 158～200 6559 28×420 14.1
HV32ZB 6 158～201 6562 32×423 14.1
HV38ZB 6 158～202 6585 38×440 15.2
HV45ZB 6 158～203 6596 45×451 16.1
HV60ZB 6 150～200 6593 60×448 19.1

(Imperial System)

Model Hose length
(ft)		 Frequency
(Hz)		 Overall length
(ft)		 Head (Dia,×L)
（in×ft)		 Weight
(lb)
HV28ZB 19’8″ 158～200 21’6″ 1.1×1’5″ 31.1
HV32ZB 19’8″ 158～201 21’6″ 1.3×1’5″ 31.1
HV38ZB 19’8″ 158～202 21’7″ 1.5×1’5″ 33.5
HV45ZB 19’8″ 158～203 21’8″ 1.8×1’6″ 35.5
HV60ZB 19’8″ 150～200 21’8″ 2.4×1’6″ 42.1

Product dimensional drawings

Product dimensional table

Model Hose length
(m)		 Overall length
(mm)		 Head (Dia,×L)
（mm)
HV28ZB 6 6559 28×420
HV32ZB 6 6562 32×423
HV38ZB 6 6585 38×440
HV45ZB 6 6596 45×451
HV60ZB 6 6593 60×448

(Imperial System)

Model Hose length
(ft)		 Overall length
(ft)		 Head (Dia,×L)
（in×ｆｔ)
HV28ZB 19’8″ 21’6″ 1.1×1’5″
HV32ZB 19’8″ 21’6″ 1.3×1’5″
HV38ZB 19’8″ 21’7″ 1.5×1’5″
HV45ZB 19’8″ 21’8″ 1.8×1’6″
HV60ZB 19’8″ 21’8″ 2.4×1’6″
The post EXEN HV32ZB Pendulous Internal Vibrator first appeared on Kouei Japan Trading | Get Quotation.]]> EXEN HV28ZB Pendulous Internal Vibrator https://koueitrading.com/global/product/exen-hv28zb-pendulous-internal-vibrator/ Wed, 09 Dec 2020 23:30:09 +0000 https://koueitrading.com/global/?post_type=product&p=23165 Products Made In Japan Manufacturer: EXEN Model: HV28ZB Features Strong but compact 4 cycle, air-cooled engine (maximum output: 2.8 kW) is designed to drive all HV vibrators. Vibrator with high placing capability 3 or 4stroke of hitting are dealt by shaft 1 rotation, and a strong shock generates a vibration of 158-200Hz. The best for […]

The post EXEN HV28ZB Pendulous Internal Vibrator first appeared on Kouei Japan Trading | Get Quotation.]]> Products Made In Japan
Manufacturer: EXEN
Model: HV28ZB

Features

Strong but compact 4 cycle, air-cooled engine (maximum output: 2.8 kW) is designed to drive all HV vibrators.

Vibrator with high placing capability

3 or 4stroke of hitting are dealt by shaft 1 rotation, and a strong shock generates a vibration of 158-200Hz. The best for hard concrete placing.

A shaft and an axle hole are long-life lives

Shaft rotations is as low as 1/3 compared with frequency, there is little wear of a shaft and an axle hole, and is a long-life.

Power source is selectable

Either Gas engine and a electric motor can be chosen as a power source. A motor is used in the spot of environmental priority and engine is used in the spot without a power supply. Moreover, engine can be used same as a power unit for submersible pumps.

Attach and Detach is one-motion

Flexible shaft can be connected to the power source in one motion without using any tool.

Adoption of a special bearing

Self-aligning type bearing which connects an flexible shaft and a vibration shaft.High durability and stabilized vibration is generated.

Light and Easy

They are light and easy to use.

Frame

The engine comes with frame or rotary table.

Application

The model HVE engine drives EXEN EFP submersible pump with flexible shaft as well.

Specification

HV Vibrator specification(Hose 6M)

Model Hose length
(m)		 Frequency
(Hz)		 Overall length
(mm)		 Head (Dia,×L)
（mm)		 Weight
(kg)
HV28ZB 6 158～200 6559 28×420 14.1
HV32ZB 6 158～201 6562 32×423 14.1
HV38ZB 6 158～202 6585 38×440 15.2
HV45ZB 6 158～203 6596 45×451 16.1
HV60ZB 6 150～200 6593 60×448 19.1

(Imperial System)

Model Hose length
(ft)		 Frequency
(Hz)		 Overall length
(ft)		 Head (Dia,×L)
（in×ft)		 Weight
(lb)
HV28ZB 19’8″ 158～200 21’6″ 1.1×1’5″ 31.1
HV32ZB 19’8″ 158～201 21’6″ 1.3×1’5″ 31.1
HV38ZB 19’8″ 158～202 21’7″ 1.5×1’5″ 33.5
HV45ZB 19’8″ 158～203 21’8″ 1.8×1’6″ 35.5
HV60ZB 19’8″ 150～200 21’8″ 2.4×1’6″ 42.1

Product dimensional drawings

Product dimensional table

Model Hose length
(m)		 Overall length
(mm)		 Head (Dia,×L)
（mm)
HV28ZB 6 6559 28×420
HV32ZB 6 6562 32×423
HV38ZB 6 6585 38×440
HV45ZB 6 6596 45×451
HV60ZB 6 6593 60×448

(Imperial System)

Model Hose length
(ft)		 Overall length
(ft)		 Head (Dia,×L)
（in×ｆｔ)
HV28ZB 19’8″ 21’6″ 1.1×1’5″
HV32ZB 19’8″ 21’6″ 1.3×1’5″
HV38ZB 19’8″ 21’7″ 1.5×1’5″
HV45ZB 19’8″ 21’8″ 1.8×1’6″
HV60ZB 19’8″ 21’8″ 2.4×1’6″
The post EXEN HV28ZB Pendulous Internal Vibrator first appeared on Kouei Japan Trading | Get Quotation.]]>
