SWAM21 is a system that is possible to simulate the propagation of ultrasonic waves in real-time.

Features

*Speeding up the developing time
Not only researching ultrasonic and observing the phenomenon, but SWAN21 also supports previously considering about the development process of products and a method of inspection/measurement.
This system reduces the development speed drastically.
*Simulating in real-time
SWAN21 is possible to simulate the propagation of ultrasonic waves on a computer many times.
You can conduct the virtual experiment to determine the measurement condition (flaw detection method, choice of probe, and so on)
*Very easy to use
SWAN21 has a graphical user interface like paint software, so everybody can use this system easily on the first day.

Demonstration : We are supporting your request now, please contact.
● You can try SWAN21 (trial version) in free charge for seven days with note PC that SWAN21 is installed.
● Purchase : short-term rental…1 month, 3 months, 6 months, 1 year, and so on.
License method is USB key.

This is one of the system examples in which NAUT-21, Non-Contact Air Coupled Ultrasonic Testing system, has a 7-axis configuration.

By numerically managing each axis of X, Y, Z, and R, it enables to perform inspection and measurement of specimens with high reproducibility.

This is an example of a system in which transducers are scanned reciprocating on one axis.
It is possible to perform inline inspection and measurement by installing this system on continuous feed automated production lines for webs, resin board materials, sheets, films, etc.

We propose inspection methods and system configurations suitable for production lines, such as internal defect inspection of resin board materials, void inspection of heat insulating materials, pinhole inspection of films and so on.

Photo: High-speed type using 8 channels transducers by the through-transmission method for the purpose of inspecting internal defects of webs, resin board materials, etc.

This is the rotating type model of NAUT21.
Object that shapes like pipes and cylinders are rotated and scanned by ultrasonic air transducer.

We can develop the cylinder inspection robot type that uses a principle of NAUT21-R.
Please inquire us for more detail.

This is the vertical model of NAUT21.
Ultrasonic air probe scans vertically against the object.

This is the Single-side model which allows transducers to be placed on the same side of specimen for inspection, evaluation and analysis.
Thanks to the single-side transmission method, it is suitable to use at a limited space.

The “single-side transmission method” is a method in which transducers are placed only on one side of the material and ultrasonic waves are propagated inside. As the result, it detects adhesion, and filling defects of the metal of the boundary or resin. It is suitable for the limited space such as box-shaped materials and in-line inspections.

This is the standard model of NAUT21 (Noncontact Air coupled Ultrasonic Testing).
Ultrasonic air transducer scans horizontally against the object.
This ultrasonic inspection system uses Noncontact Air coupled Ultrasonic Testing (NAUT) technology.
NAUT realizes ultrasonic inspection/measurement in the air without contact.
The first commemorative equipment was shipped to JAXA (Japan Aerospace Exploration Agency). In JAXA, it is used for inspection of carbon fiber reinforced plastic (CFRP) in aerospace field.

It is possible to inspect and measure by both the air coupled ultrasonic inspection method and the immersion ultrasonic inspection method.
You can inspect defects of test objects by air-coupled ultrasonic inspection, and you can examine and measure the detail of abnormal parts by immersion ultrasonic inspection.

Air coupled ultrasonic inspection visualizes information of the inside test object as plane image without contact. Furthermore, it is possible to visualize information of depth direction of inside test object as 3D image when you conduct the immersion ultrasonic inspection.
For example, in the inspection of a lithium ion battery, First you can grasp a plane position of defects by air coupled ultrasonic inspection, and then you can inspect the defect part by the immersion inspection method.

Solutions

Aerospace: Air plane wing & body (CFRP)

Environment/E: Lithium ion battery

Automobile: Lithium ion battery

Electronics: Lithium ion battery

Environment/Energy: Lithium ion battery detect & Diagnosis

This is the high-speed inspection and measurement model for in-line inspection by noncontact air-coupled ultrasonic testing.
NAUT21-M system realizes high-speed inspection in placing multi transducers by noncontact air-coupled ultrasonic inspection.
By the 4 channels model, the inspection time for a lithium-ion battery (120mm×120mm) is 4 seconds.
We can respond to the customer’s requirement for high-speed inspection.
These are images of the inspection of a lithium-ion battery by NAUT21-M (high-speed type).

Solutions

Automobile

Brake pad

Automobile

Lithium ion battery

Electronics

Lithium ion battery

Environment/Energy

Lithium ion battery

Charger

Miniature type : SC-12

Rapid charger: KH-2S

If you use the frequency of 1kHz and 2kHz in high speed repetition frequency (PRF), the load of pulser & receiver is very high.
In this case, this system is supplying electricity from outside unit.
This is effective for the combination of automatic scanning equipment.

It is very useful for non contact air coupled ultrasonic measuring method.

60dB FLAT　60dB、BPF (50,100, 200, 400, 800kHz)
・Frequency property ：0～3MHz
・Application method ：2 probes transmission method (option：1 probe reflection method(40dB))

Multiplexer is available for 2 channel～128 channel.

・We adopted Relay method on switching.
・There are two kinds of application: single probe and array probe.
・The life of relay is more than 500 millon times, and it is compatible with equipment that released after 2011.

※Please inquire us about more detail of specification.

Number of channel of multichannel pulser and receiver that we can supply is 2 to 16.

Please inquire us about more detail of specification.

FFT, FFT Filter, Sound velocity/distance calculation, Waveform position detection, Waveform correlation, Averaging

Features

・Included original software (for Windows) as standard.
・Device controll “DLL” is provided as an option for own software development, and support LabVIEW and etc.

Main Functions

・FFT, FFT Filter, Sound velocity/distance calculation,
・Waveform position detection, Waveform correlation, Averaging,
・Waveform saving/reading, Waveform data text conversion,
・Automatic saving of waveform

Feature

・Analogue type
・Pulse type: square pulse (adjustable pulse width)/ burst/ chirp waves
・Frequency: 30kHz～10MHz
・Power supply: DC12V, Battery drive or AC adaptor

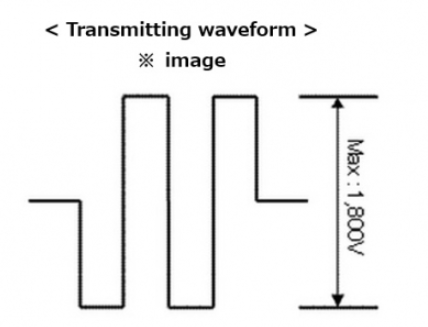

Feature

・High voltage type
・Pulse voltage: 30V～ 1800V
・Pulse type: square pulse (adjustable pulse width)/ burst/ chirp waves
・Frequency: 20kHz～1MHz
・Pulse wave number: 1～5 waves

Feature

・High frequency type
・Frequency: 1MHz ～ 25MHz
・Pulse type: Square pulse wave (adjustable pulse width)/Spike pulse wave
・Pulse voltage: 10 ～ 300V
・Low noise pre-amplifier adapted
・Multi-record capturing function available with expanded optional memory
・DC power operation (including AC adaptor)
・Controlled by PC via USB

Application

・Ultrasonic flaw detection, Sound velocity calculation, Attenuation measurement,
thickness measurement, etc
・High-speed scanners
The “JPR-50SD” High Frequency type is newly added to Ultrasonic Pulser & Receiver’s lineup as a compact, high-performance and cost effective.
The “JPR-50SD” is more suitable for our Ultrasonic Soft transducer “JUTAN”, Flexible transducer “TAKOTAN” and Immersion transducer. Furthermore, by using ‘the multi-record capturing’ function, it can also be used as a high-speed scanner for immersion inspection equipment.

Feature

・High frequency type
・Frequency: 1MHz ～25MHz
・Pulse type: Square pulse wave (adjustable pulse width)/Spike pulse wave
・Pulse wave number: 1 wave

The post Japan Probe JPR-50P High Frequency Ultrasonic Pulse first appeared on Kouei Japan Trading | Get Quotation.]]> https://koueitrading.com/global/product/japan-probe-jpr-10cn-basic-type-ultrasonic-pulse/ Sun, 05 Jul 2020 01:11:36 +0000 https://koueitrading.com/global/?post_type=product&p=117666 Product Made in Japan Manufacturer: Japan Probe Co, Ltd Model : JPR-10CN  Feature ・Basic type, without the age of the scanner ・Pulse type: square pulse (adjustable pulse width)/ burst/ chirp waves ・Pulse wave number: 1～31 waves ・Frequency and pulse voltage are the same as 600C JPR-10CN Standard Specification ( Customized available) Class Item Specification Pulser […]

 Feature

・Standard type, and support usage of scanner
・Pulse type: square pulse (adjustable pulse width)/ burst/ chirp waves, and optional arbitrary waveform
・Minimum crosstalk
・Frequency: 30kHz～10MHz
・Pulse voltage: 10V～600V
・Pulse wave number: 1～300 waves

Specification

C25=Micro Dot
※ Please, contact us to inquire about them beyond the connectors above.

Order Method

※ We also carry Receptible connector.
※ Please, contact us to inquire about them beyond the connectors above.

Order Example

Please, specify the specifications of probe and connector on either side of device side.

Ultrasonic probes / ultrasonic transducers of broad band, high sensitive and fine part with fine soldering technology, skillful machining technology.
Miniature fine ultrasonic probe [M F P] is widely used for angle beam, straight beam detection, thin type, immersion type, and direct contact type detection It is realized for high sensitive and broad band frequency using composite material in various field.
It is suitable method for adjacent inspection of welded part, thin ring groove, bar, pipe inspection and fine inspection and measurement.

This ultrasonic probe / ultrasonic transducer with high sensitive and high resolution is effective for detection of small defect.

Use

Detection and Measurement of Thinner Objects
Semiconductor Testing

Specifications

Type: Immersion / Straight / Angle
Frequency: Max at 25MHz
Element Size: ~ φ6
~ 3×3

This ultrasonic probe / ultrasonic transducer is a good construction to supply good liquid couplant to inside pipe surface.

This ultrasonic probe / ultrasonic transducer fits narrow detection areas and thin measurement areas, Selection is possible by the straight type, hammer type, and nose type. The resolution of straight type and hammer type is 0.8mm in steel: broad band and high resolution.

The ultrasonic probe / ultrasonic transducer fits to the test specimen with magnet, furthermore it is possible for scanning.

It is possible for easy inspection to the part of vertical surface and ceiling surface even if it is in the condition of upside-down with magnet force.
To hold a probe is not necessary and the operation of ultrasonic flaw detector is easy so the stable inspection and measurement is realized.

Use

Measurement for axial forces of bolt
For SH Wave
For Flow Rate Measurement
When you fix the probe on objects

Specifications

Inserting the magnet inside the probe
Attached outside the probe

Solutions

Material by various probe/transducer
Inspection at the vertical portion

Heat–resistant elements, cases, and cables are used it is a possible application for high-temperature conditions.
A suitable selection of detection and measurement is possible for optimum ultrasonic probe / ultrasonic transducer.
We will design the ultrasonic propagating material as customer’s requirement.

High Temperature Dual Element Straight Beam Probe

(Usual Temperature: Until 150℃)

Cable resisting heat up to 300℃, You can select it from 500℃.

We also carry the high temperature cable and wedge. We offer the optimal products based on customers’ demands and needs.

Heat–heat-resistant element is a possible application for high-temperature conditions.
A suitable selection of detection and measurement is possible for optimum ultrasonic probe / ultrasonic transducer.
We will design the ultrasonic propagating material as customer’s requirement.

High-Temperature Straight Beam Probe

Cable resisting heat up to 300℃, You can select it from 500℃.

We also carry the high temperature cable and wedge. We offer the optimal products based on customers’ demands and needs.

■ High Temperature Angle Beam Probe

(Usual Temperature: Until 120°C)

Ultrasonic Dry Couplant & Flexible Transducer (KANTAN) fits on curved surfaces with its flexibility using 2 layer structure consisting of, “composite elements” and “damping materials”.
Furthermore, it can be used in a dry status thanks to proprietary “matching layer” technology.

Its enhanced usability allows it to be used with　commercially available ultrasonic flaw detectors.
■Standard Features (Ultrasonic Dry Couplant & Flexible Transducer)
・Type：Single or dual element straight beam
・Frequency：2～5MHz
・Element size：Φ5～Φ10mm
・Connector：LEMO(S)／G51／C25
・Operating temperature： Room temperature

■ Single Element Straight Beam

■ Dual Element Straight Beam

TAKOTAN“ is an ultrasonic transducer that realizes inspection and measurement to fit on curved surfaces with its flexibility using 3 layer structure consisting of, “composite elements”, “matching layer” & “damping materials”.

Its enhanced usability allows it to be used with commercially available ultrasonic flaw detectors.
■ Standard Features (Flexible transducer)
・Type：Single or dual element straight beam
・Frequency : 2～10 MHz
・Element size : Φ5 ～ Φ10mm
・Connector：LEMO(S)／G51／C25
・Operating temperature：Room temperature

■ Single Element Straight Beam

※NEW : new line-up

■ Dual Element Straight Beam

※NEW : new line-up

Thickness Measurement Of Elbow Type

The point of this ultrasonic probe / ultrasonic transducer is a cartridge type, so element size and frequency is possible to change for use.
The detecting surface of this probe/transducer is very flexible and fits to uneven surfaces, so it is possible for stable inspection and measuring, From the curved surface, highly sensitive detection and measurement is available by this transducer.

■ Dual Element Straight Beam

The point of this ultrasonic probe / ultrasonic transducer is cartridge type, so element size and frequency is possible to change for a use.
The detecting surface of this probe/transducer is very flexible and fits to uneven surface, it is possible for stable inspection and measuring. From the curved surface, high sensitive detection and measurement is available by this transducer.

■ Single Element Straight Beam

The detecting surface of this ultrasonic probe / ultrasonic transducer is very flexible and fits to uneven surface, it is possible for stable inspection and measuring.
It is possible for high sensitive detection and measurement to the curved surface and thin part.

Dual Element Straight Beam

Solution

Material by various probe/transducer

UT for fillet weld in tee joint

Material by various probe/transducer

UT for weld bead

Material by various probe/transducer

UT for gas cutting surface

Material by various probe/transducer

Simulation on fillet weld

Material by various probe/transducer

Simulation on welded bead

Material by various probe/transducer

Simulation inside pipe

The detecting surface of this ultrasonic probe / ultrasonic transducer is very flexible and fits to uneven surface, it is possible for stable inspection and measuring.
It is possible for high sensitive detection and measurement from the curved surface.

■ Single Element Straight Beam

High-sensitive line focus type Air Probe/Transducer

By the development of the air-friendly matching layer, high sensitive air probe allows you to transmit the ultrasound efficiently in the air. It’s available to apply for the high damping materials or high-resolution imaging.
Frequency at 200kHz~800kHz

■ Line Focus Type (High Sensitivity)

We design the probe based on customers’ demands and needs.

By the development of the air-friendly matching layer, high sensitive air probe allows you to transmit the ultrasound efficiently in the air. It’s available to apply for the high damping materials or high-resolution imaging.
Frequency at 200kHz~2MHz

■ Point Focus Type (High Sensitivity)

We design the probe based on customers’ demands and needs.

By the development of the air-friendly matching layer, high sensitive air probe allows you to transmit the ultrasound efficiently in the air. It’s available to apply for the high damping materials or high-resolution imaging.
Frequency at 50kHz~2MHz.

Flat Type (High Sensitivity)

We design the probe based on customers’ demands and needs.

Flexible fitting to any curved surface！Bending！Broadband & High sensitive！
Ultrasonic array probe / transducer “KYOKUTAN” is available for inspection and measurement to any shape specimen.
It is possible to inspect and measure to any curvature being difficult inspection such as curved/gap/uneven part.

Broadband Flexible Array Probe “KYOKUTAN” is the achieving ultrasonic broadband frequency range and high sensitive inspection.
As the result, it is available for inspection to subsurface defect, adjacent defect and high ultrasonic attenuated material such as carbon reinforced plastic fiber (CFRP), glass, reinforced plastic fiber (GFRP), aluminum die casting, welded part.
■Application Field
・Aerospace ・Automobile ・Consumer electronics ・Plant 　・Road, Bridge ・Medical field, etc.
■Target
・Composite materials (CFRP, GFRP, etc.)　 ・Metal　 ・Resin, etc.
■Standard Specifications (Customizable)
・Frequency：5MHz
・Element arrangement：Linear / 64 elements
・Flexibility：Resin→R5mm、Metal→R8mm
・Operating Temperature：Room temperature
・Connector：IPEX, Hypertronics, TYCO, and ITT Canon can be provided according to the phased array device.
・Cable：Multi-core coaxial cable (16〜128 CH)

Solution

We produce 1-3 composite elements with high sensitivity characteristics, and transducers are also suitable for various kinds of experiments and research purposes.

Utilizing our outstanding technical capabilities and experiences backed by our customers and numerous achievements, we manufacture customized array transducers swiftly.

■Element Model & Waveform
・Element type：1-3 Composite element
・Waveform：Broadband, small variation in terms of sensitivity
・Detection：All waveform data

■Specifications
・Frequency：100kHz～15MHz
・Element numbers ：8～1024 (Specialty Item)

■High Temperature Applications
・ High temperature design for 120℃
※ Wedge material too

■Quality
・ Advanced micro soldering by skilled workers

■Connectors
・HYPERTRONICS / TYCO / IPEX / ITT Canon
※ Besides, we also carry special connectors.

■Cables
・Multicore coaxial cable：16～128Ch
・Track No：#30, #36, #40
※ Besides, we also carry radiation Tolerant & Robot Cable.

■Array Transducer Accessories
■Conversion & Extension Cable
・Connector & Receptible : HYPERTRONICS / TYCO / IPEX / ITT Canon
・Cable : Multicore coaxial cable (~128CH)

■Wedge for Array
・Materials : Polystyrene / Acryl / SX materials (for high temperature)
Polyetherimides, etc.
