Holder Yellow

Features

This is a plastic protective device designed to prevent the screw’s circle from rotating during use. This is a good choice for people who frequently remove shackle screws. With the main colour being yellow, you can easily check that the screws are tightly fixed even when you are a bit far away.
In case of prolonged lifting, use dowel pins.

Characteristic

• Installation and disassembly are easy and quick. It helps increase performance during frequent installation and disassembly tasks.
• With its bright yellow colour, you can easily check the installation status even from afar.
• Light and compact, so you can easily carry it when working at high places.

Use

Place the shaft part of Holder Yellow (①) into the pinhole of the shackle (②), and push until the shaft is completely through. Attach the eye part of Holder Yellow (④) from the side of the shackle body (③) so that it lies close to the shackle body and use.

• We recommend using it in the installation position shown in the image to prevent entrapment.
• Replace any damaged or deformed product with a new product.
• Please use dowel nails as usual when using for a long time or for fixation.
• Use at room temperature. (Since it is a plastic product, please avoid using it in high temperatures or cold areas. This may cause deformation or damage.)
• Please do not use shackles other than ours.

D-Bolt

Features

This is a new type of ring head bolt developed to support objects more easily and safely. No tools required, you can easily install and remove it from the object. The D-ring section is operable, allowing vertical or tilted lifting. Since you can replace the bolts, it’s very economical. Try experiencing it once.

Dimension table (unit = m/m)

As for the length L of the screw, you can change the length, please discuss this.
If you want to change the distance between the screws, please discuss this.
To replace the screw set, contact our sales agent.

D-Bolt Features

• Self-standing, easy to lift items (in case of vertical lifting)
• When lifted vertically, the circle stands on its own, easily connecting to devices such as hooks.
• The ring part can move in the lifting direction
• The ring part can move 180° in the lifting direction, suitable for lifting objects up, horizontally or obliquely.
• Using special alloys enhances safety.
• No tools required, can be installed on various parts such as molds (Enhanced practicability)
• Change the screw length and screw diameter by replacing the screw set (Please see more)
• No need for torque management. Can lift items vertically.
• If the ring or screw part is deformed or cracked, it is a sign of exceeding the load weight. Please stop using it and replace it with a new screw set.
• In case of multi-point lifting, arrange the position of the screw set to balance the weight.

F type

Features

Dimension table (unit = m/m)

*Plating is also available, so please contact us.

E type

Features

Dimension table (unit = m/m)

*Plating is also available, so please contact us.

C type

Features

Dimension table (unit = m/m)

*Die forging is available for nominal sizes from 0.5t to 5t.
*Plating is also available, so please contact us.

SUS304 Double Canyoritri (Forged Product)

Features

Dimension table (unit = m/m)

*SUS304 both cantilevers will be manufactured to order as soon as the stock runs out.

Yoritori (Fishing Hardware)

Features

Dual Kanyoritori

The method of use is the same as Sarkhan, and it is used to connect wires together. Sizes range from 9mm to 56mm.

U-Shaped Twist

This type has the main body on one side and joint parts on the other side, making it easy to install and remove.It is used by fixing one side or inserting a pin. It is called Sarkhan and is only made of iron. The plating is the same for both types. Are the fish big too? This type is often ordered by overseas fishermen. Kansai Kogyo’s swivels are characterized by smooth rotation and resistance to deformation, even if the indicated working load is the same.
This Sarkhan is not made of stainless steel. Its strength is a sense of security that only those who use it can understand.

Dimension table (unit = m/m)

*U type twisting (caulking stop) is available from 16.
*Please contact us each time for the nominal size 44 or later.

Ultra Swivel-TKE

Features

Made of special steel, it is waterproof and lubricated, making it suitable for heavy equipment, buckets, earth drills, etc. that are subject to strong impact.
Working load: 6ton, 12ton, 20ton

Dimension table (unit = m/m)

Ultra Swivel-TKA

Features

Waterproof eye plate type suitable for sea/undersea work, connected with a shackle. Often used in marine equipment, fishing reef anchors, underwater cranes, etc.
Working load: 10ton, 15ton, 25ton, 50ton, 75ton
*Special sizes can also be manufactured. Please consult us.
Production results: 35T, 40T, 85T, 100T

Dimension table (unit = m/m)

Ultra Swivel-TKB

Features

This type is for connecting shackles and is widely used for sea anchors and other marine-related work.
Working load: 1ton, 2ton, 3ton, 5ton, 10ton

Dimension table (unit = m/m)

TKS–Ultra Swivel

Features

This type is popular and intended for occasional use.
Please use by connecting directly with wire rope. Although it is not waterproof, it is filled with grease and can be used underwater for short periods.
Working load: 0.5ton, 1ton, 2ton, 3ton, 5ton

Dimension table (unit = m/m)

New Large Inner Diameter Oval Ring

Features

Old Model (Will switch to new type when out of stock)

Dimension table (unit = m/m)

New Model

This ring has been developed to prioritize a lightweight design and ease of use. By using high-strength materials, we have increased its bearing capacity.
The inner diameter of this bracelet is the same as the old orange model, ensuring ease of use while reducing weight.
Models with a maximum capacity of 20 tons are flash-butt heat-welded models, while 25-ton and 30-ton models are one-piece forged models.
※ The 25-ton model is the same size as the old orange model. We also have the orange style in stock, so please don’t hesitate to get in touch.

Dimension table (unit = m/m)

SUS304 Lifting Ring (Forged Product)

Features

For products made from alloy steel, we use SUS304 for stainless steel products, so the load-bearing capacity will be reduced. Pay attention to the load-bearing capacity when using. Compared with conventional rings, our rings do not have welding points, making the product more durable and have a longer lifespan.
We produce sizes from 1 ton to 4 tons and set load capacity limits to ensure our products can withstand twice the test load.
For other companies’ products using SUS304 material, it is often impossible to guarantee the reliability of the load-bearing capacity on the product label.

Dimension table (unit = m/m)

Strong Ring (Forged Product)

Features

This ring is made from alloy steel and we currently produce sizes from 16mm to 50mm.

Dimension table (unit = m/m)

Sling Hook

Features

Even if a high-strength sling belt woven with Technolar is hung directly on this hook, it has a curve that will not damage the belt.It is lightweight and has a high strength with a safety factor of 5 times the working load before deformation. Since it is a swivel type with a return function, it is possible to swing at a delicate angle. This is PAT’s  original.
To install, remove the roll pin, pass the shackle through the can, then install the nut and drive the roll pin. There are 5 ton type and 12.5 ton type with specified load.

Dimension table (unit = m/m)

SUS304 Weight Hook (Forged Product)

Features

We also manufacture stainless steel.
However, the working load is from 0.5t to 3t.

Dimension table (unit = m/m)

New Type Heavy Hook (Forged Product)

Features

Used by incorporating wire rope. This type is also commonly called a hook.
We manufacture sizes ranging from 0.5t to 5t. There is no hook that meets JIS dimensions.
Items marked as JIS have different dimensions. It has a green anti-rust coating.

Dimension table (unit = m/m)

B: without spring included
B’: with spring included

Strong Swivel Hook

Features

This is a lightweight, easy-to-use hook, equipped with a return function. It can hang four bands at the same time and achieve a safety rate of over 5 times.
With wide opening mouth and small hook head, it easily enters pallets or small holes, making lifting convenient.

Dimension table (unit = m/m)

The safety ratio is over 5 times.

Strong Eye Hook

Features

This is a type of hook designed based on basic principles such as durability, lightness and ease of hanging. In particular, this is a type of hook optimized for use on pallets and small holes. It has been designed to optimize practicality during work. Its characteristic is the ability to rotate flexibly and can be easily passively inserted into the hole of the eye screw.
Its load capacity can be from 0.3 tons to 3 tons.

Dimension table (unit = m/m)

Special Shackle – Shackle for Oil Fence

Features

Hot-dip Galvanized

Steel WLL 0.7t (Only available in this size.)

SUS304

SUS304 WLL 0.7t (Only this size is available.)

Special Shackle-BN Lock Shackle

Drawing

SUS304 Average Shackle (Straight With Collar)

Features

The shackle products have improved quality and increased bearing capacity. We have implemented strict quality control, completely different from imported products.

Dimension table (unit = m/m)

Twisted Shackle

Features

KANSAI produces fasteners with the goal of enhancing their quality and enhancing their bearing capacity.
We are dedicated to product quality management, completely different from imported products.

Size table (unit = m/m)

☆ An asterisk (*) represents a long-form product. Can be used for cables. We accept electroplating and hot galvanizing.
Sizes 16, 19, 16 (L=100) will be discontinued when out of stock.
Size 19 (L=115) has been discontinued.

Titanium Shackle (Pure Titanium, 64 Alloy Titanium)

Features

We also produce titanium shackles, a product that is much lighter than iron and has excellent corrosion resistance. We have had many successful production results in this field. The product’s remarkably light weight helps reduce the burden on the person performing the work.

Regarding stock status and product specifications, please contact us. We look forward to supporting and sharing with our customers.
Please contact us for more details on specific sizes and availability. We will create memorable experiences for our customers.

※ Please contact us for specific size and inventory information.

Super Strong Shackle

Features

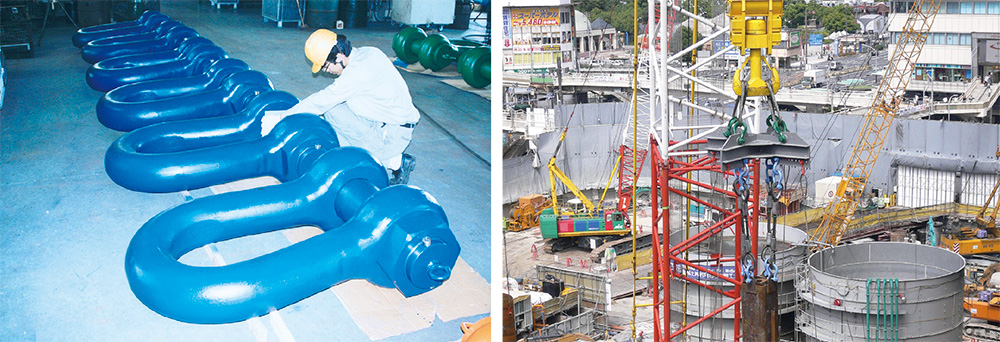

Working load: 800 tons. This is the world’s largest shackle.

1150 Type Straight Shackle

Dimension table (unit = m/m)

*The safety factor is more than 6 times.

2130 Type Bow Shackle

Dimension table (unit = m/m)

US Shackle – KS/KG109/KS/KG1130 (Bow type)

Features

“KS” means “base material” while “KG” means “plated layer.”
“109” refers to helical type screws while “1130” refers to screws and nuts.

Dimension table (unit = m/m)

Types with capacities of 100 tons, 130 tons and 150 tons are designed with round head shapes and handles.

* Braking load is 6 times greater than working load.

US Shackle – KS/KG209/KS/KG2130 (Bow Type)

Features

Dimension table (unit = m/m)

The 120 ton and 150 ton types both have handles. The bearing load is 6 times or more greater than the working load.
The proof test is conducted by applying a load similar to the single-point concentration method according to JIS standards, with a load twice the use load.
Shackle models 209 and 2130 were redesigned in size based on models 109 and 1130, to withstand loads twice the load used in load proof testing. This is a new product added to the product line.
Models 109 and 1130 will be made to order while stocks last.

US Shackle – KS/KG100/KS/KG1150 (Straight Type)

Feature

“KS” means “wear-resistant steel” while “KG” means “galvanized steel.”
“1150” refers to “Straight nut-bolt type” while “100” refers to “Straight-bolt type.”

This is a US standard, not an ISO standard, and is only available in the US.

Although the working load is specified, in a static test with a concentrated point load, the product will deform if twice the load is applied. In addition, since the test load is not constant, it is used in the working load. This is the difference between Japan and other countries.
These products have higher quality and durability in both quality and bearing capacity.

Dimension table (unit = m/m)

120ton and 150ton have handles.
The breaking load is more than 6 times the working load.
The proof test uses the same single point concentrated loading method as JIS and is twice the working load.

Strong Length Shackle

Features

Light weight and easy to use

Used load intensity: From 3.5 tons to 9.5 tons.
This shackle is heat machined from a special alloy, with good hardness and ductility.
Gentle and easy to use.
Rated higher than shackles of the same size from other companies.

Guaranteed safety

Despite having the same load capacity, this shackle has been reduced in weight, meaning lifting operations in harsh conditions will become safer and easier. The hardness of the product exceeds 6 times the used load and has been tested with 2 times the used load before leaving the factory.
No other product has the same hardness as ours.

Save

Thanks to good heat treatment techniques, the product has good quality and is abrasion resistant, less susceptible to damage and durable enough to be used for a long time, which creates high economics.

Reliable

Trusted and designated by large construction companies, companies specializing in roads and bridges, highly reliable and highly rated.
We do not sell wholesale to suppliers who do not know the quality of the product from any brand. We only deliver to designated dealers.
Please contact for more details.

Dimension Table (unit = m/m)

Features

It is used in the same way as a straight shackle, and the characteristic of the bow type is that it prevents the wires from overlapping each other when two wire ropes are hung together, and makes sling work easier.
The working load for RB is 5t to 120t.
RBE ranges from 5t to 40t, and like RSE

RB Shackle (Bow Type/Bolt/Nut Type)

RBE Shackle (Bow Type/Screw Pin Type)

Dimension table (unit = m/m)

RS Shackle (Straight Type/Bolt/Nut Type) Lightweight Shackle

RS is straight bolt-nut type and RSE is screw type.
RS is available from 1t to 120t.

Dimension table (unit = m/m)

RS Shackle (Straight Type/Screw Pin Type) Lightweight Shackle

RSE is KANSAI original product from 1 ton to 40 tons.
＊Can be produced according to special sizes

Dimension table (unit = m/m)

Please appoint someone to inspect the shackles using a crack from blockage test every year (if required) or a chromatography or chromafIinity test to ensure that there are no cracks before carrying out the work.

Shackle For Textile Sling

When connecting a wire rope to the pin side of the fiber sling shackle (BSW), please incorporate it. Each shackle has its own size.

Dimension table (unit = m/m)

Shackle For Textile Sling

BSW Shackle (For Fiber Slings Joints)

Feature

Suspension shackles (used for straps and metal plates, steel wires). This is a new type of shackle suitable for connecting to metal plates when lifting goods. Attach it to the docking hole when lifting heavy objects with a belt or round sling, and attach the belt or round sling to a flat surface.
It maximizes the strength of the straps and minimizes pain.
We have a full line of products.

Size

From 2.5 tons to 150 tons.

Dimension table (unit = m/m)

Due to the forging process, there may be a slight error in the width of the top.
Test load is twice the load. Safety factor of 5 times or more.
Fatigue test: BSW/JSW3.5t has exceeded 100,000 times in repeated tests! (ISO 2415 specifies 10,000 times.)

Shackle For Textile Sling

JSW Shackle (For Fiber Slings Joints)

Feature

A shackle made for connecting fiber slings.
High-strength roundslings are expensive, and due to the desire to use them with as little pain as possible, they were developed to eliminate the burden of wire breakage due to bending. This product is a shackle specifically designed to connect fiber slings, so please do not connect it to wires or hanging pieces. Be sure to use it with a pipe roller.

Size

From 2.5t to 150t.

Dimension table (unit = m/m)

Due to the forging process, there may be a slight error in the width of the top.
Test load is twice the weight. Safety factor of 5 times or more.
Fatigue test: BSW/JSW3.5t has exceeded 100,000 times in repeated tests! (ISO 2415 specifies 10,000 times.)

Use when connecting cables to pin faces.

Specifications

Dimension table (unit = m/m)

WRBE (Screw Type)

Bow type

It is similar to the lightweight shackle, but it is lighter than the conventional one, and the bow part, which was large, has been made slightly smaller. A characteristic of the bow type is that when two wire ropes are hung, he can prevent the wires from overlapping each other and make slinging work easier.
WRB is a bolt/nut type from 2.5t to 63t, and WRBE is a screw type from 2.5t to 20t.
Now more gentle on wire rope.

*A guide roller is available as an option when connecting a wire rope to the pin side.

Specifications

Dimension table (unit = m/m)

* Dimensions may vary slightly due to forging and casting.
Test load is twice the load. Safety factor of 6 times or more.
Fatigue test: WRBE3.5t has exceeded 100,000 times in repeated tests! (ISO2415 specifies 10,000 times.)

Bow type

It is similar to the lightweight shackle, but it is lighter than the conventional one, and the bow part, which was large, has been made slightly smaller. A characteristic of the bow type is that when two wire ropes are hung, he can prevent the wires from overlapping each other and make slinging work easier.
WRB is a bolt/nut type from 2.5t to 63t, and WRBE is a screw type from 2.5t to 20t.
Now more gentle on wire rope.

*A guide roller is available as an option when connecting a wire rope to the pin side.

Specifications

Dimension table (unit = m/m)

* Dimensions may vary slightly due to forging and casting.
Test load is twice the load. Safety factor of 6 times or more.
Fatigue test: WRBE3.5t has exceeded 100,000 times in repeated tests! (ISO2415 specifies 10,000 times.)

Straight Type

The lightweight shackle was developed to reduce cable bending that occurs with lightweight shackles.
WRS is a straight bolt-nut type and WRSE is a helical type. The WRS is available in sizes 5t to 32t and the WRSE is available in sizes 5t to 20t.

Specifications

Dimension table (unit = m/m)

* Dimensions may vary slightly due to forging and casting processes.
Test load is twice the load. Safety factor of 6 times or more.
Fatigue test: WRBE3.5t has exceeded 100,000 times in repeated tests! (ISO2415 specifies 10,000 times.)

Straight Type

The lightweight shackle was developed to reduce cable bending that occurs with lightweight shackles.
WRS is a straight bolt-nut type and WRSE is a helical type. The WRS is available in sizes 5t to 32t and the WRSE is available in sizes 5t to 20t.

Specifications

Dimension table (unit = m/m)

* Dimensions may vary slightly due to forging and casting processes.
Test load is twice the load. Safety factor of 6 times or more.
Fatigue test: WRBE3.5t has exceeded 100,000 times in repeated tests! (ISO2415 specifies 10,000 times.)

Roller For SWS/SWB Options

Specifications

Dimension table (unit = m/m)

SWB Shackle (Bow Type)

Characteristics

Based on JIS-V class, we have completed an ultra-lightweight wide shackle with the aim of making it lighter and easier to use. This is a KANSAI original. The weight is as light as JIS-V class, the test load is double the concentrated load, and the safety factor is over 6 times. It reduces back pain and delivers the best impression to those who use it.

Working load…27.5t~125t

Features

It’s light! Good workability! !

Comparing a shackle with a working load of 50 tons…

The weight of the JIS BB-90 shackle (M class) is 152kg.The
weight of the lightweight shackle RB-50ton is 94kg.The
weight of the ultra-lightweight special wide shackle is 35.9kg! !

The main unit alone weighs around 23kg, so it can be lifted with one hand. (Top photo)

It is incomparably lighter than conventional shackles, and work efficiency is surprisingly improved.
Wire life is also significantly extended.

In addition, since work can be done with the shackle in the upright position, slinging can now be done by one person, whereas previously it required two people. (Photo below)

Specifications

Dimension table (unit = m/m)

*Due to forging, there may be slight dimensional errors in the top width.
*Proof test is twice the working load. The safety factor is more than 5 times.
