Features

• For high-precision/ultra-precise surface properties measurement calibration standard piece
• Tailor-made standard pieces: can be processed into the required shape. (Consultation required)

Specification

Chirp Waveform Standard Chip SS-M30

Features

• For high-precision/ultra-precise surface properties measurement calibration standard piece
• Tailor-made standard pieces: can be processed into the required shape. (Consultation required)

Specification

Sin Wave + Segment Difference Standard Sheet SS-M20

Features

• For high-precision/ultra-precise surface properties measurement calibration standard piece
• Tailor-made standard pieces: can be processed into the required shape. (Consultation required)

Specification

Sin Wave + Sin Wave Standard Sheet SS-M1

Manufacturer: Kosaka Laboratory Ltd.

Features

• Measure the straightness of the tape edge running surface (spiral) of the VTR cylinder.

Features

Features

• Ancillary equipment for submerged cargo pump systems is available as a separate unit.
• The equipment stabilizes and maintains the cleanliness of hydraulic oil and lubricating oil, contributing to reduced environmental impact by extending lubricant service life.
• The external power supply for the circulation pump operates at 100 VAC or 200 VAC.
• The design is portable and allows easy load adjustment.
• Equipment selection and customization are based on specifications such as the number of tanks, tank volume, and temperature.

Specification

Features

• Pump units are also available. Unitization reduces the burden of on-site installation work.
• The optimum pump is selected based on specific requirements.

Specification

Hydraulic Equipment

• Application (Usage): Hydroelectric power plant (for guide vane operation)

• Working Fluid: Turbine oil ISO VG46

• Specification: 85 L/min × 23.5 MPa × 2 units

• Operating Temperature: 5 – 40℃

• Operating Viscosity: 75 – 400 cSt

• Unit Components: Ball valve, Y-type strainer, check valve, electromagnetic switching valve, hydraulic pump, etc.

Features

• The basic structure and performance of the three-screw pump are maintained, but the seal-less pump has been realized.
• Since there is no shaft seal, there is no leakage of liquid to the outside.
  Therefore, it is safe and environmentally friendly.
• There is no danger of environmental pollution due to seal leakage, ignition of leaked liquid, or explosion.
• Periodic replacement of the shaft seal is eliminated, reducing the cost of maintenance.
• Can be used for a wide range of specifications, from low to high-viscosity fluids.
  Can be used without any problems even with fluids such as crude heavy fuel oil, for which shaft seals were previously too harsh.
• Foot bracket type for space saving. No common base is required.
  Mounting direction is also flexible.

Features

• Lube oil pumps compliant with API676.
  This pump can significantly shorten the lead time and can be installed in any direction.

Specification

• Applicable standard: JIS, API676-2nd
  Shaft sea: Mechanical seal
  Bearing lubrication: Self lubrication
  Discharge pressure: Max. 3.0 MPag
  Suction pressure: 0 MPag
  Fluid: Lubricant oil
  Viscosity: 13～500 mm2/s
  Allowable temp: Max.80 ℃
  Rotation speed: 1500～3600 min-1

Dimensions

Performance at 13 mm2/s (Reference)

Features

• This machine can strap every kind of a single or a stack of packaged products, such as natto (fermented soy beans), tofu, and pre-cooked food products.
• A newly developed film exchange system is adopted, enabling easy film setting.
• Attachment of Inkwriter, register mark sensor, etc. is possible.
• Installing a free roller at the outlet as an option allows one person to do strapping through box packing.
• This is the most appropriate for small lot production of a wide variety of products.
• Applications: Packaged products including natto (fermented soy beans), tofu, pre-cooked food products, cakes, confectionaries.

Specification

Features

• Side taping of vessels of cup salad, packed lunch, etc. has been so far performed only manually.
• This machine automated this work to improve the productivity, to reduce the cost considerably and to realize sanitary and safe automatic side taping.
• Applications: Various salad cups, various lunch boxes, spaghetti, soba (buckwheat noodles), udon (wheat noodles) and various daily dishes.

Specification

Features

• The binding method type can be easily changed by individually registering settings such as adjusting the tape length for the object on the touch panel.
• With an input height as low as 700 mm, the design ensures good workability.
• The system eliminates misalignment or disproportionation of the tape that typically occurs when applied by hand, ensuring quick and neat binding.

Specification

Features

• Built-in automatic feeder realizes binding capacity of 45 bundles per minute.
• Compatible with high-speed vertical bag wrapping machines (up to 90 bags per minute).
• Enables stable high-speed operation with a margin. U-shaped binding that opens the front is also possible.
• Softly stack two or three layers of products that you do not want to tighten with tape, and bind them securely.
• A single machine SPA-2500S (without automatic loading machine) and a reversing device, lift conveyor, and automatic pouch loading machine are also available as line configuration options.
• Applications: Vienna sausages, sausages, flat bags, purse-type bags, various packages of sliced food, hamburger steak, chikuwa (fish paste), hanpen (cake of pounded fish), noodles, etc.

Specification

Features

• Equipment that fully automatically performs all the processes of scribing glass boards supplied from the loader cassette in the X and Y axes, inverting back and front, breaking and delivering divided cells.

Features

Features

• Equipment that automatically scribes a large glass board by a roll cutter.
• There is a wide variety of software for scribing.

Specification

KS-250F

KS-260F

Features

• Equipment that automatically scribes a large glass board by a roll cutter.
• There is a wide variety of software for scribing.

Specification

KS-150F

KS-160F

Features

• A resin coating device is a device that injects a certain amount of resin into packages such as LED substrates using a dispenser.
• The transport system is a type with an XY stage and a loader/unloader.
• Applications: LED substrate

Features

• 【KFA-11】
  LD manufacturing equipment common to LD chip and PD chip.
• 【PD die bonder】
  High-accuracy die bonder to mount PD chips.
• Applications: LD manufacturing

Features

• TR-100 series achieves high accuracy and high speed.
• Flexibly supports development, prototyping, mass production by combining units. It can handle a wide variety of workpieces.
• Applications: LED chip, IC, sensor mounting

Specification

Features

• Piston direct acting temporary pressure Control valve.
• Stable operation.
• Quick response.
• Secondary pressure guarantee.
• High accuracy of pressure adjustment.
• Operation test and pressure setting are conducted at the time of delivery.
• Optional primary pressure control valve for low pressure (0.1～0.5 MPa) available.

Specification

Application example

Main Corresponding Liquids

Features

• This product is a submerged cargo pump, with one pump per tank.
• The cargo pump is hydraulically driven, with an oil motor mounted on the drive unit, and the discharge volume can be controlled by a controller on the machine or a remote-control panel.
• Mechanical seals are used on both the cargo side and the hydraulic oil side of the shaft seal.
• Excellent sealing performance and high durability support improved uptime and safe cargo handling.
• The inside of the support pipe supporting the cargo pump from the deck is always in a dry atmosphere, and independent hydraulic piping on both the inlet and outlet sides reduces the amount of hydraulic oil used, contributing to low environmental impact with a structure that is easy to maintain.
• The exterior of the cargo pump is all stainless steel to accommodate a wide variety of cargoes, including liquid chemical products (IMO Type II and Type III), animal and vegetable oils, and refined petroleum products, and the material can be selected to match the cargo being loaded.
• Cargo pump can be optionally equipped with a suction strainer.
• The remote-control system includes an electric control panel installed in the cargo control room and a hydraulic control stand installed in the flying passage near the manifold. Also supports stand-alone control of controllers on the machine side without a remote-control panel

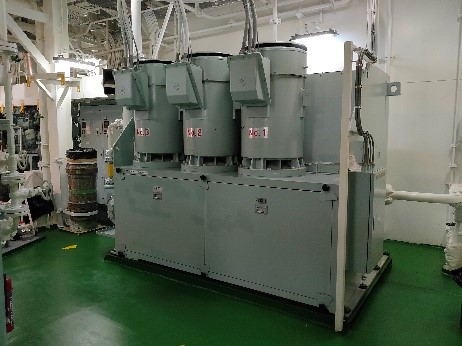

Hydraulic Power Pack

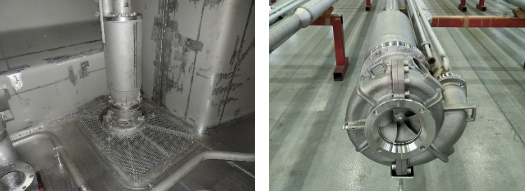

Cargo Pump

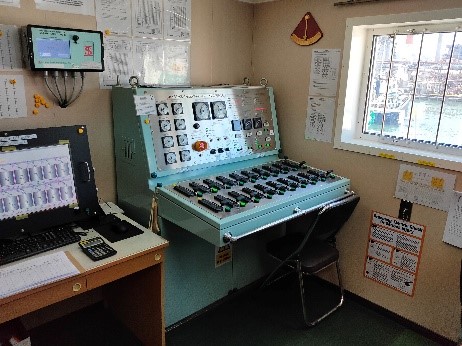

Remote Operation Panel

Specification

• CVS-200-4 600m3/h x 125mLC (S.G.=0.75, Vis.=1cSt)
• CVS-150 300m3/h x 80mWC (S.G.=1.0, Vis.=1cSt)
• CVH-125 200m3/h x 110mLC (S.G.=0.8, Vis.=1cSt)

Features

• It is simple structure, long life.
• Compatible with oil.
• Self-lubricating (for transferring lubricating oil)
• It can comply with ship class compatible and API610.
  遠心 セントル うず巻 centrifugal pump

Specification

CSS Vertical Multi Impeller Pump

CSKT Vertical Multi Impeller Pump

• List of other models
  CHM-B Horizontal Multi Impeller Pump (Barrel Type)
  CHM Horizontal Multi Impeller Pump (Balance Disc Type)
  CHD Horizontal Multi Suction Single Impeller Pump (Horizontal Separate Type)
  CHP Horizontal Single Impeller Pump (Center Support Type)
  CHS Horizontal Single Suction, Single Impeller Pump
  CVB Vertical Multi Impeller Pump
  CHS Fire extinguish Pump

Application example

Main Corresponding Liquids

Features

• It is simple structure, long life, and high efficiency.
• It is low vibration and low noise.
• Suitable for low to high viscosity liquids.
• It has high suction capacity and self-priming.
• It is Low pulsating.
• It has a small rotor diameter, can rotate at high speed, and saves space.
• It can comply with various ship classes and API 676.

Specification

Application example

Land

Ship

Main Corresponding Liquids

Features

• It is rotor and sleeve are non-contact.
• High flexibility in materials allows for use with corrosive liquids.
• It has a high suction capacity and self-priming.
• It is low pulsating.
• It can comply with various ship classifications, the High Pressure Gas Safety Act, and API 676.

Specification

Application example

Land

Ship

Main Corresponding Liquids

Features

• It can handle liquid containing solids, fiber, flock and so on without destroying it.
• It can handle low to high viscosity liquids.
• It has high suction capacity and self-priming.
• It is low pulsating.
• It is easy to control flow rate. (Inverter, reducer, etc.) and more quantitative.
• It has fewer parts, simpler structure, and easier maintenance.
• It can comply with ship class compatible.

Specification

Examples of Use

Main Corresponding Liquids

Features

• Vertical move of column is allowed, built with VMC series, so that VSC series are suitable for measuring large-size work pieces.

Specification

Features

• This series is an articulated three-dimensional coordinate measuring machine able to move even on complicated 3D free-form surfaces smoothly at will, allowing anyone to make accurate measurements with ease.

Specification

Features

• Anyone can easily perform 3D measurement.
• Suitable for small workpieces.

Specification

Features

EC5200 is proper model for heavy duty workpiece. Space saving type with auto centering, tilting, flattering table is mounted.

Specification

Features

These models are compatible with heavy duty components. Especially for large size crankshafts.

• EC3600A: for large-diameter and long components
• EC3600B: for general large-diameter components
• EC3600C: for large-diameter and planes

Specification

Features

• EC1850P/EC3300P is proper model for any types of piston form measurement with oval, taper and ring groove waviness of a piston.
• EC3300P is for high precision specification
• Mechanical or LSC auto centering/tilting with excellent accuracy and high speed
• Analysis of piston form as a cylindrical/conical form

Specification

Features

• EC2500HF/EC2700HF has fully automatic pick-up interchange system, which is guided by measuring menu. Auto posture is inner, outer, upper and lower plane. EC2700F is improved for higher vertical accuracy.
• Full automatic centering and tilting adjustment
• Safety function in pick-up, all postures fully automated
• Automatic changeover function of O.D. and I.D. measurement
• EC2500HLF / EC2700HLF is long column type

Specification

Features

• EC2500H/EC2700H is packaged fully automatic, excellent in repeatability, supreme accuracy, high functionality-best in its class, provided with safety function, and cost-effective. EC2700 is improved for higher vertical accuracy.
• Full automatic tilting and centering
• Safety function in pick-up
• Automatic O.D. and I.D. changeover function (option)
• EC2500HL / EC2700HL is long column type

Specification

Features

• High accuracy Roundness / Cylindricity measuring instrument with achieving easy operation.
• Roatary table with auto-centering and auto-tilting functions.
• Approach is easy to joystick operation.
• Air pressure can be checked easily.
• Can be moved to a position easier to see the position of monitor measurement.

Specification

Features

• EC1850H supplies full automatic capability from centering/tilting to datasheet printing, with high-precision automatic table mounted.
• Full automation of centering and tilting adjustment
• Automatic measurement

Specification

Features

• EC1650H furnish full of ingenuity for measuring with “high accuracy and quickly”. EC1650 is economy.
• High resolution
• 2CR normal type, 2CR phase correct and Gauss filter supplied

Specification

Features

• EC1550HA is proud of high rotation accuracy. Desk top type with user friendly cylindricity evaluation function is supplied.
• Full posture pick-up
• Guarantee Z axis straightness accuracy
• EC1550HA enables measurement of ring groove waviness.

Specification

Features

• EC600 is a high accuracy, easy operation and compact type roundness measuring instrument, which suitable for production sites.
• Easy operation by centering & tilting suport function.
• Easy operation by big setmeter and auto magnification up.
• Quick operation by auto stop function and quick operation button.
• PC analyzing is available(option)

Specification

Specification

Specification

Features

• ET８000 can automatically measure large-size samples up to size2200 × 2600 mm application with high accuracy. Loading\Unloading sample stage is available an optional.

Specification

• Used for fully automatic measurement of large size samples
