Features

• A newly-developed, environmentally-friendly, compact variable pump unit with a low increase in hydraulic fluid temperature
• Meticulous response using an abundant series
• Valve block can be mounted
• Has a compact body and 21MPa compatible
• We have realized low heat generation through fan cooler standard equipment and tank structure innovations
• The return filter is standard equipmen

Low oil temperature rise

Installation space is halved with respect to conventional products
(as compared to conventional Nachi-Fujikoshi products)

Specifications

Explanation of model No

Specifications

Mounting dimensions

Tank capacity and electric motor/pump combination table

	Motor capacity(kW-P)	2.2-4			3.7-4					5.5-4
	Pump capacity(cm3/rev)	8	16	22	8	16	22	35	45	35	45
Tank capacity	20L
	30L
	40L
	60L
	80L

Block specifications
Valve installation in the option block is also possible !

Symbol	Option	Type
		Tank capacity 20, 30L	Tank capacity 40, 60, 80L
F1	F1 type Block (01 x 1 sequential)	F1-1A	F1-2A
F2	F1 type Block (01 x 1 sequential)	F2-1A	F2-2A
F3	F3 type Block (01 x 3 sequential)	F3-1A	F3-2A
F6	F6 type Block (03 x 1 sequential – M6)	F6-1A-M6 (Standerd M6)	F6-2A-M6 (Standerd M6)

Example of installation of a valve block

 We also offer blocks (the R type) that can remove the A and B ports to the right side. Contact us for information.

Valve installation surface

Features

High-efficiency hydraulic unit provides significant savings for machine tools

• High-efficiency hydraulic unit provides significant savings for machine tools
• Energy-saving unit requires no inverter Saves energy in all running modes
• Low heating and low pulsation for high-accuracy machines
• Highly reliable simple structure for easy operation and maintenance
• Approximately 40% less energy consumption than standard unit

Energy-saving design in pursuit of efficiency

Perfomance

Actual example of energy saving using a NC lathe

Specifications

Features of NSPi Series

Easy Operation and Reliable Performance

Immediate start just by turning on the power

The inverter drive NSPi unit can be started easily just by turning on the power.
Just push a single button to operate at maximum energy savings after pressure is adjusted.

Production lines keep running
Production lines continue running even if there is trouble with the inverter because it is based on our reliable NSP unit and keeps running as a regular NSP unit.

Perfomance

Energy-saving effect

Power Consumption Reduced by Approximately 69%
(as compared to NACHI-Fujikoshi’s standard hydraulic units while dwelling)
The base NSP unit consumes about 40% less energy than NACHI-Fujikoshi’s standard hydraulic units. By adding the inverter drive we increase energy savings to approximately 69% as compared to NACHI-Fujikoshi’s standard hydraulic units.

Power rate 40% down

As compared to NACHI-Fujikoshi’s standard hydraulic units, the NSP unit cuts 25% and the inverter drive NSPi unit cuts another approximately 40% from energy bills.

Reduces annual CO2 emissions by approximately two tons

The inverter drive NSPi unit emits about 42% less CO2 than NACHI-Fujikoshi’s standard hydraulic units.
Equivalent to two hectares of forest
Method for calculating energy costs and CO2 emissions

*CO2 emissions factor: default value set by Ministry of Economy, Trade and Industry & Ministry of the Environment Ordinance Number 3, 2006.

Reduce increase in hydraulic fluid temperature

1.5°C increase in ambient temperature

The NSPi series benefits your entire system by lowering oil temperature to improve machining accuracy, lengthen the life of seals and hydraulic fluid, and reduce factory air conditioning costs.
Improve machining accuracy
Lengthen life of seals and hydraulic fluid
Reduce maintenance costs

Greatly reduce the volume of hydraulic fluid

Low Nois

53db. of the wonder
The noise when dwelling is as quiet as a relaxing coffee shop.
The inverter drive saves energy and increases comfort at the same time.
(6MPa while maintaining pressure NSP-10E-22V1A4-20)

Features of UPS Series

• Strong power of Max, working pressure 30MPa
• Designed so pump operates only when necessary for energy savings and low noise.
• Realizes large energy savings compared to conventional hydraulic systems.
• High-speed processing of the servo controller makes positioning on the order of µm possible.
• Compact all-in-one design saves space.
  (It is possible to select either vertical or horizontal setup)

A compact hydraulic system that realizes large energy savings and high precision

Hydraulic Units Explanation of model No.

UPS-00A

UPS-0A/UPS-1A

Specifications

Specifications Hydraulic Units

Electricmotor	AC Servo motor (0.7511kW) (Driving by Servo amplifier) Power-supply voltage Three-Phase (Servo amplifier Voltage) Need fan motor power supply only 11kW single-phase AC200230V 50/60Hz
Pump	Piston Pump (2.015.8cm3/rev)
Using ambient temperature/humidity	0+40°C / 2090%RH(No condensation)
Allowable temperature range of the hydraulic oil	560°C (note7)
Recommended hydraulic oils	Wear resistant hydraulic fluid ISO VG32 to 68 (VG46 recommended)
Working viscosity range	20200mm2/s{cSt}
Oil contamination degree	NAS 10 Class or less
SAFETY VALVE adjustment of pressure Adjustment range of pressure	UPS-00A : 3.532 MPa UPS-0A/1A : 3.530 MPa
Maximum pressure	30Mpa (hydraulic pump part) (Maximum operating output varies according to the combination of motor performance and options)
Color	black

UPS-00A

Type	Output motor kW	Pump capacity cm3rev	Maximum RPM min-1 (note1)	Maximum Flow l/min (note2)	Rated pressure MPa (Continuous) (note3)	Maximum pressure MPa (Short time) (note3)	Tank capacity Lit. (nominal)	Allowed hydraulic fluid level range Lit. (Estimate) (note4)
UPS-00A-2*07	0.75	2.0	3000	6.0	6.4	9.6	V:0.75 H:0.65 L:Without tank (note5)	V:0.3 H:0.2
UPS-00A-2*10 UPS-00A-3*10	1.0	2.0 3.0	3000	6.0 9.0	8.5 5.7	12.7 8.5
UPS-00A-2*15 UPS-00A-3*15 UPS-00A-4*15	1.5	2.0 3.0 4.0	3000	6.0 9.0 12.0	19.2 12.8 9.6	28.8 19.2 14.4

UPS-0A

Type	Output motor kW	Pump capacity cm3rev	Maximum RPM min-1 (note1)	Maximum Flow l/min (note2)	Rated pressure MPa (Continuous) (note3)	Maximum pressure MPa (Short time) (note3)	Tank capacity Lit. (nominal)	Allowed hydraulic fluid level range Lit. (Estimate) (note4)
UPS-0A-2*12 UPS-0A-4*12	1.2	2.0 4.0	3000	6.0 12.0	15.2 7.6	22.8 11.4	V:1.9 H:1.5	V:0.6 H:0.3
UPS-0A-2*20 UPS-0A-4*20	2.0	2.0 4.0	3000	6.0 12.0	25.4 12.7	30.0 19.0

UPS-1A

Type	Output motor kW	Pump capacity cm3rev	Maximum RPM min-1 (note1)	Maximum Flow l/min (note2)	Rated pressure MPa (Continuous) (note3)	Maximum pressure MPa (Short time) (note3)	Tank capacity Lit. (nominal)	Allowed hydraulic fluid level range Lit. (Estimate) (note4)
UPS-1A-5*35 UPS-1A-7*35 UPS-1A-9*35 UPS-1A-11*35 UPS-1A-13*35 UPS-1A-16*35	3.5	4.7 6.7 9.0 11.0 12.9 15.8	2500	11.8 16.8 22.5 27.5 32.3 39.5	21.1 14.8 11.7 9.6 8.2 6.7	30.0 22.2 17.5 14.3 12.2 10.0	No symbol: 4.5 A:3.0 B:6.0	Tank capacity:No symbol V:1.2, H:0.6Tank capacity:A V:0.6, H:0.4Tank capacity:B V:2.8, H:0.8
UPS-1A-5*45 UPS-1A-7*45 UPS-1A-9*45 UPS-1A-11*45 UPS-1A-13*45 UPS-1A-16*45	4.5	4.7 6.7 9.0 11.0 12.9 15.8	2500	11.8 16.8 22.5 27.5 32.3 39.5	30.0 22.6 17.8 14.6 12.4 10.2	30.0 30.0 26.8 21.9 18.7 15.2
UPS-1A-7*55 UPS-1A-9*55 UPS-1A-11*55 UPS-1A-13*55 UPS-1A-16*55	5.5	6.7 9.0 11.0 12.9 15.8	2500	16.8 22.5 27.5 32.3 39.5	27.9 22.0 18.0 15.3 12.5	30.0 30.0 27.0 23.0 18.8
UPS-1A-9*75 UPS-1A-11*75 UPS-1A-13*75 UPS-1A-16*75	7.5	9.0 11.0 12.9 15.8	2500	22.5 27.5 32.3 39.5	30.0 24.7 21.0 17.2	30.0 30.0 30.0 25.8
UPS-1A-13*11K UPS-1A-16*11K	11.0	12.9 15.8	2500	32.3 39.5	30.0 25.1	30.0 30.0

(note1)Operating pressure may be limited by maximum RPM depending on the motor output

(note2)This is the theoretical flow under no load. The actual flow will vary depending on the load pressure.

(note3)Rated pressure is (available) pressure at the rated torque of the motor, and maximum operating pressure is pressure output at 150% torque. However, if this pressure exceeds 30MPa, the maximum operating pressure of the hydraulic unit is limited to below 30MPa.

(note4)An auxiliary tank can be connected if fluctuation in oil volume is greater than allowed values. Contact us for information.

(note5)An oil tank will be separately necessary. Our company can make the oil tanks so contact us for information if you need one.

(note6)Operating conditions may limit the maximum RPM and operating pressure to values lower than those shown in the table above, contact us for more information.
Contact us about operations in which pressure is continuously added over a long period of time because the temperature of the hydraulic fluid sometimes rises due to the operating pressure, so restrictions on the operating pressure and the additional installation of a refrigeration system may be necessary.

(note7)The operating hydraulic fluid temperature is affected by a variety of factors such as the hydraulic unit installation environment, operational method, load condition, etc. so be sure to confirm with your customer in a situation in which the production machine is operating.
In the case that the hydraulic fluid temperature exceeds the operational hydraulic fluid temperature range, it will be necessary to additionally install a separate refrigeration system, so contact us for information.

Specification Servo controller

Type: EPD-PD3-10-D2-20

Power-supply voltage/Power consumption		DC24V±15% / 10W or less	Separate power supply for sensor is needed
Ambient temperature/Humidity		0+55°C / 90%RH or less (No condensation)
Control Content		Cylinder position velocity pressure control	Control mode automatic switching function available
Command Input	Speed Command	Analog voltage DC±10V/Maximum cylinder speed(*1), Cylinder extended by positive voltage, cylinder retracted by negative voltage	(*1)Set using parameters
	Pressure Command	Analog voltage DC±10V/Maximum control pressure(*2) Positive voltage adds pressure to head side, negative voltage adds pressure to rod side	(*2)Set using trimmers
	Position Command	Position selection contact signal (4 contacts), target position selected by bit pattern of 4 contacts, the accelerated and decelerated movement function up until the target position inside the controller is generated and moved, and position of the cylinder is maintained	Target position, maximum movement speed, acceleration and deceleration speed set in advance using internal parameters
Input signal(Contact signal)		Servo on, alarm reset, control mode external switching signal, start point search start signal, start point retraction end point LS, start point proximity LS
Output signal		Alarm, servo ready, control mode monitor, start point search end/in position (also output), pressure consistency
Input preassure Sensor		Analog voltage0.54.5V, or 15V (2ch)	Uses pressure sensor with response time of 1ms or less.
Input position sensor		90° phase difference biphasic pulse, start point pulse (line receiver input) or analog voltage 0 to 10V	If using pulse output positioning sensor, a start point search is necessary once after turning on the power. Pulse output positioning sensor: Uses sensor with resolution of 1µm or less Analog voltage output positioning sensor: Uses sensor with response time of 2ms or less
Servo amplifier I/F		Output: Motor revolve command (analog voltage ±10VDC), Servo ON,Reset Servo Ararm Input:Servo Ararm,Servo Ready
Control panel		Signed 5-digit display, 4 key input, selector switch	Data setting and display, trial operation function

• The connector for controller and the pins are attached.
• If you use a spacer for the servo controller (option: FZV-8676-02A-01), the installation dimensions will be the same as for the former design [EPD-PD2-10(-A)-D2-10], and the height of the connector from the installation surface will be almost the same.

Servo amplifier specification

Hydraulic Units type (UPS series)	Output motor kW	corresponding servo amplifier type	Remarks
UPS-00A-**07	0.75	EPA-PD1-10R075-20
UPS-00A-**10	1.0	EPA-PD1-10R100-20
UPS-00A-**15	1.5	EPA-PD1-10R150-20
UPS-0A-**12	1.2	EPA-PD1-10R120-20
UPS-0A-**20	2.0	EPA-PD1-10R200-20
UPS-1A-**35	3.5	EPA-PD1-10R350-20
UPS-1A-**45	4.5	EPA-PD1-10R450-20
UPS-1A-**55	5.5	EPA-PD1-10R550-20
UPS-1A-**75	7.5	EPA-PD1-10R750-20
UPS-1A-**11K	11.0	EPA-PD1-10R11K-20

(note1) Operating power source :THREE-PHASE AC200220V 50/60Hz
(note2) Separate motor cable and encoder cable are needed to connect the servo motor installed on the hydraulic unit.
(note3) An external regenerative resistor may need to be added in some operating conditions if the capacity of the built-in or external regenerative resistor is not sufficient. For more details contact us with information about your operating conditions (attach the load motion diagram).
(note4) Cable connector included.

Working principle

Rotating the motor forward brings hydraulic fluid to the head side of the cylinder which pushes the cylinder down. The direction the pump rotates controls the direction of the cylinder, and the speed of rotation controls the speed.

System configuration (Standard configuration)

System performance

Pressure characteristics	Velocity characteristics
Pressure sine wave response	Velocity sine wave response
Power consumption comparison

Application examples and effects

Bending machine	More compact machines and improved precision of processing dimensions
Caulking machine, Press machine	These units are able to control swaging (pressured insertion) capability and control the swaging (pressured insertion) completion position so quality management is easy. A positioning mechanism using a conventional mechanical stopper is unnecessary, liberating you from variations in results due to workers.
Grinding machine	Improves the precision of the positioning of the grinding commencement position, having a large energy-saving effect when continuously pressurizing over a long period of time using a fixed pressure.
Precision Press	Improves product quality by smoothly switching from high-speed movement to pressurization control without any surge. Cycle time is shortened.
Straightening machine	It achieves energy-saving, low noise, and a reduction in the amount of hydraulic fluid. Space is saved and transportation and packaging costs are reduced by installing a hydraulic unit in the machine.
Other	A full range of hydraulic systems for machines which are required to be more compact, machines which require a high thrust that cannot be obtained with ball screws, etc.

Features

A hydraulic power unit that offers optimal compactness, high pressure and high flow for drive sources  for stamping presses

• Energy-saving effect improvement
  With the AC servo motor, the unit rotates the pump only to the extent necessary and optimally controls pressure and flow in accordance with the movement of the machine.
  The unit has achieved 80% energy saving as compared with NACHI-Fujikoshi’s standard hydraulic units
• High pressure and high flow


  Type	Pressure	Flow rate
  Type PVS	25MPa	90L/min
  Type PZS	28MPa	140L/min

• compact
  Installation space is reduced 60% as compared with NACHI-Fujikoshi’s standard hydraulic units
  (Oil tank capacity 60L,80L)
• Multi-stage pressure and flow control is simple
  It is possible to switch to 16 patterns using the external signal
• Low Nois
  The operating sound when maintaining the pressure at 21MPa is 60dB(A).
• Low oil temperature rise
  A low heat-generating design that keeps the rise of oil temperature to room temperature + 10°C
  (Oil tank 60L 21MPa while maintaining pressure)

Perfomance

Briefing (for when applying to stamping presses)

• It can be used to replace a conventional hydraulic unit.
• The operating direction of the cylinder is switched using an electromagnetic switching valve.
• Cylinder velocity (flow) and load (pressure) can be controlled at will using the controller.
  (Valves for velocity control and pressure control are not needed.)
• The controller automatically switches between flow control and pressure control in accordance with the loading state.
• The unit can output an external signal (open collector signal) in tandem with flow and pressure commands. It can switch the electromagnetic switching valve, etc. in tandem with the commands.

Specification

Primary specification

(*1)Pump large capacity adjustment range will vary depending on set of small capacity.
For more information, please refer to the instruction manual.

Explanation of model No

Features

Energy-saving
The amount of power consumed is 50W ^(*1), approximately 95% down

Low noiz

Low heat-generating
The rise of oil temperature to room temperature +7°C ^(*1)

Compact
Installation space 35% down (our standard unit ratio)

Leak compensation
At time of accumulator (option) installation
→ Even when stopped, it maintains the pressure, so the energy-saving effect is greater

Specifications of NRP Series

Features

• Compact size
  Integrated structure consisting of hydraulic motor, hydraulic valve and reduction gear enables compact size.
• High-speed movement
  Employs a 2-speed hydraulic motor for increased traveling speed Applicable for a wide range of uses from powerful operation to high-speed movement
• Smooth stopping performance
  Built-in brake valve for stable stopping performance
• Rich variety of options
  Options include a parking brake and shockless relief to enhance starting/stopping performance.

Application

Various uses

Specifications

Type	Maximum final displacement (cm3/rev)	Maximum torque (Theoretical valve) (Nm)	Hydraulic motor maximum pressure (MPa)	Applicable shovel weight (ton)
PHV-1B	458.3	1510	24.5	to 1.5
PHV-2B	670.8	2420		to 2.0
PHV-3B	1134.5	4114	26.0	to 3.5
PHV-4B	2131.6	8312	26.5	to 6.0
PHV-5B	2917.0	12941	32.0	to 8.0

Structure

Operational theory

2-speed hydraulic motor mechanism

Can switch from 1st gear to 2nd gear by changing the swash plate angle.
Applicable for a wide range of uses from powerful operation to high-speed movement.

1st gear (Outputs large torque)

2nd gear (High-speed rotation)

Features

• Compact size
  Improved arrangement of components and decreased height enable installation under the driver’s seat.
• No need for gear oil replacement
  The lubricating system uses hydraulic operation oil for the reduction gear, eliminating the need for gear oil replacement.
• Built-in parking brake
  Parking brake can be built into the hydraulic motor, enabling safer parking on an incline
• Shockless function
  Shockless relief is standard equipment to enable smooth Swing.

Specifications

PCR swing motor

Type	Maximum final displacement	Swing motor Maximum torque	Hydraulic motor Maximum pressure	Mass	Applicable shovel weight
	cm3/rev	N·m	MPa	Kg	ton
PCR-1B	236	627	21.6	24	2.5
PCR-2B	344	1000	21.6	34	3.5
PCR-3B	507	1399	21.6	37	5.0
PCR-4B	784	2434	21.6	55	5.5
PCR-5B	907	3537	24.5	79	8.0

Structure of Swing motor PCR series

Perfomance

Shockless function

Application

And for optimum power and usability to mini excavator

Features

• Enhanced hydraulic pump and electromotor efficiency for decreased electric consumption (Electric motor IE3 premium efficiency compatible)
  <Electricity reduced approximately 20% compared with our conventional product>
• Compact size for space-saving unit design
• Original connection method between pump and electromotor shaft for low noise and long life

Perfomance

Energy-saving effect while maintaining pressure (Single unipump)

Application

Features

• Half-cylindrical swash plate and 11 pistons for low noise and low pulsation
• Spherical valve plate for high efficiency
• Multiple string option with our IPH series inscribed gear pump.

Application

• Ideal for a wide range of uses, as hydraulic source for general industrial machinery such as forging/forming equipment.

• Constant horsepower control type and load sensing control type also available in addition to the control options listed in the catalog. For details, please contact us.

Specifications

Type	Capacity (cm3/rev)	Maximum working pressure (MPa)	Rotational speed (min-1)		Mass (kg)
			Minimum	Maximum
PZS-3B	70	28	500	1800	37
PZS-4B	100	28	500	1800	58
PZS-5B	130	25	500	1800	86
PZS-6B	180	25	500	1800	123
PZS-6B	220	25	500	1500	126

Various control options enable circuit simplification and energy saving.

Control system	Symbol	Features	Characteristics
Pressure compensation type (manual)	N	Discharge amount automatically decreases to maintain the set pressure when discharge pressure reaches the value specified in the compensator. Remote control is also available using the attached pilot port.
2-pressure, 2-flow control type	NQ	Discharge pressure can change by two levels through the sequence valve embedded in the pump; therefore, one unit can perform conventional high/low pressure control and circuit energy can be saved.
Solenoid cutoff control type	RS	Solenoid valve for unloading is mounted on the pressure compensation type model, with the aim of minimizing energy loss when hydraulic pressure is not necessary.
2-pressure control type	WS	Two types of pressure compensation are obtained by turning on/off the solenoid valve embedded in the pump. The two kinds of output can be controlled while maintaining a constant actuator speed.
2-pressure, 2-flow control type with solenoid cutoff	RQS	Unload function is added to the 2-pressure, 2-flow control type, to enable unloading with the solenoid valve embedded in the pump when hydraulic pressure is not necessary.
2-cutoff control type	CS	Two kinds of pressure and flow characteristics can be obtained with the solenoid valve embedded in the pump and the discharge control mechanism.

Features

• Half-cylindrical swash plate for low noise and low pulsation
• Rich set of options to enable highly efficient, energy-saving equipment.

Application

• Ideal as hydraulic source for a variety of industrial machinery such as forging / forming equipment and large machine tools

• In addition to a rich variety of control options and capacity, the following are also available:UPV series unipump integrated with electromotor
  (Electromotor: 0.75kW to 7.5kW)Low-noise UPN series integrated with oil-immersion electromotor
  (Electromotor: 2.2kW to 5.5kW)

Specifications

Control options: 6 options including pressure compensation control

Various control options enable circuit simplification and energy saving.

Control system	Symbol	Features	Characteristics
Pressure compensation type (manual)	N	Discharge amount automatically decreases to maintain the set pressure when discharge pressure reaches the value specified in the compensator.
Pressure compensation type (remote control)	P	Provides the same features as those for the manual system. Discharge pressure can be remotely controlled with an external pilot pressure.
2-pressure, 2-flow control type	NQ	Discharge pressure can change by two levels through the sequence valve embedded in the pump; therefore, one unit can perform conventional high/low pressure control and circuit energy can be saved.
Solenoid cutoff control type	RS	Solenoid valve for unloading is mounted on the pressure compensation type model, with the aim of minimizing energy loss when hydraulic pressure is not necessary.
2-pressure control type	WS	Two types of pressure compensation are obtained by turning on/off the solenoid valve embedded in the pump. The two kinds of output can be controlled while maintaining a constant actuator speed.
2-pressure, 2-flow control type with solenoid cutoff	RQS	Unload function is added to the 2-pressure, 2-flow control type, to enable unloading with the solenoid valve embedded in the pump when hydraulic pressure is not necessary.
2-cutoff control type	CS	Two kinds of pressure and flow characteristics can be obtained with the solenoid valve embedded in the pump and the discharge control mechanism.

Features

• Half-cylindrical swash plate and 11 pistons for low noise and low pulsation
• Spherical valve plate for high efficiency
  (Employed into 3B, 4B and 6B.)
• Various capacities ranging from 35 to 220cm³/rev
  (7 sizes in total)
• Multiple string option with our IPH series inscribed gear pump.
• The electro-hydraulic propotional control valve uses the proven force feed-back system for improved hysteresis, repeatability, and response.

Perfomance

Static feature of PZ-3B-70E3A

Typical example of control performance Static feature of PZ – 3B – 70 E3A
Input current – Characteristics of flow	Input current – Characteristics of pressure

Application

• Ideal for machinery requiring optional pressure/flow settings such as injection molding machines and forging equipment

Specifications

Pump type	Capacity (cm3/rev)	Maximum working pressure (MPa)	Rotational speed (min-1)		Mass (kg)
			Minimum	Maximum
PZ-2B-35	35	21	500	2000	36
PZ-2B-45	45	21	500	2000	36
PZ-3B-70	70	21	500	1800	60
PZ-4B-100	100	21	500	1800	76
PZ-5B-130	130	21	500	1800	100
PZ-6B-180	180	21	500	1800	160
PZ-6B-220	220	21	500	1500	162

Electromagnetic proportional control specifications

Rated current :	800 mA
Coil resistance:	20
Hysteresis :	3% F.S. or less

Operational theory

1. Load Sensing Control

2. Load Sensing Control

• When a variable pump (pressure compensating) is combined with a flow control valve:

3.Load Sensing Control

• With a load sensing control pump is used:

Features

• Constant horsepower control with full use of engine horsepower, resulting in increased speed and power for mother machine.
• Load sensing control can be achieved with our DPK load sensing valve, resulting in energy savings for mother machine.
• Compact size enables installation in a small engine room.

Application

• Ideal for mini-shovel pump
• If you use this unit in a set with our company’s load sensing valve DPK the unit contributes to energy saving in the mother machine through load sensing control.

Specifications

• Various pump sizes available to match anything from a 1.5-ton mini-shovel to a 5-ton shovel.
• Gear pump highly efficient for pilot operations is standard equipment, and can be used as a stable hydraulic source for various kinds of controls for the mother machine.

Pump size		PVK-0B	PVK-1B	PVK-2B
Applicable shovel	ton	1.5 to 2	2.5 to 3.5	4 to 5
Capacity	cm3/rev	22	38	50
Maximum working pressure	MPa	24.5	24.5	24.5
Maximum number of rotations	min-1	2800	2600	2600
Constant horsepower control		Standard equipment
Load sensing control		Standard equipment
Pilot operation pump		Standard equipment

Operational theory

Constant horsepower control with full use of engine horsepower

Load sensing control for reduced energy consumption in mother machine

Features

• High-frequency response equivalent to electric/hydraulic servo valve
• High-output proportional solenoid directly drives spool.
• Minor feedback with LVDT (Linear variable differential transformer) enables accurate spool positioning.
• All ports return to block position when amplifier is turned off or connection is disconnected. (Fail-safe function)

Perfomance

ESH-G01-H520A-10 (For rated flow = 20L/min)

Input voltage – Characteristics of flow Valve pressure drop: 7MPa (71kgf/cm2)

Valve differential pressure – Characteristics of flow

ESH-G01-H540A-10 (For rated flow = 40L/min)

Input voltage – Characteristics of flow Valve pressure drop: 7MPa (71kgf/cm2)

Valve differential pressure – Characteristics of flow

Application

• General industrial machinery including mainly machine tools and forging/forming equipment
• Carrier device requiring shockless function
• Test equipment requiring high-speed response
• Ideal for uses that perform actuator positioning and pressure control with feedback control function.



Specifications

Item / Model No.		ESH-G01- H510A-10	ESH-G01- H520A-10	ESH-G01- H540A-10
Maximum operating pressure P,A,B MPa {kgf/cm2}		32
T port allowable back pressure MPa {kgf/cm2}		2.5 {25.5} max
Rated flow rateL/min (Valve pressure drop 7MPa {71 kgf/cm2})		10	20	35
Maximum flow rate L/min		22	35	50
Limit valve pressure drop MPa {kgf/cm2}		32	21	14
Hysteresis %		0.5 max.
Step response ms (0to100% Displacement)		16 max. (*1)
Frequency response Hz (90°C phase delay +/- 10% displacement)		At least 80 (*1)
Center drift	Supply pressure	0.5% max/FS (p=25MPa {255kgf/cm2})
	Fluid temperature	1.5% max/FS (t=40°C)
Filtration		Class NAS9 max.
Operating fluid temperature range °C (Recommended fluid temperature range °C)		0 to 60 (30 to 60)
Water and dust resistance		IP53
Mass kg		2.3

Notes : *1.Maximum flow depends on channel type Mand working pressure.

Operational theory

Measurement

Gasket surface complies with ISO4401-03-02-0-94.

Features

• Provides both direction switching and speed control functions.
• Controls direction by supplying an input current into one of the two proportional solenoids and controls flow by changing the input current.
• Remote control and shockless acceleration/deceleration control enables simplification of the hydraulic circuit.

Perfomance

ESD-G01-C520-12 (for rated flow=20L/min)

Input current – Characteristics of flow

Pressure – Characteristics of flow

Application

• General industrial machinery including mainly machine tools and forging/forming equipment
• Carrier device requiring shockless function
• Uses that require continuously changing flow



Specifications

Item / Model No.	ESD-G01-**10 20 -12	ESD-G03-** 40-(**)-12 80-(**)-12	ESD-G04- **140-(**)-12	ESD-G06- **250-(**)-13
Maximum operating pressure MPa {kgf/cm2}	25 {255}
Rated flow rate L/min	10/20(*1)	40/80(*1)	140(*1)	250(*1)
Maximum flow rate L/min	25(*2)	100(*2)	140(*2)	250(*2)
Pilot pressure MPa {kgf/cm2}	–	At least 1.0 {10}(*3)
Pilot flow rate L/min	–	At least 2 (*4)	At least 3 (*4)	At least 5 (*4)
T port allowable back pressure MPa {kgf/cm2}	25 {25.5}	Internal Drain: 2.5 {25.5}
		External Drain: 21 {214}
Rated current mA	850
Coil resistance	20(20°C)
Hysteresis %	5 max.(*5)
Response time s	0.04(*6)	0.05(*6)	0.08(*6)	0.1(*6)
Mass kg	2.2	7	9.2	15

Notes :
*1.Value when pressure drop volume to P to A and P to B is  P =1.0MPa {10kgf/cm²}.
*2.Indicates maximum throughput volume value between each port.
*3.Indicates differential between the pilot port and tank port, or drain port.
*4.Value when 0.1 second is assumed for the response time from zero to the rated flow volume.
*5.Value when a Nachi-Fujikoshi special amplifier is used.
*6.Response time is typical value for a supply pressure of 14MPa {143kgf/cm²} and fluid temperature of 40°C (kinematic viscosity: 40mm²/s).

Measurement

ESD-G01

Features

Provides all functions required for mini excavator

• Anti-saturation function
• Pressure compensation function according to self loaded pressure
• Cooperative system with engine speed
• No need for independent pump of swing motor
• LS control + constant horsepower control
• Good for straight traveling of wheel motors
• Various kinds of attached valves

Perfomance

1. Characteristics of pressure compensation

2. Characteristics of anti-saturation function

When supply flow is sufficient:

When supply flow is insufficient:

• Same secondary pressure is supplied to every compensator
• Supply flow for all actuators is distributed in proportion to spool stroke.

3. Interconnected control stroke for engine rotation speed – Characteristics of flow

Normal load sensing system

Cooperative system with engine speed

Target LS differential pressure is cooperative with engine speed
Much finer control with gentle gain between stroke and flow rate.

Application

• Ideal for construction equipment such as mini excavator
• If you use this unit in a set with our company’s PVK series load sensing variable piston pump the unit contributes to energy saving in the mother machine through load sensing control.

Specifications

Valve size		T04 (A/B port)
Maximum working pressure (pump port)		25MPa
Maximum working pressure actuator port		28MPa
Maximum pump flow		120 L/min
Maximum control flow (1 function)		90 L/min
Tank port allowable back pressure		0.3 MPa (1.5 MPa at peak)
Internal leakage (A/B port)		5cm2/min at 5MPa
Internal leakage (boom lock valve)		1cm2/min at 5MPa
Operating method		* Hydraulic pilot
		* Manual
		* Electromagnetic proportional valve
Structure of attached valves (Can be built-in)		* Overload relief
		* Vacuum check valve
		* Boom lock valve (anti-drift valve)
		* Safety lock valve
		* Very slow-speed mode
Applicable mini excavator (example)		3 – 5-ton
Operating conditions	Hydraulic oil	ISOVG 32 to 68
	Oil temperature (for common use)	-20 to 100°C(5 to 80°C)
	Viscosity	10 to 1000mm2/s
	Ambient temperature	-20 to 60°C

Operational theory

1. Secondary pressure feedback system with reducing valve

2. Self-load pressure-dependent pressure compensating valve

A2=A3=A , k=A/A1 PIN A1=PLS A2+PLA3 P=PIN-PL=k PLS-(1-k)+PLPIN : Pressure at upper stream PL : Loaded pressure PLS : Secondary pressure through regulator Valve(=P-PLmax) PLmax : Maximum loaded pressure k : Area ratio

Measurement

Features

• High pressure and large capacity
• Maximum working pressure: 25,35 MPa
• Maximum flow: 100 L/min
• Stacking system and bolt detaching system allows circuits to be configured, changed and added easily and immediately.
• Compact size for reduced space
• Decrease noise and vibration due to reduced pipings
• Various series and models; G03 size has 52 series and 96 models

Circuits can be configured easily and accurately since the nameplate on the valve shows the hydraulic symbol

Application

Specifications

Features

• High pressure and large capacity
  Maximum working pressure: 25,35 MPa
  Maximum flow: 50 L/min
• Stacking system and bolt detaching system allows circuits to be configured, changed and added easily and immediately.
• Compact size for reduced space
• Decrease noise and Vibration due o reduced pipings
• Various series and models; G01 size has 58 series and 131 models

Circuits can be configured easily and accurately since the nameplate on the valve shows the hydraulic symbols.

Application

Features

• No drain flow for energy-saving operation.
• Can achieve highly responsive, high-accuracy switch output.
• Long life for enhanced reliability
• With electric trimmer, pressure and hysteresis can be freely changed within adjustment range.
• Photo coupler electrically isolates switch output from internal circuit, preventing misoperation due to noise.

Application

Features

• Modular valve withe a switch that opens/closes electric circuits upon sensing a pressure change in hydraulic circuits.
• Built-in indicator light in DIN connector, which enables a visual check of operation.
• W type with both A and B port controls results in compact equipment.

Perfomance

Characteristics of pressure loss	No. of adjustment screw rotations – characteristics of pressure
OW-GO1-**-R-**-30	OW-GO1-**-R-**-30

OW-G01-*C/1 -R-**-30	OW-G01-*3-R-**-30

Application

• General industrial machinery including mainly machine tools
• Electric sequence control using pressure detection signal
• Ideal for machines requiring space-saving using modular valves

Specifications

Model	OW-G01- P*-R-**-30	OW-G01- A*-R-**-30	OW-G01- E*-R-**-30	OW-G01- W*-R-**-30
Maximum working pressure MPa	25
Maximum flow L/min	50
Pressure adjustment range MPa	C:0.5 to 3.5, 1:0.8 to 7, 3:3.5 to 21
Contact point capacity (load resistance)	C2 specifications: AC125V-5A, AC250V-3A
	D2 specifications: DC14V-5A, DC30V-4A
Mechanical lifetime	10 million times or more
Electrical lifetime	3 million times or more
Contact resistance	30m or less (initial value)
Insulation resistance	100m or more
Allowable operation frequency	60 times/min(electrical)
Dustproof and waterproof rank	JIS C0920 IP64
Ambient temperature	-20°C to 70°C
Mass (kg)	1.8	1.8	1.8	2.6

Connecting method:

With normal open indicator

Set power supply between 2 and 3.
Connect load between 1 and 2.
Light on indicator when pressure increases.
Open circuit (ON).
Light off indicator when pressure decreases.
Close circuit (OFF).

Solenoid valve for automobile

Highly reliable wet solenoid structure
Centralized terminal box type for easy wiring
Waterproof and dustproof rank: JIS C 0920 IP64
Shockless type also available to prevent shock when switching
UL-qualified products available

Features

• Change the clutch, and control the hydraulic pressure of the clutch is used in Automatic Transmission.
• 3-ways valve for the energy saving
• Lightest weight and compact

• Specifications

•

  Usable range of the temperature	-40 to 150°C
  Usable range of the hydraulic pressure	0.3 to 1.8 MPa
  Usable range of the voltage	10.5 to 16 V
  Max. working Voltage	9.5V/150°C
  Return Current	100mA
  Flow rate	2.5 L/min (Differntial Pressure 0.5MPa)
  Coil Resistance	12.6

Features

• Highly reliable wet solenoid structure.
• Terminal box type for easy wiring.
• It operates on the low power consumption of 10W.
• With the AC type, the total length of the valve is compactly designed.
• CE,UL,CSA certification.


  Specifications Valves

  Type		AC	Rectifier built-in	DC
  		C*	E1	D2
  Max, working pressure		7MPa
  Max.flow		30L/min
  Permissible back pressure		7MPa
  Option	Indicator light
  	Surge-less		–
  	manual push button
  	Quick return	–		–
  Dust and spray protection type		IP64
  Mass	Single solenoid	1.2kg	1.5kg
  	Double solenoid	1.5kg	2.0kg

  *The maximum flow rate of each valve varies according to the pressure.

  Specifications solenoid

  Classification of solenoid	Power supply type		Frequency (Hz)	Starting current (A)	Holding current (A)	Holding power (W)	Permissible voltage range (V)
  AC	C1		50	1.3	0.30	12.0	80 to 110
  			60	1.1	0.24	9.6	90 to 120
  	C2		50	0.65	0.15	12.0	160 to 220
  			60	0.55	0.12	9.6	180 to 240
  Rectifier built-in	E1		–	0.11		10	90 to 110
  DC	D2		–	0.42		10	21.6 to 26.4

  Application

  • General industrial machinery such as machine tools, etc.
  • It contributes to reducing power consumption in transfer machines that use a large number of valves.



  Measurement

  AC Solenoid



  DC Solenoid



Features

• The amount of power consumed by solenoids has been extremely small.
  (DC24V:4.8w)
• They operate with a low electrical current so they can be driven directly with the output circuit of the PC (programmable controller).
• They are low power so little heat is emitted from the coil, and there is less heat impact on machinery than before.
• The M12-4 pin connector attachment makes the interface with open networks such as Device Net, etc. easy, and in order to protect the points of contact with the slave units it is built into the diode for preventing reverse voltage in the solenoid.
• CE certification

Specifications G01 valve

Type		Rectifier built-in	DC
		E1	D2
Max, working pressure		16MPa
Max.flow		40L/min
Permissible back pressure		16MPa
Option	Indicator light
	Surge-less	–
	M12-4 pin connector attachment	–
Dust and spray protection type		IP64
Mass	Single solenoid	1.7kg
	Double solenoid	2.2kg

*The maximum flow rate of each valve varies according to the pressure.

Application

Pressure loss characteristics

Hydraulic oil viscosity 32mm²/s

Measurement

Features

• Employment of poppet structure for minimum internal leakage
• Highly reliable wet solenoid structure
• Mounting surface complies with ISO standard.
  (01 and 03 size)
• EC connector for enhanced switching capability
  (06 size)

• Application

  • General industrial machinery including forging/forming equipment
  • Machinery used outdoors such as construction equipment and vehicles
  • For circuit which require non internal leakage



  Valve Specifications

  Model		SNH-G01- **-**-11	SNH-G03- **-**-10	SNH-G04- **-**-10	SNH-G06- **-**-10
  Operation symbols	AR
  	HQ
  Maximum working pressure	MPa	35
  Rated flow	L/min	10	20	40	60
  Maximum flow	L/min	20	40	60	100
  Maximum switching frequency (time/min)		120
  Dustproof and waterproof rank		IP65			IP64
  Mass	Kg	1.8	5.2	5.5	6.9

  Notes :

  1.Internal leakage shall be within 1 drop/min (0.05cm³/min).
  2.Dustproof and waterproof rank for AC power (rectifier built-in type) is IP64.

  Solenoid Specifications

  For SNH-G01
  Solenoid type	Power supply	Voltage (V)	Frequency (Hz)	Coil type	Current (A)	Power (W)	Allowable voltage (V)
  Rectifier built-in Type	E1	AC100	50/60	EAC64-E1	0.37	32	90 to 110
  	E115	AC115		EAC64-E115	0.32		100 to 125
  	E2	AC200		EAC64-E2	0.18		180 to 220
  	E230	AC230		EAC64-E230	0.16		200 to 250
  DC	D1	DC12	–	EAC64-D1	2.5	30	10.8 to 13.2
  	D2	DC24		EAC64-D2	1.25		21.6 to 26.4

  For SNH-G03
  Solenoid type	Power supply	Voltage (V)	Frequency (Hz)	Coil type	Current (A)	Power (W)	Allowable voltage (V)
  Rectifier built-in type	E1	AC100	50/60	EBB64-E1	0.40	34	90 to 110
  	E115	AC115		EBB64-E115	0.34	34	100 to 125
  	E2	AC200		EBB64-E2	0.22	37	180 to 220
  	E230	AC230		EBB64-E230	0.17	33	200 to 250
  DC	D1	DC12	–	EBB64-D1	2.6	31	10.8 to 13.2
  	D2	DC24		EBB64-D2	1.5	36	21.6 to 26.4

  For SNH-G04
  Solenoid type	Power supply	Voltage (V)	Frequency (Hz)	Coil type	Current (A)	Power (W)	Allowable voltage (V)
  Rectifier built-in type	E1	AC100	50/60	EBB64-E1	0.40	34	90 to 110
  	E2	AC200		EBB64-E2	0.22	37	180 to 220
  DC	D1	DC24	–	EBB64-D2	1.5	36	21.6 to 26.4

  For SNH-G06
  Solenoid type	Power supply	Voltage (V)	Frequency (Hz)	Coil type	Initial current (A)	Holding current (A)	Power (W)	Allowable voltage (V)
  Rectifier built-in type	E1	AC100	50/60	EBB64-D60	0.71	0.36	33.2	90 to 110
  	E2	AC200		EBB64-D120	0.39	0.19	36.4	180 to 220
  DC	D1	DC24	–	EBB64-D17	3.0	1.5	37.4	21.6 to 26.4

  EC connector for G06

  SNH-G06 uses an EC connector to achieve greater switching power.
  When switching, this connector supplies twice the normal current (initial current) to the solenoid coil and then performs low power control to achieve the normal current.

Features

• Highly reliable structure in which wet solenoid valve SS-G01 is used as pilot valve
• Compact size and switching capability for high pressure and large capacity
• Terminal box type for easy wiring
• Combination with modular valve enables easy construction of high-pressure, large-capacity circuits.

Application

• High-pressure, large-capacity machinery including forging/forming equipment
• General industrial machinery including mainly machine tools
• Reduced size and space compared with conventional G06



Valve Specifications

Item		AC C *	Rectifier built-in type E *	DC D *
Maximum working pressure		35MPa
Maximum flow		300 L/min
Allowable back pressure		21MPa (outside drain)/16MPa (inside drain)
Options	Spool stroke adjustment
	P-port throttling flow regulator
	Meter-out system flow regulator
	Pilot line inside/outside change	Can be changed by plug combination
	Drain line inside/outside change	Can be changed by plug combination
	Others	Same as SS-G01
Dustproof and waterproof rank		IP64
Mass		8.7 to 10.5kg

Note : Maximum flow depends on operation symbol and working pressure.

Solenoid Specifications

Solenoid Type	Power supply	Frequency (Hz)	Initial current (A)	Holding current (A)	Holding power (W)	Allowable voltage (V)
AC	C1	50	2.2	0.52	25	80 to 110
		60	2.0	0.38	22	90 to 120
	C2	50	1.1	0.26	25	160 to 220
		60	1.0	0.19	22	180 to 240
Rectifier built-in type	E1	–	0.37		32	90 to 110
	E2	–	0.18		32	180 to 220
DC	D1	–	2.5		30	10.8 to 13.2
	D2	–	1.25		30	21.6 to 26.4

Measurement

Mounting dimensions for valve complies with ISO4401-AD-07-4-A.

Features

• Highly waterproof
  JIS C 0920 IP67
  JIS D 0203 D2
• High allowable back
  Pressure 21MPa
• A surge-killer diode built-in type also available
• Correspond to a wide variety of connectors

Application

Specifications

Notes :

1.Maximum flow depends on operation symbol and working pressure.
2.Dustproof and waterproof rank is for products with a waterproof connector. The connector part is not included if the product has a non-waterproof connector.

Measurement

Features

Recognized by reliable overseas safety standards such as CE (Europe), UL (U.S.A.) and CSA (Canada).

The power consumption of the DC solenoid (D* and E*) is reduced. This will further promote your energy saving policy.

An innovative fluid reaction compensating mechanism assures reliable valve switching. (Patent pending)

Interchangeable with conventional products (30 designs)
The valve proper as well as such parts as a coil are interchangeable with the conventional ones in terms of a kit.

Performance Curve

Pressure loss characteristics

Type	Flow path	PA	PB	AT	BT	PT
SS-G01 SA-G01	A2XAH2XAE2X	d	d	–	–	–
	A3XAH3X	b	b	b	b	–
	E3X	b	b	b	b	–
	A3ZAH3ZAE3Z	a	a	a	a	–
	A4AH4AC4	a	a	a	a	a
	A5AH5AC5AC6S	b	b	b	b	–
	C1AC1S	b	b	a	b	–
	C2	a	b	b	b	–
	C6	b	b	a	a	–
	C7Y	f	f	e	e	c
	C8	a	f	b	e	c
	C9	a	a	b	b	–

Hydraulic oil viscosity 32mm²/s

Permissible pressure – Flow rate valves

Notes :

1.Description in parenthesis is given for an AC solenoid.
2.Description in parenthesis is given for the rectifier built-in type solenoid (E*) except for the quick return type, and for the power supply solenoid (D*) where a surge voltage absorbing diode is mounted on the electric circuit.

Specifications

Type		Standard type		Shock-less type
JIS symbol	Operation symbol	Max.working pressure MPa {kgf/cm2}	Max.flow rate L/min	Max. working pressure MPa {kgf/cm2}	Max. flow rate L/min
	A2X	35 o357p	30	25 o255p	30
	H2X
	E2X
	A3X		80		50
	H3X
	E3X		100
	A3Z		65
	H3Z
	E3Z
	A5		100
	H5
	C2
	C5
	C9
	C1S
	C6S
	C1		AC Solenoid 65 DC Solenoid 80
	C6
	A4		50		50
	H4
	C4
	C7Y				40
	C8

Note : The maximum flow rate of each valve varies according to the pressure.
For details, see here.

AC Solenoid

SA-G01-A**-*-C*-31
SA-G01-H**-*-C*-31
Note : For SA-G01-H**-R**-31, the solenoid is located on the side (SOL a) opposite to that shown in the drawing.



SA-G01-C**-R-C*-31
SA-G01-E**-R-C*-31

With DC solenoid and rectifier

SA-G01-A**-*-D*/E*-31
SA-G01-H**-*-D*/E*-31
SA-G01-C**-*-D*/E*-31
SA-G01-E**-*-D*/E*-31

A fixed throttle valve can be inserted into the ports P, A and B
(for both SS and SA types).
Notes :
1.For SA-G01-H**-*-D*/E*-31, the solenoid is located on the side(SOL a) opposite to that shown in the drawing.
2.For SA-G01-**-E*-31, the dimension 1 is 96mm, and dimension 2 is 73mm.

Sub-plate

Type	E	Max, working pressure MPa {kgf/cm2}	Mass (kg)
MSA-01X-10	1/4	25 {255}	1.2
MSA-01Y-10	3/8		1.2

Gasket surface dimensions (ISO4401-03-02-0-94) , (JIS B 8355 D-03-02-0-94)

Note : If you want to use at a pressure of 25 MPa or more, please contact us.

Features

Structure of a highly reliable wet solenoid features a terminal box type for straightforward wiring. It meets JIS C 0920 IP64 standards for waterproof and dustproof performance. Options include a shockless type to eliminate switching shock. Also available are UL-recognized products.

Application

• General industrial machinery including mainly machine tools and forging / forming equipment
• Transfer machines required for complicated wiring

G03 Valve Specifications

Item		AC C *	Rectifier built-in type E *	DC D *
Maximum working pressure		35MPa
Maximum flow		130 L/min	160 L/min
Allowable back pressure		16MPa
Options	Indicator light
	Shockless	–
	Surgeless		–
	Manual push button
	Quick return	–		–
Dustproof and waterproof rank		IP64	IP64	IP64
Mass	Single SOL.	3.5kg	4.1kg
	Double SOL.	4.2kg	5.5kg

Note : Maximum flow depends on channel type and working pressure.

G01 Solenoid Specifications

Solenoid type	Power supply	Frequency (Hz)	Initial current (A)	Holding current (A)	Holding electricity (W)	Allowable voltage (V)
AC	C1	50	5.4	0.92	36	80 to 110
		60	4.6	0.62	34	90 to 120
	C2	50	2.7	0.46	36	160 to 220
		60	2.3	0.31	34	180 to 240
Rectifier built-in type	E1	–	0.40		34	90 to 110
	E2	–	0.22		37	180 to 220
DC	D1	–	2.6		31	10.8 to 13.2
	D2	–	1.5		36	21.6 to 26.4

Measurement



Features

• Recognized by reliable overseas safety standards such as CE (Europe), UL (U.S.A.) and CSA (Canada).
• The power consumption of the DC solenoid (D* and E*) is reduced. This will further promote your energy saving policy.
• An innovative fluid reaction compensating mechanism assures reliable valve switching. (Patent pending)
• An expanded wiring space ensures easy wiring.
• Redesigned terminal box improves waterproof properties.
  The terminal block has been modified to improve the insulation performance. (Conforms to overseas standards)
• Interchangeable with conventional products (30 designs)
  The valve proper as well as such parts as a centralized terminal box and coil are interchangeable with the conventional ones in terms of a kit.

Performance Curve

Pressure loss characteristics

Type	Flow path	PA	PB	AT	BT	PT
SS-G01 SA-G01	A2X, H2X, E2X	d	d	–	–	–
	A3X, H3X	b	b	b	b	–
	E3X	b	b	b	b	–
	A3Z, H3Z, E3Z	a	a	a	a	–
	A4, H4, C4	a	a	a	a	a
	A5, H5, C5, C6S	b	b	b	b	–
	C1, C1S	b	b	a	b	–
	C2	a	b	b	b	–
	C6	b	b	a	a	–
	C7Y	f	f	e	e	c
	C8	a	f	b	e	c
	C9	a	a	b	b	–

Hydraulic oil viscosity 32mm²

Permissible pressure – Flow rate valves

Notes :
1.Description in parenthesis is given for an AC solenoid.
2.Description in parenthesis is given for the rectifier built-in type solenoid (E*) except for the quick return type, and for the power supply solenoid (D*) where a surge voltage absorbing diode is mounted on the electric circuit.

Specifications

Type		Standard type		Shock-less type
JIS symbol	Operation symbol	Max.working pressure MPa {kgf/cm2}	Max.flow L/min	Max. working pressure MPa {kgf/cm2}	Max. flow rate L/min
	A2X	35 {357}	30	25 {255}	30
	H2X
	E2X
	A3X		80		50
	H3X
	E3X		100
	A3Z		65
	H3Z
	E3Z
	A5		100
	H5
	C2
	C5
	C9
	C1S
	C6S
	C1		AC Solenoid 65 DC Solenoid 80
	C6
	A4		50		50
	H4
	C4
	C7Y				40
	C8

Note : The maximum flow rate of each valve varies according to the pressure.
For details, see here.

AC Solenoid valve

SS-G01-A**-R-C*-31
SS-G01-H**-R-C*-31

Note : For SS-G01-H**-R**-31, the solenoid is located on the side (SOL a) opposite to that shown in the drawing.



SS-G01-C**-R-C*-31
SS-G01-E**-R-C*-31

With DC solenoid and rectifier

SS-G01-A**-R-D/E*-31
SS-G01-H**-R-D/E*-31
SS-G01-C**-R-D/E*-31
SS-G01-E**-R-D/E*-31

A fixed throttle valve can be inserted into the ports P, A and B (for both SS and SA types).

Notes :
1.For SA-G01-H**-*-D*/E*-31, the solenoid is located on the side(SOL a) opposite to that shown in the drawing.
2.For SA-G01-**-E*-31, the dimension 1 is 96mm, and dimension 2 is 73mm.

Sub-plate

Type	E	Max, working pressure MPa {kgf/cm2}	Mass (kg)
MSA-01X-10	1/4	25 {255}	1.2
MSA-01Y-10	3/8		1.2

Gasket surface dimensions (ISO4401-03-02-0-94) , (JIS B 8355 D-03-02-0-94)

Note : If you want to use at a pressure of 25 MPa or more, please contact us.

Features

This solenoid valve monitors the valve’s direction switch position and can signal output. It operates the switch in sync with the valve, ensuring dependable output. Unlike previous methods using magnetic or proximity sensors, this design minimizes temperature drift and hysteresis.

Operation symbol	JIS symbol	SOL. OFF B → A	SOL. ON
			A → B	B → A
AR		c	a	–
ARC		c	a	b

Application

This valve is suitable for use in designing and manufacturing mechanical equipment meeting safety standards such as ISO 12100 and JIS standard (JIS B 9700).



Mounting dimensions

The installation dimensions of the gasket surface are ISO 4401-03-02.
However, only use the A and B ports.

Features

Highly reliable wet solenoid structure
DIN connector type for highly waterproof performance JIS C 0920 IP65
Shockless type also available to prevent shock when switching
Coil can rotate by 360°. Can be mounted even in a small space.

Application

• General industrial machinery such as forging/forming equipment
• Uses requiring waterproofing such as in construction equipment, vehicles, etc.
• Uses focusing on maintenance, such as steel plants: connectors can be removed without turning off the power



G03 Valve Specifications

Item		AC C *	Rectifier built-in type E *	DC D *
Maximum working pressure		35MPa
Maximum flow		130 L/min	160 L/min
Allowable back pressure		16MPa
Options	Indicator light
	Shockless	–
	Surgeless		–
	Connector for G screw		–
	Manual push button
	Quick return	–		–
Dustproof and waterproof rank		IP65	IP64	IP65
Mass	Single SOL.	3.5kg	4.1kg
	Double SOL.	4.2kg	5.5kg

Note : Maximum flow depends on channel type and working pressure.

G03 Solenoid Specifications

Solenoid type	Power supply	Frequency (Hz)	Initial current (A)	Holding current (A)	Holding electricity (W)	Allowable voltage (V)
AC	C1	50	5.4	0.92	36	80 to 110
		60	4.6	0.62	34	90 to 120
	C2	50	2.7	0.46	36	160 to 220
		60	2.3	0.31	34	180 to 240
Rectifier built-in type	E1	–	0.40		34	90 to 110
	E2	–	0.22		37	180 to 220
DC	D1	–	2.6		31	10.8 to 13.2
	D2	–	1.5		36	21.6 to 26.4

Measurement



Features

It is a solenoid valve that monitors the direction switch position of the valve and possesses the function of outputting a signal.
It operates the switch directly with the valve operation so reliable output can be obtained.
It does not use magnetic sensors or proximity sensors so the temperature drift and hysteresis are smaller than before.

Specifications

(Note 1) The maximum flow differs depending on the valve format and working pressure.

Working principle

When the spool is in a neutral state, the fixed points of contact and the moving points of contact touch and are in a state of electrical conductance. When the spool begins to operate, the moving points of contact move to the left side in tandem with it, and the fixed points of contact and moving points of contact enter a state of electrical non-conductance.

Spool neutral state (SOL OFF)           Spool operating state (SOL ON)

Pressure – permissible flow value

Operation symbol	JIS symbol	Standard AC, DC solenoid attachment
A2X		–	f	f
A3X		b	f	f
A5		a	–	e
C1		AC SOL. d DC SOL. c	e	e
C5		a	e	e
C6		AC SOL. d DC SOL. c	e	e
C1S		a	e	e
C6S		a	e	e

Valve pressure loss

Operation symbol	JIS symbol	P → A	P → B	A → T	B → T
A2X		c	c	–	–
A3X		b	b	b	b
A5		–	b	b	–
C1		b	b	a	b
C5		b	b	b	b
C6		b	b	a	a
C1S		b	b	b	b
C6S		b	b	b	b

Application

• You can use this valve when designing and manufacturing mechanical equipment that complies with the standard for safety of machinery (ISO 12100) and the JIS standard (JIS B 9700).

Example of the use of an electromagnetic switching valve with a monitoring switch

Features

We have added the SED series using the DIN connector wiring system to the low power type.

• Realizes maximum working pressure, maximum flow, and allowed back pressure for the 5W class


  Maximum pressure	16MPa
  Maximum flow	40L/min
  Permissible back pressure	16MPa

• CE Approval
• We have prepared a terminal box/DIN connector wiring product and a connector (M12-4 pin connector) wiring product, so selection using the formal auxiliary symbol is possible.
• Surge-less Circuit is standard equipment
• The connector wiring product can be directly connected to a wire-saving system such as Device Net, etc.

Surge-less Circuit (standard equipment)

CE marking

Specifications

(note1) The maximum flow differs depending on the operation symbol, circuit, and working conditions.

Features

Linkage-less construction is simple and compact
Simple construction has no counterweights or parallel linkage.
Compact form can be installed in small places.
Expansive operating stroke and lifting capabilities
Expansive operating stroke and lifting capabilities Plenty of wrist torque (1.7 times our existing model) easily handles large work pieces.
Long arm type (MC280L) has maximum reach of 3,101 mm
Super heavy lifting type (MC470P) can lift up to 470 kg (wrist must be directed downward)
High-speed motion
Lower weight and greater rigidity make it the fastest robot in its class.
Reduce cycle times by up to 15% (compared to our existing model).

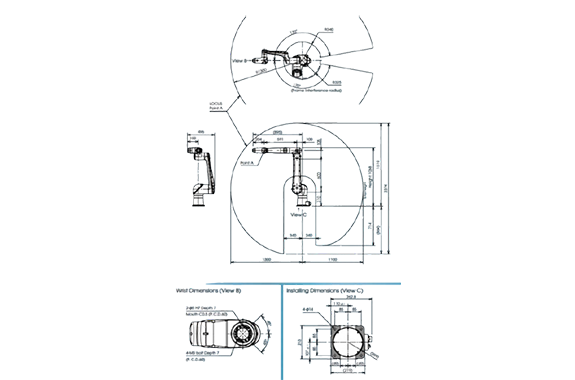

Operating range

(*1) The specifications are subject to changes without notice.
(*2) In case that an end user uses this product for military purpose or production of weapon, this product may be liable for the subject of export restriction stipulated in the Foreign Exchange and Foreign Trade Law. Please go through careful investigation and necessary formalities for export.

Specification

(*1) Load specification of number 1 arm varies according to wrist load conditions and installation position.
(*2) Note that the allowable moment of inertia of wrist varies with the wrist load conditions.
(*3) JIS B 8432 compliant.
(*4) Permitted height is not higher than 1,000 m above sea level. If used in higher place, permitted temperature is affected by height.
(*5) Software limits the downward vertical range of axis 5 to ±5°. Axis 4 can move ±360° and axis 5 can move ±125° only when the encoder correction screen or the software limit settings screen is open.

Features

Hollow wrist structure
Avoiding interference of cables with peripheral equipment.
Improved reliability of cables due to its stable behavior with wrist movement.
High-speed motion
Top level performance in its class.
Powerful Wrist
Easy handling for large work-pieces due to the large wrist capacity.
A work-piece of large moment of inertia is also available.
Advanced applicability
Wide envelope.
5 meter vertical stroke.
Application signals are standard
2 ports for air, 40 application signals, DeviceNet cable, LAN cable.

Operating range

(*1) The specifications are subject to changes without notice.
(*2) In case that an end user uses this product for military purpose or production of weapon, this product may be liable for the subject of export restriction stipulated in the Foreign Exchange and Foreign Trade Law. Please go through careful investigation and necessary formalities for export.

Specification

Features

700kg Payload
Heaviest payload in the industry designed to be used to transfer large and heavy parts such as full underbody or body-inwhite assemblies.
Large Range Motion
4.8 meters vertical stroke, 7.0 meters horizontal stroke.
The extended vertical stroke allows for flexibility in the transfer line design and layout.
A perfect replacement option for the traditional dedicated transfer or elevator equipment.
Powerful Wrist
Large wrist torque for holding large tasks with fork hand from side.

Operating range (*1) The specifications are subject to changes without notice.
(*2) In case that an end user uses this product for military purpose or production of weapon, this product may be liable for the subject of export restriction stipulated in the Foreign Exchange and Foreign Trade Law. Please go through careful investigation and necessary formalities for export.

Specification

1 rad = 57.3°1 N = 0.102 kgf

Features

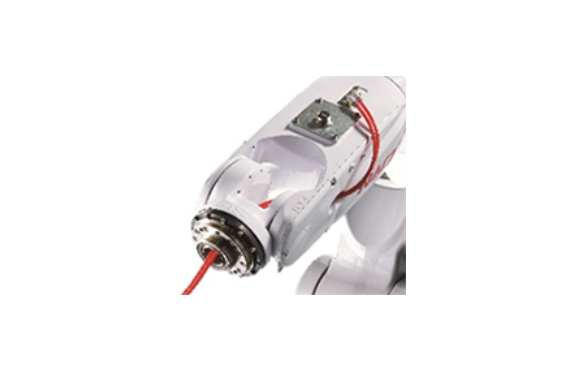

Cable built into the hollow arm
Welding cables and hoses packed tightly inside arms with hollow construction.
Avoids interference with peripheral equipment through the displacement of cables.
Improved reliability and safety of cable performance through wrist operations
The embedded welding cables in the arm make the off-line programming easier.
Compact body
Minimized robot height so it can be used in multilevel arrangements

Operating range (*1) The specifications are subject to changes without notice.
(*2) In case that an end user uses this product for military purpose or production of weapon, this product may be liable for the subject of export restriction stipulated in the Foreign Exchange and Foreign Trade Act. Please go through careful investigation and necessary formalities for export.

Specification

(*1) This value changes by placement and load conditions of a wrist.
(*2) The allowable moment of inertia of a wrist changes with load conditions of a wrist.
(*3) This value conforms to “JIS B 8432”.
(*4) Permitted height is not higher than 1,000 m above sea level. If used in higher place, permitted temperature is affected by height.
(*5) A-weighted equivalent sound level measured according to JIS Z 8737-1 (ISO 11201) (while operating at maximum speed with rated load).

Features

Improved reliability for welding cables and hoses
The reliability is improved by stabilizing cable performance to avoid damage due to interference with peripheral equipment.
Shortened the startup time
We greatly decreased the time to check work programs because cables do not interfere with peripheral equipment.
Expanded the operating range of the wrist
Compared to the existing A-Trac, we expanded the operating range of J5 ±10° and J6 ±5° (payload class 210kg), increasing the range of linear movement 20%.
Improved accessibility
When compared to the existing A-Trac, we have decreased the interference range of the wrist 27%, making access to narrow places possible.
Speed
The hollow arm can also operate at the same high speeds as the SRA.

Operating range

The specifications are subject to changes without notice.
In case that an end user uses this product for military purpose or production of weapon, this product may be liable for the subject of export restriction stipulated in the Foreign Exchange and Foreign Trade Law. Please go through careful investigation and necessary formalities for export.

Specification

(*1) This value changes by placement and load conditions of a wrist.
(*2) The allowable moment of inertia of a wrist changes with load conditions of a wrist.
(*3) This value conforms to “JIS B 8432”.
(*4) Permitted height is not higher than 1,000 m above sea level. If used in higher place, permitted temperature is affected by height.
(*5) A-weighted equivalent sound level measured according to JIS Z 8737-1 (ISO 11201) (while operating at maximum speed with rated load).

Features

Smart Cable Management
Spot welding cables and utility lines are routed through the hollow forearm and wrist for protection, ensuring long life. No surprises from swinging dress cables not modeled in simulation. Minimize interferences, much better than external dress solutions.
World’s Fastest Robot
The best motion control in the class makes cycle times unbeatable. Light weight, highly rigid design robot for high acceleration with minimum vibration. The high speed of all axes provide minimized movement times. Dramatically improves manufacturing productivity.
Controller
FD12

Operating range

The specifications are subject to changes without notice.
In case that an end user uses this product for military purpose or production of weapon, this product may be liable for the subject of export restriction stipulated in the Foreign Exchange and Foreign Trade Law. Please go through careful investigation and necessary formalities for export.

Specification

On controller display, axis 1 to 6 is displayed as J1 to J6 for each.
The specification and externals described in this specifications might change without a previous notice for the improvement.
Explosion proof is not available.
(*1) Load specification of number 1 arm varies according to wrist load conditions and installation position.
(*2) Note that the allowable moment of inertia of wrist varies with the wrist load conditions.
(*3) JIS B 8432 compliant.
(*4) Permitted height is not higher than 1,000 m above sea level. If used in higher place, permitted temperature is affected by height.

Features

Compact
Compact arm construction allows installation in small places.
Robot base: 500 mm wide
Interference radius of frame: 366 mm
High performance
High-speed control of SRA series ultra-fast robots Provides world-class production efficiency.
Plenty of lifting power. Payload capacity: 100 kg Wrist torque: 580 N·m (J4 and J5 axes)
Controller
FD11

Operating range

The specifications are subject to changes without notice.
In case that an end user uses this product for military purpose or production of weapon, this product may be liable for the subject of export restriction stipulated in the Foreign Exchange and Foreign Trade Law. Please go through careful investigation and necessary formalities for export.

Specification

Load specification of number 1 arm varies according to wrist load conditions and installation position.
Note that the allowable moment of inertia of wrist varies with the wrist load conditions.
JIS B 8432 compliant.
Permitted height is not higher than 1,000 m above sea level. If used in higher place, permitted temperature is affected by height.

Features

World Class Speed Robot
Robot motion makes minimum cycle times unbeatable. Light weight and high rigidity design results in high acceleration and minimum vibration. Maximum speed on all axes reduces move time. All this provides dramatically improved productivity.
Superior Spot Welding Capability
Industry leading advanced servo gun software features and technologies.
SRA robot ease of use improves the bottom line
Improved drives and motors for accurate positioning and better repeatability.
Compact design allows closer installation in less floor space.
Improved energy efficiency
Power consumption reduced 15% from existing models by reducing the robot’s weight by 20% and using cutting edge motor drive controls.
Controller
FD11

Operating range

This screw supports up to 210 kg (P.C.D.160).
Use this screw for loads up to 166 kg (P.C.D.125).
Suitable for loads up to 100 kg (P.C.D.92).

The specifications are subject to changes without notice.
In case that an end user uses this product for military purpose or production of weapon, this product may be liable for the subject of export restriction stipulated in the Foreign Exchange and Foreign Trade Law. Please go through careful investigation and necessary formalities for export.

Specification

(*1) Load specification of number 1 arm varies according to wrist load conditions and installation position.
(*2) Note that the allowable moment of inertia of wrist varies with the wrist load conditions.
(*3) JIS B 8432 compliant.

Features

World Class Speed Robot
Robot motion makes minimum cycle times unbeatable. Light weight and high rigidity design makes high acceleration and minimum vibration. Maximum speed on all axes reduces cycle time. Improved productivity by these design.
Easy to use
Improved motor drive controls for accurate positioning and repeatability.
Slim and compact design allows closer installation in less floor space.
Improved maintenance item. It can do easy parts replacement and inspection.
Energy saving
Power consumption reduced 15% from existing model by reducing the robot’s weight by 20% and using newest motor drive controls.
Controller
FD11

Operating range

The specifications are subject to changes without notice.
In case that an end user uses this product for military purpose or production of weapon, this product may be liable for the subject of export restriction stipulated in the Foreign Exchange and Foreign Trade Law. Please go through careful investigation and necessary formalities for export.

Specification
