Features

Other Metal Parts
Has excellent quality and durability by combining the essence of precision working technology and fastening technology of our own, and sharply improves fastening work.

Applications

Features

Other Metal Parts
Slimsert is the ultimate nut to be used in a narrow area. It is an environment-friendly product that facilitates separate disposal of the plastic and nut.

Applications

Features

Other Metal Parts
Inner-Fit helps to securely assemble printed circuit boards and other components to the chassis of a flat panel display.Because pressing the Innerfit head fully into the chassis keeps it flush, the chassis surface remains flat and smooth.

Applications

Features

Other Metal Parts
A special grade of POM (polyacetal) is used as the material. When manufacturers use conventional steel rivets for a plastic product, they must remove the rivets before disposal. But this one does not require such separation.

Applications

Features

Other Metal Parts
Improves efficiency of caulking work, and promotes reduction of assembling cost. Realizes highly reliable fastening on a variety of materials, without fear of incomplete caulking or damage to object material.

Applications

Features

Other Metal Parts
This spring pin is made by winding an elastic sheet metal into a spiral shape and reducing its diameter at both ends to make press fitting easier.

Applications

Features

Other Metal Parts
This grooved fastener has three V-shaped grooves formed at equal intervals along the outer circumferential surface of the pin, running parallel to the longitudinal direction.

Applications

Features

Screw for Plastics Fastening
The screw has four square grooves formed at equal intervals along the outer circumference of the thread. As the screw is driven in, the plastic material bites into these square grooves, providing a high loose-proof effect.

Applications

Features

Screw for Plastics Fastening
Available with high strength materials such as engineering plastic.Prevents plastic cracks.

Features

Screw for Plastics Fastening
This screw prevents screw stripping at a shallow screwing depth and provides secure fastening.

Applications

Features

Screw for Plastics Fastening
The large pitch and high threads help increase the stripping torque, making it possible to use this screw for various plastic materials.

Features

Screw for Plastics Fastening
P-TITE-II is a twin-crest screw composed of high and sharp crest and low crest, with a triangle shaped thread section.

Features

Screw for Plastics Fastening
Enables ideal screw tapping and screwing thanks to a triangle section of threaded part, sharply improving working efficiency

Applications

Features

Screw for Plastics Fastening
Special screw for plastic work pieces. Quick screwing speed, enabling sharp improvement of working efficiency.

Applications

Features

Screw for Plastics Fastening
We designed this screw to provide strong fastening and a high loose-proof effect for soft thermoplastic plastics.

Applications

Features

Screw for Plastics Fastening
MULTI-TITE is the self-tapping screw usable for fastening of both plastic and metal materials. The special thread ensures a wide proper torque range. It realized standardization of working conditions for various kinds of materials.

Applications

Features

Screw for Metal Fastening
If normal self-tapping screws are used with a soft metal such as ADC, the screws are more likely to cause sticking with mated hole because of galling. Moreover, soft metal is more likely to cause the internal threads to deform or cause screws to loosen because of varying thermal expansion coefficients. To address such fastening problems, we have developed ALUMITITE.

Applications

Features

Screw for Metal Fastening
TAPTITE 2000(R) fasteners thread forming technology joins two unique concepts; the trilobular body and the creative curved thread design, advances fastening performance to a new level. The new generation of TAPTITE 2000(R) fasteners provides excellent mechanical, assembly, and ergonomic characteristic which can not be surpassed by other technology.

Applications

Features

Screw for Metal Fastening
It had considered impossible to fasten to a magnesium alloy by self-tapping screws due to generate the chip when thread forming. But MAGTITE fasteners has solved such a problem by its unique thread shape and wide pitch.

Applications

Features

Self-Clinching Stud Bolt
The “strong anti-rotation strength” is added to the JOISTUD that prevents warping and burring of the mating sheet. Combination of extra ribs with outer-rimmed protrusion provide an even greater anti-rotation effect.

Applications

Automotive
Electrification: Battery frame, battery module
Weight reduction: car bodies, seat frames
Home appliances and energy: solar panels, storage batteries, wind turbines, generators, etc.

Features

Self-Clinching Stud Bolt
The “space-saving” function is added to the JOISTUD that prevents warping and burring of the mating sheet. Revised height and slope angle of protrusion reducuce warping and burring even with a small head.

Applications

Automotive
Electrification: Battery frame, battery module
Weight reduction: car bodies, seat frames
Home appliances and energy: solar panels, storage batteries, wind turbines, generators, etc.

Features

Self-Clinching Stud Bolt

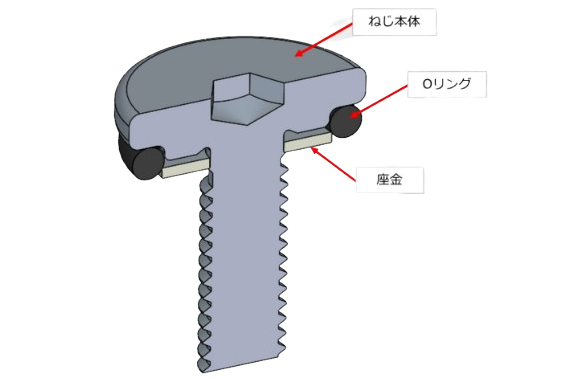

The JOISTUD includes a waterproof function that prevents the mating sheet from warping and burring. When torque is applied to the nut, the O-ring compresses and blocks water intrusion.

Applications

Features

Self-Clinching Stud Bolt
This is a self-clinching stud of pressurized mounting system, to take the place of the conventional clinching stud and welded stud. Realizes total cost reduction and sharply improves productivity.

Applications

Overview

In addition to its single usage, we uniquely design this weekly digital clock so it can form an original world time clock when multiple units are applied. We eliminate the need for a master clock by using a twin synchronous system. (A power box is required when multiple clocks are used to create a world time clock.) You can install the clock either as a wall-mounted or recessed unit, and we can prepare a map panel according to your design upon request.

Specification

Specification

Features

Because it does not undergo plastic deformation, it has become possible to fasten by self-tapping, which previously required insert nuts or internal thread processing, contributing to total cost reduction and weight reduction.

Main uses

Features

We manufacture “gear parts” using heading and rolling processes. This achieves significant cost reductions compared to cutting and grinding processes. Furthermore, heading processes offer the strength and smoothness of surfaces that are unique to them. We can handle even precision sizes.

Main uses

Features

We combine our forging technology with fastening technology (including the integration of other components, resin molding, caulking, etc.) to provide products that go beyond screws and support total cost reduction.

Main uses

Areas that need to be made into functional parts
Automobiles, AV equipment, mobile communication devices, batteries, bags, etc.

Features

We use forging to produce products that we previously made by cutting or combining several parts, and this significantly reduces costs. We meet a variety of part needs, including stepped, oval, square, and eccentric shapes.

Main uses

Areas where cutting products need to be formed
Automobiles, home appliances, AV equipment, OA equipment, information and communication equipment, etc.

Features

The screw, spring washer, and flat washer are integrated, contributing to weight reduction and cost reduction. The cup-shaped flange ensures that the flange periphery is firmly in contact with the ground, providing a high level of locking effect.
Replaces washer-integrated bolts for weight reduction and cost reduction.
The cup shape provides the same or better anti-loosening effect as spring washers and flat washers.
Major applications
Where you want to reduce costs by using washers for fastening.
Where you need high tightening force and are concerned about loosening.
Automobiles, copiers, office equipment, etc.

Features

Main uses

Areas where you want to reduce costs by using washers for fastening
Areas requiring high fastening force to prevent loosening.
Automobiles, copiers, office equipment, etc.

Features

Neo Color Mate and other highly designable screws come in a wide variety of designs, including engraved heads, characters, spine designs, fluorescent colors, hologram types, and phosphorescent types (which store light and glow faintly in the dark).

Main uses

Watches, game consoles, bags, miscellaneous goods, leisure goods, etc.

Features

It enables flat fastening, which brings the fastening surface closer to a flat surface, and provides strong support for making products thinner and lighter.

Main uses

Areas where you want to eliminate protruding heads
Areas where you want to improve appearance
Automobiles, home appliances, etc.

Features

The 0.2 mm head (77% lower than conventional) enables flat fastening, supporting thinner, lighter products.

Main uses

Areas requiring flush heads or improved appearance, e.g., digital cameras, game consoles, laptops, and mobile phones.

Features

When torque exceeds a set limit, the screw breaks below the drive unit, preventing removal, ideal for critical locations where loosening must be avoided.

Main uses

Areas requiring anti-removal fastening.

Features

This drive unit’s slope prevents loosening by letting the bit float when turned in the removal direction, ideal for critical screws where safety and functionality must be ensured.

Main uses

Areas requiring removal prevention.

Features

Features

The drive unit eliminates stress concentration, preventing damage to the drive hole and product from cam-out, while efficiently transmitting torque for reliable tightening.

Main uses

High-torque or removal-prevention areas, e.g., automobiles, home appliances, AV/OA equipment, mobile devices.

Features

This drive unit features a stepped shape at the top of the cross recess, preventing paint peeling during fastening and eliminating the need for retightening.

Main uses

Areas sensitive to paint peeling from tightening.
Digital cameras, etc.

Features

This special drive unit facilitates bit insertion: its inclination guides the bit, reducing insertion issues and improving workability and fastening quality.

Main uses

Areas for screwing with electric or automatic screwdrivers.
Digital cameras, etc.

Features

For fastening critical parts where you do not want consumers to loosen screws for product functionality protection or safety reasons. This special drive unit prevents loosening with commercially available bits.

Main uses

Features

Increasing the driving surface by 20% over a standard No. 0 cross recess reduces load per unit area, prevents crushing when using a dedicated bit, and improves bit durability.

Main uses

Areas where cross-shaped recesses are occurring and causing problems
Digital cameras, computers
