This enclosure fan module is a product that integrates a fan and accessories (with cover, filter media, frame and finger guard).
Optimized cooling for control cabinets.

(In the case of the finger guard module with an IP2X rating filter.
The actual product will be delivered assembled)

(In the case of a finger guard cover panel with an IP2X rating filter.
The actual product will be delivered assembled)

Because the enclosure fan modules have an integrated structure, their characteristics are clear, and they are easy to select and easy to arrange.
They are also easy to install and maintain.

Clear Characteristics, Easy to Select, and Easy to Arrange

Because the characteristics of when finger guard, filter, cover, etc. are attached are clear, it is easy to make a selection.

Easy Installation

When the necessary accessories are arranged separately, assembling many parts with a single screw is time-consuming and difficult to replace.

The enclosure fan module can be easily installed due to its integrated structure.
The finger guard module uses a speed nut, eliminating the need to press down on the nut with hands or tools, and the worry about the nut falling off. Excellent workability.

Easy Maintenance

The body cover can be easily detached from the outside. Filter media replacement is easy.
(Periodic replacement of the filter media is recommended, as clogging reduces the cooling capacity.)

If dust or water droplets enter the control cabinet, the internal devices may malfunction, which can affect the entire equipment system.
The IP4X rating slit metal plate modules and the IP43/IP55 rating dust and water resistant modules prevent the infiltration of dust and water droplets, which improves the service life and reliability of the devices contained in the control cabinet.

When the cooling fan stops, heat builds up in the control cabinet.
This heat can also generate heat in the internal equipment, causing it to failure and adversely affecting the lifetime of the equipment.
With a fan with an alarm, cooling abnormalities in the control cabinet can be detected early and the fan can be replaced before it causes heat damage to the equipment.

Low-Speed Alarm Function Equipped Predictive Maintenance

An alarm signal is output when the rotation speed of the fan deteriorates due to ingress of foreign particles, etc. This helps with predictive maintenance of equipment issues, as fans can be ordered and replaced before equipment is damaged by heat. It also allows replacement of only those fans with deteriorating cooling capacity when there are multiple fans installed. It can limit the impact on the equipment to minimum.

Rapidly Cool Load – Forced Cooling After Heat Processing

The MB Series S type is characterized by a faster exhaust wind speed than a standard axial flow fan.
When air-cooling a load, the faster the wind speed, the less time it takes to cool. Ideal for spot cooling during heat processing.

Example) When cooling a 300 °C steel plate (200 mm × 200 mm × 10 mm) to 100 °C

*Operating ambient temperature is calculated at an intake air temperature of 25 °C.

If cooling time can be shortened, wait time for post-process will be reduced.
Using a centrifugal blower in the cooling system improves overall process efficiency and productivity.

Exhausting Air Through Ducts – Exhaust Inside Laboratory Equipment (Supports intake air temperatures of -10 °C to +90 °C or lower)

The MB Series S type is ideal for duct ventilation because it is designed so that a duct can be directly attached to the intake.

Supports Intake Air Temperatures From -10 °C min. to +90 °C max.

Intake air temperatures from -10 °C min. to +90 °C max. are supported so that warm air flow from dryers and heating equipment can be expelled as exhaust.
Also, please confirm the following operating ambient temperature when blowing high temperature air.

• *Cannot be used in a temperature-controlled environment at -10 °C max., such as in a freezer.

Improved Duct Installation

The intake is stepped to allow direct duct installation.
If you install a duct joint (sold separately), you can also attach a duct to the exhaust outlet.

Blowing Liquids and Dust – Air Blow (Coating of liquid food products)

The MB series S type is ideal for blow-off applications because it sends out a highly directional wind with a large static pressure.
Blowing with wind power means there is no need to touch the load directly when adjusting the amount of liquid or powder.
Achieves uniform blow-off while keeping the load clean.

Manually Adjusting Blow-Off Amount

Manual air flow adjustment is possible by installing an air flow adjustment damper (sold separately).
You can adjust the air flow according to the load while looking at the scale. Refer to here for more details on how to adjust air flow.

Adsorb Lightweight and Flat Loads – Suction of Printed Paper (Tidying up)

The MB Series S type is ideal for applications where air is sucked in with significant static pressure to adsorb the load.
When transporting lightweight and flat loads, it prevents load scattering and position errors, and improves in-process defects such as machining errors and loss.

Use Mounting Holes and Mounting Brackets to Install According to Application

Intake Side Installation

Exhaust Outlet Side Installation

Mounting pedestal

Mounting Bracket for Exhaust Outlet

The MB Series S type allows you to change the position of the exhaust outlet and the direction in which the lead wire is pulled out.
Remove motor assembly screws and rotate motor in 90˚ increments to adjust its orientation.

Intake Side Installation (Through hole)

The through hole on the body can be used for direct installation from the centrifugal blower side.

Exhaust Outlet Side Installation (Tapped hole)

The tapped holes on the body can be used for direct installation from the equipment side.

Mounting Pedestal

By assembling the mounting pedestal (sold separately) to the centrifugal blower, it can be mounted vertically to the ground.

Mounting Bracket for Exhaust Outlets (Only for impeller diameter φ120 mm)

By attaching the mounting brackets for exhaust outlets (sold separately) to the centrifugal blower, it can be mounted from the blower side.



Air Flow Can be Adjusted Easily, Manually, and on the Spot

Manual air flow adjustment is possible by installing an air flow adjustment damper (sold separately).



Adjust the opening area of the intake to change the air flow. Adjustment can be performed manually.

A scale is marked on the body of the air flow adjustment damper.
A graph (reference value) of changes in scale and air flow is posted on the product details page of the air flow adjustment damper.
From the “Filter by Specs” page, select the name of the product you wish to check the specifications of from the following table.

The Centrifugal Blower is a Cooling Fan That Sends Out a Directed Wind With High Static Pressure

Structure of Centrifugal Blowers (Sirocco fans)

Impellers (forward-facing blades) are arranged in a cylindrical shape inside the centrifugal blower.
The centrifugal force created by rotating the impeller with a motor generates a swirling flow almost perpendicular to the axis of rotation. The swirling flow is rectified in 1 direction by a casing called a scroll, increasing the pressure. This restricts the exhaust outlet and concentrates the wind to be sent out in a specific direction.

Differences From Axial Flow Fans

We compare the features of the centrifugal blower with axial flow fans that are used to cool and ventilate the inside of equipment.

Product Line	Axial Flow Fans	Centrifugal Blowers (Sirocco fans)
External View
Features	Large capacity air flow	High static pressure and highly directional air flow
Characteristics	Air Flow Large Static Pressure Small (compared to centrifugal blower)	Air Flow Small Static Pressure Large
Application	Cools the entire piece of equipment High-density packaging equipment cooling (large axial flow fan)	Localized cooling High-density packaging equipment cooling Air flow and exhaust using a duct Adsorption via air

As the characteristics of each offer differing advantage, usage according to application is the crucial point.
Refer to here for more about the features of axial flow fans.

Detecting a Fan Abnormality

Agenda

• Fan cooling function had deteriorated before being noticed.
• How do I prevent damage to precision equipment caused by heat generated?

Example) Data center



Recommended product
Fan A type with alarm

Advantages of Fan With Alarm

Alarm output from the fan helps prevent equipment issues and failures in the event of an emergency.
Choose between 2 alarm product lines.

Stall Alarm

Notification When Fan Stops

Alarm signal outputs when fan rotation stops. Stops due to abnormalities can be quickly detected, allowing for the problem fan to be replaced.

Low-Speed Alarm

Notification When Fan Rotation Has Deteriorated

An alarm signal is output when the rotation speed of the fan deteriorates due to ingress of foreign particles, etc.
Contributes to predictive maintenance of equipment issues by allowing fan to be replaced prior to heat damage to equipment.
Even in multi-fan installations, just fans with a deteriorated cooling capacity can be replaced.

Reducing the Number of Maintenance Services

Agenda

• Reducing the number of maintenance services as much as possible
• Equipment must be installed where maintenance is difficult.
  Example) Base station



Recommended Product
Long life fan E type

Advantages of Long Life Fan

With an expected life of up to 180,000 hours, providing not only cooling performance but also a tough long life performance capable of withstanding continuous duty for about 20 years. It contributes to lower equipment maintenance costs and overall costs.

Expected life varies depending on product. Check product page for details.

Lower Maintenance Costs and Overall Costs

Long life fan significantly reduces the number of fan replacements compared to S Type, reducing total costs.

Lifetime Comparison Example

*Estimated life is 40,000 hours at an ambient temperature of 60 °C. The estimated life is an estimated value calculated using the formula for the life of the bearing grease. The estimated life varies depending on the product.

Cooling While Adjusting the Air Flow

Agenda

• Cooling while adjusting air flow and static pressure due to changes in heat source
• How do I suppress noise?
  Example) Conveyor cooling



Recommended product
Variable speed fan V type

Advantages of Variable Speed Fans

Fan rotation speed can be adjusted via PWM control.
Air flow and static pressure can be adjusted, yielding energy savings and noise reduction.

Energy Savings, Noise Reduction

When required, driving the fan at the required air flow achieves a reduction in wasted power and noise.

Pulse sensor Output for Constant Monitoring

A signal of 2 pulses per revolution is output while the fan is being driven. By checking for changes in pulse signals, the status of the fan can be constantly monitored. Also ideal for equipment that needs to run 24 hours a day.



Using in a Location Where Water or Dust is Present

Agenda

I want to use with confidence even in an environment where water or dust is present.
Example) Cleaning equipment



Recommended product
Watertight fan P type

Advantages of Watertight Fan

Watertight type fan that can be used in places where water and dust are present.
Conforms to degree of protection IP68 under IEC Standards.

Degree of protection IP68

[Waterproof test conditions]
Submerged for 60 minutes under no current into water pressurized to a depth equivalent to 2 m.
Then, after operating for 15 minutes in air, no abnormality should be observed in the dielectric strength test.

Stall Alarm

Alarm signal outputs when fan rotation stops.

• Cannot be used under water.
• The IP indication that shows the watertight and dust-resistant performance are specified under IEC 60529 and IEC 60034-5.

Properly Cooling High-Density Packaging Equipment

Agenda

• Increasing the cooling efficiency
• The number of devices in the control cabinet has increased, and the pressure loss has increased
  Example) Control cabinet for high-density packaging



Recommended product
Large fan

Advantages of Large Fan

When pressure loss inside equipment is large, using a large fan is more effective in saving energy and wiring than using several small fans.

For high-speed specifications, the air flow and static pressure are increased without changing the frame size (S type)

The S type is available in “standard speed specification” and “high-speed specification” with up to twice the air flow.

Even when the number of devices in the control cabinet increases and the pressure loss becomes large, the air flow and static pressure can be increased without changing the fan frame size, by replacing it with a high-speed specification.

The maximum air flow for each mounting dimension is as follows.

Long Life With Expected Life of 100,000 Hours (Approx. 11 years)

This long life fan can withstand continuous duty for about 11 years.
The temperature rise of the bearing has been reduced, and the deterioration of grease, which affects the lifetime of the fan, has been suppressed.
Measures have been taken for longer service life of circuit/coupling and reduction of failure rate.
It is designed not only to prevent initial failure, but also to prevent accidental and abrasion failures.

Longest^* Service Life in the Industry

The □250 mm axial flow fan is highly efficient with a winding design that meets the power supply specifications of each country, and suppresses the temperature rise of the cooling fans.
It has achieved the longest^* service life in the industry.

• *As of March 2021. Industrial Axial Flow Fan/AC Input Type/Same Size/Research by Oriental Motor

Lower Maintenance Costs and Overall Costs

As a result, fewer fan replacements are needed, reducing costs.

*Estimated life is 35,000 hours at an ambient temperature of 60 °C. The estimated life is an estimated value calculated using the formula for the life of the bearing grease. The estimated life varies depending on the product name.

Suitable for Hard-to-Maintain Environment

The long life and low failure rate make it ideal for environments and equipment that are difficult to maintain.

[Example environment where maintenance cannot be easily performed]

• Equipment is in continuous operation and cannot be stopped
• Locations that are difficult to access such as on roads or in underground areas
• Equipment that needs to be delivered or installed in remote areas

Low-Speed Alarm Function EquippedPredictive Maintenance

An alarm signal is output when the rotation speed of the fan deteriorates due to ingress of foreign particles, etc. This helps with predictive maintenance of equipment issues, as fans can be ordered and replaced before equipment is damaged by heat. It also allows replacement of only those fans with deteriorating cooling capacity when there are multiple fans installed. It can limit the impact on the equipment to minimum.

Connector Connections Can Reduce Wiring Work

Since the fan and cable are connected by a connector, wiring work can be reduced.
For products with single-phase power supply, the capacitor is built into the fan body. Wiring for the capacitors used to be a hassle, but it is now hassle-free with connectors.

Speed Control Operation for Low Noise and Power Saving

By adjusting the air flow according to the conditions, you can reduce noise and save power.

Three-Phase Power Supply Input Products Can Adjust the Air Flow by Speed Control Operation Using an Inverter

Three-Phase power supply input products can adjust the air flow by speed control operation using an inverter.
By using ceramic ball bearings, electric corrosion on the bearings due to noise can be prevented.

Air Flow – Static Pressure Characteristics (Characteristics of a single fan)

Example) When MRE25 is combined with an inverter (reference value)

• The value when a general inverter is used at factory settings.
  The characteristics vary depending on the type and settings of the inverter.
• Use 60 Hz or less for the inverter’s setting frequency and 240 V or less for the inverter’s input voltage.
• If an inverter is connected to an alarm type fan and the setting frequency is set to lower value, the rotation speed may be reduced and the alarm may be activated.

You Can See the Characteristics Data for Combinations With Inverters

Reference data for combinations with inverters from other manufacturers is made available to make it easy to connect to inverters.

[Reference Data]

• Inverter parameter set values
• Air flow – static pressure characteristics and rotation speed/current/power consumption

Easy Setup With the Finger Guard Set

Finger guards, mounting screws, and filters are included in the set of accessories necessary to use the fan.
Because these products are sets, there is no need to order individual components, and they can be assembled onto the fan immediately upon arrival.

• *Finger guard set is sold separately.

Set Contents

Finger Guard Set (1 Guard)

• Steel Finger Guard Set
• Stainless Steel Finger Guard Set

Finger Guard Set (2 Guards)

• Steel Finger Guard Set
• Stainless Steel Finger Guard Set

Finger Guard and Filter Set (1 Each)

• Steel Finger Guard and Filter Set

Mounting Example

Finger guards are used outside the control cabinet

Outside → For Preventing Injury

Finger guards are used on both the inside and outisde of the control cabinet

Inside → For Protection of the Workers

Outside → For Preventing Injury

Finger guards are used on the inside of the control cabinet, and filters are used on the outside

Inside → For Protection of the Workers

Outside → For Protection Against Dust

Features Large Air Flow

The MRS Series provides a large air flow and fast air circulation and is suitable for ventilation and cooling to cool the entire interior of the equipment.
When the ventilation resistance inside the equipment is large, it is better to use a large fan with large air flow and high static pressure to save energy and reduce wiring.

Cooling High-Density Packaging Equipment

Ventilation and Cooling of the Entire Interiors of the Control Cabinet and Equipment

For Even Larger Ventilation Resistance

Centrifugal blowers as well as axial flow fans are suitable for allowing air to flow through equipment with large ventilation resistance, such as high-density equipment or narrow vents. The figure below shows a characteristics diagram comparing a centrifugal blower with a maximum air flow equivalent to that of the MRS Series □140 mm.
Centrifugal blowers are fans with high static pressure compared to axial flow fans.

Air Flow – Static Pressure Characteristics



The actual air flow can be verified by the point of intersection of the characteristics line and the ventilation resistance line (operating point).

[Air Flow Rate at 50 Hz Operation]

• • Axial flow fan 1.3 m³/min
  • Centrifugal blower 3.3 m³/min
    The centrifugal blower allows 2 m³/min more air to flow.
    When the ventilation resistance is large, consider a centrifugal blower.

Low-Speed Alarm Function EquippedPredictive Maintenance

The alarm output function is activated when the rotation speed drops below 70 % due to unexpected circumstances such as end of service life of the cooling fans or by the ingress of foreign particles, etc.
This makes it possible to replace the fan before it comes to a complete stop.

Contact type fans with low-speed alarms have contact points that turn ON when rotation is normal, and can be connected in series as shown in the figure below.
An alarm signal is output even if the number of rotations of one of the multiple units drops due to some kind of malfunction. At the same time, it can also detect abnormalities such as contact failure or disconnection on the alarm circuit.
This can contribute to more reliable equipment design.

Noise Reduction, Power Saving and Even Longer Life, With Speed Control Operation

By adjusting the air flow according to the conditions, you can reduce noise and save power.
This also helps to reduce bearing deterioration and extend the life of the fan.

Three-Phase Power Supply Input Products Can Adjust the Air Flow by Speed Control Operation Using an Inverte (Except for MRS14)

Three-Phase power supply input products can adjust the air flow by speed control operation using an inverter.
By using ceramic ball bearings, electric corrosion on the bearings due to noise can be prevented.

Air Flow – Static Pressure Characteristics (Characteristics of a single fan)

Example) When MRS18 is combined with an inverter (reference value)

• The value when a general inverter is used at factory settings.
  The characteristics vary depending on the type and settings of the inverter.
• Use 60 Hz or less for the inverter’s setting frequency and 240 V or less for the inverter’s input voltage.
• If an inverter is connected to an alarm type fan and the setting frequency is set to lower value, the rotation speed may be reduced and the alarm may be activated.

You Can See the Characteristics Data for Combinations With Inverters

Reference data for combinations with inverters from other manufacturers is made available to make it easy to connect to inverters.

[Reference Data]

• Inverter parameter setting values
• Air flow – static pressure characteristics and rotation speed/current/power consumption

Variable Speed Type Fans Using Variable Resistors are Also Available (MRS16V-B)

Variable speed type fans using variable resistors (included) are available for 160 mm frame size.
It can be used without the need for an inverter.
Suitable for applications in which adjustment of the air flow is necessary, or applications in which a temporary decrease in noise is needed.

To Adjust the Speed Steplessly With a Variable Resistor (Included)
Connect the included variable resistor to the lead wire coming out of the terminal box on the fan body.

To Adjust the Speed Step by Step With an External Fixed Resistor

Switch over to the desired resistance with the fixed resistors (1/4 W min.) using a switch, relay, etc.

Application Examples of the High Efficiency, High-Characteristics MRS Series

The MRS Series, with its large air flow and high static pressure, is suitable for cooling equipment that is crammed with devices inside with large air loss while air is flowing.

Example

When cooling equipment with a board mounted with a heat generation of 120 W
Six MU1238 type units and one MRS16 type unit will provide approximately the same cooling effect.

Energy Savings

With the MRS16 type fans, power consumption can be reduced by 60 %, reducing the running costs which include the electricity fees.

Simple Wiring

The MRS16 type fans can be used to reduce the amount of time and effort required to mount and wire the equipment.

Detects Failure and Low-Air Flow

The MRS16 type fans are available with a low-speed alarm so that they can be replaced before it causes damage to the equipment in the unlikely event of deterioration in air flow.

*The above is an example. Use Oriental Motor’s motor sizing service to find the best cooling fan for the mounting density and operating conditions.

Easy Setup With the Finger Guard Set

Finger guards, mounting screws, and filters are included in the set of accessories necessary to use the fan.
Because these products are sets, there is no need to order individual components, and they can be assembled onto the fan immediately upon arrival.

*Finger guard set is sold separately.

Set Contents

Finger Guard Set (1 Guard)^*1

• Steel finger guard set
• Stainless steel finger guard set

Finger Guard Set (2 Guards)

• Steel Finger Guard Set
• Stainless Steel Finger Guard Set

Finger Guard and Filter Set (1 Each)

• Steel finger guard and filter set

Mounting Example

Finger guards are used outside the control cabinet

Outside → For preventing injury

Finger guards are used on both the inside and outisde of the control cabinet

Inside → For protection of the workers

Outside → For preventing injury

Finger guards are used on the inside of the control cabinet, and filters are used on the outside

Inside → For Protection of the Workers

Outside → For protection against dust

*1

The variable speed type fans include 1 finger guard. Use in combination with the 1-guard set.

Power Consumption Reduced by Approximately 68 %^*1

Using brushless motors reduces power consumption by approximately 68%.

Expected Life^*2 60,000 Hours (Approx. 6 years)

By increasing the lifetime by approximately 2.2 times^*1, the number of fan replacements due to expected lifetime can be reduced, thus reducing maintenance costs.

Support Single-Phase 100-240 VAC (50/60 Hz)

A single unit handles usage in any country or region, achieving the same characteristics regardless of the frequency used.

Approximately 45 %^*1 Lighter Mass in Weight

By using resin as the material for the frame, the mass is reduced to 0.29 kg (EMU1238).

Mounting screws, filters, and other components have been installed to finger guards to prevent fingers and foreign particles from getting inside and to the panels which provide ideal ventilating and cooling for the control cabinet.
Since this is a set, there is no need to order individual components, and you can mount it to the fan and use it immediately after arrival.

*The sets are sold separately from the fan.

Finger Guard Set

Set Contents

Finger Guard Set (1 Guard)

• Steel finger guard set
• Stainless steel finger guard set

Finger Guard Set (2 Guards)

• Steel Finger Guard Set
• Stainless Steel Finger Guard Set

Finger Guard and Filter Set (1 Each)

• Steel finger guard and filter set

Mounting Example

Finger guards are used outside the control cabinet

Outside → For preventing injury

Finger guards are used on both the inside and outisde of the control cabinet

Inside → For protection of the workers

Outside → For preventing injury

Finger guards are used on the inside of the control cabinet, and filters are used on the outside

Inside → For Protection of the Workers

Outside → For protection against dust

Cover Panel Set for Enclosure

Cover Panel Set Product Line

Cover panel set are available in varying degrees of protection. Select the right product for your needs based on the installation environment and application.

Finger Guard Cover Panel Set
IP2X Rating

Slit Metal Cover Panel Set
IP4X Rating

Dust and Water Resistant Cover Panel Set

IP43/55 Rating^* *The difference in ratings is due to differences in the filter product line.

IP54 Rating for Exhaust

IP54 Rating for Suction

Assembly Diagram

This is a reference diagram of the process for assembling the axial flow fan (sold separately) to the cover panel set for enclosure.

Finger Guard Cover Panel Set
IP2X Rating

Slit Metal Cover Panel Set
IP4X Rating

Dust and Water Resistant Cover Panel Set

IP43/55 Rating

IP54 Rating for Exhaust

IP54 Rating for Suction

These diagrams provide detailed information and important points such as set content, applicable products, and usage applications for each degree of protection.

Mounting screws, filters, and other components have been installed to finger guards to prevent fingers and foreign particles from getting inside and to the panels which provide ideal ventilating and cooling for the control cabinet.
Since this is a set, there is no need to order individual components, and you can mount it to the fan and use it immediately after arrival.

*The sets are sold separately from the fan.

Finger Guard Set

Set Contents

Finger Guard Set (1 Guard)

• Steel finger guard set
• Stainless steel finger guard set

Finger Guard Set (2 Guards)

• Steel Finger Guard Set
• Stainless Steel Finger Guard Set

Finger Guard and Filter Set (1 Each)

• Steel finger guard and filter set

Mounting Example

Finger guards are used outside the control cabinet

Outside →

For preventing injury

Finger guards are used on both the inside and outisde of the control cabinet

Inside → For protection of the workers

Outside → For preventing injury

Finger guards are used on the inside of the control cabinet, and filters are used on the outside

Inside →

For Protection of the Workers

Outside →

For protection against dust

Cover Panel Set for Enclosure

Cover Panel Set Product Line

Cover panel set are available in varying degrees of protection. Select the right product for your needs based on the installation environment and application.

• Finger Guard Cover Panel Set
  IP2X Rating



• Slit Metal Cover Panel Set
  IP4X Rating



Dust and Water Resistant Cover Panel Set

IP43/55 Rating^*

• IP54 Rating for Exhaust



• IP54 Rating for Suction



Assembly Diagram

This is a reference diagram of the process for assembling the axial flow fan (sold separately) to the cover panel set for enclosure.

Finger Guard Cover Panel Set
IP2X Rating

Slit Metal Cover Panel Set
IP4X Rating

Dust and Water Resistant Cover Panel Set

IP43/55 Rating

IP54 Rating for Exhaust

IP54 Rating for Suction

These diagrams provide detailed information and important points such as set content, applicable products, and usage applications for each degree of protection.

Torque motors have a large starting torque and have a characteristic of high torque at low speed and low torque at high speed (sloping characteristics).
With this characteristic, it is usable in wide-ranging applications as a winding and tensioning motor.

Easily Adjustable Motor Torque

The TM Series can easily set and adjust the motor torque with the internal torque potentiometer of the power controller or other devices.

Recommended for Simple Winding and Tension Adjustment

Simple System Configuration

If you do not need highly accurate control using a tension controller or servo motor, you can use the TM Series to adjust tension with a simple system configuration.

Affordable Price to Start Simple Winding and Tension Adjustment

A winding and tensioning system is cheaper to configure than a tension controller or servo motor.

Power Controller Features

3 Different Torque Setting Methods to Suit Your System

Configurable torque settings include “internal torque potentiometer,” “external torque potentiometer,” and “external DC voltage.”
For external DC voltage, it can be further automated by connecting to a host PLC and controlling by DC voltage.
2-step torque setting, switching between internal and external, is also possible.

Fine Torque Adjustment Function Equipped

Relative to the set value, the actual motor output torque may vary slightly from motor to motor.
The TM Series power controllers come with a torque fine-tuning potentiometer (ADJUST function) to adjust for this variation.
When multiple motors are used, e.g. in multi-motor control, the torque difference between each motor can be easily offset.

Full Functionality

• Alarm output function to detect poor motor connection (thermal protector open detection)
• 2-step internal/external torque setting
• Instantaneous bi-directional operation by switching CW/CCW
• Sink/source logic switching for input signal

Winding

The sloping characteristics of torque motors suit applications for winding at constant speed and tension.

Tension Adjustment (Brake)

The brake force of the torque motor can be used for tensioning to prevent the material from sagging during winding.

Selection methods for use in winding and tension (brake) applications are described in detail in the following pages.

Pushing

Since stable torque can be obtained even under locked rotor condition or in semi-locked low speed operation, it is suitable for push-motion operation.^*

Tightening

It is suitable for tightening screws, etc., since stable torque can be obtained even under locked rotor condition or in semi-locked low speed operation.^*

*The output torque increases in the locked rotor condition. Never hit to stop when using a gearhead or a linear head. The gearhead or linear head may be damaged by an impact if hit to stop.

The distance between the motor and the power controller can be extended up to 20 m.

The motor and the power controller can be up to 20 meters apart.
It is usable even when the motor mounting location is far from the control cabinet.

Easy Wiring, Conforms to DIN Rail

The connection terminals of the power controller are divided into upper and lower terminals for the control and power systems, allowing for neat wiring. It can also be mounted directly on a DIN rail.

Global Voltage Support

The lineup includes products that are compatible with the power supply voltages of major countries overseas as well as Japan.
The power controller also supports a wide range of voltages, covering all major world voltages with a single unit.

Speed Control Using Closed Loop Control

Speed Regulation ±1 % (Reference value)

The tachogenerator built into the AC motor continuously monitors the rotation speed. The system actively controls the actual speed to match the speed setting, ensuring stability even when the load fluctuates.The system continuously adjusts the actual speed to match the speed setting, maintaining consistency even when the load changes.

Digitalization of Circuits

In the past, most analog circuits transitioned to digital, now managed by the CPU, significantly reducing circuit components. This shift has led to unprecedented miniaturization and lower costs.. In addition, digitization has made it possible to keep the deviation between the speed command value and the speed detection value close to zero, and the speed regulation has been improved from -5 % to ±1 %^*.

*Change the torque value from 0 N·m to permissible torque (at 1000 r/min)

Easy Setting, Less Space

Compact

The volume is 63 % smaller than a general inverter.

Side-by-Side Installation Saves Space

The body width is 35 mm, and even when using multiple axes, the installation is compact because they can be installed side by side.

Slim Body Control Cabinet

With a depth of 90 mm, it fits into slim body control cabinets.

One-Touch Operation of Connector Connection between Motor and Driver

Wiring the speed controller and motor together uses a connector, for easy installation and removal.

Wiring for I/O and other connections uses a screwless method, eliminating the need for crimping or screwing.

No need for soldering or crimping tools, and no tightening torque management for screws necessary. Reduces wiring time and maintenance.

Easy Installation to DIN Rail

Install the speed controller directly on the DIN rail.

High Reliability

Low Noise Gives Peace of Mind, and System Configuration is Simple

Alarm Output Increases Reliability

Thanks to the closed loop control, the controller receives real-time feedback on the motor status. The system outputs an alarm signal when an abnormality, such as motor lock due to overload, occurs and stops the power supply to the motor.

Vertical Operation is Possible With Electromagnetic Brake Type

Speed control in vertical operation is possible through deceleration control.

Speed Control (4 speeds)

Set 4 units of operation data and switch them with I/O during operation.

Acceleration/Deceleration

Makes the motor movement at start/stop smoother.
It is possible to set acceleration/deceleration differently for each of the 4-speed data units.

Bi-Directional Operation

Performs the operation according to the command for rotation direction.

Instantaneous Stop

Stops the operating motor instantaneously.
(Create short cycle run/stop conditions.)

Instantaneous Bi-Directional Operation

Instantaneously switches the rotation direction of the motor while operating.
(Create conditions for short cycle changes.)

External Speed Setting is Available

Set using the operation keys, an external speed potentiometer (sold separately), or external current voltage.

Multi-Motor Control (20 units max.)

A single external speed potentiometer can operate a max. of 20 units in parallel.
Adjust each motor’s speed by changing the controller’s parameters.

Speed Range Control

It is possible to limit the speed setting in advance with the speed range.

Use of a High Permissible Torque, High Strength Gearhead

Uses a motor and gearhead that excels in both permissible torque and strength.

Right-Angle Hollow Shaft Hypoid JH Gearhead

High strength hypoid gears are used. Significant torque enhancement and noise reduction compared to conventional products are achieved.
The radial and axial loads on the gearhead output shaft are also greatly increased, contributing to the downsizing and enhanced reliability of the equipment.



Parallel Shaft Gearhead GV Gearhead

By increasing the size of the output shaft bearing and using carburized gears, the permissible torque and permissible radial and axial loads have been increased compared to the conventional gearhead.



Motor and Gearhead Preassembled (Right-angle hypoid JH/JL gearhead, parallel shaft gearhead GV gearhead)

The motor and gearhead are delivered pre-assembled

This allows customers to reduce assembly time and install it in equipment right away.

The Gearhead Can be Removed

The motor position can be rotated by 90˚ to change the direction of the lead wire extraction. In addition, the gearhead only can be purchased to change the gear ratio or replace during maintenance.

Easy Operation

The digital display panel and setting dials allow for intuitive operation.
It is so simple to use that anyone can master it without looking at the manual.

Simple and Intuitive Operation

Turn the setting dial to set the desired value. Determine the rotation speed by simply pushing the setting dial.

Start, Stop, and Change of Rotation Direction

With single switch operation, start, stop, and change the rotation direction. There is no need to install an external switch.



Simple Wiring

Just connect the motor and speed controller, connect to the power supply to start up immediately.
The speed controller has connectors and a built-in capacitor, which eliminates troublesome wiring and connections.

Maximum Extension Distance 10 m

Easy connection between motor and speed controller via connector.
Extend the connection between the motor and speed controller up to 10 meters for greater flexibility.

Built-In Capacitor

The built-in capacitor reduces the need for wiring, and saves space.

High Reliability

Low Noise and Simple System Configuration

The motors and speed controllers used in the US2 Series generate almost no noise.
Therefore, you need fewer noise-suppressing accessories, which simplifies installation, reduces costs, and saves space.

Speed Control Using Closed Loop Control

Stable Operation Even When Load Fluctuates

Thus, requiring fewer noise-suppressing accessories makes installation easier, lowers expenses, and conserves space. In addition, the digitalization of the control circuit has improved the speed regulation from -5 % to ±1 % (reference value).

Useful Functions

Open the Front Panel to Set Various Functions

• Digital Display
  Monitoring information and alarm codes can be displayed.
• Equipped With Indicator
  Configure to display either the gearhead output shaft rotation speed or the conveyor transfer speed.
• Operation Method Selection
  Select whether to operate by the switch on the front panel or by external commands.
• Data Protection (Lock)
  Lock the data setting so that the set rotation speed cannot be changed.

Smooth Operation When Starting and Stopping

Adjust motor acceleration time using the acceleration/deceleration time potentiometer.

Setting time 0.1~15 seconds (Factory Setting: Fixed at 1 second)

Protection of Motor and Speed Controller

Protects the motor and speed controller with an alarm display if motor generates abnormal heat, has a poor connection, or locks up.

Use of a High Permissible Torque, High Strength Gearhead

Uses a motor and gearhead that excels in both permissible torque and strength.

Right-Angle Hollow Shaft Hypoid JH Gearhead

High strength hypoid gears are used. Significant torque enhancement and noise reduction compared to conventional products are achieved.
The radial and axial loads on the gearhead output shaft are also greatly increased, contributing to the downsizing and enhanced reliability of the equipment.



Parallel Shaft Gearhead GV Gearhead

By increasing the size of the output shaft bearing and using carburized gears, the permissible torque and permissible radial and axial loads have been increased compared to the conventional gearhead.



Right-Angle Hollow Shaft Hypoid JH Gearhead/Right-Angle Solid Shaft Hypoid JL Gearhead

Motor Mounted Perpendicularly to Drive Shaft for Space Saving

Cost Reduction by Directly Linking to the Drive Shaft

Installation Inside the Conveyor Saves Even More Space

Conveyor drive rollers can be installed on both ends of the load shaft of a hollow shaft type.
The equipment can be made even smaller compared to when the motor is installed on the side of the conveyor.

Easy Installation With Torque Arm

The torque arm (sold separately) further reduces installation time and effort. (Hollow shaft type)

Easily centered with the equipment

Only one needed to stop rotation and secure the equipment

Equipped With Power Off Activated Type Electromagnetic Brake

Brake Pack to Provide Instantaneous Stop of the Motor

Conforms to International Safety Standards

All models conform to various safety standards and have built-in overheat protective devices.

Three-Phase High Efficiency Motors With Optimized Design are Also Available

Maximum Efficiency of 80 %

Specialized components and an optimal magnetic design are used to make high efficiency three-phase motors with a max. efficiency of 80 %. Motors are fanless with increased motor output power, and significant loss reduction.

Comparison of Max. Efficiency (Reference values)

[Rated Output Power at 60 Hz]

*Three-Phase 380/400/415 VAC meets IE3 reference values.
IE4 and IE3 are efficiency classes under the international standard IEC 60034-30-1.

Power Consumption Reduced by up to 10 %

Compared to a conventional 90 W motor under the same conditions, power consumption is reduced by a maximum of about 10 %. This helps the equipment to save energy.

• Increased Motor Output Power

  Output power of 100 W in a 90 mm frame size is achieved through increased efficiency. An overall length 15 mm shorter than the conventional motor contributes to equipment downsizin

Fanless

With reduced loss, there is less heat generation in the motor. Because of this, the cooling fan that was incorporated into the conventional 60 W min. products is no longer included.

No Dust, etc.

With no cooling fan, dust is not blown around.

Features of Gearheads and Linear Heads

Gearheads: Easy Deceleration and Torque Increase

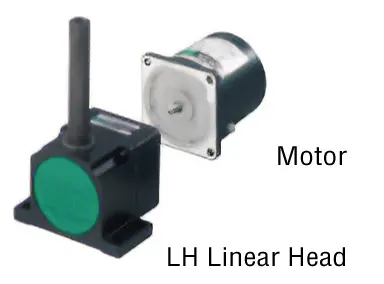

LJ Linear Heads: Converts Motor Rotation to Linear Motion

Wide Variation

Different gearheads can be used for different applications.

High-Strength Gearhead

For increased torque or downsizing, we offer high-strength gears with even more power.

Parallel Shaft GV Gearhead

Increased torque is achieved by increasing the size of the output shaft bearing and adopting carburized gears.

Can be Combined With Other Manufacturers’ Inverters

Example of Characteristics When Combining KIIS Series 100 W Round Shaft Type and Mitsubishi Electric Inverter E800

Combination Characteristics Data for Inverters and Optimal Parameters are Available.

The best torque characteristics can be obtained by setting the inverter parameter values to match the motor.
For combination characteristics data and parameter setting examples of KIIS Series and other manufacturers’ inverters, refer to the links below.

Combining the KIIS Series With an Inverter Contributes to Improved Equipment Performance.

Wide Range of Speeds

Using an inverter, a wide speed range can be controlled, from 3 Hz to a maximum of 120 Hz (90~3600 r/min)^*. Designed for use at high rotation speeds, including the gearhead.

*Speed control range differs depending on the product. Refer to “Other Specifications” – “Using with Inverters” on each product detail page.

Vector Control Improves Torque in the Low to Medium Speed Range

By using vector control as the control method for the inverter, high torque can be achieved from low speed.

Improved Speed Stability

When combined with an inverter, the speed decrease is reduced even when the load fluctuates, allowing for stable speed control.

Supports High-Speed Rotation

Creep-free bearings, etc. are used in the round shaft type, and components capable of handling high-speed rotation have been selected and designed for inverter control.

Reinforced Insulation for Use in Areas With High Power Supply Voltage (200 W output power)

Three-Phase 380/400/415 VAC input motor (200 W output power only) has reinforced insulation against micro-surge voltages generated when driving inverters and can be used safely in combination with inverters.

Principle of Operation of Power Off Activated Type Electromagnetic Brake

Electromagnetic Brake Control Characteristics

Rotation Speed and Speed Control Range

Standard AC motors (constant speed motors) such as induction motors, vary their rotation speed according to the power supply frequency, and the rated speed is approximately 1200 r/min at a frequency of 50 Hz and approximately 1450 r/min at 60 Hz. Speed control motors are available for a wide range of operating speeds from low to high.

Stopping Accuracy

When the motor is stopped, an overrun (overshoot) occurs.
Overruns can be reduced when the electromagnetic brake motor or instantaneous stop function are used.

Ideal for Applications Where Bi-directional Operation is Repeated Frequently

Easy Operation

All you need is to connect a capacitor and plug the motor into an AC power supply, and the motor can be easily operated.

Brake Pack Stops the Motor Instantaneously

Suitable for applications where the overrun of a reversible motor is reduced and the instantaneous stop is performed.
The brake pack SB50W is equipped with a function that can output an alarm signal when the thermal protector built into the motor is activated.

Conforms to International Safety Standards

All models conform to various safety standards and have built-in overheat protective devices.

Applicable Standards

UL/CSA Standards Certified
Component certified under the China Compulsory Certification System (CCC System)
Implemented CE Marking (Low Voltage Directive)

Motor Overheat Protective Device

Thermal Protector,
Impedance Protected Motors

Features of Gearheads and Linear Heads

Gearhead: Easy Deceleration and Torque Increase

By combining the motor and gearhead, it is possible to reduce the speed to the desired speed or increase the torque.

Linear Head: Converts Motor Rotation to Linear Motion

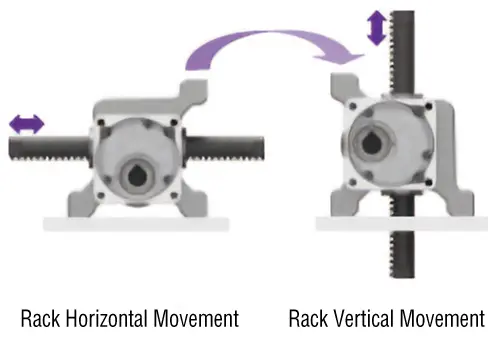

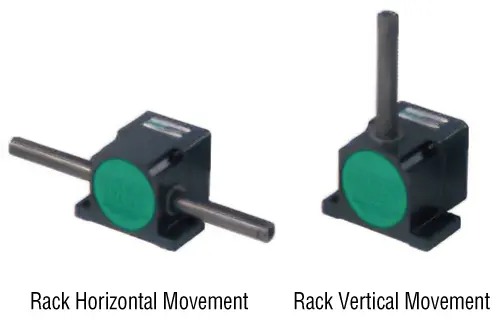

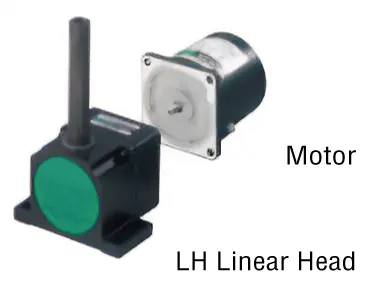

Combined with a linear head, the rotary motion of the motor can be converted to linear motion. Square rack type and round rack type are available.

Wide Variation

Different gearheads can be used for different applications.

Brake Mechanism

Reversible motors have a simple built-in brake mechanism (friction brake) at the rear of the motor.
This brake mechanism is installed for the following purposes.

• To improve the instant reversing characteristics by adding a frictional load.
• To reduce overrun.

The brake mechanism is constructed as shown in the figure. The coil spring applies constant pressure to allow the brake shoe to slide toward the brake disk.
This mechanism provides a certain degree of holding force, but the brake force is limited due to the mechanism’s structure, and we set it to approximately 10 % of the motor’s output torque.

Rotation Speed and Speed Control Range

Standard AC motors (constant speed motors) such as induction motors, vary their rotation speed according to the power supply frequency, and the rated speed is approximately 1200 r/min at a frequency of 50 Hz and approximately 1450 r/min at 60 Hz. Speed control motors are available for a wide range of operating speeds from low to high.

Stopping Performance

When the motor is stopped, overrun (overshoot) occurs.
Overrun can be reduced when electromagnetic brake motors or instantaneous stop functions are used.

Ideal for Unidirectional and Continuous Operation

Easy Operation

All you need is to connect a capacitor and plug the motor into an AC power supply, and the motor can be easily operated.
(A capacitor is not required for three-phase motors.)

Provide Instantaneous Stop to the Motor With a Brake Pack

Suitable for applications that reduce the overrun of induction motors and provide instantaneous stop. The brake pack SB50W is equipped with a function that can output an alarm signal when the thermal protector built into the motor is activated.

Conforms to International Safety Standards

All models conform to various safety standards and have built-in overheat protective devices.

Applicable Standards

UL/CSA Standards certified
Component certified under the China Compulsory Certification System (CCC System)
Implemented CE Marking (Low Voltage Directive)

Motor Overheat Protective Device

Thermal protector,
impedance protected

Three-Phase High Efficiency Motors With Optimized Design Are Also Available

A review of the basic motor design has yielded unprecedented high efficiency and energy savings.
Also available are three-phase high efficiency motors with characteristics best suited for speed control by inverters, enabling energy saving.

Maximum Efficiency of 80 %

Specialized components and an optimal magnetic design are used to make high efficiency three-phase motors with a max. efficiency of 80 %. Motors are fanless with increased motor output power, and significant loss reduction.

Comparison of Maximum Efficiency (Reference values)

[Rated Output Power at 60 Hz]

*Three-Phase 380/400/415 VAC meets IE3 reference values.
IE4 and IE3 are efficiency classes under the international standard IEC 60034-30-1.

Power Consumption Reduced by up to 10 %

Compared to a conventional 90 W motor under the same conditions, power consumption is reduced by a maximum of about 10 %. This helps the equipment to save energy.

Increased Motor Output Power

Output power of 100 W in a 90 mm frame size is achieved through increased efficiency. An overall length 15 mm shorter than the conventional motor contributes to equipment downsizing

Fanless

With reduced loss, there is less heat generation in the motor. Because of this, the cooling fan that was incorporated into the conventional 60 W min. products is no longer included.

No Dust, etc.

With no cooling fan, dust is not blown around.

Gearhead Features

Increased Deceleration and Torque When Combined With Gearheads

By combining the motor and gearhead, it is possible to reduce the speed to the desired speed or increase the torque.

Wide Variation

Different gearheads can be used for different applications.

High-Strength Gearhead

For increased torque or downsizing, we offer high-strength gearheads with even more power.

Right-Angle Hypoid Gearheads

High strength hypoid gears are used. Significant torque enhancement is achieved in comparison to conventional products.

Parallel Shaft GV Gearhead

Increased torque is achieved by increasing the size of the output shaft bearing and adopting carburized gears.

Can be Combined With Other Manufacturers’ Inverters

The three-phase high efficiency motor KIIS Series can be used in combination with inverters made by other manufacturers used by the customer. Easily control speed by combining with your existing inverter.

Example of Characteristics When Combining KIIS Series 100 W Round Shaft Type and Mitsubishi Electric Inverter E800

Combination Characteristics Data for Inverters and Optimal Parameters are Available.

The best torque characteristics can be obtained by setting the inverter parameter values to match the motor.
For combination characteristics data and parameter setting examples of KIIS Series and other manufacturers’ inverters, refer to the links below.

Combining the KIIS Series With an Inverter Contributes to Improved Equipment Performance

Wide Range of Speeds

Using an inverter, a wide speed range can be controlled, from 3 Hz to a maximum of 120 Hz (90~3600 r/min)^*. Designed for use at high rotation speeds, including the gearhead.

*Speed control range differs depending on the product. Refer to “Other Specifications” – “Using with Inverters” on each product detail page.

Vector Control Improves Torque in the Low to Medium Speed Range

By using vector control as the control method for the inverter, high torque can be achieved from low speed.

Improved Speed Stability

When combined with an inverter, the speed decrease is reduced even when the load fluctuates, allowing for stable speed control.

Supports High-Speed Rotation

Creep-free bearings, etc. are used in the round shaft type, and components capable of handling high-speed rotation have been selected and designed for inverter control.

Reinforced Insulation for Use in Areas With High Power Supply Voltage (200 W output power)

Three-Phase 380/400/415 VAC input motor (200 W output power only) has reinforced insulation against micro-surge voltages generated when driving inverters and can be used safely in combination with inverters.

Rotation Speed and Speed Control Range

Standard AC motors (constant speed motors) such as induction motors, vary their rotation speed according to the power supply frequency, and the rated speed is approximately 1200 r/min at a frequency of 50 Hz and approximately 1450 r/min at 60 Hz. Speed control motors are available for a wide range of operating speeds from low to high.

Stopping Accuracy

When the motor is stopped, an overrun (overshoot) occurs.
Overrun can be reduced when an electromagnetic brake motor or instantaneous stop function are used.

2-Minute Explanation of the BLV Series R Type

See the features of the BLV Series R Type in this video.

Applications

Autonomous Mobile Robot With Belt Conveyor

Low Clearance Transportation Robot

Agitator

Conveyor

Motorized Heads for Security Cameras

Compact and Lightweight Design

Both the motor and the driver are significantly smaller and lighter.

Motor^*

• *Parallel Shaft Gearhead 400 W, Gear Ratio: 30

Driver

• For the 24 VDC 400 W type, 160 (W) mm x 110 (D) mm x 35 (H) mm and 0.46 kg mass.

High Power

Capable of driving larger load inertia than conventional products, enabling the transport of heavy loads.

Conditions

BLV Series R Type Motor	Product Line	Parallel Shaft Gearhead
	Output Power	400 W
	Gear Ratio	30
Driving Condition	Wheel Diameter	150 mm
	Number of Drive Wheels	2
	Acceleration Time	1 sec.

Result

Maximum Transportable Mass (Mass of transport robot body + load mass)	500 kg
Maximum Travel Speed	0.7 m/sec

• *Calculated using a wheel friction coefficient of 0.1.

Significantly Increased Permissible Load – Flange Drive Adapter (Sold separately) –

Mounting on a parallel shaft gearhead increases permissible radial and axial loads.
Wheels and rotating tables can be directly mounted on rotating mechanisms easily, contributing to reduced design times.

• *Can be used with 100 W output power motor parallel shaft gearheads

Wide Speed Control Range: 1~4000 r/min

Low speed range from 1 r/min provides stable operation for smoother starts and stops.

High Speed Stability Ensures Operation at the Speed Set

Speed regulation (load) is as small as ±0.01 %. Operation maintains the set speed even if load magnitude changes.

• *±0.2 % at digital setting

Present Position Acquisition and Positioning Operation Available

Since the motor provides abundant feedback information, the present position can be acquired.
In addition, stops can be set to your desired position through the improved resolution.

• Stopping accuracy during positioning operation is ±0.72° on the motor shaft and 1~2° on the gearhead output shaft.

Expanded Allowable Operating Voltage

Advantages

• 24~48 VDC batteries are compatible.
• Does not stop even when battery voltage deteriorates.
  Continuous operation while limiting rotation speed and torque.

Power Consumption Reduced by 10 %

Advantages

• For battery-powered transportation robots, the distance and travel time capabilities are extended.
  As a result, batteries can be charged less frequently.
• The MEXE02 support software can monitor the power consumption remotely.
  This can be used as a guideline for recharging.

Electric Brake Enables Hold During Stops

Holding force is generated in a stopping motor that is excited (servo-on).
Even motors without an electromagnetic brake can be used as an electric holding brake.
There is also a function to hold position so that it does not deviate from the stopping position.

ATL Function Automatically Limits Output Torque

Even if the motor is overloaded, the ATL function attempts to continue operation by reducing the output torque to prevent the motor from stopping due to the overload alarm.

Simplifying the Main Program via Sequence Function

When used during a stored data operation, it comes equipped for a wide variety of sequence functions, such as including linked operation, timer settings for each operation, conditional branches, and loop count.

• Number of stored data settings (up to 256 points)
• Direct I/O signal counts (input 4, output 2)
• Remote I/O signal counts (input 32, output 32)

BLV Series R-Type is compatible with 2 communication interfaces: Modbus (RTU) and CANopen.

Main Functions Available in Modbus (RTU)

Free Creation of Operation Profiles: Direct data operation

This is an operation method that can simultaneously rewrite data and initiate operations with Modbus (RTU) communication.

Jointly Sending and Receiving Different Data With Each Axis: ID Share Mode

This function improves synchronization between axes through Modbus (RTU) communication.
Communication delay between axes is improved because data can be sent and received jointly through multiple axes.
It is also possible to send different commands to each axis at the same time.
This is our proprietary transmission method.

Start-UpA Function for Smooth Equipment Start-up

Simple Settings

“Simple communication settings” can be used to set up each communication type easily.

Enlarge image

Communication Frame Monitor and Communication Status Monitor

Can be used to monitor the frames and status of each communication type.
Can be used for start-up and debugging of host programs.

Enlarge image

Enlarge image

OperationFunctions to help with adjustments

Waveform Monitor

You can check motor operation status (command speed, torque, I/O signals, etc.) like with an oscilloscope.
Waveform readings can be saved as images or in CSV file format.

Enlarge image

FFT Monitor

Mechanical resonances visualization is achieved through frequency analytics using FFT analysis. Sound and vibration can be reduced by adjusting the “resonance suppression parameters.”

Enlarge image

Gain Tuning

The motor’s follow-up in response to commands can be adjusted.

Enlarge image

maintenanceUseful functions for diagnosis and maintenance

Trace Monitor

The operation status of the motor can be continuously monitored for over 24 hours.
Data can be saved in CSV format.

Various Monitoring Functions

MEXE02 Support Software can also be used for monitoring a variety of other information.
Refer to the page below for details.

Brushless Motor Offering a Wider Selection

Output Power

15 W/30 W/50 W/100 W

Motor Type

• Connector type/Lead wire type (IP40)
• Cable type (IP65)
• Electromagnetic brake motor (IP65)

Output Shaft Type

3 Selectable Driver Types

Analog setting type

• • Speed setting with potentiometer
  • I/O control of stop operation

Digital setting type

• • Speed setting using support software
  • I/O control of stop operation

RS-485 Communication Type

• • Speed setting with Modbus protocol
  • Monitoring from the host controller possible

Compact, lightweight, board type

Torque Adjustment (Digital setting type, RS-485 communication type)

A torque limiting function is provided to reduce the torque generated by the motor.
The range of maximum instantaneous torque can be set from 0 to 200 %, with 100 % at the rated torque.
The MEXE02 support software also allows you to monitor the load factor and output information at an arbitrarily set threshold (torque value).

Applications

Adjusting the tightening force

Pressurization in pressing applications (Pushing)

· Preventing damage from pinching (Low thrust)

Adjustment of gripping force

Suitable for Quiet Environments

By reviewing the drive method of driver allowed us to achieve a lower noise level compared to conventional products.

Generates a Holding Force When an External Force is Applied, Load Holding Function (Digital setting type, RS-485 communication type)

It can be used as an electrical holding brake^* when stopping without a mechanical brake.

• *Holding loads up to 50 % of rated torque.

Advantages of No Mechanical Brake Mechanism

• Long life with no maintenance required due to non-wear parts
• Minimizing space usage and weight of the equipment

Note

If the power supply to the driver is turned off, the holding force dissipates. This cannot be used to prevent a fall when stopped.

Applications

Applications that frequently start and stop

Direct Connection via a Single Cable, No Relay Required (Connector type)

1 Rank Higher Output Power (Connector type)

• One Rank Higher Output Power at the Same Mounting Angle (Frame Size:42 mm)



• Model Number 1 is More Compact With the Same Output Power (Output Power: 30 W)



Standstill and Holding by Electromagnetic Brake Electromagnetic Brake Motor

The electromagnetic brake motor can hold the position during horizontal driving.
It can hold the stop position when stopping the equipment to reload or process workpieces, or hold the load in the event of blackout or other unforeseen circumstances.

Note

This product is not suitable for usages requiring vertical movement, such as gravitational operations.

Confirm Motor Stop by MOVE Output (Digital setting type, RS-485 communication type)

The MOVE output can be used to check when to turn off the electromagnetic brake.

Gearheads Selectable According to the Application

Gearhead Type	Parallel Shaft Gearhead		Hollow Shaft Flat Gearhead
	GFS Gearhead	CS Geared Motor	FR Gearhead
External View
Features	Wide range of gear ratios Rated life of 10000 hours*	Increased load capacity center shaft Rated life of 10000 hours	Space saving, cost saving Unsaturated permissible torque Rated life of 10000 hours
Motor Output Power	15 W/30 W/50 W/100 W	15 W/30 W/50 W	30 W/50 W/100 W
Gear Ratio	5~200	5~20	5~200

• *The 15 W unit has a rated life of 5000 hours.

Significantly Increases Permissible Load Flange Drive Adapter (Sold separately)

Mounting on a parallel shaft gearhead increases permissible radial and axial loads.

Useful Functions Utilizing Support Software MEXE02

By using the support software MEXE02, you can set and edit operation data and various parameters, as well as teach and monitor various conditions.

Comprehensive Support From Start-Up to Maintenance With a Variety of Functions



RS-485 communication can be used to set operation data and parameters, as well as input operation commands. The Modbus (RTU) protocol is used.

Easy to Set and Change Operation Data and Save Wiring

Remote and Ongoing Monitoring Enabled

Wide Speed Control Range 2~4000 r/min

Achieved speed ratio of 1:2000.

  Suitable for applications that require constant torque from low to high speeds. (30~4000 r/min at analog setting.)

Stable Motor Drive

Speed Regulation ±0.05 %

Reduces speed variation due to changes in the load (load fluctuation) and the change of ambient environment (changing ambient temperature, voltage fluctuation).

Flutter Characteristics Effective Value: Approx. 0.1 %

The effective value of the flutter characteristics, which represents speed fluctuations of motor rotation, is about 0.1 %. (Reference value at rated speed)
Even when rotating at a certain speed, there will be slight fluctuation in the actual speed around the target rotation speed. Flutter happens when speed fluctuates due to mechanical interactions.

Supports Multi-Speed Operation with Up to 16 Speeds

Up to 16 points of operation data, such as operating speed and acceleration/deceleration time, can be set.

Operation and Switch Up to 16 Data Points With Just I/O

You can set up to 16 points of operation data such as travel amount and operating speed.

Linking Multiple Operation Data

In addition to single data setting, you can also set linked operation, which combines multiple operation data.

*Dwell time is the wait time until the next positioning operation starts.

Continuous Rotation in the Same Direction is Possible

When the command position exceeds the “wrap setting range” parameter value, the system can return the command position and multiple rotation data to 0. This reset of the multiple rotation data allows for continuous rotation in the same direction.

All models can be selected with or without an electromagnetic brake. The electromagnetic brake is automatically controlled to turn ON/OFF according to the operation command signal to the driver.

Capable of Vertical Operation (Gravitational operation)

With an electromagnetic brake, stable speed control is possible even when driving vertical operation.

Capable of Position Holding When Stopped

Position holding when driving in a vertical direction^* or horizontal direction is possible.
When driving horizontally, it is possible to set servo lock at motor standstill, which excites the motor to generate a holding force.

*For vertical operation (gravitational operation), use a product with an electromagnetic brake.

Prevents Loads From Falling in an Emergency

The electromagnetic brake is of the power off activated type, so it works automatically even when power is lost in a blackout. Instantly stops the motor and prevents the load from falling.

It can be used for applications that require adjustment of torque and tension, such as tension (brake), pushing (pressing), and tightening.

Tension – As a Brake to Gain Tension

Pushing – For Printing and Other Press Applications

The setting range of the maximum instantaneous torque of the motor can be limited from 0 to 250 % in 1 % units.

• Torque limiting accuracy ±10 % approx. (relative to rated torque)
• Torque limiting can be switched ON/OFF with an external signal (TL input)

Easy Setting and Start-Up With MEXE02 Support Software

By using the support software MEXE02, you can set and edit operation data and various parameters, as well as teach and monitor various conditions.

Comprehensive Support From Start-Up to Maintenance With a Variety of Functions

On-Site Monitoring and Troubleshooting are Also Possible

Speed and alarm information can be monitored on the driver’s display screen. Data setting and test operation are also possible at the operation panel.



If the OPX-2A control module is connected, operation becomes even easier.

Compact Driver for Close Installation to Reduce Installation Space.

Optimized arrangement of internal parts has made the drivers compact and slim. It also supports close installation of multiple units, further reducing installation space.

Gearhead Types	Parallel Shaft Gearhead	Hollow Shaft Flat Gearhead
	GFS Gearhead	FR Gearhead
External View
Features	Steel Shaft Wide Range of Gear Ratio	Space Saving, Cost Saving High Permissible Torque
Output Power	30 W, 60 W, 120 W 200 W, 400 W	30 W, 60 W, 120 W 200 W, 400 W
Gear Ratio	5~200	5~200
Rated Life	10000 hours	10000 hours
Permissible Radial Load*	1400 N	2040 N
Permissible Axial Load*	400 N	800 N
Permissible Torque*	70 N·m	54 N·m

*This value is for output power of 200 W, 3000 r/min, and the maximum gear ratio.

Significantly Increases Permissible Load Flange Drive Adapter (Sold separately)

Mounting on a parallel shaft gearhead increases permissible radial and axial loads.

Overview

The new motor structure is smaller than previous models and enables high power and high efficiency.
The driver equipped with the digital indication panel can easily set the speed.

Advantages of Brushless Motors

The brushless motor achieves high efficiency by employing permanent magnets in the rotor section.
The energy saving motors reduce power consumption and CO₂ emissions.
Furthermore, the small size and light weight of the motor helps conserve resources and contributes to carbon neutrality initiatives.

Easy Setting With the Control Panel

The operation data and parameters can be set by using the operation keys or the setting dial while checking the digital indication.

Quick and Reliable Wiring/Connecting

Quick and reliable wiring is possible thanks to the spring type connectors.

Effective Utilization of Installation Space

Multiple drivers can now be installed in contact with each other, making it possible to reduce the amount of installation space or increase the number of axes within the same equipment space.

Locking Lever Type Connector for Direct Connection

A locking lever type connector specifically designed for small motors allows direct connection between motor and driver.

Simple Connection

Cable connection is easy due to the locking lever that does not require screw fitting.
Installation Method

Direct Connection With Motors and Drivers^*

Without an extension cable, a connection of up to 20 m is possible.



Flexible cables are also available
Use the flexible connection cable in applications where the cable is bent and flexed repeatedly.

Cable Outlet Direction Can be Selected

The motors are equipped with 4 data setting methods and various functions that correspond with your purpose of use.
Using support software allows equipment start-up and operation status to be checked.

Operating Method

*When using the MEXE02 support software, the driver can be connected to the PC using a commercially available USB cable.

Setting Details

Main Functions of the Operation Panel and the MEXE02 Support Software

Useful Functions Utilizing Support Software MEXE02

By using the support software MEXE02, you can set and edit operation data and various parameters, as well as teach and monitor various conditions.

Comprehensive Support From Start-Up to Maintenance With a Variety of Functions

Excellent Protective Structure, Degree of Protection

Motor Structure

A sealing insert (O-ring) is used for the mating part to prevent water from entering the inside of the motor.

Connector Structure

The connector structure has a built-in gasket and O-ring for improved waterproofing.
It is IP67-compliant, including the connector part.

Improved Anti-Corrosion Properties

Special rust-resistant coating is applied, and stainless steel material is used for the output shaft and screws. The mounting surface is also painted to prevent rusting, even when assembled to stainless steel equipment.

Matches a Clean Environment

No cooling fan needed, because of the high efficiency motor. Therefore, there is no need to worry about generating dust from outside.

In addition to the conventional parallel shaft gearhead GFV gearheads, a lineup of gearheads with features such as high gear ratio, high strength, and space saving is available. The permissible load and maximum permissible torque of the output shaft have been greatly increased.

Gearhead Types and Features

Gearhead Type	Parallel Shaft Gearhead			Right-Angle Gearhead	Hollow Shaft Flat Gearhead
	GFV Gearhead	JV Gearhead	JB Gearhead	JH Gearhead	FR Gearhead
External View
Features	Iron shaft, stainless steel shaft Tapped hole at the end of the output shaft H1 food-grade lubricant is also available	High gear ratio Stainless steel shaft	high rigidity High Gear Ratio Integrated foot mount	Space saving, cost saving high strength Stainless Steel Shaft	Space Saving, Cost Saving High permissible torque
Output Power	30 W, 60 W, 120 W 200 W, 300 W, 400 W	200 W, 300 W, 400 W	200 W, 300 W, 400 W	60 W, 120 W, 200 W 300 W, 400 W	30 W, 60 W, 120 W 200 W, 300 W, 400 W
Gear Ratio	5~200	100~450	5~1200	5~200	5~200
Rated Life	10000 hours	5000 hours	5000 hours	5000 hours	10000 hours
Permissible Radial Load*	1400 N	3123 N	3672 N	2405 N	2040 N
Permissible Axial Load*	400 N	480 N	577 N	550 N	800 N
Permissible Torque*	70 N·m	198 N·m	518 N·m	82.8 N·m	54 N·m

*This value is for output power of 200 W, 3000 r/min, and the maximum gear ratio.
