This precision filtration housing can achieve high-precision filtration by combining the housing and filter media.

Features

• By combining housing units, it is easy to achieve serial high-precision filtration such as two-stage filtration or three-stage filtration, as well as parallel large-capacity filtration.
• By combining G tube/rectangular filter cloth, various cartridge filter media, and activated carbon filter media Locarb® series, even more precise filtration can be achieved.
• Special accessories available include union connection parts, flange connection parts, stands (legs and base set), pressure gauges, drain valve sets, etc.

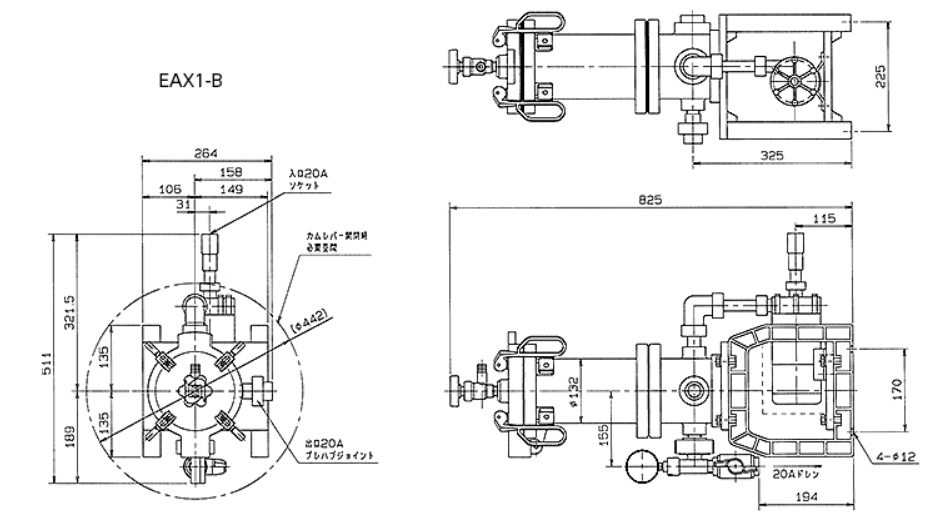

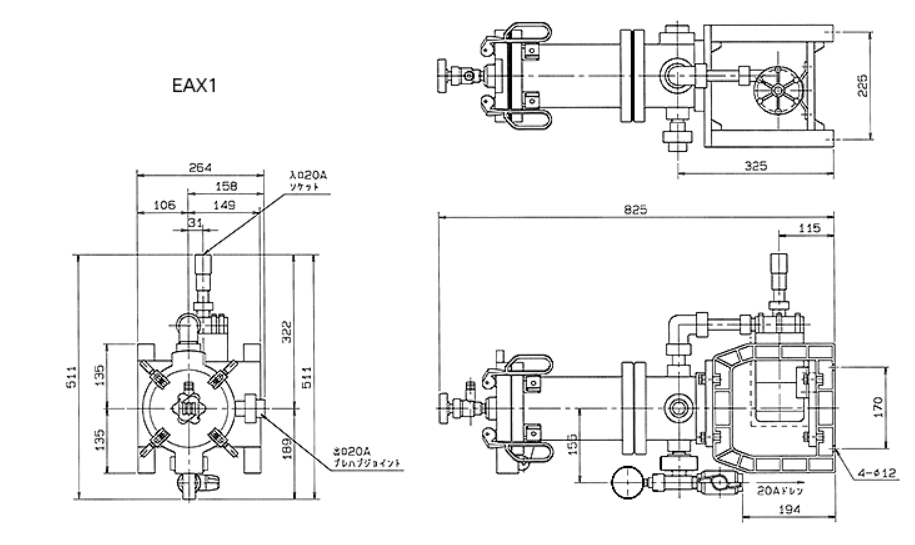

This compact, highly corrosion-resistant precision filter delivers excellent cost performance. Its stainless steel body enables constant filtration of high-temperature baths.

Features

• By using stainless steel for the liquid-contacting parts, it can be used as a filter for high temperatures and high alkalinity, which are difficult to use with PP resin.
  Metal materials that are less susceptible to deterioration over time are used in the liquid contact parts, allowing for safe use for a long period of time.
  The liquid-contacting parts of the pump are made of fluororesin, making it resistant to high temperatures and corrosion.

We also provide electroless nickel filters equipped with stainless steel pumps.

This precision filter is specially designed for gold plating solutions and is equipped with a long-life pump that suppresses gold precipitation, improving plating quality and filtration accuracy.

Features

• ECOACE®α for gold plating solutions has a pump life that is significantly longer than conventional products (our own and other companies’) thanks to the development of a dedicated pump that suppresses gold deposition.
• To improve plating quality and filtration accuracy, we recommend using binder-free “melt-blown cartridge” filter media.

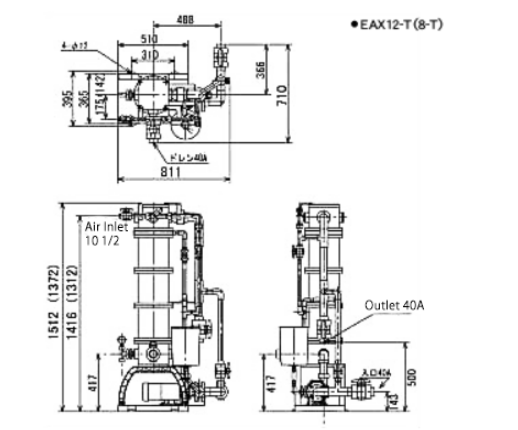

This backwash type precision filter uses a special tubular type T filter material that we developed ourselves to achieve highly accurate and stable filtration, cost reduction, and waste reduction.

Features

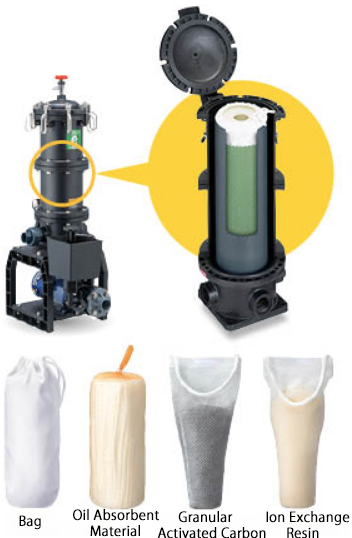

Multi-bag filters are economical, simplified bag filters. They are easy to operate, have low running costs, and can be used for multiple purposes by replacing the filler material (bags, oil absorbents, granular activated carbon, ion exchange resin) depending on the purpose.

Features

• The filter media is easy to set and replace.
• Waste volume is reduced to 1/10 compared to cartridge filter media.
• Since particles are captured inside the bag, there is less dirt inside the main unit, and even when changing the bag, it does not soil the operator or the floor.
• The bag filter media can be reused by cleaning with chemicals as necessary.
• You can use the bag for multiple purposes by changing the contents.
  *The standard ECOACE®α can be easily replaced with the multi-bag system.

Features

1. The hinged lid means there is no need to remove the lid when replacing the filter media.
2. The lid can be opened and closed without the use of tools thanks to the “cam lever system”
3. The outer cylinder is connected with a bolt for a highly sealed structure.
4. Made of resin, it is rust and corrosion-free and lightweight
   *Uses glass fiber reinforced polypropylene with excellent heat and chemical resistance
5. Improved maintainability by adopting a union system for the pressure gauge and drain valve body mounting part
6. Achieves space saving
7. High-performance magnet pump adopted.
   Top-runner motor installed on 12-inch and above models.
8. Cam lever system for easy opening and closing
9. Welding method available (optional)
10. A variety of filter media can be selected to suit your needs
11. Prepare the motor cover

To form a more stable pre-coat layer, ECOACE® α type E is available with a pre-coat circuit as an option.

• Large filtration area
• A pre-coat layer is formed on the surface of the filter media, making it less likely to become clogged.
• Stable filtration accuracy
• The filter cloth can be washed and reused.
• Low running costs
• Less waste

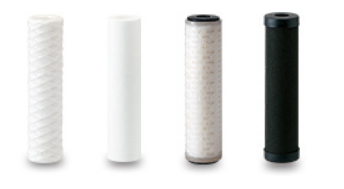

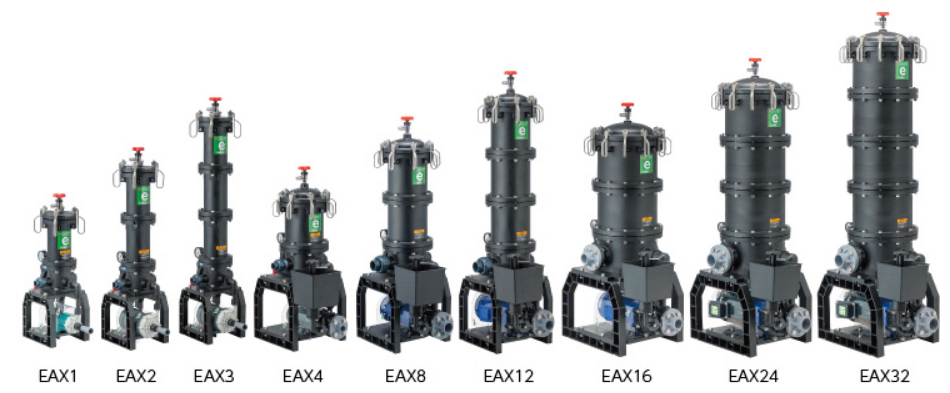

This is a cartridge type precision filter that achieves stable filtration using cartridge filter media such as thread wound, melt blow, activated carbon, filter paper, etc. This precision filter has been improved based on the filtration technology we have cultivated since 1948 and customer feedback, and achieves stable filtration accuracy, improved operability, space-saving installation, and low running costs.

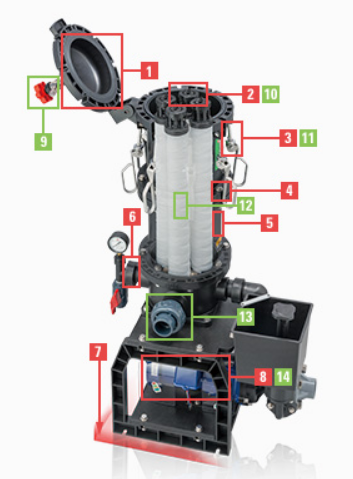

Features

1. The hinged lid means there is no need to remove the lid when replacing the filter media.
2. Improved filter seal improves filtration performance when using cartridges
3. The lid can be opened and closed without the use of tools thanks to the “cam lever system”
4. The outer cylinder is connected with a bolt for a highly sealed structure.
5. Made of resin, it is rust and corrosion-free and lightweight
   *Uses glass fiber reinforced polypropylene with excellent heat and chemical resistance
6. Improved maintainability by adopting a union system for the pressure gauge and drain valve body mounting part
7. Achieves space saving
8. High-performance magnet pump adopted.
   Top-runner motor installed on 12-inch and above models.

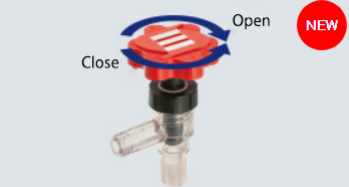

9. A transparent air release valve is provided that can be opened and closed by rotating 180 degrees.

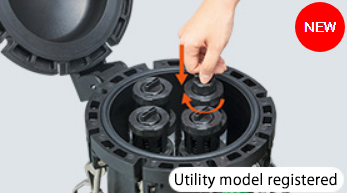

10. One-touch top lid is available to reduce cartridge media replacement time
11. Cam lever system for easy opening and closing
12. A variety of filter media can be selected to suit your needs
13. Welding method available (optional)
14. Prepare the motor cover

Exterior

This is a reduced pressure concentrator that realizes water and chemical recovery by closing the nickel plating process.

Features

This pure water system easily produces high-purity water by combining an RO membrane and a mixed-bed ion exchange tower in one unit.

Features

This is a reduced pressure concentrator that recovers water at the same time as recovering treated liquid from various washing processes. It is equipped with a fully automatic concentration control mechanism.

Features

This is a cylinder-type ion exchange device that uses an on-site regeneration system to easily recycle washing wastewater. By using this device, you can obtain stable, high-purity water, reduce the amount of water used in your factory, and reduce the amount of wastewater.

Features

• Various combinations are possible depending on the usage situation.
  The optimal combination and capacity of ion exchange resin can be selected depending on the type of recycled raw water and the required amount.
• The installation area is small, so it can be easily installed even in tight spaces.Compared
  to our previous products, the installation area is reduced by 30% and the operating weight is reduced by 20%, making it lightweight.Water recycling can be started with simple on-site wiring and piping work.
• Easy-to-use regeneration device.
  Simple valve operation is all that is required, and no hose switching is required during regeneration. We also have a lineup of fully automatic regeneration devices with automatic valve switching operation.

This is a small cartridge-type ion exchange machine with a take-back regeneration system that is ideal for water recovery, sludge reduction and separation measures.

Features

This is a cylinder-type ion exchange machine with a take-back regeneration system that is ideal for water recovery, sludge reduction, and separation measures.

Features

• By simply setting it in the tank for water recovery, water circulation will be possible from the day of installation, and it will also contribute to the recycling of valuable metals contained in the separated and recovered sludge.
• Because this is a take-back regeneration system, there is no need for regeneration equipment for the ion exchanger or wastewater treatment facilities.
• You can select ion exchange columns from 25L, 50L, 100L, and 200L models based on the load.
• We designed the system without complicated valve operations, making handling and maintenance extremely easy.
• You can regenerate and reuse saturated ion exchange columns at our Resource Center.
• For pre-filtration, we use the precision filter “Ecoace®α”.
• Depending on the type of liquid, we can also recover precious metals from dilute water.

This pure water system easily produces high-purity water by combining an RO membrane and a mixed-bed ion exchange tower in one unit.

Features

• All the functions required for water production are packed into this one unit.
• The compact unit type design saves installation space and is reasonably priced.

• Our “Resource Center System” regenerates mixed-bed ion exchange towers, eliminating waste liquid treatment costs and equipment needs.
  By combining it with our Econovac System® products, you can create a highly efficient system.

We perform water treatment tests such as industrial wastewater analysis and measurement certification, wastewater treatment tests, and filtration tests.

Features

This electric agitator is designed to improve the efficiency of dissolving and mixing small to medium volumes of powders and liquids in various industries.

Features

• Low cost
• Simple structure for easy maintenance
• Compatible with various chemicals

The filter press is a pressure filter that processes thick slurries and recovers clarified liquid and cake, and can perform filtering, squeezing, dehydration, and cake washing operations.We strive to protect and preserve the environment through our resource-saving design.

Features

• A special mesh is used on the filtering surface, making it easy to remove the cake.
• It produces thicker cakes than other companies’ products, resulting in greater processing capacity.
• The special seal design between the filter plates allows operation with light tightening force.

• The design makes the installation space required for the processing volume more compact than conventional products.
  Stable quality achieved through streamlined, high-performance processing technology and mass-produced design make the product sturdy, durable, and easy to maintain.

The filter press is a pressure filter that processes thick slurries and recovers clarified liquid and cake, and can perform filtering, squeezing, dehydration, and cake washing operations.We strive to protect and preserve the environment through our resource-saving design.

Features

• A low moisture content of 75% or less can be achieved.
• It has a wide range of applications, from organic slurries to inorganic slurries.
• The device is robust and provides stable performance over long periods of operation.
• The mechanism is simple and maintenance and inspection are easy.
• Easy to operate and handle
• The price is low.
• Installation area is small.

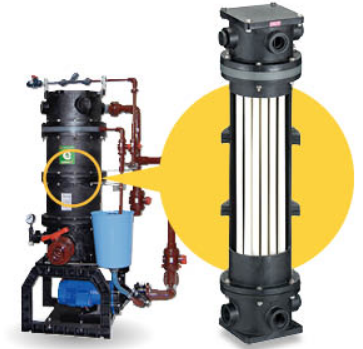

This is a small MF membrane filtration device that uses a cartridge-type high-performance MF membrane module. Filtration and chemical cleaning operations are separated into functional units.

Features

• The system uses a cartridge-type high-performance MF membrane module.
• Functional units separate filtration and chemical cleaning operations.
• The system employs dead-end filtration to achieve energy-saving operation.
• By using the MF membrane module cleaning service, you can omit the need for chemical cleaning operations.

Applications

• Heavy metal wastewater treatment
• Pre-treatment filtration for RO equipment
• Recovery of valuable metal sludge through wastewater separation treatment
• Precision filtration of process liquids in chemical plants, etc.

Standard

Filtration Unit

This is an MF membrane filtration device that achieves separation, concentration, and precision filtration simultaneously by combining an MF membrane module and a cross-flow filtration method.

Features

• No coagulation sedimentation equipment or sand filters are required, and separation, concentration, and ultra-precision filtration are achieved simultaneously.
• Since no chemicals such as coagulants are used, running costs are reduced and sludge volume is reduced.
• Maintains stable treated water quality unaffected by fluctuations in raw water.
• Valuable metals can be recovered and reused by treating wastewater in separate systems.
• This significantly reduces the time required for equipment maintenance.
• Smaller installation area than conventional equipment

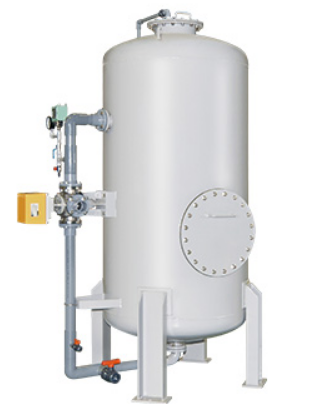

This sand filter is ideal for wastewater filtration, using sand as the filter medium to capture suspended solids (SS). It removes trace amounts of heavy metal suspended solids and fine floating matter contained in wastewater to below regulated values, stabilizing the quality of the treated water.

Features

• The patented circuit automatically performs the backwash operation reliably and stably, ensuring the permanent use of the filler media.
  It operates fully automatically regardless of fluctuations in the raw water flow rate, so you can operate it with peace of mind, ensuring that you always receive reliable treated water quality.

• The installation area is small and the unit is modularized to facilitate easy installation work.
• Depending on the composition of the raw water quality, an air backwash mechanism can be installed.
• In particular, for wastewater from metal surface treatment plants, where water quality is unstable and difficult to treat, this system can reliably filter out trace amounts of heavy metal hydroxides and minute suspended solids, stabilizing the treated water quality to below the regulated value.
• As a closed system device, it is also effective when combined with pretreatment devices such as COD removal, RO, and ion exchange.

This sand filter is ideal for wastewater filtration, using sand as the filter medium to capture suspended solids (SS). It removes trace amounts of heavy metal suspended solids and fine floating matter contained in wastewater to below regulated values, stabilizing the quality of the treated water.

Features

This solid-liquid separator uses coagulation and sedimentation to remove suspended solids from raw water, achieving maximum sedimentation efficiency in a minimum space.

Features

• It employs a high-speed acceleration tank with a unique built-in mechanism that does not have mechanical stirring, and a multi-stage tilting chamber that is highly effective at separating clear water and flocs, and has a processing capacity more than three times that of conventional types.
• A high removal rate (80% or more) can be ensured even with SS turbidity, which has a large fluctuation range.
• Because it is a three-dimensional type, it has a design structure that allows for a large processing volume in the same area.
• The settled and separated sludge has a higher degree of compression compared to conventional types.

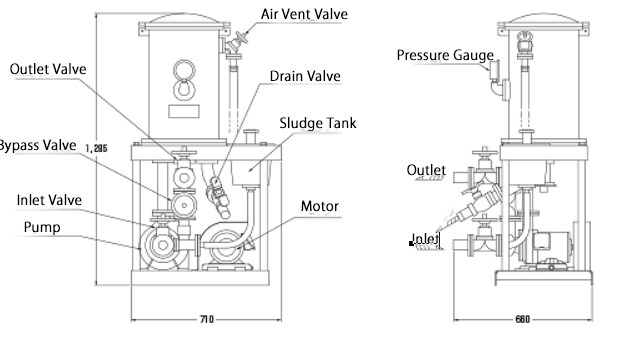

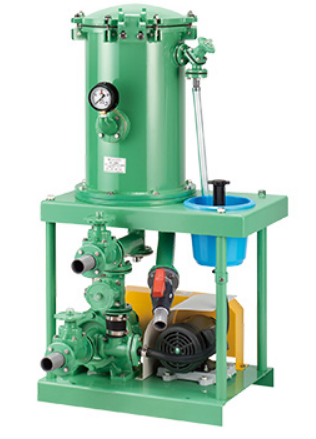

This general-purpose clarifying filter is ideal for filtering medium-volume plating solutions, cleaning solutions, and industrial water up to 2000L, as well as for wastewater treatment.

Features

• Equipped with a pre-coat circuit, it enables stable precision filtration.
• By using rectangular leaf filter media, it has the largest filtration area per installation area.
• The pump provides the same performance at both 50Hz and 60Hz.
• Depending on the properties of the liquid, special brushed filter cloths can also be used.
• Equipped with a top runner motor
• As an option, we offer the Spack series, which incorporates a bubbling cleaning mechanism.

Applications

• Plating Solution
• Anodizing liquid
• Glauber’s salt/spinning bath
• Cleaning solution
• Industrial Water
• Final filtration for wastewater treatment
• Various solutions and water
