This model offers an auto-locking function, which secures the lock automatically when you close the handle—making operation faster and safer. The handle rotates 90°, allowing for smooth and reliable use in tight spaces. You can install it with ease, as it remains fully compatible with the A-140 right-hand rotation type.

To enhance safety during installation and maintenance, we attach an anti-drop spring directly to the M6 bolt※1, reducing the risk of losing parts. For superior water resistance, we apply both an O-ring and a gasket, achieving a waterproof performance equivalent to IPX5. Moreover, you can mount this product on either the left or right side, offering excellent flexibility for various setups.

Round bar curved handle with the same pitch as the A-1042-C series.
Made of stainless steel, it has excellent corrosion resistance.

Round bar curved handle with the same pitch as the A-1042-C series.
Made of stainless steel, it has excellent corrosion resistance.
Semi-glossy, luxurious appearance and smooth feel.

A-1042-C-6H: SEMI S8-0218 APPENDIX3 compliant for use when wearing cleanroom gloves (2018 edition)

It has a semi-glossy, luxurious appearance and a smooth feel.

Installation can be done with screws from the front.
Skin-like baked paint gives it a soft feel.

Made of titanium, it has excellent corrosion resistance.
Made of pure titanium, it is non-magnetic.

It has a semi-glossy, luxurious appearance and a smooth feel.

The handle feels soft and is easy to grip, which makes it comfortable during use. Additionally, the core material adds significant strength, so the entire structure stays durable over time. Moreover, you can hide the screws neatly by using a plastic cap, creating a cleaner look. Finally, since it attaches externally, the installation process becomes much simpler and quicker.

The mounting pitch is the same as the A-42 (A-1042) handle series A, B, C, D, E, and F.
Mounting can be done with screws from the front.

Ideal for doors that require salt resistance and insulation resistance

This product complies with SEMI S8-0218 SESC6.7.1 standards for cleanroom applications, even when users wear gloves (2018 edition). To ensure secure installation, we use brass inserts in all screw holes. The thick handle provides a firm, comfortable grip, making it easy to use. Overall, it’s an excellent choice for doors where salt resistance and insulation performance are essential.

The surface is satin coated for a beautiful appearance.
The handle has an oval cross section, making it stable, easy to grip, and soft to the touch.

Made of stainless steel, it has excellent corrosion resistance.

The gently arched, soft-touch handle is easy to grip from any direction.
Designed to minimize unevenness and gaps.
Antibacterial silver coating for safety in the food and medical fields.
Large, yet lightweight and strong.

Specification

Material: Body/Aluminum alloy (ADC), Cap/ABS resin with inorganic antibacterial agent

You can screw A-178-0, A-178-1, A-178-2, and A-178-3 from either the front or the back. After you finish installing them, go ahead and set the cover in place. On the other hand, for A-178-4, A-178-5, A-178-6, and A-178-7, make sure you screw them in from the back only.

Can be attached with screws from both the front and back.
Set the cap after installation.

Features

It allows stable work in slightly higher places.
Two units can be connected to cover a wider area.
By stacking CP-668-1 and CP-668-2, the height can be increased to 450 mm.

Specification

Material: Special polyethylene foam

String (m): 2.5

Allowable weight (kg): 100

Product weight (kg): CP-668-1/3.3 CP-668-2/3.1

Features

You can move around while wearing them, improving work efficiency. They make working in slightly higher places much easier.
They have a large footprint, making them stable. They are made of foam, making them very light, reducing strain on your legs and back.
They are fastened with hook-and-loop fasteners, so they can be used with a variety of shoes and sizes.

Specification

Material: Special polystyrene foam

Applicable foot size (cm): 22-33

Maximum weight (kg): 100

●Product weight (kg):

CP-666-1/1.2 CP-662-2/0.9

Remarks

The CP-666-1 and CP-666-2 come with a CP-666-BA hook-and-loop fastener.

To ensure long-term use, a replacement part, CP-666-BA hook-and-loop fastener (one leg), is available for replacement in case of deterioration due to UV rays, etc.

Features

 Space-saving design that can be attached to a vertical frame
Unitized for easy installation.

Features

Height can be easily adjusted by simply pressing a button. After fixing, fine adjustments can be made by rotating the legs.
Installation is a one-touch process; just insert the legs.
Compatible with three types of plate thickness (1.2, 1.6, 2.0 mm).

Specification

●Material: Body/ABS resin

Shaft/Cold heading carbon steel wire

●Applicable plate thickness: 1.2, 1.6, 2.0

●Other: Durability: 5,000 times

Purpose

– Equipment that requires angle adjustment, such as projectors

Features

Can be attached with one touch.
Compatible with plate thicknesses of 0.8, 1.2, and 1.6 mm.
Ideal for small adjusters such as KC-270, KC-285, and KC-287.

specification

Material: Polyacetal (POM+GF)

Standard color: Light gray

Applicable plate thickness: 0.8, 1.2, 1.6 mm

Purpose

●Receptacle for small adjusters in measuring equipment, office equipment, etc.

Features

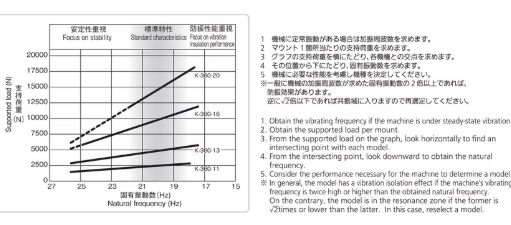

Its compact body and easy installation prevent vibration, shock, and noise from machines and equipment.
The use of special rubber keeps the contact area clean and provides excellent oil resistance and durability.
The handle makes level adjustment easy.
It can be installed to match the floor gradient (±3 degrees).

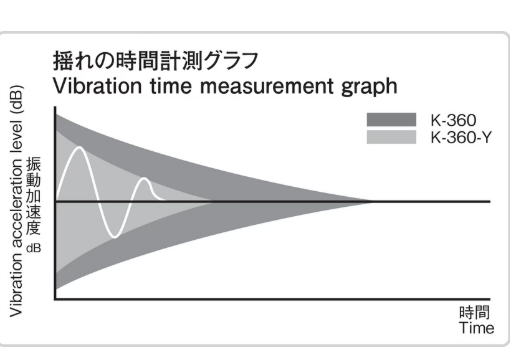

The Y type uses HDR for even greater damping effect.

Specification

●Material:

Anti-vibration rubber / K-360 / Chloroprene rubber

K-360-Y / HDR rubber (high damping rubber)

Housing / Gray cast iron (FC250)

Shaft and washer / SS400

●Finish:

Housing / K-360 / Melamine baked finish

(silver)

K-360-Y / Melamine baked finish

(yellow)

Shaft and washer / Zinc plated chromate treatment (MFZn-C)

The lock meets a waterproof standard equivalent to IPX5, thanks to the use of an O-ring and packing. Moreover, its surface finish allows for easy painting, so you can match it seamlessly with the exterior panel. You can also attach the clip from any of four directions—top, bottom, left, or right—for greater installation flexibility. In addition, the lock works perfectly on both the left and right sides, making it highly versatile for various applications.

You can enhance security by locking the trigger with a padlock (compatible with shackle diameters from φ5 to φ6), enabling a double-locking feature. The trigger also locks automatically in both the open and closed positions, which prevents unintentional rotation caused by its own weight. This built-in safety mechanism activates when you grip the trigger from the back, ensuring safe and controlled operation.

For added durability, we designed the unit to meet waterproof standards equivalent to IPX5 by incorporating both an O-ring and a gasket. Moreover, you can install and use the lock on either the left or right-hand side, providing flexibility for various setups.

The lock features the new TAK60 reversible key, which includes a convenient dustproof shutter for smooth and easy operation. Additionally, it comes in a waterproof design that uses an O-ring and packing to ensure reliable protection against moisture. With the one-touch locking system, users can quickly secure the lock and avoid the hassle of forgetting to lock it; the key comes included for added convenience. Moreover, you can install and use this lock on either the left or right side, offering flexibility for different setups.

Optional gasket ideal for outdoor and waterproof specifications.
The outer fins and internal ribs prevent water from entering.
Please install by replacing the standard gasket.

Specification

Applicable to A-464 series.
By attaching it to the 464 series, corrosion resistance and dust resistance are improved.

Specification

Material: AES resin
Surface finish: grained
Standard color: 5Y7/1 (ivory)

Remarks

This product offers anti-corrosion and dust-proof protection for the A-464 series, making it suitable for outdoor use. However, it is not fully waterproof and meets only the IPX3 standard. For details on waterproof grade and test conditions, please check page 1718.

Note that the seat packing is not included with this product. You should use the seat packing that comes with the handle and place it between the door and this product during installation.

To keep the stopper plate securely in place, we also recommend applying a locking agent to the screws to prevent them from loosening over time.

Semi-glossy, luxurious appearance and smooth feel.
Simple design matches any case.

Made of aluminum, so it is large but lightweight
Soft design that is gentle on the hands

Can be used for both stop and through, allowing for free installation.
Made of high-strength engineering plastic
Two types of pipes are available: φ19 and φ25.

Features

Compact, heavy-duty caster with an allowable load of 9,800 N.
Made with MC nylon, which has excellent resistance to oil, chemicals, abrasion, and heat (-40 to +120°C).
The swivel section has a double structure consisting of a sealed ball bearing and a high-load thrust bearing.
The wheel axle uses a roller bearing for excellent rotation performance.

Specification

●Material: Body: Hot-rolled steel plate (SPHC)

Wheels: MC nylon (blue)

●Finish: Body: Zinc-plated chromate treatment (MFZn-C)

Purpose

●Various large and medium-sized equipment

Remarks

*Conductive resin wheels are also available.

*Models with stoppers are also available. (Iron only)

*K-570J also has fixed wheels.

Features

Compact, heavy-duty caster with an allowable load of 9,800 N.

Made with MC nylon, which has excellent resistance to oil, chemicals, abrasion, and heat (-40 to +120°C).

The swivel section has a double structure consisting of a sealed ball bearing and a high-load thrust bearing.

The wheel axle uses a roller bearing for excellent rotation performance.

Specification

●Material: Body: Stainless steel plate (SUS304)

Wheels: MC nylon (blue)

Purpose

●Various large and medium-sized equipment

Remarks

●We also manufacture conductive resin wheels.

Features

● Push button switch exclusively for A-417-F
● When use in conjunction with A-417-F, it can use to suit various applications, such as turning on and off an alarm buzzer or lighting
● Available in PUSH-ON type (S-417-1) and PUSH-OFF type (S-417N-2).

Remarks

●S-417-2 (PUSH-OFF type) has been discontinued.

Specification

●Materials:

K-1794-1

Body: Stainless steel plate (SUS304, SUS430)

Legs: Stainless steel bar, steel plate (SUS403, SUS430)

K-1794-2

Body: Stainless steel plate (SUS304, SUS430)

Legs: Stainless steel plate (SUS304)

Leg core: Cold-rolled steel plate (SPCC)

K-1794-13

Washer: Stainless steel plate (SUS430)

Legs: Stainless steel bar, steel plate (SUS410, SUS430)

Purpose

●Refrigerators, kitchen equipment, medical equipment

Remarks

●K-1794-15 has been discontinued.

One-touch opening and closing, easy installation.
Small latch type flat handle.

Protects the handle mechanism and improves dustproofing and corrosion resistance.
Can be installed without removing the handle currently in use.
Excellent resistance to deterioration caused by antifreeze, etc.
Excellent weather resistance makes it suitable for outdoor use.

Choose from the multi-key TAK55 with a reinforced disk for significantly improved security, the reversible key TAK60 with excellent operability, and the 0200 key.
Waterproof type (uses O-ring and sheet packing)
Left-handed and right-handed type (the cam and stopper plate can be reversed to switch between left and right).

Specification

Material: A-464-L1/aluminum alloy (ADC), A-464-L2/zinc alloy (ZDC)
Surface finish: satellite chrome plating (MACr) (MZCr)
Key number: TAK55, TAK60, 0200
Accessories: stopper plate, mounting plate, screw set, 2 keys

Applications

Server racks, power distribution boards, and control panels

Remarks

We also manufacture master systems, specified same numbers, and different keys. (A-464-L, A-1464-L)
Available in baked finish finishes such as silver metallic.
The plate thickness can be increased by changing the mounting screws. A-464-L2: 5mm (M5×16 SW, PW)
We recommend applying a “loosening prevention agent” to the screws used to mount the stopper plate of this product to prevent them from loosening.
For protection ratings, please refer to “Waterproof Standard IP Indication” (pages 17-18).
