Product images

SF-F4 SERIES

Used for injection valves, unloading valves and overheat protection valves of descaling equipment for ion- and steel-making.

SC-F4 SERIES

Used for injection valves, unloading valves and overheat protection valves of descaling equipment for ion- and steel-making.

MVLTI STAGE BYPASS ORIFICE

An orifice to prevent air pockets being formed inside injection nozzle headers by bypass of high-pressure water.

LOW PRESSURE BYPASS UNIT

Used in plunger pumps to prevent air pockets being formed inside injection nozzle headers by bypass of low-pressure water (led from low-pressure water piping).

PRESSURE CONTROL VALVE

Used as a pressure control device to raise pressure by gradually increasing load at start-up of a plunger pump.

Summary

A site flow, we are the ones to visually confirm directly the state of the fluid flowing in the pipe is installed in the middle of the pipe path.

Since exercise instruction plate arc according to the flow of fluid, you can also liquid such as water or oil, also used for air or inert gas, such as a clear, colorless gas.

Summary

A pressure-resistant packing gland is one that is connected to the lead wire entry point, such as a solenoid valve to use. It is best to draw in external conductors in the terminal box of the solenoid valve is required where an explosion-proof, dust-proof and moisture-proof.

So we offer the following six different sizes, please select the model number that was in the specification.

Summary

A terminal box TF-60, is one that is connected to the lead wire entry point such as a solenoid valve, etc. to use. By using this terminal box, electrical wiring proceeds rapidly, the wire connection is streamlined, safety is improved significantly. For general land, and motors, and you can use more, since the water resistance of the device is sufficiently maintained.

Standard specification

Material of main unit

Aluminum

Material of main section

NBR

Connection type

SCREWED or FLANGED

*Please contact us for any other use.

Summary

A frame trap assembly, the valve can be closed by the heat generated when the sewer, such as easy, and ignite the gas generated by the methane gas, extinguish by stopping the flow.

Feature

• If you have any chance to ignite easily, such as generation of methane gas sewer, we used to prevent a fire hazard.
• For a simple, easy to maintenance, construction is a risk of failure is definitely not working.
• Can be selected in the range of 80 ~ 150 ℃ temperature Kayohen dissolution.

Standard specification

Dissolution temperature Kayohen

130℃

Connection standard

JIS 10K

If not listed above, please consult

DESCRIPTION OF OPERATION

Summary

When flames or a fire occur around the tank, an emergency vent adjusts the excessive pressure generated inside it. The standard set pressure discharge is 1kPa; however, we can produce it with a specified set pressure upon request.

Feature

Ventilating equipment to control excessive internal pressure in tanks when exposed to flames.
Reliable operation owing to simple construction.
The pressure setting can be changed by weight adjustment.

Standard specification

SET PRESSURE

1kPa*1

CONNECTION STANDARD

JIS B8501 ROOF MANHOLE
API 650 ROOF MANHOLE

*1Products of other specifications are available upon request.

Summary

fire Normally, when attached to the venting device tanks for storing the fluid flammable, broke out around the tank event, and the flame arrester is a safety device because you do not want to ignite the tank content the flame enters the aerator is.

Feature

As well as to respond to metal in the form of compact Kurinputo method, corresponding to all explosive gas.

Standard specification

Face-to-face dimension

20A 80mm, 25A 85mm

Material

SUS304

Product Image

Summary

Normally, when attached to the venting device tanks for storing the fluid flammable, fire broke out around the tank event, and the flame arrester is a safety device because you do not want to ignite the tank content the flame enters the aerator is.

Feature

• The hydrogen gas exhaust vent, such as a stack, flame arrester is attached to the distal end of the tube, but release is required that there is support piping product weight.
• Aperture own technology, the product has achieved the product weight 奈製 tail weight while there is a strength as a thin diaphragm.

Standard specification

Caliber

• 100A
• 150A
• 200A

Material

SUS304（We also produce other materials.）

Summary

Normally, when attached to the venting device tanks for storing the fluid flammable, fire broke out around the tank event, and the flame arrester is a safety device because you do not want to ignite the tank content the flame enters the aerator is.

Feature

Flame arresters used for tanks that store fluids required to be maintained at constant temperature. The inside of the arrester body can be kept at a constant temperature by a steam pipe installed around the body.

Standard specification

WIRE CLOTH

30MESH x 5 SHEETS

CONNECTION STANDARD

• JIS10K
• JPI150
• ANSI150

JACKET DESIGN PRESSURE

1MPa

JACKET DESIGN TEMPERATURE

180℃

Products of other than the above ratings, manufactured according to these standards, are available.

Summary

Normally, when attached to the venting device tanks for storing the fluid flammable, fire broke out around the tank event, and the flame arrester is a safety device because you do not want to ignite the tank content the flame enters the aerator is.

Feature

• It is a standard flame arrester.
• Ventilation equipment installed in the portion of the reservoir tank for flammable fluids.

Standard specification

Feature

Whereas a product KF series, were integrated in the clamp Breather valve, the flame arrester, KGF series is a product that has been integrated in the flame arrester clamp Keeper breather.

Standard specification

Port size

• 40A
• 50A
• 80A
• 100A

Gas seal unit available

GU-10*

*It does not correspond to the GU-25 type.

  Keeper breather with flame arrester

KGF2 SERIES

   vented blizzard valve inhalation

KGF3 SERIES

blizzard valve vented discharge

KGF4 SERIES

blizzard valve vented through flow

KGF5 SERIES

Pressure relief valve

KGF6 SERIES

Pressure relief valve with a discharge vent

blizzard valve

KGN2 SERIES

   vented blizzard valve inhalation

KGN3 SERIES

   blizzard valve vented discharge

KGN4 SERIES

    blizzard valve vented through flow

KGN5 SERIES

  Pressure relief valve

KGN6 SERIES

  Pressure relief valve with a discharge vent

Summary

To store powder, liquid pure water, ultrapure water, chemicals, pharmaceuticals, petroleum products, and food, essential for pharmaceutical manufacturing and the semiconductor industry, a method encapsulates these substances with an inert gas. This process prevents alterations caused by exposure to air.I

Gas seal unit, the set pressure has two types intended for nitrogen gas reservoir or the like, to maintain the fine pressure.

• GU-10：The type of 3/8B caliber, 0.1 ~ 3kPa
• GU-25：The type of caliber 1B, 0.1 ~ 3kPa

Feature

Most suited for dust proofing of storage tanks for pure water and other substances liable to be degraded by the entrance of dust.

Most suited for shutting off active gases from the contents of storage tanks for foodstuffs, medicines, petroleum products, etc., liable to be degraded by contact with air.

Used to seal inert gases in storage tanks for flammables and most suited for prevention of explosion and fire.

Standard specification

PIPE NOMINAL SIZE

PRIMARY

25A(1″) FLANGE TYPE

SECONDRY

50A(2″) FLANGE TYPE（Tank side）

CONTROL PIPE

Rc1/2（Tank side）

PRIMARY PRESSURE

0.1～0.7MPa *1

SET PRESSURE

0.1～3kPa *2

*1Normal control cannot be effected when primary pressure becomes less than 0.1 MPa. In this case, an external pilot control system can be used. Consult us for details.

*2The pressure setting remains constant when primary pressure fluctuates. As the main valve is pilot operated, a completely sealed tank stabilizes when internal pressure becomes about 0.05-0.1 kPa higher than the setting.

DESCRIPTION OF OPERATION

Summary

To store powder, liquid pure water, ultrapure water, chemicals, pharmaceuticals, petroleum products, and food, essential for pharmaceutical manufacturing and the semiconductor industry, a method encapsulates these substances with an inert gas. This process prevents alterations caused by exposure to air.I

Gas seal unit, the set pressure has two types intended for nitrogen gas reservoir or the like, to maintain the fine pressure.

• GU-10：The type of 3/8B caliber, 0.1 ~ 3kPa
• GU-25：The type of caliber 1B, 0.1 ~ 3kPa

Feature

This method suits dust-proofing storage tanks for pure water and other substances prone to degradation by dust. It also effectively shuts off active gases from the contents of storage tanks for foodstuffs, medicines, petroleum products, and more, preventing degradation through contact with air.

Used to seal inert gases in storage tanks for flammables and most suited for prevention of explosion and fire.

Standard specification

NOMINAL PIPE SIZE

PRIMARY

Rc3/8

SECONDARY

Rc3/4（Tank side）

CONTROL PIPE

Rc1/2（Tank side）

PRIMARY PRESSURE

0.1～0.7MPa*1

SET PRESSURE

0.1～3kPa*2

*1Normal control cannot be effected when primary pressure becomes less than 0.1 MPa.

*2Fluctuation of primary pressure causes the pressure setting to vary. As the main valve is pilot operated, a completely sealed tank stabilizes when internal pressure becomes about 0.05-0.1 kPa higher than the setting.

DESCRIPTION OF OPERATION

Summary

For the purpose of adjusting the internal pressure during the rise and fall of the internal pressure in the storage tank formula fixed roof, dispensing or eyeball of the contents, occur due to changes in atmospheric pressure and changes in atmospheric temperature and measure the safety of the tank it is a safety device that will be used.

Feature

Breather valves used for tanks that store fluids required to be maintained at constant temperature. The inside of the valve body can be kept at a constant temperature by a steam pipe installed around the body.

Standard specification

PRESSURE SETTING

+0.25kPa

VACUUM SETTING

-0.25kPa

CONNECTION STANDARD

• JIS10K
• JPI150
• ANSI150

JACKET DESIGN PRESSURE

1MPa

JACKET DESIGN TEMPERATURE

180℃

DESCRIPTION OF OPERATION

Summary

For the purpose of adjusting the internal pressure during the rise and fall of the internal pressure in the storage tank formula fixed roof, dispensing or eyeball of the contents, occur due to changes in atmospheric pressure and changes in atmospheric temperature and measure the safety of the tank it is a safety device that will be used.

Feature

Connected by a clamp connection, type the Burizabarubu Burizabarubu and FR type KN, Burizabarubu KF type is a product that is integrated.

Standard specification

KF1 SERIES

BLIZZARD VALVE

KF2 SERIES

Vented Burizabarubu inhalation

KF3 SERIES

Burizabarubu vented discharge

KF4 SERIES

Burizabarubu vented through flow

KF5 SERIES

Pressure relief valve

KF6 SERIES

Pressure relief valve with a discharge vent

KF7 SERIES

Vacuum relief valve

KF8 SERIES

Summary

For the purpose of adjusting the internal pressure during the rise and fall of the internal pressure in the storage tank formula fixed roof, dispensing or eyeball of the contents, occur due to changes in atmospheric pressure and changes in atmospheric temperature and measure the safety of the tank it is a safety device that will be used.

Feature

• Breather valve whose discs and seats are subjected to special treatment with synthetic resin for protection against freezing.
• Satisfactory operation ensured by many years of research and development in constant temperature rooms (lowest air temperature: -30 degrees C) and testing in cold climate.

Standard specification

PRESSURE SETTING

+0.25kPa

VACUUM SETTING

-0.25kPa

CONNECTION STAMDARD

JIS10K，JPI150，ANSI150

Air intake and atmospheric exhaust as standard. For other functions, consult us.

DESCRIPTION OF OPERATION

Summary

For the purpose of adjusting the internal pressure during the rise and fall of the internal pressure in the storage tank formula fixed roof, dispensing or eyeball of the contents, occur due to changes in atmospheric pressure and changes in atmospheric temperature and measure the safety of the tank it is a safety device that will be used.

Feature

Breather valve KN type is composed of the following four components broadly.

The combination inhalation air, released into the atmosphere, the vent suction, the vent discharge of features Burizabarubu, there is variation functional 8 pattern, for Burizabarubu type KN satisfies the 8 patterns by appropriately combining four parts in this you can.

Standard specification

KN1 SERIES

EJECTION OPERATING START PRESSURE+0.2～+5.0k
PaINHALATION OPERATING START PRESSURE-0.2～-5.0kPa
CONNECTION STANDARDJIS10K, JPI150, ANSI150

※If the pressure exceeds the above, please contact us.

KN2 SERIES

EJECTION OPERATING START PRESSURE: +0.2～+5.0kPa
INHALATION OPERATING START PRESSURE: -0.2～-5.0kPa
CONNECTION STANDARD: JIS10K, JPI150, ANSI150

※If the pressure exceeds the above, please contact us.

KN3 SERIES

EJECTION OPERATING START PRESSURE: +0.2～+5.0kPa
INHALATION OPERATING START PRESSURE: -0.2～-5.0kPa
CONNECTION STANDARD: JIS10K, JPI150, ANSI150

※If the pressure exceeds the above, please contact us.

KN4 SERIES

EJECTION OPERATING START PRESSURE: +0.2～+5.0kPa
INHALATION OPERATING START PRESSURE: -0.2～-5.0kPa
CONNECTION STANDARD:JIS10K, JPI150, ANSI150

※If the pressure exceeds the above, please contact us.

KN5 SERIES

EJECTION OPERATING START PRESSURE: +0.2～+5.0kPa
CONNECTION STANDARD:JIS10K, JPI150, ANSI150

※If the pressure exceeds the above, please contact us.

KN6 SERIES

EJECTION OPERATING START PRESSURE: +0.2～+5.0kPa
CONNECTION STANDARD:JIS10K, JPI150, ANSI150

※If the pressure exceeds the above, please contact us.

KN7 SERIES

INHALATION OPERATING START PRESSURE: -0.2～-5.0kPa
CONNECTION STANDARD: JIS10K, JPI150, ANSI150

※If the pressure exceeds the above, please contact us.

KN8 SERIES

INHALATION OPERATING START PRESSURE: -0.2～-5.0kPa
CONNECTION STANDARDJIS10K, JPI150, ANSI150

Summary

For the purpose of adjusting the internal pressure during the rise and fall of the internal pressure in the storage tank formula fixed roof, dispensing or eyeball of the contents, occur due to changes in atmospheric pressure and changes in atmospheric temperature and measure the safety of the tank it is a safety device that will be used.

Feature

Because it does not use any metal parts Breather valve, you are suitable for the reservoir a liquid strongly acidic corrode metal, strongly alkaline.

Standard specification

PRESSURE SETTING

+0.25kPa

VACUUM SETTING

-0.25kPa

CONNECTION STANDARD

JIS10KFF，ANSI150FF，JPI150FF

Can also be produced non-standard set pressure discharge, the set pressure inhalation.

Air intake and air discharge type is a standard feature. Please contact us regarding other features.

PVC or PP body material has become a standard.

DESCRIPTION OF OPERATION

Summary

A pneumatically actuated valves, in which the instrumentation used in the air line is a directional control valve is performed by an air signal. Also used an inert gas as well as air fluid.

Because it is what without any use of electrical, actuated by the air signal, you can use safely in potentially explosive atmosphere.

Feature

Emergency valves that are set by introducing signal air pressure and pushing a palm button.

In an emergency case, when signal air pressure disappears, the valve changes its operating position by spring action. When signal air pressure is led again, the valve maintains its operating position unless the palm button is pushed.

Standard specification

FLUID

CLEAN AIR

FLUID TEMPERATURE

-20～60℃

WORKING PRESSURE

0～0.99MPa

SIGNAL AIR PRESSURE RANGE

0.06～0.14MPa

Cv. FLOW FACTOR

0.75

Product Image

DESCRIPTION OF OPERATION

BZ11RC

BZ11RD

BZ11RG

Summary

A pneumatically actuated valves, in which the instrumentation used in the air line is a directional control valve is performed by an air signal. Also used an inert gas as well as air fluid.

Because it is what without any use of electrical, actuated by the air signal, you can use safely in potentially explosive atmosphere.

Feature

Being air-operated, the valves can be used with assurance in places inaccessible to power sources or in dangerous atmospheres where electricity cannot be used.

Standard specification

FLUID

CLEAN AIR

FLUID TEMPERATURE

-20 — 60 deg.C

WORKING PRESSURE

0 — 0.99MPa

SIGNAL AIR PRESSURE

0.1 — 0.99MPa
Under standard conditions, the valve changes its operating position completely when signal air pressure becomes 0.05 MPa or less.

Cv. FLOW FACTOR

0.75

Product Image

BZ10G

DESCRIPTION OF OPERATION

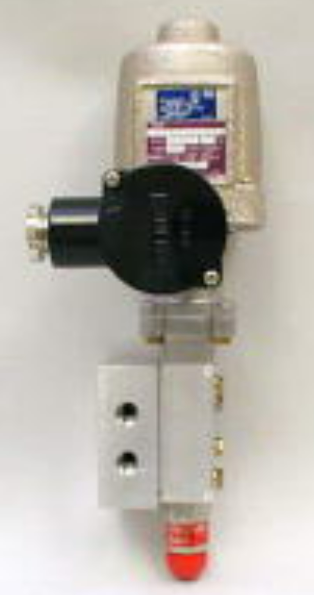

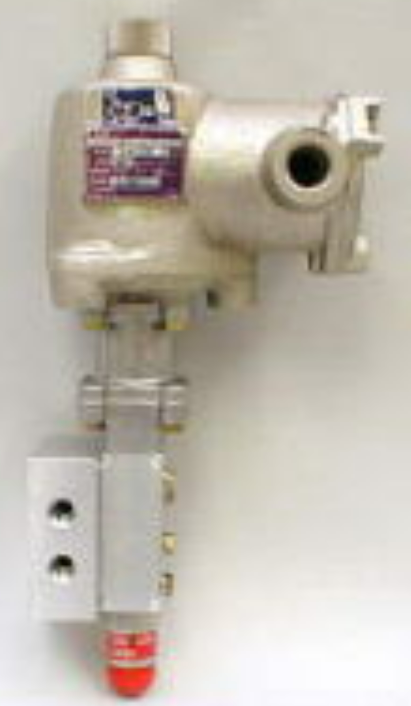

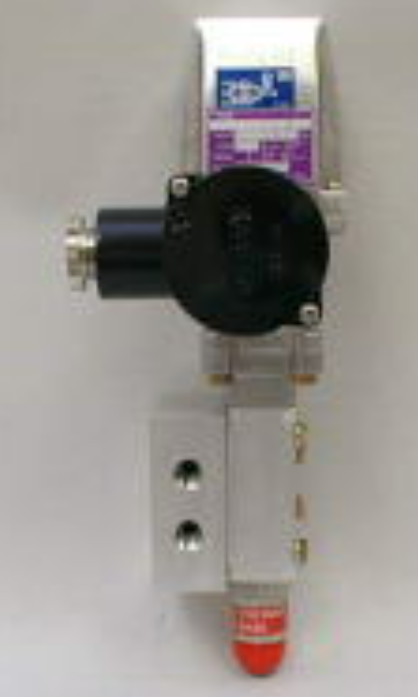

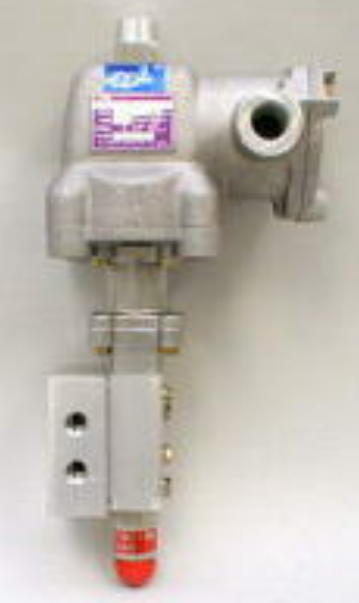

Summary

In the solenoid valve is used for emergency solenoid valve and Maniaru reset operation is performed for the power outage, automatically switches the solenoid valve typically Maniaru expression Operating reset once again. or energized, even if the power failure, unless manually reset is semi-automatic valve with a mechanism that does not change the operating position.

Feature

Can be used even with a pressure differential of zero as main and pilot valves are directly connected to each other.
Pressure losses are small as nominal size is equal to seat size.
Products certified for high-pressure gas services are also available.
Designed so that the valve after once actuated does not change its state unless it is manually reset.

Precautions

Install the valve with the solenoid upward with respect to horizontal piping (permissible angle of inclination is within 30 degrees to the vertical).
Limited flow directions (align with the arrow indicating the flow direction).
Limited flow directions (align with the arrow indicating the flow direction).
Remove air through vent valve in cases where the working fluid is a liquid.
Do not paint external moving parts.

Standard specification

FLUID

GAS , LIQUID , STEAM

WORKING PRESSURE

See below

FLUID TEMPERATURE

As for working temperature you can select any KANEKO model no. that will have different inner construction. The using temperature is available form 5deg.C to 200deg.C.

AMBIENT TEMPERATURE

－20℃ ～ 40℃(But to be used within the range of fluid dose not frozen.)

VISCOSITY OF FLUID

250cst or lose

DUTY CYCLE

100% CONTINUOUSLY RATED

OPERATING VOLTAGE RANGE

＋10％，－15％

ELECTRICAL SPECIFICATIONS

See below

WORKING PRESSURE

ELECTRICAL SPECIFICATIONS

Product Image

M31 – 15 ～ 32 – A44、AE44-BS TYPE

M31 – 15 ～ 32 – D44-BS TYPE

M31 – 15 ～ 32 – DE44-BS TYPE

M31 – 15 ～ 32 – A44、AE44-SS TYPE

M31 – 15 ～ 32 – D44-SS TYPE

M31 – 15 ～ 32 – DE44-SS TYPE

M30 – 15 ～ 32 – A44、AE44-BF TYPE

M31 – 15 ～ 32 – D44-BF TYPE

M31 – 15 ～ 32 – DE44-BF TYPE

M31 – 15 ～ 25 – A44、AE44-SF TYPE

M31 – 15 ～ 25 – D44-SF TYPE

M31 – 15 ～ 25 – DE44-SF TYPE

M31 – 40 ～ 50 – A44、AE44 TYPE

M31 – 40 ～ 50 – D44 TYPE

M31 – 40 ～ 50 – DE44 TYPE

Summary

In the solenoid valve is used for emergency solenoid valve and Maniaru reset operation is performed for the power outage, automatically switches the solenoid valve typically Maniaru expression Operating reset once again. or energized, even if the power failure, unless manually reset is semi-automatic valve with a mechanism that does not change the operating position.

Feature

A kind of safety valve capable of preventing malfunctioning.

Being a semi-automatic type, the valve does not operate freely like an ordinary solenoid valve by turning on or off of the power.

Packed type

Free from any fear of burnout or insulation degradation as the coil and movable core do not come into contact with fluid.

Easy to operate manually.

You can just press the palm ratchet button.
We offer two types of operation and with the operation when the power during a power outage.

Standard specification

FLUID : CLEAN AIR
FLUID TEMPERATURE : －20～60℃
AMBIENT TEMPERATURE: －20～60℃
DUTY CYCLE: 100% CONTINUOUSLY RATED
OPERATING VOLTAGE RANGE: ＋10，－15％
WORKING PRESSURE : 0 ～ 0.99MPa
Cv. FLOW FACTOR: 0.58
ELECTRICAL SPECIFICATIONS: See below

ELECTRICAL SPECIFICATIONS

Product Image

M51 AC GENERAL PURPOSE TYPE

M51 DC GENERAL PURPOSE TYPE

M51 AC EXPLOSION-PROOF TYPE

M51 DC EXPLOSION-PROOF TYPE

Summary

In the solenoid valve is used for emergency solenoid valve and Maniaru reset operation is performed for the power outage, automatically switches the solenoid valve typically Maniaru expression Operating reset once again. or energized, even if the power failure, unless manually reset is semi-automatic valve with a mechanism that does not change the operating position.

Feature

A kind of safety valve capable of preventing malfunctioning.

Being a semi-automatic type, the valve does not operate freely like an ordinary solenoid valve by turning on or off of the power.

Constant power consumption.

As a direct-acting, manual-reset type three-way valve is used as the pilot valve, power consumption is kept constant, irrespective of the valve size.

Packed type

Free from any fear of burnout or insulation degradation as the coil and movable core do not come into contact with fluid.

Easy to operate manually.

Can be latched with the push of the palm button.
Available in two types ― no voltage release and electrically tripped.

Standard specification

FLUID : CLEAN AIR
FLUID TEMPERATURE : －20～60℃
AMBIENT TEMPERATURE: －20～60℃
DUTY CYCLE: 100% CONTINUOUSLY RATED
OPERATING VOLTAGE RANGE: ＋10，－15％
WORKING PRESSURE : 0.12 ～ 0.99MPa
Cv. FLOW FACTOR: See below
ELECTRICAL SPECIFICATIONS: See below

Cv. FLOW FACTOR

ELECTRICAL SPECIFICATIONS

Product Image

M55 AC GENERAL PURPOSE TYPE

M55 DC GENERAL PURPOSE TYPE

M55 AC EXPLOSION-PROOF TYPE

M55 DC EXPLOSION-PROOF TYPE

Summary

In the solenoid valve is used for emergency solenoid valve and Maniaru reset operation is performed for the power outage, automatically switches the solenoid valve typically Maniaru expression Operating reset once again. or energized, even if the power failure, unless manually reset is semi-automatic valve with a mechanism that does not change the operating position.

Feature

A kind of safety valve capable of preventing malfunctioning.
Being a semi-automatic type, the valve does not operate freely like an ordinary solenoid valve by turning on or off of the power.

Packed type
Free from any fear of burnout or insulation degradation as the coil and movable core do not come into contact with fluid.

Easy to operate manually.
Can be latched with the push of the palm button. Available in two types ― no voltage release and electrically tripped.

Standard specification

FLUID : CLEAN AIR
FLUID TEMPERATURE : －20～60℃
AMBIENT TEMPERATURE: －20～60℃
DUTY CYCLE: 100% CONTINUOUSLY RATED
OPERATING VOLTAGE RANGE: ＋10，－15％
WORKING PRESSURE : 0 ～ 0.99MPa
Cv. FLOW FACTOR: 0.58
ELECTRICAL SPECIFICATIONS: See below

ELECTRICAL SPECIFICATIONS

Product Image

M81 AC GENERAL PURPOSE TYPE

The product may differ from the photo depending on the options, etc.

M81 DC GENERAL PURPOSE TYPE

The product may differ from the photo depending on the options, etc.

M81 AC EXPLOSION-PROOF TYPE

The product may differ from the photo depending on the options, etc.

M81 DC EXPLOSION-PROOF TYPE

The product may differ from the photo depending on the options, etc.

Summary

Typically, a four-way solenoid valve operates the double-acting cylinder.

A four-way solenoid valve mainly has five pipe connecting ports: one inlet, two outlets, and two exhaust ports. Since it is always closed, the exhaust port provides one of the four directional functions.

A double latch solenoid, with two coils inside, allows valve switching by energizing one of the coils. The valve does not switch to self-holding form, even if a power outage occurs after energization.

Feature

Hard anodized aluminum coats the inner sliding parts, allowing them to slide easily and operate without oil lubrication, preventing sticking and slipping, and providing excellent wear resistance.

The main parts, made of aluminum alloy, are compact and light.

Replacing AC and DC coils is easy because both fit into the same casing.

Anti-corrosion treatment with hard anodized aluminum ensures high corrosion resistance.

The Ministry of Labor certifies these explosion-proof type valves.

The main valve, a balance piston type, switches by a control piston without needing a spring. This design prevents malfunctions caused by spring action, even after long periods of inactivity.

A manual button allows for operation checks or testing.

Reliable operation occurs at a minimum pressure of 0.1 MPa, as no air loss is produced.

These valves can also function as three-way valves by selecting three out of the five ports.

Standard specification

FLUID : CLEAN AIR
FLUID TEMPERATURE : －20～60℃
AMBIENT TEMPERATURE: －20～60℃
DUTY CYCLE: 100% CONTINUOUSLY RATED
OPERATING VOLTAGE RANGE: ＋10，－15％
WORKING PRESSURE : 0.1 ～ 0.99MPa
Cv. FLOW FACTOR: 0.87
ELECTRICAL SPECIFICATIONS: See below

ELECTRICAL SPECIFICATIONS

Product Image

M15DG GENERAL PURPOSE TYPE

M15DG EXPLOSION-PROOF TYPE

M15DG DUST EXPLOSION-PROOF TYPE

Summary

Typically, a four-way solenoid valve operates the double-acting cylinder.

A four-way solenoid valve mainly has five pipe connecting ports: one inlet, two outlets, and two exhaust ports. Since it is always closed, the exhaust port provides one of the four directional functions.

A double latch solenoid, with two coils inside, allows valve switching by energizing one of the coils. The valve does not switch to self-holding form, even if a power outage occurs after energization.

Feature

Wide range of applications.

Can be used for a wider range of applications because valve sizes from 3/8″ to 1-1/4″ are available.

Manual check is possible.

Manual operation is possible. This mode can be used for operation check or switching in case of emergency.

Standard specification

FLUID : CLEAN AIR
FLUID TEMPERATURE : －20～60℃
AMBIENT TEMPERATURE: －20～60℃
DUTY CYCLE: 100% CONTINUOUSLY RATED
OPERATING VOLTAGE RANGE: ＋10，－15％
WORKING PRESSURE : 0.1 ～ 0.9MPa
Cv. FLOW FACTOR: See below
ELECTRICAL SPECIFICATIONS: See below

Cv. FLOW FACTOR

ELECTRICAL SPECIFICATIONS

Product Image

M65DG GENERAL PURPOSE TYPE

M65DG EXPLOSION-PROOF TYPE

Summary

Typically, a four-way solenoid valve operates the double-acting cylinder.

A four-way solenoid valve mainly has five pipe connecting ports: one inlet, two outlets, and two exhaust ports. Since it is always closed, the exhaust port provides one of the four directional functions.

A double latch solenoid, with two coils inside, allows valve switching by energizing one of the coils. The valve does not switch to self-holding form, even if a power outage occurs after energization.

Feature

Available at the main valve spool oil-free formula

Use oil-free is possible with a combination of special shape and spool packing.

Manual override as standard

For manual operation buttons are provided on all models.

Easy maintenance

It is the original product of long life, because it is designed with an emphasis on ease of maintenance In particular, it is extremely simple structure small number of parts.

Be used as a three-way valve

You can also be used as a three-way valve by plugging in either standard out is square.

Standard specification

FLUID : CLEAN AIR
FLUID TEMPERATURE : －20～60℃
AMBIENT TEMPERATURE: －20～60℃
DUTY CYCLE: 100% CONTINUOUSLY RATED
OPERATING VOLTAGE RANGE: ＋10，－15％
WORKING PRESSURE : 0.15 ～ 0.99MPa
Cv. FLOW FACTOR: 0.5
ELECTRICAL SPECIFICATIONS: See below

ELECTRICAL SPECIFICATIONS

Product Image

MB15G GENERAL PURPOSE TYPE

MB15DG EXPLOSION-PROOF TYPE

Summary

Typically, a four-way solenoid valve operates the double-acting cylinder.

A four-way solenoid valve mainly has five pipe connecting ports: one inlet, two outlets, and two exhaust ports. Since it is always closed, the exhaust port provides one of the four directional functions.

A double latch solenoid, with two coils inside, allows valve switching by energizing one of the coils. The valve does not switch to self-holding form, even if a power outage occurs after energization.

Feature

The main valve, a spool type, requires no oil lubrication. A specially configured packing and spool enable oilless operation. A manual button is provided as standard on all types.

These valves are easy to maintain, designed with simplicity and fewer components for long life and easy maintenance. Available as three-way valves, the standard four-way valves can be used as three-way valves by plugging one of the two outlets.

Installation is straightforward, as the Namur mount method allows direct installation to a cylinder without the need for troublesome piping work. The standardized connection configuration ensures compatibility with any cylinder having a Namur mount.

Additionally, the valve connects easily to piping, with Rc1/4 threads cut on the inner surface of the O-ring at the outlet side.

Standard specification

FLUID : AIR , INERT GAS
FLUID TEMPERATURE : －20～60℃
AMBIENT TEMPERATURE: －20～60℃
DUTY CYCLE: 100% CONTINUOUSLY RATED
OPERATING VOLTAGE RANGE: ＋10，－15％
WORKING PRESSURE : 0.12 ～ 0.99MPa
Cv. FLOW FACTOR: 0.9
ELECTRICAL SPECIFICATIONS: See below

ELECTRICAL SPECIFICATIONS

Product Image

 GENERAL PURPOSE TYPE

 EXPLOSION-PROOF TYPE

Summary

Typically, a four-way solenoid valve is used to operate the double-acting cylinder.

Mainly, there are five pipe connecting port, four-way solenoid valve, has become a place 2 1 inlet, 2 outlet, outlet. Because it is always closed, the exhaust port is one of the four direction any functionality.

Single solenoid and has one coil inside, switched switched to its original state, flow direction when the solenoid is energized from a power outage and blackout state.

Summary

Typically, a four-way solenoid valve is used to operate the double-acting cylinder.

Mainly, there are five pipe connecting port, four-way solenoid valve, has become a place 2 1 inlet, 2 outlet, outlet. Because it is always closed, the exhaust port is one of the four direction any functionality.

Single solenoid and has one coil inside, switched switched to its original state, flow direction when the solenoid is energized from a power outage and blackout state.

Summary

There are three places that connection port, and the three-way solenoid valve has a valve seat in the valve in two places. Always one of the valve seat portion is open, the other valve seat is closed now.

Three-way solenoid valve, which is used to control the air for the opening and closing operation of the machine, such as single-acting cylinder or diaphragm normal operation, you can also be used to direct control of the liquid.

Feature

Packed type

Free from any fear of burnout or insulation degradation as the coil and movable core do not come into contact with fluid.

Safe explosion-proof construction.

Explosion-proof type valves certified by the Ministry of Labor.

Highly durable.

A mechanical life of five million operations or more is expectable.

Manual check is possible.

Manual operation is possible.
This mode can be used for operation check or switching in case of emergency.

Standard specification

FLUID : CLEAN AIR
FLUID TEMPERATURE : －20～60℃deg.C
AMBIENT TEMPERATURE: －20～60℃ deg.C
DUTY CYCLE: 100% CONTINUOUSLY RATED
OPERATING VOLTAGE RANGE: ＋10，－15％
WORKING PRESSURE : 0.12 ～ 0.99MPa
Cv. FLOW FACTOR: See below
ELECTRICAL SPECIFICATIONS: See below

Cv. FLOW FACTOR

STANDARD VOLTAGE

Product Images

M55 AC GENERAL PURPOSE TYPE

M55 DC GENERAL PURPOSE

M55 AC EXPLOSION-PROOF

M55DC EXPLOSION-PROOF TYPE

DESCRIPTION OF OPERATION

M55C	M55D

Summary

There are three places that connection port, and the three-way solenoid valve has a valve seat in the valve in two places. Always one of the valve seat portion is open, the other valve seat is closed now.

Three-way solenoid valve, which is used to control the air for the opening and closing operation of the machine, such as single-acting cylinder or diaphragm normal operation, you can also be used to direct control of the liquid.

Summary

There are three places that connection port, and the three-way solenoid valve has a valve seat in the valve in two places. Always one of the valve seat portion is open, the other valve seat is closed now.

Three-way solenoid valve, which is used to control the air for the opening and closing operation of the machine, such as single-acting cylinder or diaphragm normal operation, you can also be used to direct control of the liquid.

Feature

• Capable of preventing changes in operation by power failure.
• Should power failure occur after the start of operation, the valve does not change its operating position. Therefore, accidents due to power failure can be prevented.
• No loss in electric power.
• Very economical since the valves are designed to reduce power consumption to about 1/3 that with our former products.
• Economical and free from anxiety.
• Quite safe without burnout and insulation degradation as the temperature rise of the coil is very low.

Standard specification

FLUID : CLEAN AIR
FLUID TEMPERATURE : －20～60℃
AMBIENT TEMPERATURE: －20～60℃
DUTY CYCLE: 100% CONTINUOUSLY RATED
OPERATING VOLTAGE RANGE: ＋10，－15％
WORKING PRESSURE , Cv. FLOW FACTOR: See below
ELECTRICAL SPECIFICATIONS: See below

WORKING PRESSURE, Cv. FLOW FACTOR

ELECTRICAL SPECIFICATIONS

M00DU GENERAL PURPOSE TYPE

M00DU EXPLOSION-PROOF TYPE

M00DU DUST EXPLOSION-PROOF TYPE

Summary

There are three places that connection port, and the three-way solenoid valve has a valve seat in the valve in two places. Always one of the valve seat portion is open, the other valve seat is closed now.

Three-way solenoid valve, which is used to control the air for the opening and closing operation of the machine, such as single-acting cylinder or diaphragm normal operation, you can also be used to direct control of the liquid.

Feature

• Explosion-proof terminal box turns.
• As the explosion-proof terminal box turns 340 degrees, conduit connections are easy to make.
• Universal function.
• Four modes of operation are possible, depending on the operating environment.
• Long life of five million operations or more.
• Compact and light.
• Particularly explosion-proof type valves are very compact without parallel.

Standard specification

FLUID : CLEAN AIR
FLUID TEMPERATURE : －20～60℃
AMBIENT TEMPERATURE: －20～60℃
DUTY CYCLE: 100% CONTINUOUSLY RATED
OPERATING VOLTAGE RANGE: ＋10，－15％
WORKING PRESSURE , Cv. FLOW FACTOR: See below
ELECTRICAL SPECIFICATIONS: See below

WORKING PRESSURE , Cv. FLOW FACTOR

STANDARD VOLTAGE

Product Images

M00U GENERAL PURPOSE TYPE

M00U EXPLOSION-PROOF TYPE

M00U HYDROGEN EXPLOSION-PROOF TYPE

M00U DUST EXPLOSION-PROOF TYPE

DESCRIPTION OF OPERATION

Overview

A float switch, the float switch operation is performed to detect the rise and fall of the liquid surface. In other words, by determining the position of the liquid level detection you need, you set up the instrument, the rise and fall also float the rise and fall of the liquid surface, the magnet on the end of the arm, and the open or closed contacts.
