This compact model can easily adjust bending shape. It is easy to change male or female dies because of dovetails.

This compact model can easily adjust bending shape.

This is a specialized machine for processing bridges on blades, and the bridge depth can be adjusted. There are two types of bridge shapes, U type and Square type, and bridge widths from 5 mm to 9 mm.

U form, hanger hole, puzzle or oblong can be manufactured. Digital counter enable us to control the bending data and reproduce the bending easily. It has several times more power compared to other bending machine.

This medium-sized bender is easy to handle and highly durable. A wide variety of bending dies are available.

It has got several times as powerful as other bending machines and brings us easy bending. Even thicker or higher cutting rules are easily able to be bent.

It offers the cutting with less power by lever action and prevents the distortion after the cutting. It is easy to adjust the steel rule guide with one operation corresponding to the height from 30mm to 100mm.

The NAC series are electric cutter and cutting is easily operated by foot switch.

The BCD series can continuously process both ends of the rule in the desired manner, either double lips or double straight cuts.

The FCD series can continuously process both ends of the rules in the desired manner, either double lips or double straight cuts. On top of that, bent rules can be cut within short distances from the bending point, on either the left or right side of the machine. Available thickness up to 0.9mm.

It cuts steel rules with less power, and with easy, effective lever action. Upper and lower cutting blades are angled to prevent damage to the cutting edge of the rule. It is easy to adjust the steel rule guide with one operation so this machine can handle both cutting rules and creasing rules.

ANGLE BAR (TYPE C)

This is attached to female stripping dies and used to remove the outer wastes.

SEPARATING KNIFE

This is attached to female stripping dies and set on the rails of the stripping station.

SET PIN

It is attached to male stripping dies and used to remove wastes.

STRIPPING STEEL RULE

It is for aligning male and female stripping dies.

CUTTING OFF WHEELS

Nickling wheels for PCG ・ NCG ・ TCG.
This is a grinding wheel for nicking and cutting rules.

THIN CUT (NICKING WHEELS FOR OTOMESAN)

Nicking wheels for OTOMESAN.
When using 0.1 to 0.2 mmT, a flange ( option ) can be used to ensure stable processing.

OTOMESANII

Grinder for nicking.
Anyone can easily process beautiful nicks because of a motorized model.
It is also available for rent, so please feel free to contact us.

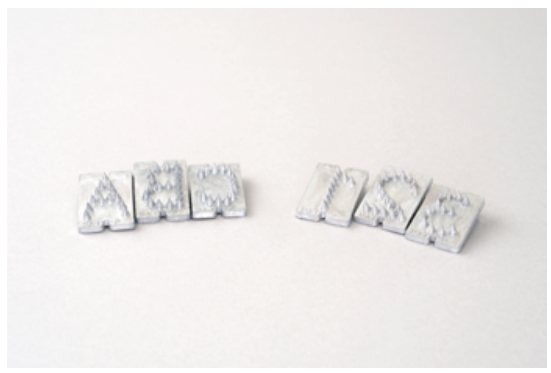

PIN MARK / MINI PIN MARK

It is used by attaching it to a dieboard. We have two sizes.

*The mini pin marks are available only by special order.

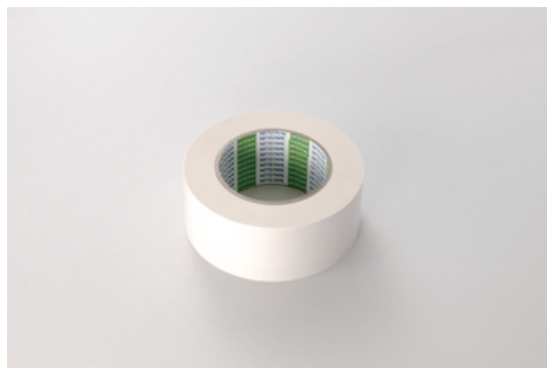

DOUBLE COATED TAPE

Double coated tape for securing paper on pressboard.

NT CUTTER

Box cutter used for cutting paper on pressboard.
Replacement blades are also available.

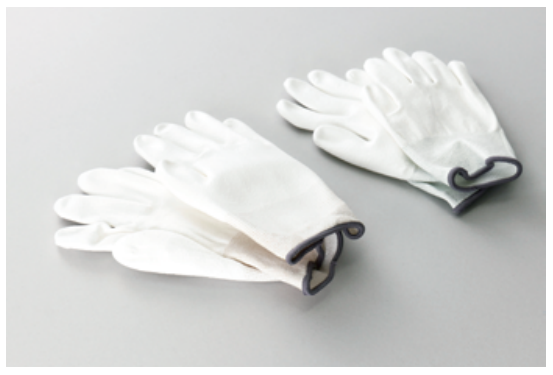

CUT RESISTANT GLOVE

This glove is made of cut-resistant fiber. It is convenient and safe when handling cutting rules.

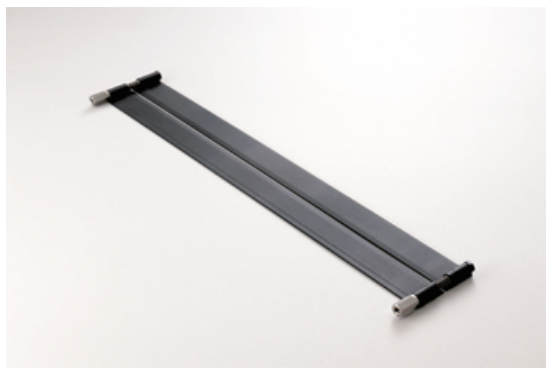

PRESSBOARD CUTTING RULER

Cutting ruler for cutting paper on pressboard. The channel width can be kept fixed width.

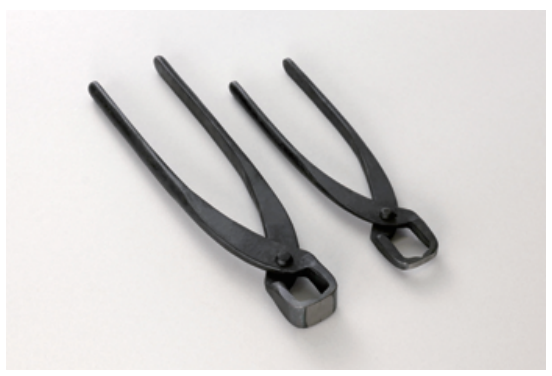

RULE PULLER

This nipper can pull out cutting rules in a dieboard.
Duck bill prevents damage to the cutting edge. We have two sizes, large and small.

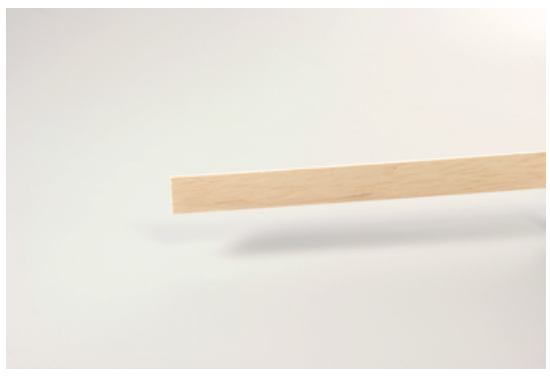

SPACING WOOD

Wooden shim. It is used to adjust the gripper margin of dieboard.

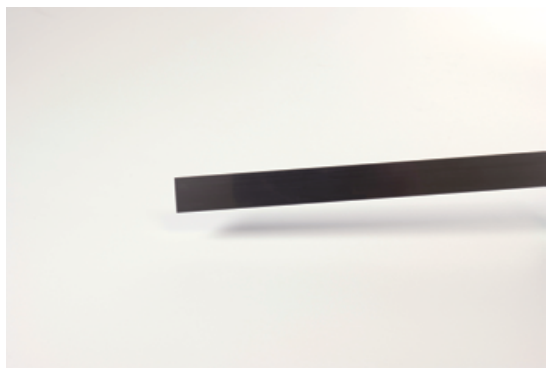

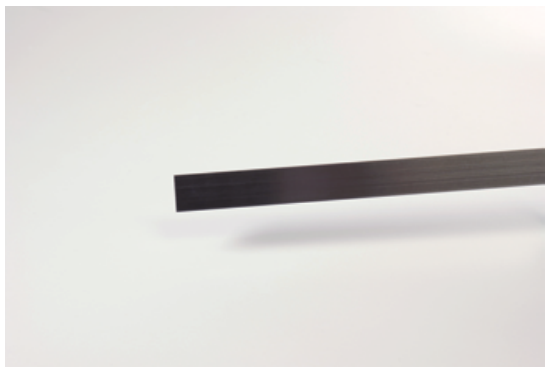

SPACING RULES (IRON)

Iron shim.

SPACING RULES

Shim made of carbon tool steel (SK grade).

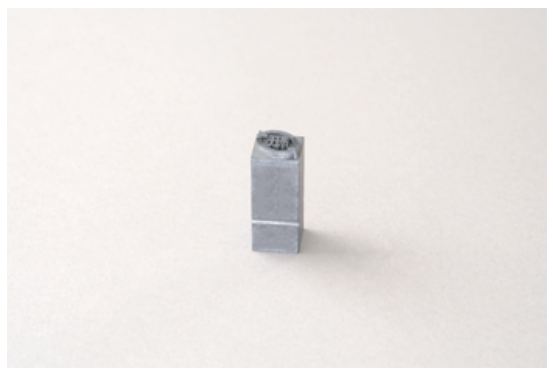

RECYCLE MARK

It is mounted into dieboard and can process debossing at the same time while die cutting.

JIG SAW BLADES

Jig saw blades for a jig saw machine.

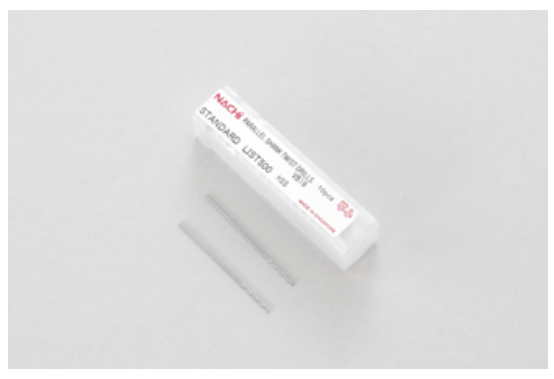

DRILLS FOR LEUTOR

It is used to make the kerf width of the plywood fixed width after laser cutting.

*We can also order other items not listed above, so please feel free to contact us.

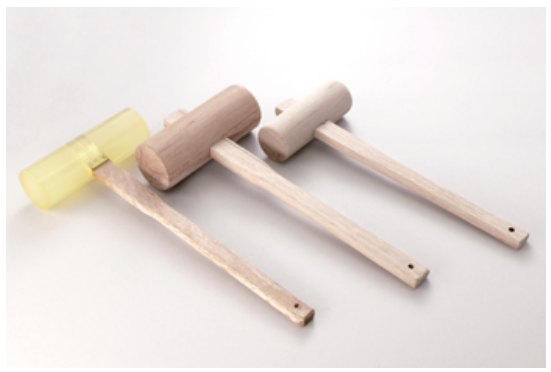

HAMMER

Mallet for putting cutting rules into a dieboard.
A tip only is also available.

*Hammers are available only by special order.

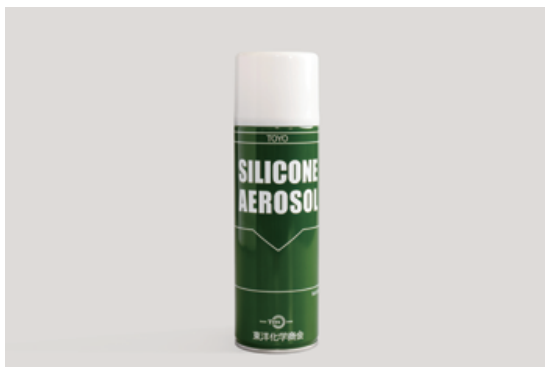

SILICONE AEROSOL

Spraying on the surface plate improves the sliding performance.
It can also be sprayed on the back of the blade to insert the blade smoother.

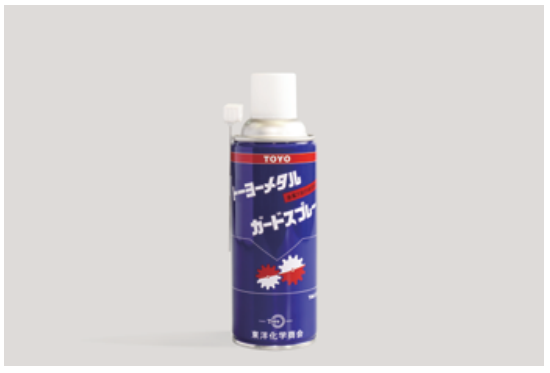

METAL GUARD

Anti-corrosion spray.
It can be used for cutting machines, press machines, metal parts, etc.

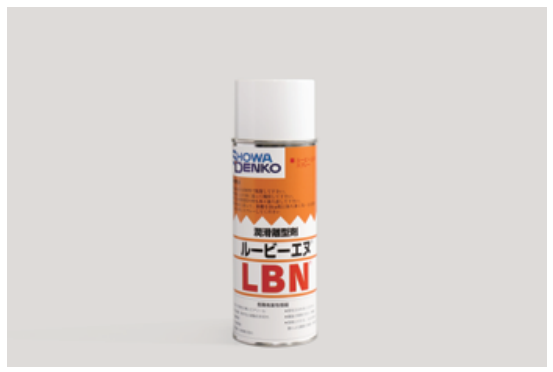

LBN SPRAY

A fluorinated spray with a non-adhesive effect.
When applying on Creasing matrix or counter plate, paper sheet flow smoothly.
It also has an antistatic effect.

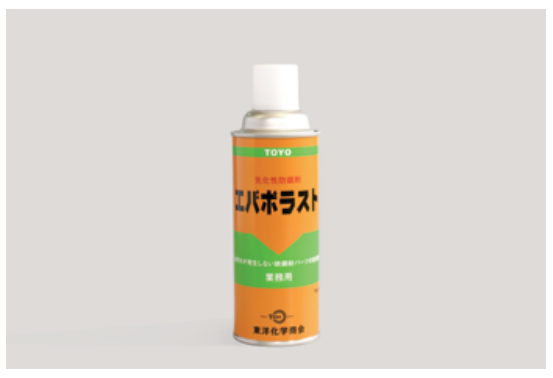

EVAPO-RUST

A spray that can be used as a rust prevention for cutting rules.
It is colorless, transparent, quick-drying, and non-sticky.

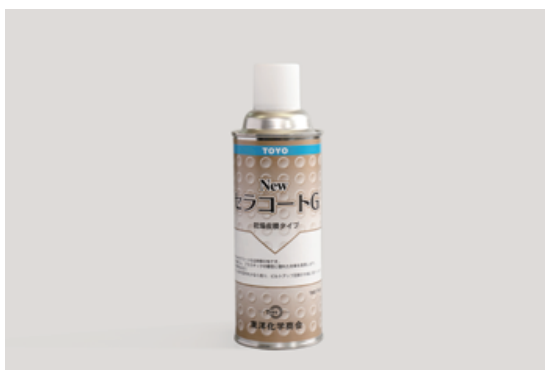

NEW CERA COAT G

A spray with a non-adhesive effect.
It is effective for spraying on the cutting edge or the ejection rubber of the die-board.
It is colorless, transparent, quick-drying, and non-sticky.

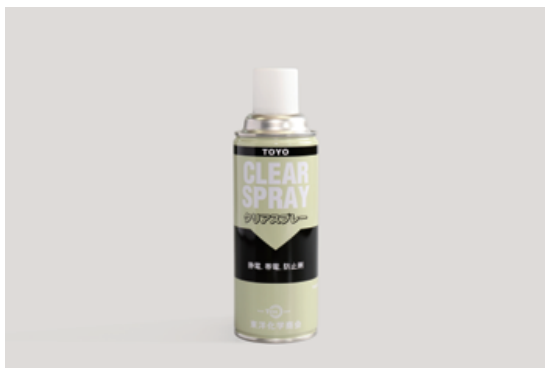

CLEAR SPRAY

A spray with an anti-static effect.
It is effective for spraying on areas likely to be charged with static electricity, such as ejection rubber or tools for processing machines.

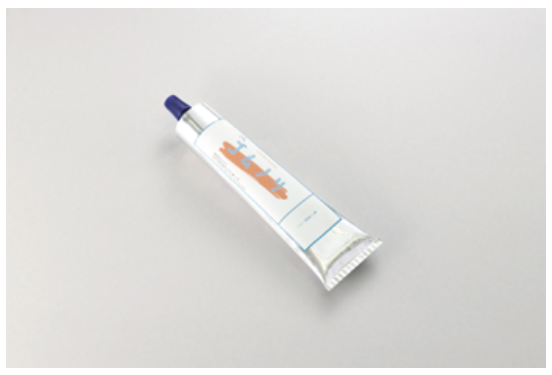

RUBBER GLUE

Glue for ejection rubber.

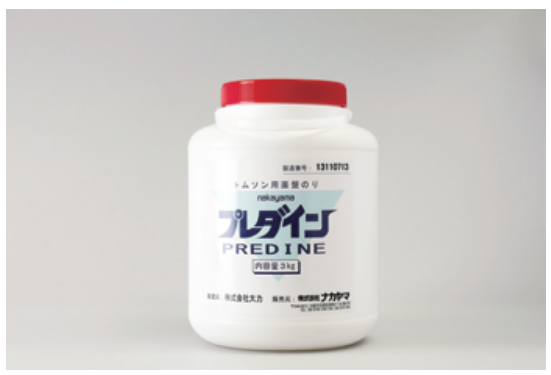

PREDINE

Glue for securing paper on pressboard.

DIRECT BOND

Strong instant adhesive.
Suitable for hardening paper on pressboard or gluing cork and rubber.

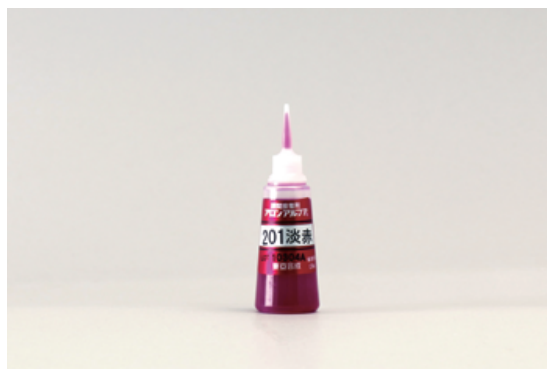

ARON ALPHA

Strong instant adhesive.
Suitable for hardening paper on pressboard or gluing cork and rubber.

ADHESION SPRAY (STRONG)

Spray glue for paper on pressboard.

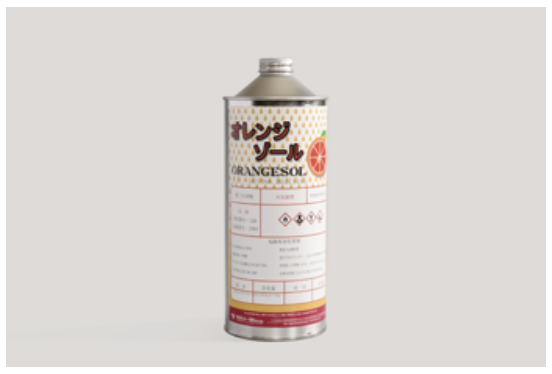

ORANGESOL

A citrus-based cleaning detergent specially formulated for pressboard.
Removing adhesive and oil from pressboard will be expected.

SPOT TAPE

Make-ready tape made of paper.

LEVEC TAPE

Aluminized polyester film is base material.
Applying along creasing matrix or counter plate, paper sheet flows smoothly.

UNI TAPE

Stainless steel tape. It is durable and can be applied directly to the back side of the dieboard.

CARBON PAPER

For marking cutting and creasing rules on make-ready sheets.
We have two colors, red and blue.

STAINLESS CUTTING PLATE

We can provide thickness and size that are suited for various manufacturers’ flatbed die-cutting machines.
Hole drilling and other processing are also available.
It can be used repeatedly and it leads to reducing the next setting time.

PRESS BALANCE SYSTEM

This sheet is used to improve the parallelism of the pressing balance of the flatbed die-cutting machine. There are some effects such as reduction of make-ready time, paper dust, and improvement of dieboard life cycle. You can find more information on our website.

NEO SLOT

NEO SLOT is slot rubber version of PORT RUBBER.

GOMK

Durable hard rubber. NEO GOMK is slot rubber version of GOMK.

NEO GOMK

NEO GOMK is slot rubber version of GOMK.

SLOT RUBBER

Slot rubber with uneven tip. The shape of the tip depends on the width.
1.5/2.5 are flat tip and 3/4.5 are uneven tip.

T-RUBBER

Holding the sheet tightly and it can protect the nick.

CORK

Cork Pad. Holding the sheet tightly prevents torn edge.
Loose piece (6×7) is available.

STRETCH CORK

Useful for torn edge.
Edge is rounded and it prevents the products from getting a mark.

TAPER CORK

It is difficult to get a mark.
Preventing cracks and torn edges will be expected.

GOMNOMICS

Useful for torn edge.
Edge is rounded and it prevents the products from getting a mark.

URETHANE ROPE / BANCORD

Urethane tube. Suitable for small diameter drilled punches.

CORTEX

Cork for preventing torn edge, nick protecting or crushing corrugated material.
It is useful for preventing back crack or creasing crack of corrugated board.

• Slicing, cutting, double-sided tape process are possible. We can offer you other thickness which is not listed below.
• Rubber Sample Book are available. You can see and touch the actual products with the sample book. Please feel free to contact us when you need it.

MIKAN40 – ORANGE RUBBER

EVA material and the most popular.
It is widely used such as for paper, corrugated board or plastic.

WAKABA

EVA material. It has got high resiliency.
We can offer you WAKABA with double-sided tape and wavy cut, which is WAKABA-S.

GREEN60 – GREEN RUBBER

EVA material. It is harder than WAKABA and has got high resiliency.
We can offer you GREEN RUBBER with double-sided tape and wavy cut, which is GREEN60-S.

WHITE RUBBER

Natural rubber and the softest. Low hardness hardly make a mark on the products.

PORT RUBBER

Durable hard rubber. Surface is mesh and suiatble for high speed die cutting.
NEO SLOT is slot rubber version of PORT RUBBER.

GRAY MESH

Surface is mesh and suiatble for high speed die cutting.

※1 box= 10 sheets

SPECIAL SHAPE PUNCH

It is suitable for complicated shape. There are 3 types of ejecting the wastes, which are standard, side through and feed through.
Please contact us for more information.

Special order punches are available from one piece. (Let us know thickness , height , bevel shape or steel type and so on.)
Bended (welded) punches , height shaving , nick processing or detachment prevention welding are also applicable.
Please feel free to contact us.

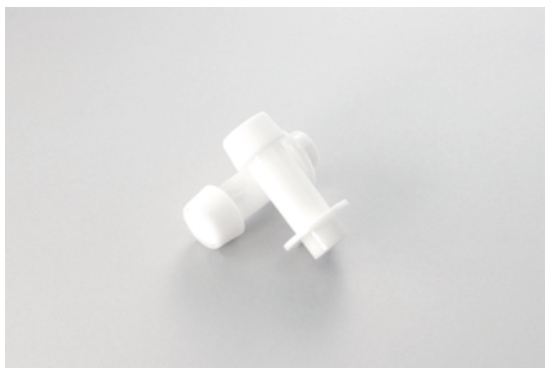

Guide Pins

It is used for alingning the cutting die with cut materials as the first step.

BOWL PUNCHES

Top shape is like dish plate. It is used for stopping tearing or products which are hardly got out of the punch.

※OD ・・・ Outside Diameter ED ・・・ Edge Diameter

FEED THROUGH PUNCHES

Inside of the punch gets wider and the wastes goes the bottom. It is suitable for cutting thick products.

SIDE EJECTOR PUNCHES

Punch which ejects the wastes through side hole. Reducing the process of handling the wastes will be expected.

SPRING PUNCHES

Punch with spring. Brass of spring top eject materials, so no ejection products are needed.
Mirror-finished products are available to 13mm. (except for fraction)

LABEL PUNCHES

Punch for label rules with 8.0mm height.

DRILLED PUNCHES (OUTSIDE BEVEL)

Outside of the edge has got gradient. It is suitable for making a cross section of products straight.

DRILLED PUNCHES (INSIDE BEVEL)

Inside has got gradient. It is suitable for making a cross section of products straight.

※2.0mm is excemption and the OD is 2.4mm.

MIRROR-FINISHED PUNCHES

Edge is mirror-finished. Sharpness, height and diameter accuracy are superior to conventional products.
Drilled Punch and Spring Punch are available. Please refer to the below stock list.

DRILLED PUNCHES

Edge is standard center bevel. Mirror-finished products are available to 15mm diameter.
32mm height products are normal-finished edge.

FORM PERFORATING RULES

The edge is side bevel perforating rules with a height of 16mm. It is used in the business form field.
Cutting rules without perforations are also available. Three days are required to cut the rules marked with “■”.

NC EDGE WAVE RULES

The edge is wave shape.
The purpose is to prevent injuries when handling cardboards.

Perforating Rules (Center Bevel)

This is a series of cutting rules with alternating tooth and gaps.
It is used for tear lines and folding.

PERFORATING RULES (TOOTH CONFIGURATIONS)

Perforation in the photos are actual size.

MICRO PERFORATING RULES (CENTER BEVEL)

※The length of the standard stock item is 520mm.

PERFORATING RULES (CENTER BEVEL)

※The length of the standard stock item is 909mm.

CUT CREASE RULES

This is a series of creasing rules with cut-crease combinations. It is used for back folding.

※The length of the standard stock item is 909mm.

※The length of the standard stock item is 909mm.

※The length of the standard stock item is 909mm.

02 Thomson Blade (Creasing, Perforating, Lead, etc.)

SPECIAL CREASING RULES(STEEL)
CREASING RULES(IRON)

It is used to add fold lines to the sheet.
Various shapes are available according to materials such as paperboard, cardboard, PP, PET, etc.

Standard shape.	Tapered tip. Suitable for plastic sheets such as PET.	The corners of both sides are chamfered. Used for cardboards because it can be folded wide.
Creasing rules for use in pairs. It is divided into two parts for easy processing.	The tip is V-shaped. Used for cardboards because it can be folded wide.

STOCK ITEMS OF COIL

CREASING RULES (IRON)

※The length of the standard stock item is 909mm.

CREASING RULES (IRON)

CREASING RULES (IRON)

V-SHAPE

SANDWICH

※The length of the standard stock item is 909mm.

LABEL RULES

It is mainly used for cutting adhesive sheets such as stickers, labels and decals. Even if the product shape is complicated, label rules are bendable.

LABEL RULES(MIR)

LABEL RULES (CENTER BEVELS)

LABEL RULES (SIDE BEVEL)

PERFORATING LABEL RULES

NON-ADHESION COATED CUTTING RULES

Cutting rules with coatings that prevent glue from sticking to edges. Two types of coatings are available depending on the application. Please refer to the comparison chart below for details.
Coating can be applied to other than just cutting rules. Punches, Flexible dies etc.

FEATURES	Anti-adhesive coating is possible without losing the sharpness of the cutting edge. Coil types are also available. Coating can be applied to other than just cutting rules. Punches, Flexible dies etc.	Fluorine coating is applied after the shot blasting process to enhance adhesion to the cutting edge.
ADVANTAGES	Anti-adhesive effects Lower edge friction Improving productivity	Anti-adhesive effects Hard-to-peel coating
DISADVANTAGES	Coating adhesion of silky is not as good as fluoro resin.	The cutting edge is treated with shot blasting, which reduces the sharpness of the blade. Compared to Silky Coating series, less variety in stock.

Difference between Silky Blade and Fluorine Blade

The biggest difference is the method and type of coating. The types of coatings are silicone and fluoro resin, both of which are excellent non-adhesive coatings.
Regarding coating methods, Silky coating can be coated without shot blasting, so the sharpness of the cutting edge is not affected.
Fluoro resin coating is surface treated to provide excellent adhesion between the blade and the coating. (Excellent adhesion means hard-to-peel coating.)

SILKY COATING (Silicone)

Silicone-based coating. Clear coating and non-adhesive effects with sharp cutting edge.

Silky Coating Coil Stock (STOCK ITEMS OF COIL)

Silky Coating Stock (STOCK ITEMS OF COIL)

FNC (Fluorine) (FLOURO RESIN COATING)

Fluoro resin anti-adhesive coating. Superior durability will be expected.

SPECIALITY CUTTING RULES

Cutting rules from 30mm to 80mm height.
It is suitable for punching materials such as molded products, food trays, and sponges.
We have a line up of products to meet your needs.

※Shown above are standard bevel shape of 1.0mm thickness.

Hi-MIR SERIES (DOUBLE LONG BEVEL)

This is a series of cutting rules with mirror-finished edges for the ultimate in sharpness and the eneveness of height is minimized to the utmost limit.
Reducing die cutting press results in a beautiful cross section.

PET SERIES(DOUBLE LONG BEVEL)

PET series is ideal for die cutting of plastic sheets such as PET, PP etc.
The shape of the cutting edge is the same as Hi-MIR series, double long bevel.

ANG36 SERIES(DOUBLE LONG BEVEL)

This is a series of cutting rules with a more acute angle (36 degree) than usual. Sharp cutting is possible due to better penetration of the cutting edge.

NCA (CENTER BEVEL)

NCD (DOUBLE LONG BEVEL)

NCF (SIDE DOUBLE LONG BEVEL)

NCA (CENTER BEVEL)

NCD SERIES : PREVENTION OF PAPER DUST

NC SERIES

NC series is the standard product line.Cutting edge that are sharpened with a grinding wheel made of fine abrasive grains have unparalleled sharpness.We have a wide range of products to meet your various needs.

NCD SERIES : PREVENTION OF PAPER DUST

Double long bevel with bevel angle of 60 or 53 degrees.
It is expected to reduce paper dust by suppressing the cutting edge damage.
NCD760-MIR and NCD753-MIR are suitable for surface-treated cardboards.

NCA (CENTER BEVEL) THICKNESS: 0.45~1.4MM

The center bevel is the most standard shape in Nakayama cutting rules. It is used in a wide range of fields including paperboard, corrugated board, and film etc.

NCA (CENTER BEVEL) THICKNESS: 0.45~1.4MM

NCA (CENTER BEVEL) THICKNESS: 0.45~1.4MM
