Nakayama Co.,Ltd.
Nakayama Form Perforating Rules
Manufacturer: Nakayama Co.,Ltd.

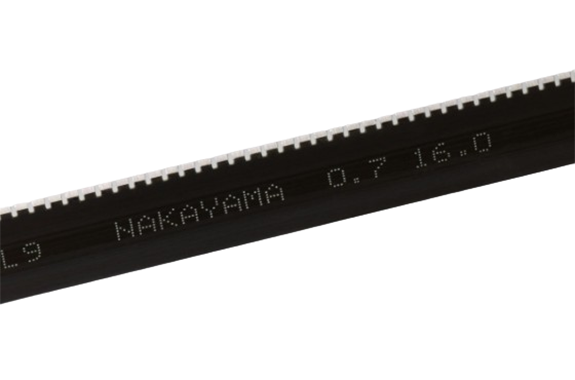

FORM PERFORATING RULES
The edge is side bevel perforating rules with a height of 16mm. It is used in the business form field.
Cutting rules without perforations are also available. Three days are required to cut the rules marked with “■”.
| TOOTH X GAP</tdh | THICKNESS(mm) | HEIGHT X LENGTH (mm) /CODE | |||||
|---|---|---|---|---|---|---|---|
| 16HX470L | / CODE | 16HX500L | / CODE | 16HX520L | / CODE | ||
| 2.0 X 0.5 | 0.7 | 〇 | 360203 | ■ | ■ | 360403 | |
| 2.5 X 0.5 | 0.7 | ■ | 360204 | ■ | ■ | ||
| 3.0 X 0.5 | 0.7 | ■ | 360206 | ■ | ■ | 360406 | |
| 2.0 X 0.6 | 0.7 | 〇 | 360225 | 〇 | 360825 | ■ | |
| 2.4 X 0.6 | 0.7 | ■ | 360222 | ■ | ■ | ||
| 3.0 X 0.6 | 0.7 | 〇 | 360223 | ■ | ■ | ||
| 2.3 X 0.7 | 0.7 | ■ | 360242 | ■ | 360842 | ■ | |
| 3.0 X 0.7 | 0.7 | 〇 | 360243 | ■ | ■ | 360443 | |
| 2.0 X 0.8 | 0.7 | 〇 | 360263 | ■ | 360863 | ■ | 360463 |
| 2.3 X 0.8 | 0.7 | 〇 | 360264 | ■ | ■ | 360464 | |
| 2.5 X 0.8 | 0.7 | 〇 | 360266 | ■ | ■ | ||
| 2.8 X 0.8 | 0.7 | 〇 | 360267 | ■ | ■ | 360467 | |
| 3.0 X 0.8 | 0.7 | 〇 | 360268 | 〇 | 360868 | 〇 | 360468 |
| 3.2 X 0.8 | 0.7 | 〇 | 360269 | ■ | 〇 | 360469 | |
| 3.5 X 0.8 | 0.7 | 〇 | 360271 | 〇 | 360871 | ■ | 360471 |
| 4.0 X 0.8 | 0.7 | 〇 | 360272 | ■ | 360872 | 〇 | 360472 |
| 2.0 X 1.0 | 0.7 | 〇 | 360303 | ■ | 360903 | 〇 | 360503 |
| 2.5 X 1.0 | 0.7 | 〇 | 360305 | ■ | 360905 | 〇 | 360505 |
| 3.0 X 1.0 | 0.7 | 〇 | 360307 | 〇 | 360907 | 〇 | 360507 |
| 3.5 X 1.0 | 0.7 | ■ | 360308 | ■ | ■ | 360508 | |
| 4.0 X 1.0 | 0.7 | 〇 | 360309 | 〇 | 360909 | 〇 | 360509 |
| 5.0 X 1.0 | 0.7 | 〇 | 360310 | — | — | ||
| 片切刃 | 0.7 | 〇 | 360395 | ■ | ■ | 360595 | |
