The post Taimeikinzokukougyou TBF/ C-TBF Special Ball Valves For Chemicals first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: Taimeikinzokukougyou Inc.
Model: TBF/ C-TBF

Features

A dedicated ball valve for tank bottoms that has been researched and developed to meet the needs of tank designers and plant managers in a wide range of fields.
Improved mixing efficiency, one-touch opening and closing operation, space saving under the tank
Piping connection type is JIS10K flange connection, ferrule connection
Various cylinder-driven and automatic opening/closing accessories are available as options.TBF/C-TBF

Specification

Caliber
 TBF C-TBF
(10KF connection) (Help connection)
(Help connection)
25A ○ ○ ○
40A ○ ○ ○
50A ○ ○ ○
65A ○ ○ ○
80A ○ ○ ○
100A ○ ○
150A ○
200A ○
The post Taimeikinzokukougyou TBF/ C-TBF Special Ball Valves For Chemicals first appeared on Kouei Japan Trading | Get Quotation.]]> Taimeikinzokukougyou Insulating Spacer https://koueitrading.com/global/product/taimeikinzokukougyou-insulating-spacer/ Thu, 27 Aug 2020 01:49:15 +0000 https://koueitrading.com/global/?post_type=product&p=159153 Manufacturer: Taimeikinzokukougyou Inc. Features Insulating material that can be attached between flange joints of above-ground piping Insulating lining applied to the entire core for reliable insulation performance Specification Name of included parts Insulating spacer Insulation bolt Insulating washer Flat washer Hexagon nut O-ring Caliber Spacer body Insulation bolt Insulating spacer Outer diameter x thickness size […]

The post Taimeikinzokukougyou Insulating Spacer first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: Taimeikinzokukougyou Inc.

Features

Insulating material that can be attached between flange joints of above-ground piping
Insulating lining applied to the entire core for reliable insulation performance

Specification

Name of included parts
Insulating spacer
Insulation bolt
Insulating washer
Flat washer
Hexagon nut
O-ring

Taimeikinzokukougyou

Caliber
 Spacer body Insulation bolt
Insulating spacer
Outer diameter x thickness size Number Mass [kg]
20A 103×11 M16 4 0.5
25A 128×13 M16 4 0.9
40A 143×13 M16 4 1.1
50A 158×13 M16 4 2
80A 189×16 M16 8 4
100A 214×16 M16 8 5
150A 284×19.4 M20 8 9
200A 336×19.4 M20 12 12
300A 451×22.8 M24 16 twenty one
400A 570×25.2 M24 16 34



The post Taimeikinzokukougyou Insulating Spacer first appeared on Kouei Japan Trading | Get Quotation.]]> Taimeikinzokukougyou GF/ GFQ Quick Closure Type Gas Filter https://koueitrading.com/global/product/taimeikinzokukougyou-gf-gfq-quick-closure-type-gas-filter/ Tue, 25 Aug 2020 07:31:40 +0000 https://koueitrading.com/global/?post_type=product&p=158988 Manufacturer: Taimeikinzokukougyou Inc. Model: GF/ GFQ Features The GF type features a cover flange lifter that reduces the effort required to lift the cover flange when replacing the filter element. The GFQ type lets you open and close the cover flange simply by operating the upper handle, eliminating bolt removal and installation and significantly reducing work […]

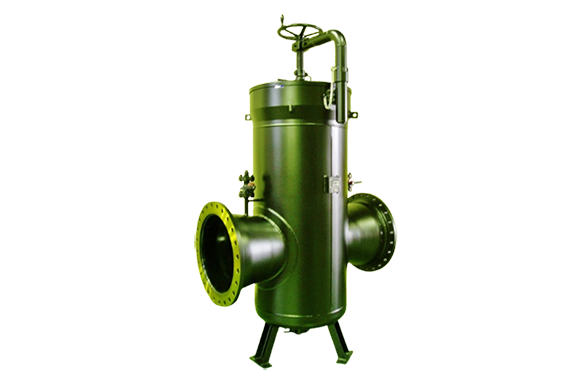

The post Taimeikinzokukougyou GF/ GFQ Quick Closure Type Gas Filter first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: Taimeikinzokukougyou Inc.
Model: GF/ GFQ

Features

The GF type features a cover flange lifter that reduces the effort required to lift the cover flange when replacing the filter element.
The GFQ type lets you open and close the cover flange simply by operating the upper handle, eliminating bolt removal and installation and significantly reducing work time.
GF/ GFQ

Specification

Caliber GF GFQ
50A ○ ○
80A ○ ○
100A ○ ○
150A ○ ○
200A ○ ○
250A ○
300A ○ ○
400A ○ ○
The post Taimeikinzokukougyou GF/ GFQ Quick Closure Type Gas Filter first appeared on Kouei Japan Trading | Get Quotation.]]> Taimeikinzokukougyou Polyethylene Ball Valve https://koueitrading.com/global/product/taimeikinzokukougyou-polyethylene-ball-valve/ Tue, 25 Aug 2020 07:14:51 +0000 https://koueitrading.com/global/?post_type=product&p=158984 Manufacturer: Taimeikinzokukougyou Inc. Features Years of reliable technical expertise ensure high earthquake resistance and airtightness. Applicable from low pressure to medium pressure B Block valve and diffusion pipe are available Specification Caliber Surface area (mm) Overall height [ mm] Mass (kg) 25A 470 229 1.6 30A 610 229 1.7 50A 610 252 2.45 75A 860 […]

The post Taimeikinzokukougyou Polyethylene Ball Valve first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: Taimeikinzokukougyou Inc.

Features

Years of reliable technical expertise ensure high earthquake resistance and airtightness.
Applicable from low pressure to medium pressure B
Block valve and diffusion pipe are availableTaimeikinzokukougyou

Specification

Caliber Surface area (mm) Overall height [ mm] Mass (kg)
25A 470 229 1.6
30A 610 229 1.7
50A 610 252 2.45
75A 860 290 4.9
100A 860 580 5.2
150A 1120 467 22.5
200A 1230 469 27
The post Taimeikinzokukougyou Polyethylene Ball Valve first appeared on Kouei Japan Trading | Get Quotation.]]> Taimeikinzokukougyou BF45LT Ball Valve For Aboveground Piping https://koueitrading.com/global/product/taimeikinzokukougyou-bf45lt-ball-valve-for-aboveground-piping/ Tue, 25 Aug 2020 07:09:59 +0000 https://koueitrading.com/global/?post_type=product&p=158981 Manufacturer: Taimeikinzokukougyou Inc. Model: BF45LT Features  Minimized face-to-face dimensions allow for compact piping design Equipped with a leakage blocking structure to prevent leakage from the mating flange surface and gland. Specification Caliber Surface area (mm) Overall height (mm) Mass (kg) 50A 120 113 7.2 80A 200 167 21.5 100A 230 181 34 150A 320 243 66 200A […]

The post Taimeikinzokukougyou BF45LT Ball Valve For Aboveground Piping first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: Taimeikinzokukougyou Inc.
Model: BF45LT

Features

 Minimized face-to-face dimensions allow for compact piping design
Equipped with a leakage blocking structure to prevent leakage from the mating flange surface and gland.BF45LT

Specification

Caliber Surface area (mm) Overall height (mm) Mass (kg)
50A 120 113 7.2
80A 200 167 21.5
100A 230 181 34
150A 320 243 66
200A 390 278 106
The post Taimeikinzokukougyou BF45LT Ball Valve For Aboveground Piping first appeared on Kouei Japan Trading | Get Quotation.]]> Taimeikinzokukougyou BF45L-B Ball Valve For Aboveground Piping https://koueitrading.com/global/product/taimeikinzokukougyou-bf45l-b-ball-valve-for-aboveground-piping/ Tue, 25 Aug 2020 07:03:03 +0000 https://koueitrading.com/global/?post_type=product&p=158978 Manufacturer: Taimeikinzokukougyou Inc. Model: BF45L-B Features Long-life performance that requires no maintenance for a long period of time Seal structure that maintains reliable airtightness Compact design thanks to the integrated body Specification Product name Caliber Between surfaces [mm] Overall height (mm) Mass [kg] Mini Ball Valve (flange type) 20A 120 99 3.7 25A 120 102 […]

The post Taimeikinzokukougyou BF45L-B Ball Valve For Aboveground Piping first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: Taimeikinzokukougyou Inc.
Model: BF45L-B

Features

Long-life performance that requires no maintenance for a long period of time
Seal structure that maintains reliable airtightness
Compact design thanks to the integrated bodyBF45L-B

Specification

Product name Caliber Between surfaces [mm] Overall height (mm) Mass [kg]
Mini Ball Valve (flange type)
 20A 120 99 3.7
25A 120 102 4.8
Screw-in type Ball valve
 20A 78 74 0.8
25A 90 102 2.1
50A 150 113 4.4
80A 180 167 12.6
The post Taimeikinzokukougyou BF45L-B Ball Valve For Aboveground Piping first appeared on Kouei Japan Trading | Get Quotation.]]> Taimeikinzokukougyou ABF -A/LBF-A Governor Piping Angle Ball Valve https://koueitrading.com/global/product/taimeikinzokukougyou-abf-a-lbf-a-governor-piping-angle-ball-valve/ Tue, 25 Aug 2020 06:51:36 +0000 https://koueitrading.com/global/?post_type=product&p=158974 Manufacturer: Taimeikinzokukougyou Inc. Model: ABF -A/LBF-A Features Reduced the space required for the governor’s room Maintenance and inspection can be performed without removing the valve Equipped with an adjustment screw mechanism that allows for tightening and loosening of the valve seat Specification Product Name Caliber Surface area (mm) Overall height [mm] ※ Mass〔kg〕 ABF-A 50A […]

The post Taimeikinzokukougyou ABF -A/LBF-A Governor Piping Angle Ball Valve first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: Taimeikinzokukougyou Inc.
Model: ABF -A/LBF-A

Features

Reduced the space required for the governor’s room
Maintenance and inspection can be performed without removing the valve
Equipped with an adjustment screw mechanism that allows for tightening and loosening of the valve seatABF -A/LBF-A

Specification

Product Name Caliber Surface area (mm) Overall height [mm]
※ Mass〔kg〕
ABF-A
 50A 120 270 twenty one
80A 150 344 41
100A 175 384 57
100A×150A 175 384 65
150A 210 810 152
200A 260 911 223
LBF-A 100A×150A 175 349 65
The post Taimeikinzokukougyou ABF -A/LBF-A Governor Piping Angle Ball Valve first appeared on Kouei Japan Trading | Get Quotation.]]> Taimeikinzokukougyou BFSCW/UG Conduction Type And Insulation Type Direct Buried Type Gas Ball Valve https://koueitrading.com/global/product/taimeikinzokukougyou-bfscw-ug-conduction-type-and-insulation-type-direct-buried-type-gas-ball-valve/ Tue, 25 Aug 2020 06:44:39 +0000 https://koueitrading.com/global/?post_type=product&p=158970 Manufacturer: Taimeikinzokukougyou Inc. Model:  BFSCW/UG Features A flange-type model with a welded cast steel body . The corrosion protection layer employs highly reliable urethane resin All models feature an insulation type that cuts off current from the primary side to the secondary side. Specification Soil quilt 1.2m Caliber Surface area (mm) Overall height [mm] Mass (kg) […]

The post Taimeikinzokukougyou BFSCW/UG Conduction Type And Insulation Type Direct Buried Type Gas Ball Valve first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: Taimeikinzokukougyou Inc.
Model:  BFSCW/UG

Features

A flange-type model with a welded cast steel body .
The corrosion protection layer employs highly reliable urethane resin
All models feature an insulation type that cuts off current from the primary side to the secondary side.BFSCW/UG

Specification

Soil quilt 1.2m
Caliber Surface area (mm) Overall height [mm] Mass (kg)
100A 1060 1007 210
150A 1090 1052 280
200A 1090 1089 330
300A 1280 1150 680
Soil quilt 0.9m
caliber Surface area (mm) Overall height [mm] Mass (kg)
100A 1060 547 186
150A 1090 592 240
200A 1090 629 300
300A 1280 750 640
The post Taimeikinzokukougyou BFSCW/UG Conduction Type And Insulation Type Direct Buried Type Gas Ball Valve first appeared on Kouei Japan Trading | Get Quotation.]]> Taimeikinzokukougyou WBFSCW-AW Fully Welded Ball Valve Direct Buried Type Gas Ball Valve https://koueitrading.com/global/product/taimeikinzokukougyou-wbfscw-aw-fully-welded-ball-valve-direct-buried-type-gas-ball-valve/ Tue, 25 Aug 2020 06:35:44 +0000 https://koueitrading.com/global/?post_type=product&p=158967 Manufacturer: Taimeikinzokukougyou Inc. Model: WBFSCW-AW Features A model with a robust all-welded structure and TAIMEI’s unique adjustment screw mechanism on the primary and secondary sides. The corrosion protection layer uses highly reliable urethane resin corrosion protection. Specification Soil quilt1.5m Caliber Surface area (mm) Overall height [mm] Mass (kg) 500A 1720 1254 2750

The post Taimeikinzokukougyou WBFSCW-AW Fully Welded Ball Valve Direct Buried Type Gas Ball Valve first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: Taimeikinzokukougyou Inc.
Model: WBFSCW-AW

Features

A model with a robust all-welded structure and TAIMEI’s unique adjustment screw mechanism on the primary and secondary sides.
The corrosion protection layer uses highly reliable urethane resin corrosion protection.

Specification

WBFSCW-AW

Soil quilt1.5m
Caliber Surface area (mm) Overall height [mm] Mass (kg)
500A 1720 1254 2750
The post Taimeikinzokukougyou WBFSCW-AW Fully Welded Ball Valve Direct Buried Type Gas Ball Valve first appeared on Kouei Japan Trading | Get Quotation.]]> Taimeikinzokukougyou WBF-AWC All-Welded Ball Valve https://koueitrading.com/global/product/taimeikinzokukougyou-wbf-awc-all-welded-ball-valve/ Tue, 25 Aug 2020 06:33:25 +0000 https://koueitrading.com/global/?post_type=product&p=158965 Manufacturer: Taimeikinzokukougyou Inc. Model: WBF-AWC Features A model with a robust all-welded structure and TAIMEI’s unique adjustment screw mechanism on the primary and secondary sides. Highly reliable urethane resin protects the corrosion protection layer. Specification Soil quilt 1.5m Caliber Surface area (mm) Overall height [mm] Mass (kg) 100A 1100 1048 235 150A 1160 1083 350 […]

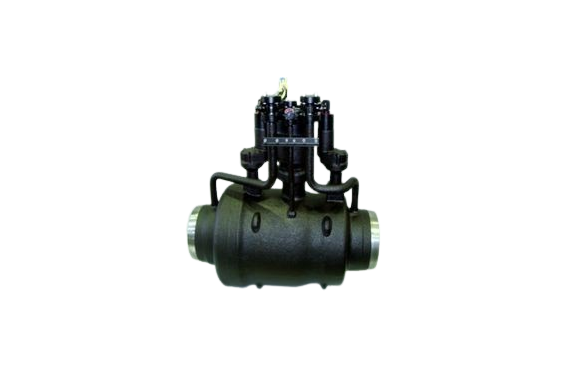

The post Taimeikinzokukougyou WBF-AWC All-Welded Ball Valve first appeared on Kouei Japan Trading | Get Quotation.]]> Manufacturer: Taimeikinzokukougyou Inc.
Model: WBF-AWC

Features

A model with a robust all-welded structure and TAIMEI’s unique adjustment screw mechanism on the primary and secondary sides.
Highly reliable urethane resin protects the corrosion protection layer.

Specification

Soil quilt 1.5m
Caliber Surface area (mm) Overall height [mm] Mass (kg)
100A 1100 1048 235
150A 1160 1083 350
200A 1225 1107 470
300A 1105 1151 920
400A 1265 1206 1480
Earth blanket 1.2m
Caliber Surface area (mm) Overall height [mm] Mass (kg)
100A 1100 778 215
150A 1160 813 330
200A 1225 837 450
300A 1105 951 800
400A 1265 1006 1440
Soil quilt 0.9m
Caliber Surface area (mm) Overall height [mm] Mass (kg)
100A 1100 608 200
150A 1160 633 290
200A 1225 657 400
300A 1105 756 800
The post Taimeikinzokukougyou WBF-AWC All-Welded Ball Valve first appeared on Kouei Japan Trading | Get Quotation.]]>
