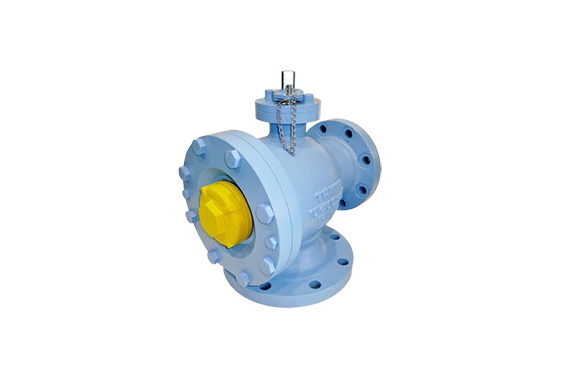

Taimeikinzokukougyou ABF -A/LBF-A Governor Piping Angle Ball Valve
Manufacturer: Taimeikinzokukougyou Inc.
Model: ABF -A/LBF-A
Features
Reduced the space required for the governor’s room
Maintenance and inspection can be performed without removing the valve
Equipped with an adjustment screw mechanism that allows for tightening and loosening of the valve seat
Specification
| Product Name | Caliber | Surface area (mm) | Overall height [mm] | ※ Mass〔kg〕 |
ABF-A | 50A | 120 | 270 | twenty one |
| 80A | 150 | 344 | 41 | |
| 100A | 175 | 384 | 57 | |
| 100A×150A | 175 | 384 | 65 | |
| 150A | 210 | 810 | 152 | |
| 200A | 260 | 911 | 223 | |
| LBF-A | 100A×150A | 175 | 349 | 65 |
