YK BS-30DCV series Security And Surveillance Camera Related Equipment

kvt part2 — Thu, 02 Apr 2020 08:51:10 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: BS-30DCV

Features

Easy-to-wire video, audio and power cables
Suitable for analog (CVBS), also available for AHD, HD-TVI, HD-CVI

The BS-30DCV series is a cable for security cameras and surveillance cameras that combines video, audio, and power. It is an analog (CVBS) cable, but can use with AHD, HD-TVI, and HD-CVI systems. The video line, audio line, and power line are integrate, making wiring easy. Please use it when using a security camera with an audio microphone.

Terminal: Video terminal (RCA-P), Audio terminal (RCA-P), Power terminal (DC-P/φ5.5×2.1)
Terminal: Video terminal (RCA-P), Audio terminal (RCA-P), Power terminal (DC-J/φ5.5×2.1)

*The video cable terminal of the DCV-BS30DCV series is an RCA terminal.
If you want to convert it to a different terminal such as a BNC terminal, please use a conversion connector.

The cable lengths available are 5m/10m/20m/30m/50m.

Model number: BS-305DCV	Cable length: 5m
Model number: BS-3010DCV	Cable length: 10m
Model number: BS-3020DCV	Cable length: 20m
Model number: BS-3030DCV	Cable length: 30m
Model number: BS-3050DCV	Cable length: 50m

The post YK BS-30DCV series Security And Surveillance Camera Related Equipment first appeared on Kouei Japan Trading | Get Quotation.

YK YKS-HDVP series Security And Surveillance Camera Related Equipment

kvt part2 — Thu, 02 Apr 2020 07:06:41 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: YKS-HDVP

Features

Video and power wiring cables for HD-SDI and high-resolution analog HD transmission
Uses the same S-5C-FB coaxial cable as the high-definition broadcast cable
Supports Analog (CVBS), AHD, HD-TVI, HD-CVI, HD-SDI
The coating is make of a material with excellent weather resistance, so it can use for outdoor wiring.

The YKS-○○HDVP series is a video/power cable compatible with CVBS (analog), AHD, HD-TVI, and HD-CVI analog HD security cameras and surveillance cameras. The video cable uses S-5C-FB coaxial cable, the same as high-definition broadcast cables, making it the most suitable cable for transmitting HD-SDI signals and high-resolution analog HD signals. The video cable and power cable are bundle together, making wiring easy.

The cable lengths available are 5m/10m/20m/30m/40m/50m.

Model number: YKS-5HDVP	Cable length: 5m
Model number: YKS-10HDVP	Cable length: 10m
Model number: YKS-20HDVP	Cable length: 20m
Model number: YKS-30HDVP	Cable length: 30m
Model number: YKS-40HDVP	Cable length: 40m
Model number: YKS-50HDVP	Cable length: 50m

Terminals: Video terminal (BNC-P), power terminal (DC-P) / Camera side Terminals: Video terminal (BNC-P), power terminal (DC-J) / Recorder side

Cable section

The cable is a video cable and a power cable attached as shown in the image. Because it is a 5C-FB cable, the cable is thick, but the signal attenuation rate is low, making it suitable for long distance wiring and transmitting high definition image quality.

Cable dimensions
Video cable (S-5C-FB): diameter 7.7mm ±0.5
Power cable: diameter 4mm ±0.2

The post YK YKS-HDVP series Security And Surveillance Camera Related Equipment first appeared on Kouei Japan Trading | Get Quotation.

YK DCV-HD series Security And Surveillance Camera Related Equipment

kvt part2 — Thu, 02 Apr 2020 06:45:06 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: DCV-HD series

Features

HD-SDI, high resolution analog HD compatible video and power extension cable
Uses the same S-5C-FB coaxial cable as the high-definition broadcast cable
Use 3C-HFB for the video line (except for the 100m type)

The DCV-XX HD series is a cable for security cameras and surveillance cameras that supports HD-SDI and high-resolution analog HD with video and power all in one. Wiring is possible from the camera to the monitor and power can be taken at the end, improving wiring efficiency.

This is a high-performance cable for HD-SDI that is suitable for full HD transmission, but it can also be used for analog security and surveillance cameras (CBVS), AHD/HD-TVI/HD-CVI and other high-resolution analog HD type security and surveillance cameras.

The cable lengths available are 5m/10m/20m/30m/50m/100m.

Model number: DCV-10HD	Cable length: 10m
Model number: DCV-20HD	Cable length: 20m
Model number: DCV-30HD	Cable length: 30m
Model number: DCV-50HC	Cable length: 50m
Model number: DCV-100HD	Cable length: 100m

Terminals: Video terminal (BNC-P), power terminal (DC-P)
Terminals: Video terminal (BNC-P), power terminal (DC-J)
*If you want to convert each terminal, please use the various connectors.

Cable section

The cable is a video cable and a power cable attached as shown in the image. The cable is thick to transmit HD-SDI signals. The cable dimensions are as follows.

DCV-10HD / DCV-20HD / DCV-30HD / DCV-50HD / DCV-100HD
Video cable (3C-HFB) Diameter 5.6mm
Power cable Diameter 5.3mm

*The cable diameter may change depending on the lot.
*Only the 100m type DCV-100HD has a different cable type and connector appearance.

The post YK DCV-HD series Security And Surveillance Camera Related Equipment first appeared on Kouei Japan Trading | Get Quotation.

YK YKS-VP series Video And Power Cables For HD Security Cameras And Surveillance Cameras

kvt part2 — Thu, 02 Apr 2020 06:35:24 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: YKS-VP series

Features

Video and power cable compatible with HD transmission
Uses 3C-2B coaxial cable for video line
Supports Analog (CVBS), AHD, HD-TVI, HD-CVI, HD-SDI
The coating is make of a material with excellent weather resistance, so it can use for outdoor wiring.

The YKS-○○VP series is a video/power cable compatible with CVBS (analog), AHD, HD-TVI, and HD-CVI analog HD security cameras and surveillance cameras. The video and power cables are bundle together, making wiring easy.

The cable lengths available are 5m/10m/20m/30m/40m/50m/60m/70m.

Model number: YKS-5VP	Cable length: 5m
Model number: YKS-10VP	Cable length: 10m
Model number: YKS-20VP	Cable length: 20m
Model number: YKS-30VP	Cable length: 30m
Model number: YKS-40VP	Cable length: 40m
Model number: YKS-50VP	Cable length: 50m
Model number: YKS-60VP	Cable length: 60m
Model number: YKS-70VP	Cable length: 70m

The YKS-○○VP series is equipped with the most popular BNC terminals and power terminals (φ5.5×2.1) on both ends of the coaxial camera. Direct connection is possible when connecting most cameras and recorders.

Terminals: Video terminal (BNC-P), power terminal (DC-P) / Camera side Terminals: Video terminal (BNC-P), power terminal (DC-J) / Recorder side

Cable section

The cable is made up of a video cable and a power cable attached as shown in the image. The cable is thicker than the “DCV-XX” cable or “DCV-BNCXX” cable, but it has a lower signal attenuation rate and is suitable for long distance wiring and transmitting HD image quality.

Cable dimensions
Video cable (3C-2B): diameter 5.4mm
Power cable: diameter 4mm ±0.2

The post YK YKS-VP series Video And Power Cables For HD Security Cameras And Surveillance Cameras first appeared on Kouei Japan Trading | Get Quotation.

YK DCV series Video And Power Cables For Security Cameras And Surveillance Cameras

kvt part2 — Thu, 02 Apr 2020 06:28:48 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: DCV series

Features

Easy-to-wire video and power cables
Suitable for analog (CVBS), also available for AHD, HD-TVI, HD-CVI

This cable for security cameras and surveillance cameras has both video and power cables in one. It is an analog (CVBS) cable, but can also be used for AHD, HD-TVI, and HD-CVI systems. The video and power cables are integrated, making wiring easy.

Terminal: Video terminal (RCA-P), power terminal (DC-P/φ5.5×2.1)
Terminal: video terminal (RCA-P), power terminal (DC-J/φ5.5×2.1)

*The video cable terminal of the DCV series is an RCA terminal.
If you want to convert it to a different terminal such as a BNC terminal, please use a conversion connector.

The cable lengths available are 5m/10m/20m/30m/40m/50m.

Model number: DCV-5	Cable length: 5m
Model number: DCV-10	Cable length: 10m
Model number: DCV-20	Cable length: 20m
Model number: DCV-30	Cable length: 30m
Model number: DCV-40	Cable length: 40m
Model number: DCV-50	Cable length: 50m

The post YK DCV series Video And Power Cables For Security Cameras And Surveillance Cameras first appeared on Kouei Japan Trading | Get Quotation.

YK DCV-BNC-AHD series Video And power Cable For Security And Surveillance Cameras

kvt part2 — Thu, 02 Apr 2020 02:34:32 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: DCV-BNC-AHD series

Features

Easy-to-wire video and power cables
Wiring cables for analog HD security cameras (AHD, HD-TVI, HD-CVI)

This cable is for analog HD security cameras and surveillance cameras such as AHD, with video and power all in one.
Wiring is easy as you can wire from the camera to the monitor and take the power at the end.
The cable is thin and the video and power lines are integrated, making wiring easy.
This cable is for analog HD security cameras and surveillance cameras such as analog security cameras (CVBS), AHD, HD-TVI, and HD-CVI.

The cable lengths available are 10m/20m/30m/50m.

Model number: DCV-BNC10AHD	Cable length: 10m
Model number: DCV-BNC20AHD	Cable length: 20m
Model number: DCV-BNC30AHD	Cable length: 30m
Model number: DCV-BNC50AHD	Cable length: 50m

Terminals: Video terminal (BNC-P), power terminal (DC-P)
Terminals: Video terminal (BNC-P), power terminal (DC-J)
*If you want to convert each terminal, please use the various connectors.

The post YK DCV-BNC-AHD series Video And power Cable For Security And Surveillance Cameras first appeared on Kouei Japan Trading | Get Quotation.

YK RMC-400 4-channel Remote Controller

kvt part2 — Fri, 27 Mar 2020 06:43:22 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: RMC-400

Features

Remote controller made by “Artics”, a Japanese manufacturer specializing in image processing equipment
Remote control compatible 4-screen splitter
Supports RS-232C and RS-485 communication

Specifications

RS-232C	D-sub9 pin male (inch screw #4-40UNC)　 RS-232C signal standard compliant RXD, TXD, GND No flow control
RS-485	RJ-11 x 2 (loop-through) Modular jack RS-485 signal standard compliant 6-pole 4-core Half Duplex
Communication Settings	RS-485/RS-232C via slide switch
Unit number setting	SLAVE No. volume x 2 00 to 31 units 99 is simultaneous transmission
Operating temperature and humidity	0 to 40°C RH20 to 90% (no condensation)
Power supply voltage/power consumption	AC100V 50/60Hz approx. 3.0W
AC Input Cable Length	Approximately 1.8m
External dimensions	160(W) x 160(D) x 50(H) [mm] (excluding rubber feet and protrusions)
mass	Approx. 0.5 kg
Case color	Ivory
accessories	operating instructions
Compatible models	AMV-400 SMV-401 DMV-40D DMV-40H DMV-442
Sold separately	Dedicated wall bracket RMC-WB1

Note

In order to improve quality, product specifications may change without notice.

The post YK RMC-400 4-channel Remote Controller first appeared on Kouei Japan Trading | Get Quotation.

YK DTC Series D-sub Connector/terminal Block Converter

kvt part2 — Fri, 27 Mar 2020 06:31:55 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: DTC Series

Features

Conversion device made by “Artics”, a Japanese manufacturer specializing in image processing equipment
Converts D-sub connectors into terminal blocks

Specifications

Model number	DTC-P25	DTC-P15	DTC-P09	DTC-P09S
D-sub connector	25-pin male	15-pin male	9-pin male	9 pin female
External dimensions (W x D x H) (mm) including D-sub and terminal block	60×73.6×21	45.4×73.6×21	38×73.6×21	38×73.4×21
mass	Approx. 60g	Approx. 45g	Approx. 35g	Approx. 35g
D-sub screw	Fitting screw (inch #4-40UNC)
Terminal Blocks	Pitch 3.5mm Push type Applicable wire thickness 0.2 to 1.5 (mm2)
Operating temperature and humidity	0 to 40°C RH20 to 90% (no condensation)
Case color	Black ABS resin
accessories	operating instructions

Note

In order to improve quality, product specifications may change without notice.

The post YK DTC Series D-sub Connector/terminal Block Converter first appeared on Kouei Japan Trading | Get Quotation.

YK DMV-800 8-screen Splitter Multi-viewer

kvt part2 — Fri, 27 Mar 2020 06:22:23 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: DMV-800

Features

Screen splitter made by Artics, a Japanese manufacturer specializing in image processing equipment
Professional 8-split display capable of single screen/4/6/9-split display
Japanese menu display
Supports CVBS input

Specifications

Video Format	NTSC compliant
Camera video input	8 inputs (with loop-through) BNC terminal VBS 1.0Vp-p 75Ω termination Unbalanced (75Ω termination OFF when loop-through is used)
Monitor video output (main)	1 system BNC terminal VBS 1.0Vp-p 75Ω termination unbalanced
4-split screen dedicated output	2 BNC terminals VBS 1.0Vp-p 75Ω termination Unbalanced QA: 1-4 channels 4-split dedicated QB: 5-8 channels 4-split dedicated
Video output display (main)	Single screen 1-8 channels 4-split A (1-4 channels) 4-split B (5-8 channels) 6-split A (1-6 channels) 6-split B (1-4, 7, 8 channels) 9-split (1-8 channels, black display at bottom right) Automatic switching All refreshed at 1/60 (sec) Noiseless
Automatic switching (auto sequence)	Automatic switching of single screen channels 1 to 8 only Automatic switching of split screens (4A, 4B, 6A, 6B, 9) only Mix of single screen and split screen Display time of 0 to 99 seconds can be set for each screen

Display pixels	screen	Image size	Aspect Ratio	Number of pixels
	Single screen	normal	4:3 16:9	672×456 504×456
	Single screen	Large	4:3 16:9	712×480 528×480
	4-split screen	normal	4:3 16:9	672×456 504×456
	4-split screen	Large	4:3 16:9	708×480 528×480
	6 split screen	normal	4:3 16:9 FULL	672×(152×2) 672×(204×2) 672×456
	6 split screen	Large	4:3 16:9 FULL	708×(160×2) 708×(212×2) 708×480
	9-split screen	normal	4:3 16:9	672×456 504×456
	9-split screen	Large	4:3 16:9	708×480 528×480

Control signal input/output terminal	Terminal block Alarm/remote selectable from menu Alarm input 8 channels (1 to 8ch) No-voltage make/break contact Remote input 14 channels (automatic switching, each single screen, each split screen)　 No-voltage make contact No-voltage make contact Alarm output 1 channel Open collector DC12V 100mA or less
Alarm function	Single screen display of alarm input channel Alarm hold mode: INT./EXT. Detection contact: Make/Break INT. hold time: Variable from approx. 003 to 999 seconds Operation after alarm release: Return/As is Alarm display: ON/OFF
RS-232C	RXD, TXD, GND RS-232C signal standard compliant　 D-Sub 9-pin male (inch screw #4-40UNC)
RS-485	RJ-11 x 2 (loop-through)　 RS-485 signal standard compliant (Half Duplex) Modular jack
Video Loss Detection	Detects no input from camera video inputs 1 to 8 Detection: ON/OFF Video loss display: ON/OFF Signal output: ON/OFF No input screen background color: Black/Blue
Title Display	Up to 10 characters per channel. Alphabet, numbers, symbols, katakana.　 Display position can be changed for single screen only. Split screen display position is bottom center.
Split Screen Borderline	OFF/WHITE/GRAY/BLACK
Mirror Image	Left/right (horizontal) mirror image can be set for each channel
Channel Layout	Split screen channels can be arranged arbitrarily. The same channel cannot be displayed on the same screen. 4-split dedicated output is fixed.
Video Level	Brightness, contrast, chroma hue, and color tone can be adjusted in 256 steps for each channel.
Insertion character position	Fine-tuning the display position of titles, menus, messages, etc. Horizontal: 16 levels Vertical: 16 levels
Button lock function	Locks the single screen 1 to 8/split screen/automatic switching display and prohibits button operations
Operating temperature and humidity	0 to 40°C RH20 to 90% (no condensation)
Power supply voltage/power consumption	AC100V 50/60Hz approx. 9W
AC Input Cable Length	Approximately 1.7m
External dimensions	420(W) x 251(D) x 44(H) [mm] (excluding rubber feet and protrusions)
Case color	Ivory
mass	Approx. 2.9 kg
accessories	operating instructions
Sold separately	Dedicated remote controller RMC-800 19-inch rack mount bracket (JIS/EIA)

Accessories

Below is a list of the main accessory categories that are compatible with this product. If you need any accessories, please purchase them separately.

Compatible accessories	explanation
cable	This product does not come with a wiring cable. If you need a wiring cable, please purchase it separately.
connector	If a conversion connector is required for connection, please purchase it separately.
RMC-800	8-channel remote controller
DTC-P09S	D-sub connector/terminal block converter

Exterior Drawings

The post YK DMV-800 8-screen Splitter Multi-viewer first appeared on Kouei Japan Trading | Get Quotation.

YK RMC-800 8-channel Remote Controller

kvt part2 — Fri, 27 Mar 2020 06:20:00 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: RMC-800

Features

Remote controller made by “Artics”, a Japanese manufacturer specializing in image processing equipment
Remote control compatible screen 8-split
Supports RS-232C and RS-485 communication

Specifications

RS-232C	D-Sub 9-pin male (inch screw #4-40UNC) RS-232C signal standard compliant RXD, TXD, GND No flow control
RS-485	RJ-11 x 2 (loop-through) Modular jack RS-485 signal standard compliant 6-pole 4-core Half Duplex
Communication Settings	RS-485/RS-232C via slide switch
Unit number setting	SLAVE No. volume x 2 00 to 31 units 99 is simultaneous transmission
Operating temperature and humidity	0 to 40°C RH20 to 90% (no condensation)
Power supply voltage/power consumption	AC100V 50/60Hz approx. 3.0W
AC Input Cable Length	Approximately 1.8m
External dimensions	160(W) x 160(D) x 50(H) [mm] (excluding rubber feet and protrusions)
mass	Approx. 0.5 kg
Case color	Ivory
accessories	operating instructions
Connected Devices	AMV-800 DMV-800
Sold separately	Remote controller dedicated wall bracket RMC-WB1

Note

In order to improve quality, product specifications may change without notice.

The post YK RMC-800 8-channel Remote Controller first appeared on Kouei Japan Trading | Get Quotation.

YK RMC-900 Remote Controller For DMV-900

kvt part2 — Fri, 27 Mar 2020 06:16:22 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: RMC-900

Features

Remote controller made by “Artics”, a Japanese manufacturer specializing in image processing equipment
Remote control of DMV-900
Supports RS-232C and RS-485 communication

Specifications

RS-232C	D-Sub 9-pin male (inch screw #4-40UNC) RS-232C signal standard compliant RXD, TXD, GND No flow control
RS-485	RJ-11 x 2 (loop-through) Modular jack RS-485 signal standard compliant 6-pole 4-core Half Duplex
Communication Settings	RS-485/RS-232C via slide switch
Unit number setting	SLAVE No. volume x 2 00 to 31 units 99 is simultaneous transmission
Operating temperature and humidity	0 to 40°C RH20 to 90% (no condensation)
Power supply voltage/power consumption	AC100V 50/60Hz approx. 3.0W
AC Input Cable Length	Approximately 1.8m
External dimensions	160(W) x 160(D) x 50(H) [mm] (excluding rubber feet and protrusions)
mass	Approx. 0.5 kg
Case color	Ivory
accessories	operating instructions
Connected Devices	DMV-900
Sold separately	Remote controller dedicated wall bracket RMC-WB1

Note

In order to improve quality, product specifications may change without notice.

The post YK RMC-900 Remote Controller For DMV-900 first appeared on Kouei Japan Trading | Get Quotation.

YK RMC-1600 Remote Controller For DMV-1600

kvt part2 — Fri, 27 Mar 2020 03:44:57 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: RMC-1600

Features

Remote controller made by “Artics”, a Japanese manufacturer specializing in image processing equipment
Remote control of the DMV-1600
Supports RS-232C and RS-485 communication

Specifications

RS-232C	D-Sub 9-pin male (inch screw #4-40UNC) RS-232C signal standard compliant RXD, TXD, GND No flow control
RS-485	RJ-11 x 2 (loop-through) Modular jack RS-485 signal standard compliant 6-pole 4-core Half Duplex
Communication Settings	RS-485/RS-232C via slide switch
Unit number setting	SLAVE No. volume x 2 00 to 31 units 99 is simultaneous transmission
Operating temperature and humidity	0 to 40°C RH20 to 90% (no condensation)
Power supply voltage/power consumption	AC100V 50/60Hz approx. 3.0W
AC Input Cable Length	Approximately 1.8m
External dimensions	160(W) x 160(D) x 50(H) [mm] (excluding rubber feet and protrusions)
mass	Approx. 0.5 kg
Case color	Ivory
accessories	operating instructions
Connected Devices	DMV-1600 Ver.1.20 or later (serial number: 1506*** or later) For devices with earlier versions, please consult your dealer.
Sold separately	Remote controller dedicated wall bracket RMC-WB1

Note

In order to improve quality, product specifications may change without notice.

The post YK RMC-1600 Remote Controller For DMV-1600 first appeared on Kouei Japan Trading | Get Quotation.

YK SC-04MHD 4ch Multi-Format Compatible Screen Splitter

kvt part2 — Fri, 20 Mar 2020 07:50:43 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: SC-04MHD

Features

Supports multi-format input of AHD/HD-TVI/HD-CVI/CVBS
Supports full HD output of 1920 x 1080
Equipped with automatic sequential conversion function (auto sequence)
A time generator function that can display date and time
Equipped with camera title function for each input camera
Through-out output terminals for each channel

Specifications

Model number		SC-04MHD
Video input terminal		4ch(BNC-J)
Input Signal		AHD / TVI / CVI / CVBS *Automatic recognition
Throughout		4ch(BNC-J)
Monitor Output	Display Frame	Real-time display
	Output terminal	HDMI x 1ch / VGA x 1ch / BNC x 1ch (CVBS)
	Display resolution	HDMI: 1920x1080p / 1920x1080i / 1280x720p VGA: 1920×1080 / 1600×1200 / 1360×768 / 1027×768 BNC: 720×480
	How to display	Single screen/2-split (vertical/horizontal)/4-split (3 patterns)/ Digital zoom/Sequence
	OSD Display	Japanese
Terminal Blocks	Sensor Input	4ch (NO/NC)
	Alarm/Relay Input	1ch (NO/NC)
	Power Output	DC12V 300mA
	Communication Interface	RS-485
	Mini USB	For firmware updates
Power Consumption		Approximately 6W
power supply		AC100V 50/60Hz (supplied from AC adapter DC12V 1A)
operation		Main unit buttons
Operating environment		Operating ambient temperature: 0℃ to 50℃ Operating ambient humidity: 0% to 80% (no condensation)
External dimensions		220(W) x 44(H) x 191(D)mm (excluding protrusions)
weight		Approx. 2kg
What’s in the box		SC-04MHD unit AC adapter Rack mount bracket Rubber feet Screws Instruction manual
Product warranty period		1 year

The post YK SC-04MHD 4ch Multi-Format Compatible Screen Splitter first appeared on Kouei Japan Trading | Get Quotation.

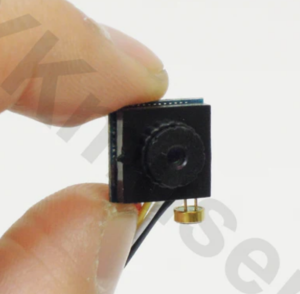

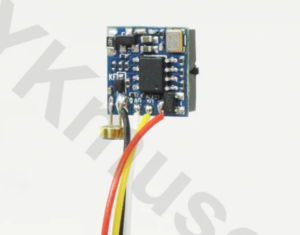

YK MIC-M77 High Sensitivity Separate Microphone

kvt part2 — Fri, 20 Mar 2020 07:46:39 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: MIC-M77

Feature

Uses a separate microphone and amplifier
High sensitivity microphone amplifier built-in
DC12V power through output
A small microphone the size of your fingertip

Specifications

output	Audio output (RCA-J) DC12V power output
power supply	DC12V
Dimensions (mm)	H20×W40×D55
weight	–
What’s in the box	MIC-M77 microphone unit MIC-M77 main unit box Instruction manual

Note

In order to improve quality, product specifications may change without notice.

Accessories

Below is a list of the main accessory categories that are compatible with this product. If you need any accessories, please purchase them separately.

Compatible accessories	explanation
cable	This product does not come with a wiring cable. If you need a wiring cable, please purchase it separately. It can be used with a coaxial cable with RCA on both ends.
DC12V-1A-AC adapter	This product does not come with a power supply. If you need constant power, please purchase a DC12V-1A-AC switching AC adapter separately.
Battery box B-12	If you are using this product with batteries, please purchase the DC12V output battery box [B-12].
connector	If a conversion connector is required for connection, please purchase it separately.

In addition to the accessories listed above, we also carry a variety of other peripherals and accessories. Please also take a look at the [Peripherals and Accessories] category.

The post YK MIC-M77 High Sensitivity Separate Microphone first appeared on Kouei Japan Trading | Get Quotation.

YK RYK-9017 Color Screen 4-way Splitter With Remote Control

kvt part2 — Fri, 20 Mar 2020 07:42:00 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: RYK-9017

Features

Screen splitter for CVBS (analog) cameras
Remote control possible using infrared remote control
Equipped with switcher function
A time generator function that can display date and time
Equipped with digital zoom function
Picture-in-Picture (PinP) function

Specifications

Video System	NTSC/PAL
Video input terminal	4 inputs (BNC terminals)
Video Input	1.0Vp-p composite, 75Ω
Video Output	1 output (BNC terminal)
Screen Display	Full screen, 4-split screen, PIP, switching screen
Channel Name	Can be created
resolution	720×480
Reload image	60 fields/second
zoom	2×2 Zoom
Time display	Yes
Screen switching time	0 to 99 seconds
Alarm display time	0 to 99 seconds
4-split video output	1 output (BNC terminal)
Event Log List	Up to 60 events (motion detection, video loss)
Key lock function	Yes
size	140(W) x 26(H) x 100(D)mm (excluding protrusions)
mass	Approx. 340g (body only)
power supply	12V 1A
Operating environment	-10℃～50℃
What’s in the box	RYK-9017 Main unit Infrared remote control DC12V-AC adapter Instruction manual
Warranty period	1 year

Dimensions

The post YK RYK-9017 Color Screen 4-way Splitter With Remote Control first appeared on Kouei Japan Trading | Get Quotation.

YK DMV-1600 16-screen Multi-Viewer

kvt part2 — Fri, 20 Mar 2020 07:35:39 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: DMV-1600

Features

Screen splitter made by Artics, a Japanese manufacturer specializing in image processing equipment
Professional 16-split display capable of single screen/4/9/12/16-split display
Japanese menu display
Supports CVBS input

Specifications

Video Format	NTSC compliant
Camera video input	16 inputs (with loop-through) BNC terminal VBS 1.0Vp-p 75Ω termination Unbalanced (75Ω termination OFF when loop-through is used)
Monitor video output 1	1 system, BNC terminal, VBS 1.0Vp-p, 75Ω termination, unbalanced, 1/60 (sec) refresh, noiseless, single screen 1 to 16 ch., 4-split A (1 to 4 ch.), 4-split B (5 to 8 ch.), 4-split C (9 to 12 ch.), 4-split D (13 to 16 ch.), 9-split A (1 to 9 ch.), 9-split B (8 to 16 ch.), 12-split (1 to 12 ch.), 16-split (1 to 16 ch.), automatic switching (single screen only/split screen only/mix), switching by front button, split screen can be arranged arbitrarily for channels
Monitor video output 2	1 system BNC terminal VBS 1.0Vp-p 75Ω termination Unbalanced 1/60 (sec) refresh Noiseless Single screen 1 to 16ch. 4-split A (1 to 4ch.) 4-split B (5 to 8ch.) 4-split C (9 to 12ch.) 4-split D (13 to 16ch.) Automatic switching (single screen only/split screen only/mix) Setting by menu, fixed output
Automatic switching (auto sequence)	Automatic switching of single screen channels 1 to 16 only Automatic switching of split screens (4A, 4B, 4C, 4D, 9A, 9B, 12, 16) only Mix of single screen and split screen Display time of 0 to 99 seconds can be set for each screen
Image size	Normal/Large
Aspect Ratio	4:3 / 16:9
Control signal input/output terminal	D-Sub 25 pin (inch screw #4-40UNC) Alarm/Remote selectable from menu 16 alarm inputs (channels 1 to 16) Non-voltage make/break contacts Remote input 18 systems (automatic switching, each single screen, each split screen) No-voltage make contact No-voltage make contact Alarm output 1 system Open collector DC12V 100mA or less Video loss output 1 system Open collector DC12V 100mA or less 1 system synchronous output 0.286Vp-p 75Ω termination unbalanced
Alarm function	Single screen display of alarm input channel Alarm hold mode: INT./EXT. Detection contact: Make/Break INT. hold time: Variable from approx. 3 to 999 seconds Operation after alarm release: Return/As is Alarm display: ON/OFF History: Records up to 100 channels and dates
Video Loss Function	Video loss Channel caption display Detection/non-detection setting for each channel History: Records channel and date and time for up to 100 cases
RS-232C	RXD, TXD, GND RS-232C signal standard compliant　 D-Sub 9-pin male (inch screw #4-40UNC)
RS-485	RJ-11 x 2 (loop-through)　 RS-485 signal standard compliant (Half Duplex) Modular jack
Title Display	Up to 8 characters per channel English, numbers, symbols, katakana Display position variable for single screen only 4,9 split screen display position fixed at bottom center 12,16 split screen only displays channel number
Split Screen Borderline	OFF/WHITE/BLACK
Button lock function	Locks the display of single screen 1 to 16/split screen/automatic switching and prohibits button operation. *Function added after serial number 21101031
Operating temperature and humidity	0 to 40°C RH20 to 90% (no condensation)
Power supply voltage/power consumption	AC100V 50/60Hz approx. 18W
AC Input Cable Length	Approximately 1.7m
External dimensions	420(W) x 300(D) x 44(H) [mm] (excluding rubber feet and protrusions)
Case color	Ivory
mass	Approx. 3.5 kg
accessories	operating instructions
Sold separately	Dedicated remote controller RMC-1600 D-sub connector/terminal block converter DTC-P25 19-inch rack mount bracket (JIS/EIA)

Dimensions

The post YK DMV-1600 16-screen Multi-Viewer first appeared on Kouei Japan Trading | Get Quotation.

YK SMT-1 Ceiling-mounted Indoor Sound Collection Microphone

kvt part2 — Fri, 20 Mar 2020 06:34:36 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: SMT-1

Feature

Balanced/unbalanced output switchable. Balanced output allows long distance wiring of approximately 100m
(a balanced transformer unit (TU-600) may be required on the input device side).
Equipped with a tamper output that is effective against tampering
Separate main body and base for easy installation and maintenance
Terminal type for convenient wiring
White color that easily matches your interior
Indoor ceiling mount type

Specifications

Product name	Sound collection microphone
Part number	SMT-1
Power supply voltage	DC8 to 30V (with polarity)
Current consumption	15mA or less
Output Conditions	Maximum wiring length (balanced: 100 m, unbalanced: 20 m) Load impedance: 600 Ω Balanced: twisted shielded wire Unbalanced: shielded wire, twisted shielded wire *Depending on the installation environment, the maximum wiring length may not be met due to noise interference.
output	① Microphone setting: -60dBV ±10dB (variable with volume) ② Line setting: -30dBV ±10dB (variable with volume)
Tamper Output	Non-voltage contact (b contact) AC/DC24V・0.25A (resistance load)
Ambient temperature	-10℃～+50℃
Installation location	indoor
Wiring Connection	Terminal type (M3 self-up terminal)
mass	Approx. 115g
exterior	Body: ABS resin (white) Cover: PE resin (white)
What’s in the box	SMT-1 body Tapping screw: 4 x 20 2 pieces Instruction manual

Note

In order to improve quality, product specifications may change without notice.

Accessories

Below is a list of the main accessory categories that are compatible with this product. If you need any accessories, please purchase them separately.

Compatible accessories	explanation
cable	This product does not come with a wiring cable. If you need a wiring cable, please purchase it separately. If you have any questions about the cable, please feel free to contact us.
DC12V-1A adapter	This product does not come with a power supply. If you need constant power, please purchase a DC12V-1A switching AC adapter separately.
connector	If a conversion connector is required for connection, please purchase it separately.
TU-600	When wiring over 20m, please use it in combination with the separate balancing transformer unit [TU-600]. When combined, long distance wiring up to 100m is possible.

In addition to the accessories listed above, we also carry a variety of other peripherals and accessories. Please also take a look at the [Peripherals and Accessories] category.

The post YK SMT-1 Ceiling-mounted Indoor Sound Collection Microphone first appeared on Kouei Japan Trading | Get Quotation.

YK TU-600 Balanced Transformer Unit

kvt part2 — Fri, 20 Mar 2020 04:05:38 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: TU-600

Feature

Switch between balanced and unbalanced audio output
When combined with the balanced output of the sound collecting microphones [SMT-1] and [SMT-2], long distance wiring of approximately 100m is possible.
Both unbalanced to balanced and balanced to unbalanced conversions are possible.

Specifications

Product name	Balanced Transformer Unit
Part number	TU-600
Input impedance	600 Ω or more
Output Impedance	600 ohms
Ambient temperature	-10℃ to +50℃
Location	indoor
Wiring Connection	Terminal type (M3 self-up terminal)
weight	Approx. 80g
Main unit	Resin (white)
What’s in the box	TU-600 body Tapping screws: 3 x 20 x 2 Instruction manual

Note

In order to improve quality, product specifications may change without notice.

Accessories

Below is a list of the main accessory categories that are compatible with this product. If you need any accessories, please purchase them separately.

Compatible accessories	explanation
cable	This product does not come with a wiring cable. If you need a wiring cable, please purchase it separately. If you have any questions about the cable, please feel free to contact us.
connector	If a conversion connector is required for connection, please purchase it separately.

In addition to the accessories listed above, we also carry a variety of other peripherals and accessories. Please also take a look at the [Peripherals and Accessories] category.

Exterior drawing

The post YK TU-600 Balanced Transformer Unit first appeared on Kouei Japan Trading | Get Quotation.

YK SMT-2 Wall-mounted Indoor Sound Collection Microphone

kvt part2 — Fri, 20 Mar 2020 03:58:34 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: SMT-2

Feature

Switchable between balanced and unbalanced output. Balanced output allows for long distance wiring of approximately 100 m.
(A balanced transformer unit [TU-600] may be required on the input side.)
Equipped with a tamper output that is effective against tampering
Separate body and base for easy installation and maintenance
(SMT-2 has separate cover and base)
Terminal type for convenient wiring
White color that easily matches your interior

Specifications

Product name	Sound collection microphone
Part number	SMT-2
Power supply voltage	DC8 to 30V (with polarity)
Current consumption	15mA or less
Output Conditions	Maximum wiring length (balanced: 100 m, unbalanced: 20 m) Load impedance: 600 Ω Balanced: twisted shielded wire Unbalanced: shielded wire, twisted shielded wire *Depending on the installation environment, the maximum wiring length may not be met due to noise interference.
output	① Microphone setting: -60dBV ±10dB (variable with volume) ② Line setting: -30dBV ±10dB (variable with volume)
Tamper Output	Non-voltage contact (b contact) AC/DC24V・0.25A (resistance load)
Ambient temperature	-10℃～+50℃
Installation location	Indoor: Wall-mounted
Wiring Connection	Terminal type (M3 self-up terminal)
mass	Approx. 90g
exterior	ABS resin (white)
What’s in the box	SMT-2 body Tapping screw: 3 x 20 2 pieces Instruction manual

Note

In order to improve quality, product specifications may change without notice.

Accessories

Below is a list of the main accessory categories that are compatible with this product. If you need any accessories, please purchase them separately.

Compatible accessories	explanation
cable	This product does not come with a wiring cable. If you need a wiring cable, please purchase it separately. If you have any questions about the cable, please feel free to contact us.
DC12V-1A switching AC adapter	This product does not come with a power supply. If you need constant power, please purchase a DC12V-1A switching AC adapter separately.
connector	If a conversion connector is required for connection, please purchase it separately.
TU-600	When wiring over 20m, please use it in combination with the separate balancing transformer unit [TU-600]. When combined, long distance wiring up to 100m is possible.

In addition to the accessories listed above, we also carry a variety of other peripherals and accessories. Please also take a look at the [Peripherals and Accessories] category.

Exterior drawing

The post YK SMT-2 Wall-mounted Indoor Sound Collection Microphone first appeared on Kouei Japan Trading | Get Quotation.

YK SMT-100 Outdoor Installation Compatible All Weather Sound Collection Microphone

kvt part2 — Fri, 20 Mar 2020 03:43:18 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: SMT-100

Feature

Switchable between balanced and unbalanced output. Balanced output allows for long distance wiring of approximately 100m
(a balancing transformer unit [TU-600] may be required on the input side).
All-weather type that can be used outdoors (equivalent to IPX5)
Two independent outputs allow connection to two devices
Terminal type for convenient wiring

Specifications

Product name	Sound collection microphone
Part number	SMT-100
Power supply voltage	DC8 to 30V (with polarity)
Current consumption	15mA or less
Output Conditions	Maximum wiring length (balanced: 100 m, unbalanced: 20 m) Load impedance: 600 Ω Balanced: twisted shielded wire Unbalanced: shielded wire, twisted shielded wire *Depending on the installation environment, the maximum wiring length may not be met due to noise interference.
output	2 outputs (switchable between ① and ② independently) ① Microphone setting: -60dBV ±10dB (variable with volume) ② Line setting: -30dBV ±10dB (variable with volume)
Ambient temperature	-10℃～+50℃
Installation location	Indoor/outdoor (equivalent to IPX5) * Cover cannot be installed facing upwards horizontally outdoors
Wiring Connection	Terminal type (M3 self-up terminal)
Suitable cable diameter	Φ4.5～7.8mm
mass	Approx. 130g
exterior	Body: Resin (white) Cover: Resin (white)
What’s in the box	SMT-100 Body Tapping Screw (with rubber washer): φ3×16 2 pieces Cap (including inner cap): 1 set Double-sided adhesive tape: 1 piece Instruction manual

Note

In order to improve quality, product specifications may change without notice.

Accessories

Below is a list of the main accessory categories that are compatible with this product. If you need any accessories, please purchase them separately.

Compatible accessories	explanation
cable	This product does not come with a wiring cable. If you need a wiring cable, please purchase it separately. If you have any questions about the cable, please feel free to contact us.
DC12V-1A adapter	This product does not come with a power supply. If you need constant power, please purchase a DC12V-1A switching AC adapter separately.
connector	If a conversion connector is required for connection, please purchase it separately.
TU-600	When wiring over 20m, please use it in combination with the separate balancing transformer unit [TU-600]. When combined, long distance wiring up to 100m is possible.

In addition to the accessories listed above, we also carry a variety of other peripherals and accessories. Please also take a look at the [Peripherals and Accessories] category.

The post YK SMT-100 Outdoor Installation Compatible All Weather Sound Collection Microphone first appeared on Kouei Japan Trading | Get Quotation.

YK RC-01 Wired Remote Control For WATEC Cameras

kvt part2 — Fri, 20 Mar 2020 03:36:04 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: RC-01

Feature

Wired remote control for WATEC cameras

Specifications

Model number	RC-01
Compatible models	WAT-1300, WAT-1200CS, WAT-233, WAT-221S2, WAT-230V2, WAT-1100MBD, W-03CDB3, W-04CDB3, WAT-910HX/RC, WAT-910HX MBD, WAT-910BD
Applications	It is possible to set and adjust the functions of compatible cameras. With OSD (on-screen display) specifications, you can easily adjust and set camera functions while simultaneously viewing the setting menu and image displayed on the image monitor.
Cable length	Approximately 1.5m
External dimensions	50 (H) x 40.5 (W) x 12 (D) mm *1m excluding cable

Note

In order to improve quality, product specifications may change without notice.

Exterior drawing

The post YK RC-01 Wired Remote Control For WATEC Cameras first appeared on Kouei Japan Trading | Get Quotation.

YK KS-H31142-LNA Ceiling-mounted L-bracket

kvt part2 — Fri, 20 Mar 2020 03:29:27 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: KS-H31142-LNA

Feature

Ceiling-mounted L-bracket compatible with KS series camera housing cases

Introducing the [Ceiling Mount L-bracket KS-H31142-LNA]

The KS-H31142-LNA is a ceiling-mounted L-bracket designed for use with the KS series camera housing case. This bracket allows you to securely suspend the housing case from the ceiling, providing a stable and reliable mounting option. With its sturdy construction and compatibility with the KS series, it ensures a convenient and efficient installation process.

Specifications

External dimensions	145(W)×400(H)mm
Material	Stainless steel and aluminum pipes and aluminum die castings
Range of motion	Can be rotated 90° downward, 45° upward, and 360° in the pan direction (with replacement screws) (The movable range will be limited if the loading housing interferes)
Maximum hanging weight	8Kg
Body weight	2Kg
Appearance Specifications	Semi-gloss grained ivory leather tone baked finish
What’s in the box	KS-H31142-LNA body Screw set Instruction manual

Note

In order to improve quality, product specifications may change without notice.

Accessories

Below is a list of the main accessory categories that are compatible with this product. If you need any accessories, please purchase them separately.

Compatible accessories	explanation
KS series accessories	We offer accessories compatible with the domestically produced KS series camera housing cases. Please purchase the accessories separately according to the installation environment. KS Series Camera Housing & Accessories Compatibility Chart \| Combination Examples

In addition to the accessories listed above, we also carry a variety of other peripherals and accessories. Please also take a look at the [Peripherals and Accessories] category.

The post YK KS-H31142-LNA Ceiling-mounted L-bracket first appeared on Kouei Japan Trading | Get Quotation.

YK KS-4001-OUTLET Outlet Product Highly Waterproof And Robust Slide-open Type Large Camera Housing

kvt part2 — Fri, 20 Mar 2020 03:07:59 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: KS-4001-OUTLET

Feature

A Japanese-made camera housing case with excellent waterproofing and durability
Large capacity type, ideal for storing large cameras
Slide-open mechanism
A wide range of accessories allows installation in any environment

Accessories

Below is a list of the main accessory categories that are compatible with this product. If you need any accessories, please purchase them separately.

Compatible accessories	explanation
KS series accessories	We offer accessories compatible with the domestically produced KS series camera housing cases. Please purchase the accessories separately according to the installation environment. KS Series Camera Housing & Accessories Compatibility Chart \| Combination Examples
Cooling fan	KS-K05L
Heater	KS-K06
defroster	KS-K07L
Wipers	KS-K10L

In addition to the accessories listed above, we also carry a variety of other peripherals and accessories. Please also take a look at the [Peripherals and Accessories] category.

The post YK KS-4001-OUTLET Outlet Product Highly Waterproof And Robust Slide-open Type Large Camera Housing first appeared on Kouei Japan Trading | Get Quotation.

YK WAT-2200Mk-2 High-sensitivity 3G-SDI/HD-SDI Color Camera

kvt part2 — Fri, 20 Mar 2020 02:59:25 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: WAT-2200Mk-2

Features

Equipped with a highly sensitive 1/2.8-type CMOS sensor
Ultra-high sensitivity model with minimum subject illumination of 0.0004lx
A color camera specialized for high-sensitivity photography
DC iris and CS mount compatible
Multi-functions can be controlled with the included wired remote control

Specifications

Image sensor	1/2.8-inch back-illuminated CMOS image sensor
Effective pixels	1945(H) x 1097(V)
Cell Size	2.9μm(H) × 2.9μm(V)
Imaging method	RGB primary color Bayer array mosaic on-chip filter
Synchronization Method	Internal Sync
Scanning Method	progressive
Video Output	3G-SDI, HD-SDI, CVBS (analog)
Output Format	1080/60p, 1080/59.94p, 1080/50p, 1080/60i, 1080/59.94i, 1080 /30p, 1080/29.97p, 1080/25p,1080/24p, 720/60p, 720/59.94p, 720/50p, NTSC, PAL
resolution	Over 1000 (center of screen)
Minimum illumination	0.006 lx F1.2 (AGC HIGH=72dB, Shutter=OFF) 0.0004 lx F1.2 (AGC HIGH=72dB, Shutter=x15)
S/N	55dB or more (AGC OFF=0dB, γ=1.0)
Feature Settings	OSD: Remote control, RS-232 (Pelco-D, Pelco-P) Communication: RS-232 (Pelco-D, Pelco-P, Visca)
AE mode	Electronic Shutter x2, x3, x4, x5, x6, x7, x8, x9, x10, x12, x15 (frames) 1/30, 1/60, 1/120, 1/180, 1/240, 1/300 (sec) 1 1/25, 1/50, 1/100, 1/150, 1/200, 1/250 (sec) 2 1/500, 1/1000, 1/2000, 1/5000, 1/10000 (sec) Electronic Iris 1/30 – 1/10000 (sec) 1 1/25 – 1/10000 (sec) 2 x15 – 1/10000 (sec)
White Balance	ATW, PWB, MWB
AGC	ON: 0 – 36dB(LOW), 0 – 50dB(MID), 0 – 72dB(HIGH) OFF: 0dB
M.G.C.	0-72dB (5dB step)
Day/Night	–
Gamma Characteristics	γ ≒ USER (level adjustable)
Noise Reduction	3DNR OFF/ON Level adjustable 2DNR OFF/ON Level adjustable 3D+2DNR ON Level adjustable
Wide Dynamic Range	WDR OFF/ON level adjustable, D-WDR OFF/ON level adjustable
Lens Iris	DC
Backlight Compensation	BLC, HSBLC
White Spot Correction	Up to 2046 pixels
Contour correction	OFF/ON level adjustable
Fog Correction	OFF/ON level adjustable
Digital zoom	ZOOM (x1.01 – x6.00), PAN/TILT
Privacy Mask	8 Mask
Mirror Inversion	OFF, V-FLIP, H-FLIP, HV-FLIP
Freeze	OFF/ON
Motion detection	OFF/ON 4 areas can be set arbitrarily
Negative/positive inversion	OFF/ON
Interface	BNC (3G/HD-SDI), 2P connector (composite video) Power input, Auto iris, Mini DIN8P (RC-02, RS-232)
Power supply voltage	DC+12V±10%
Power Consumption	2.4W (210mA)
Operating/Storage Temperature	-10 – +50℃ / -30 – +70℃
Operating/Storage Humidity	95% RH or less (no condensation)
Lens mount	CS mount
mass	Approx. 130g
accessories	WPDC12-R (DC plug), 2P cable, hexagonal wrench tripod adapter, RC-02 (dedicated remote control)

Dimensions

The post YK WAT-2200Mk-2 High-sensitivity 3G-SDI/HD-SDI Color Camera first appeared on Kouei Japan Trading | Get Quotation.

YK VH-A71 Wall Mount

kvt part2 — Fri, 20 Mar 2020 02:55:06 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: VH-A71

Feature

A mount for mounting compatible cameras to a wall

Introducing the Wall Mount VH-A71

The VH-A71 is a wall mounting bracket that is compatible with Vplus dome type security cameras. Compatible Vplus dome type security cameras can be installed on a wall.

Specifications

Case Color

White

Note

In order to improve quality, product specifications may change without notice.
This product is compatible with some Vplus dome type security cameras.
Please note that it is not compatible with all cameras.

Exterior drawing

The post YK VH-A71 Wall Mount first appeared on Kouei Japan Trading | Get Quotation.

YK VH-A74 Junction box

kvt part2 — Fri, 20 Mar 2020 02:48:10 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: VH-A74

Feature

Junction box that stores camera wiring and prevents cables from being cut

Introducing the Junction Box VH-A74

The VH-A74 is a junction box that is compatible with Vplus dome type security cameras. The cable connection part of the corresponding Vplus dome type security camera can be stored inside the box, improving waterproofing and allowing the camera to be installed with a unified appearance.

Specifications

Case Color

White

Note

In order to improve quality, product specifications may change without notice.
This product is compatible with Vplus dome type security cameras.
Please note that it may not be compatible with all cameras.

Exterior drawing

The post YK VH-A74 Junction box first appeared on Kouei Japan Trading | Get Quotation.

YK VH-A1 Pole Mount

kvt part2 — Fri, 20 Mar 2020 02:28:54 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: VH-A1

Feature

For use with poles with diameters between 102 and 127 m
With stainless steel band

Introducing the VH-A1 Pole Mount

The VH-A1 is a pole mount that is compatible with Vplus security cameras. It can be used to mount compatible Vplus security cameras on a pole. The pole fits poles between 102 and 127 mm and comes with a stainless steel band.

Specifications

Case Color

White

Note

In order to improve quality, product specifications may change without notice.
This product is compatible with some Vplus security cameras.
Please note that it is not compatible with all cameras.

Exterior drawing

The post YK VH-A1 Pole Mount first appeared on Kouei Japan Trading | Get Quotation.

YK VH-A72 Wall Mount

kvt part2 — Fri, 20 Mar 2020 02:18:30 +0000

Manufacturer: YK Wireless Co., Ltd.
Model:VH-A72

Feature

A mount for mounting compatible cameras to a wall

Specifications

Case Color

White

Note

In order to improve quality, product specifications may change without notice.
This product is compatible with some Vplus dome type security cameras.
Please note that it is not compatible with all cameras.

Exterior drawing

The post YK VH-A72 Wall Mount first appeared on Kouei Japan Trading | Get Quotation.

YK VC-72 Smoke Dome Cover

kvt part2 — Thu, 19 Mar 2020 07:33:18 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: VC-72

Feature

A cover to make it difficult to see the camera lens from the outside

Introducing the Smoke Dome Cover VC-72

VC-72 is a smoke dome cover compatible with Vplus dome security cameras.
By attaching it to a compatible model, you can make it difficult to see the lens inside the camera from the outside. Please note that it cannot be attached to models other than the compatible models.

The post YK VC-72 Smoke Dome Cover first appeared on Kouei Japan Trading | Get Quotation.

YK TR-JB03-G-IN Junction Box

kvt part2 — Thu, 19 Mar 2020 07:30:50 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: TR-JB03-G-IN

Feature

Junction box that stores camera wiring and prevents cables from being cut
Waterproof protection for cable connection

Specifications

size	Ø108.6 × 36mm (Ø4.28” × 1.42”)
mass	0.2 kg (0.44 lbs)
Material	Aluminum alloy

Note

In order to improve quality, product specifications may change without notice.
This product is compatible with some of the UniView dome security cameras.
Please note that it is not compatible with all cameras.

The post YK TR-JB03-G-IN Junction Box first appeared on Kouei Japan Trading | Get Quotation.

YK TR-JB07/WM03-G-IN Junction Box Integrated Wall Mounting Bracket

kvt part2 — Thu, 19 Mar 2020 07:27:00 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: TR-JB07/WM03-G-IN

Feature

The corresponding dome type can be mounted on the wall.
The integrated junction box provides waterproof protection for the cable connection area.

Specifications

size	126.7 × 126.4 × 228.4mm (4.99” × 4.98” × 8.99”)
mass	1 kg (2.20 lbs)
Material	Aluminum alloy

Note

In order to improve quality, product specifications may change without notice.
This product is compatible with some of the UniView dome security cameras.
Please note that it is not compatible with all cameras.

The post YK TR-JB07/WM03-G-IN Junction Box Integrated Wall Mounting Bracket first appeared on Kouei Japan Trading | Get Quotation.

YK TR-JB03-H-IN Junction Box

kvt part2 — Thu, 19 Mar 2020 07:18:51 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: TR-JB03-H-IN

Feature

Junction box that stores camera wiring and prevents cables from being cut
Waterproof protection for cable connection

Specifications

size	Ø126 × 36mm (Ø4.28” × 1.42”)
mass	0.24 kg (0.53 lbs)
Material	Aluminum alloy

Note

In order to improve quality, product specifications may change without notice.
This product is compatible with some of the UniView dome security cameras.
Please note that it is not compatible with all cameras.

The post YK TR-JB03-H-IN Junction Box first appeared on Kouei Japan Trading | Get Quotation.

YK Vi2400A Coaxial LAN Converter MaxiiCopper (PoE Extender)

kvt part2 — Thu, 19 Mar 2020 07:15:22 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: Vi2400A

Features

Long distance transmission via coaxial cable
Supports PoE/PoE+ power supply depending on the parent unit
Noise-resistant and highly reliable communication possible
Supports high bandwidth transmission including 4K UHD cameras
Operating temperature: -40℃ to 75℃

Specifications

Product Name		Vi2400A [For handset only]
Transmission method		Manufacturer’s own method
Transmission speed*1		10/100Mbps
Frequency band used	100BASE-TX	Approximately 0 to 125MHz
	10BASE-T	Approximately 0 to 12.5MHz
Maximum Frame Length		5063bytes (including VLAN Tag)
interface	10/100BASE-TX Port	■RJ-45 x1 , 10BASE-T (full duplex)/100BASE-TX (full duplex) , auto MDI/MDI-X compatible
	Coaxial Extended Ethernet Port	■BNC x1 ・10BASE-T (full duplex)/100BASE-TX (full duplex) *Automatic recognition
Settings※3	DIP Switches	None (fixed to Master and Remote)
	Slide Switch
Impedance		75 ohms
Connectable PD terminal (when PoE is extended)		25.5W or less (IEEE802.3af/at)
Input power (with PoE extension)		37W (max)
Dimensions (excluding protrusions)		(W) 44 x (H) 25 x (D) 50 mm
Weight (body only)		86g
Chassis		aluminum
power supply		・DC12V※2 (When used for LAN extension) ・PoE input (When used for PoE extension)
Power consumption (max)		1.8W
Operating temperature		-40 to +75°C
Operating Humidity		0 to 95% (no condensation)
Storage temperature		-40 to +80°C
Accreditation		VCCI classA, RoHS10 substances, CE Marking, WEEE
Product warranty period		3 years
accessories		■Power connector x1

Dimensions

The post YK Vi2400A Coaxial LAN Converter MaxiiCopper (PoE Extender) first appeared on Kouei Japan Trading | Get Quotation.

YK Vi2608 MaxiiPower Coaxial LAN Converter with Built-in PoE Injector (PoE Extender)

kvt part2 — Thu, 19 Mar 2020 07:12:18 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: Vi2608

Features

Long distance transmission via coaxial cable
Supports PoE/PoE+ power supply
Supports one-to-multiple configuration, and can connect up to eight child devices
Noise-resistant and highly reliable communication possible
Supports high bandwidth transmission including 4K UHD cameras
Operating temperature: -10℃ to 50℃

Specifications

Product Name		Vi2608
Transmission method		Manufacturer’s own method
Transmission speed		10/100Mbps
Frequency band used	100BASE-TX	Approximately 0 to 125MHz
	10BASE-T	Approximately 0 to 12.5MHz
interface	input	8 x RJ-45
		・Auto negotiation (10/100BASE-TX) ・Auto MDI/MDI-X compatible
	output	BNC x8
		– Auto negotiation (10/100BASE-TX) – Impedance: 75Ω
	For management purposes	RJ-45 x1 , auto negotiation (10/100BASE-TX) , auto MDI/MDI-X compatible
		USB (B-female) x1 , USB 2.0
Recommended Cable		UTP: Cat.5e or higher, Coax: 5C-2V
Management Features		Dedicated software
size		(W) 430 x (H) 44 x (D) 270 mm (excluding protrusions)
weight		4.7kg (main unit only)
Housing		aluminum
power supply		AC100-240V 50/60Hz
Maximum power consumption		25W (main unit only)
PoE power supply capacity		Entire device: 300W Per port: 37W (DC57V)
Operating temperature		-10 to +50°C
Operating Humidity		0 to 90% (no condensation)
Storage temperature		-30～+70℃
Accreditation		VCCI classA, RoHS, CE Marking, WEEE
Product warranty period		3 years
accessories		■Rack mounting hardware ■AC power cable ■USB cable ■Management software (CD)

Dimensions

The post YK Vi2608 MaxiiPower Coaxial LAN Converter with Built-in PoE Injector (PoE Extender) first appeared on Kouei Japan Trading | Get Quotation.

YK Vi2616 Coaxial LAN Converter With Built-in PoE Injector MaxiiPower (PoE extender)

kvt part2 — Thu, 19 Mar 2020 07:08:22 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: Vi2616

Features

Long distance transmission via coaxial cable
Supports PoE/PoE+ power supply
Supports one-to-multiple configuration, and can connect up to 16 child devices
Noise-resistant and highly reliable communication possible
Supports high bandwidth transmission including 4K UHD cameras
Operating temperature: -10℃ to 50℃

Specifications

Product Name		Vi2616
Transmission method		Manufacturer’s own method
Transmission speed		10/100Mbps
Frequency band used	100BASE-TX	Approximately 0 to 125MHz
	10BASE-T	Approximately 0 to 12.5MHz
interface	input	16 x RJ-45
		・Auto negotiation (10/100BASE-TX) ・Auto MDI/MDI-X compatible
	output	BNC x16
		– Auto negotiation (10/100BASE-TX) – Impedance: 75Ω
	For management purposes	RJ-45 x1 , auto negotiation (10/100BASE-TX) , auto MDI/MDI-X compatible
		USB (B-female) x1 , USB 2.0
Recommended Cable		UTP: Cat.5e or higher, Coax: 5C-2V
Management Features		Dedicated software
size		(W) 430 x (H) 44 x (D) 270 mm (excluding protrusions)
weight		5.1kg (main unit only)
Housing		aluminum
power supply		AC100-240V 50/60Hz
Maximum power consumption		50W (main unit only)
PoE power supply capacity		Entire device: 600W Per port: 37W (DC57V)
Operating temperature		-10 to +50°C
Operating Humidity		0 to 90% (no condensation)
Storage temperature		-30～+70℃
Accreditation		VCCI classA, RoHS, CE Marking, WEEE
Product warranty period		3 years
accessories		■Rack mounting hardware ■AC power cable ■USB cable ■Management software (CD)

Dimensions

The post YK Vi2616 Coaxial LAN Converter With Built-in PoE Injector MaxiiPower (PoE extender) first appeared on Kouei Japan Trading | Get Quotation.

YK PFT1200 Hi-PoE compatible midspan (PoE injector)

kvt part2 — Thu, 19 Mar 2020 07:06:03 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: PFT1200

Features

Supports PoE power supply for Hi-PoE 60W high power consumption speed dome
Indicator Status: Power (normal power on), PoE (normal power supply)
Installation method: Wall-mounted installation

Specifications

Product Name	PFT1200
Ethernet Port	10/100/1000 Base-T x 1 10/100/1000 Base-T (PoE power supply) x 1
PoE Power Supply	PoE/PoE+/Hi-PoE
Indicators	Power Indicator PoE Status Indicator
Exchange Mode	Memory Transfer
Operating Humidity	10%~90%
Operating temperature	﹣30℃～65℃
Heavy Duty Ethernet Port	Approx. 390g
size	150mm×70mm×39mm
What’s in the box	PFT1200 main unit Power cord Product specifications (3-year product warranty)

The post YK PFT1200 Hi-PoE compatible midspan (PoE injector) first appeared on Kouei Japan Trading | Get Quotation.

YK Vi2601 Coaxial LAN converter with built-in PoE injector MaxiiPower (PoE extender)

kvt part2 — Thu, 19 Mar 2020 07:02:34 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: Vi2601

Features

Long distance transmission via coaxial cable
Supports PoE/PoE+ power supply
Noise-resistant and highly reliable communication possible
Supports high bandwidth transmission including 4K UHD cameras
Operating temperature: -10℃ to 50℃

Specifications

Product Name		Vi2601
Product Code		173-VG-012
Transmission method		Manufacturer’s own method
Transmission speed*1		10/100Mbps
Frequency band used	100BASE-TX	Approximately 0 to 125MHz
	10BASE-T	Approximately 0 to 12.5MHz
Maximum Frame Length		5063bytes (including VLAN Tag)
interface	Standard Ethernet port	■RJ-45 x1 ・10BASE-T (full duplex)/100BASE-TX (full duplex)※1 ・Auto MDI/MDI-X compatible
	Coaxial Extended Ethernet Port	■BNC (female) x1 ・10BASE-T (full duplex)/100BASE-TX (full duplex)※1 ※Automatic recognition ・Impedance: 75Ω
Connectable child devices		Vi2400A , Vi2401A *2
Devices that can be connected to the child unit		PoE (PD) terminal: 25.5W or less (IEEE802.3af/at)
Maximum output power on coaxial port		37W @DC57V
Dimensions (excluding protrusions)		(W) 65 x (H) 46 x (D) 127 mm
Weight (body only)		292g
power supply		AC90-240V 50/60Hz
Maximum power consumption		2W (Vi2601 alone) 40W (including child devices and PoE devices)
Operating temperature		-10 to +50°C
Operating Humidity		0 to 90% (no condensation)
Storage temperature		-30～+70℃
Accreditation		VCCI classA, RoHS, CE Marking, WEEE
Product warranty period		3 years
accessories		■AC power cable x1

Dimensions

The post YK Vi2601 Coaxial LAN converter with built-in PoE injector MaxiiPower (PoE extender) first appeared on Kouei Japan Trading | Get Quotation.

YK TR-JB07-D-IN Junction Box

kvt part2 — Thu, 19 Mar 2020 03:32:26 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: TR-JB07-D-IN

Feature

Junction box that stores camera wiring and prevents cables from being cut
Waterproof protection for cable connection

Specifications

size	125×125×55mm
mass	0.75kg
Material	Aluminum alloy

Note

In order to improve quality, product specifications may change without notice.
This product is compatible with some UniView bullet type security cameras.
Please note that it is not compatible with all cameras.

The post YK TR-JB07-D-IN Junction Box first appeared on Kouei Japan Trading | Get Quotation.

YK KS-1001-35L Highly Waterproof And Robust Front-opening Camera Housing

kvt part2 — Thu, 19 Mar 2020 03:19:52 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: KS-1001-35L

Feature

A Japanese-made camera housing case with excellent waterproofing and durability
Front panel opening mechanism
A wide range of accessories allows installation in any environment

Specifications

Location	Indoor/outdoor general
Ambient temperature	-10°C to 45°C
Ambient Humidity	35% to 98%
Vibration and shock	Nowhere
Salt damage/corrosive gases	Nowhere
Material	Aluminum and steel plates
External dimensions	117(W)×106.5(H)×380(L)mm
Internal dimensions	79(W)×73(H)×260(L)mm
mass	2.2Kg
Appearance Specifications	Ivory leather tone baked finish
Camera installation	Compatible cameras are fixed with two built-in 1/4U screws
What’s in the box	KS-1001 -35 body Instruction manual

Note

In order to improve quality, product specifications may change without notice.

Accessories

Below is a list of the main accessory categories that are compatible with this product. If you need any accessories, please purchase them separately.

Compatible accessories	explanation
KS series accessories	We offer accessories compatible with the domestically produced KS series camera housing cases. Please purchase the accessories separately according to the installation environment. KS Series Camera Housing & Accessories Compatibility Chart \| Combination Examples
Cooling fan	KS-K05
Heater	KS-K06
defroster	KS-K07
Wipers	KS-K10

In addition to the accessories listed above, we also carry a variety of other peripherals and accessories. Please also take a look at the [Peripherals and Accessories] category.

The post YK KS-1001-35L Highly Waterproof And Robust Front-opening Camera Housing first appeared on Kouei Japan Trading | Get Quotation.

YK E120D Dome Housing With Built-in Outdoor Fan And Heater And Wall-mounted Power Supply Sox

kvt part2 — Thu, 19 Mar 2020 01:59:37 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: E120D

Feature

IP66 certified for excellent waterproof and dustproof performance
Built-in fan and heater
Wall mounted power supply box model
Dual-layer design with excellent heat and water resistance
Hydrophilic coating comes as standard
Choice of cover colours
Salt damage prevention painting option available

Specifications

Intended usage environment	Outdoor/indoor general
Material	Aluminum alloy
Power Box	can be
Waterproof and dustproof rating	IP66 certified
Camera mounting base	Stepless adjustable mounting base
Cover Material	Polycarbonate (clear/light smoke)
Cover Specifications	Hydrophilic coating applied (organic silicon compound)
size	Main unit: Φ220×H340×D400mm Bracket: W140×H200mm
weight	Approx. 5,050g
remarks	The outdoor dome housing has a built-in fan heater (DC12V powered). By combining the included base, it can be used with various cameras. The fan operates at 40°C and stops at 30°C, and the heater operates at 0°C and stops at 10°C. *Fan 0.6W/Heater 10W
What’s in the box	E120 main unit AC adapter (12V1A) Various screws Instruction manual

Note

To enhance quality, we may update product specifications at any time without prior notice.

Accessories

Below is a list of the main accessory categories that are compatible with this product. If you need any accessories, please purchase them separately.

Compatible accessories	explanation
E120 compatible pole mounting bracket	E120PP2-SUS

Besides the accessories listed above, we offer a wide range of other peripherals and accessories as well. Feel free to explore the [Peripherals and Accessories] category for more options!

The post YK E120D Dome Housing With Built-in Outdoor Fan And Heater And Wall-mounted Power Supply Sox first appeared on Kouei Japan Trading | Get Quotation.

YK E120C Ceiling-mounted Dome Housing With Built-in Power Box For Outdoor Fans And Heaters

kvt part2 — Thu, 19 Mar 2020 01:44:08 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: E120C

Product Description

IP66 certified for excellent water and dust resistance

The E120C is an outdoor dome housing for housing security cameras and network cameras with built-in fans and heaters that has been certified IP66 for excellent water and dust resistance after undergoing IP performance testing by a public institution. Rubber gaskets are used on the opening and closing parts, etc. to prevent dust from entering the inside and to ensure that it is not affected by water jets from any direction, completely protecting the network camera inside.

Built-in fan and heater

The E120C has a built-in fan and heater inside the dome, and the fan turns on at 40°C and turns off at 30°C. The heater turns on at 0°C and turns off at 10°C to protect the security camera and network camera built inside. This makes it suitable for installation in cold regions and other harsh environments.

With power supply box

The E120C comes with a power box. The AC adapter can be stored inside the power box, and LAN connection can also be made inside the box.

With hydrophilic coating

[With hydrophilic coating]
The E120C is coated with a hydrophilic coating that makes it difficult for raindrops and dust to adhere, providing better visibility than a typical dome

Dual-layer design with excellent heat and water resistance

The E120C is made with a two-layer aluminum alloy structure, which prevents heat from building up inside the body, protecting security cameras and network cameras, many of which have plastic housings, from heat, dust, rainwater, and impacts.

Choice of covers

The E120C is available in two cover types: a clear cover and a light smoke cover to soften the prying eyes of security guards. You can choose the cover type when ordering.

*When using the light smoke cover, the camera’s illumination may decrease slightly.

Salt damage prevention painting option available

E120C is available with a salt damage prevention paint option that uses a fluororesin coating to provide long-term salt damage protection and improve weather resistance. Please select the salt damage prevention product when placing your order.

*This is a back-ordered item and will take 2-3 weeks to deliver.
For salt damage prevention products, payment can only be made by credit card or bank transfer.
Please note that we cannot accept cancellations after an order has been placed.

Wide range of compatible models

The E120C can store almost all security cameras and network cameras with a height of 160mm or less. In addition, various cameras can be easily attached with special brackets, and the camera position can be adjusted continuously, so you can always monitor in the best position.

*Please feel free to contact us and we will check whether it is possible to incorporate it.

E120C Main unit appearance

E120C Body Dimensions

Introducing the E120C ceiling-mounted dome housing with built-in outdoor fan and heater and power box

The E120C is an outdoor dome housing that has undergone IP performance testing by a public institution and has been certified IP66, which proves its high waterproof performance. It comes with a power box, so you can store an AC adapter inside the power box and connect a LAN cable. The E120C is a ceiling-hanging type, so it can be used when you want to install indoor security cameras and network cameras (especially dome-shaped cameras) on the ceiling outdoors.

The opening and closing parts of the main body are firmly sealed with rubber packing, and the design is such that water will not enter the inside even if it is sprayed with water from any direction, providing excellent waterproof performance. The main body also has a built-in DC12V fan and heater, making it suitable for use in cold regions, and the two-layer aluminum alloy structure makes it heat-resistant, protecting network cameras, which often have plastic housings, from heat, dust, rainwater, and impact. In addition, the dome cover has a hydrophilic coating that makes it difficult for raindrops and dust to adhere to it, allowing for stable indoor shooting and other high performance features as an outdoor dome housing.

For the E120C, we offer an optional salt damage prevention paint option (for a fee), and we can provide salt damage prevention products when installing in locations where salt damage is a concern. In addition, we offer two types of dome covers, a clear cover and a light smoke cover, and you can choose the salt damage prevention product and the type of dome cover when ordering.

The E120C can accommodate almost any security camera or network camera with a height of 160mm or less, but if you are unsure whether your camera can be installed, please feel free to contact us.

Specifications

Intended usage environment	Outdoor/indoor general
Material	Aluminum alloy
Power Box	can be
Waterproof and dustproof rating	IP66 certified
Camera mounting base	Stepless adjustable mounting base
Cover Material	Polycarbonate (clear/light smoke)
Cover Specifications	Hydrophilic coating applied (organic silicon compound)
size	Body: Φ220×H555mm
weight	Approx. 5,100g
remarks	The outdoor dome housing has a built-in fan heater (DC12V powered). By combining the included base, it can be used with various cameras. The fan operates at 40°C and stops at 30°C, and the heater operates at 0°C and stops at 10°C. *Fan 0.6W/Heater 10W
What’s in the box	E120C main unit, AC adapter (12V1A), various screws , instruction manual

Note

In order to improve quality, product specifications may change without notice.

The post YK E120C Ceiling-mounted Dome Housing With Built-in Power Box For Outdoor Fans And Heaters first appeared on Kouei Japan Trading | Get Quotation.

YK E110 Outdoor Heat-resistant Coating Housing Case For Network Cameras

kvt part2 — Thu, 19 Mar 2020 01:32:40 +0000

Manufacturer: YK Wireless Co., Ltd.
Model: E110

Product Description

Outdoor housing case for Panasonic BB series network cameras

The E110 is an outdoor housing case that can store a network camera with a size of 100 (H) x 100 (W) mm. The interior is deep enough that there is space to store an AC adapter, and the wiring can be done together inside the main unit.

Compatible models are BB-ST162, BB-ST165, BB-SW172, BB-SW175, BB-SW174W, BB-HCM715, BB-HCM735, BB-HCM511, BB-HCM110, and BB-HCM531. If you are considering incorporating other models, please contact us.

Completely separated two-layer outdoor housing

[Completely separated two-layer outdoor housing]
The roof of the E110 is completely separate from the main body, making it difficult for heat to pass through to the housing.

Designed to reduce vignetting

The E110 is designed and constructed to prevent ^vignetting when driven up, down, left and right .

* Vignetting is when part of the image is blocked by the roof of the housing, creating an unintended blind spot on the screen.
* If you point the network camera lens upwards and push the housing roof forward, vignetting may occur in some areas.

With hydrophilic coating

The E110 is coated with a hydrophilic coating that makes it difficult for raindrops and dust to adhere, providing better visibility than a typical housing that does not have a hydrophilic coating.

Uses heat insulating paint GAINA

The E110 is coated with GAINA, a highly specialized ceramic paint made using heat insulation technology developed by the Japan Aerospace Exploration Agency (JAXA). This ceramic efficiently reflects sunlight, reduces heat generation and reduces the effects of sunlight, protecting the built-in network camera from heat.

E110 Main unit appearance

[Opening and closing section (when camera is installed)] [Rear]

[Bottom] [Complete set of camera mounting brackets included]

[Easy-to-understand Japanese instruction manual included]

E110 Body Dimensions

Introducing the E110 outdoor housing case for network cameras

The E110 is an outdoor camera housing case compatible with Panasonic BB series network cameras. This product can be used when you want to install a compatible BB series network camera outdoors. The roof is completely separate from the main body, and is painted with GAINA, a very special ceramic paint made using insulation technology developed by the Japan Aerospace Exploration Agency (JAXA). This makes the housing less susceptible to heat transfer, making it not only waterproof but also heat-resistant, making it suitable for installation in hot environments under the blazing sun.

The E110 can store a network camera with a size of 100 (vertical) x 100 (horizontal) mm inside the main unit, and can accommodate most models of Panasonic BB series square cameras. There is also space inside to store an AC adapter, and wiring can be done together inside the main unit. The BB series includes models that can pan and tilt the camera, but the E110 is designed to prevent vignetting when moving up, down, left and right.

The E110 is an outdoor housing case that can be used when installing a Panasonic BB series network camera outdoors.

Specifications

Storage size	Network camera with a W100 x H100 mm size (there is ample space in the depth to store the AC adapter)
Compatible models	BB-ST162, BB-ST165, BB-SW172, BB-SW175, BB-SW174W, BB-HCM715, BB-HCM735, BB-HCM511, BB-HCM110, BB-HCM531 *Please inquire about other models.
size	W149×H255×D470mm
weight	Approx. 2,250g
What’s in the box	E110 main unit (including bracket) Various screws Instruction manual

Note

In order to improve quality, product specifications may change without notice.

Accessories

Below is a list of the main accessory categories that are compatible with this product. If you need any accessories, please purchase them separately.

Compatible accessories	explanation
Security camera and surveillance camera mounting brackets	If you wish to mount this product on a pole, please purchase the pole mounting bracket separately.

In addition to the accessories listed above, we also carry a variety of other peripherals and accessories. Please also take a look at the [Peripherals and Accessories] category.

The post YK E110 Outdoor Heat-resistant Coating Housing Case For Network Cameras first appeared on Kouei Japan Trading | Get Quotation.
