YK Wireless Co.Ltd

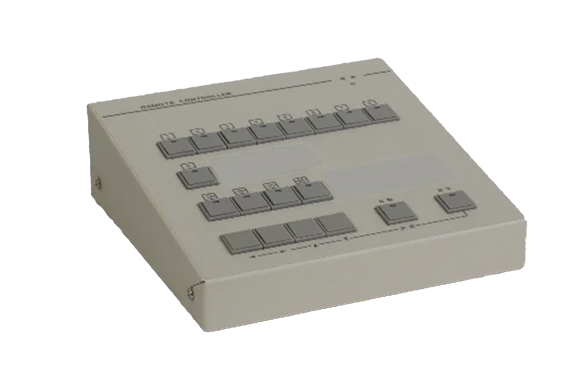

YK RMC-900 Remote Controller For DMV-900
Manufacturer: YK Wireless Co., Ltd.
Model: RMC-900
Features
Remote controller made by “Artics”, a Japanese manufacturer specializing in image processing equipment
Remote control of DMV-900
Supports RS-232C and RS-485 communication
Specifications
| RS-232C | D-Sub 9-pin male (inch screw #4-40UNC) RS-232C signal standard compliant RXD, TXD, GND No flow control |
|---|---|
| RS-485 | RJ-11 x 2 (loop-through) Modular jack RS-485 signal standard compliant 6-pole 4-core Half Duplex |
| Communication Settings | RS-485/RS-232C via slide switch |
| Unit number setting | SLAVE No. volume x 2 00 to 31 units 99 is simultaneous transmission |
| Operating temperature and humidity | 0 to 40°C RH20 to 90% (no condensation) |
| Power supply voltage/power consumption | AC100V 50/60Hz approx. 3.0W |
| AC Input Cable Length | Approximately 1.8m |
| External dimensions | 160(W) x 160(D) x 50(H) [mm] (excluding rubber feet and protrusions) |
| mass | Approx. 0.5 kg |
| Case color | Ivory |
| accessories | operating instructions |
| Connected Devices | DMV-900 |
| Sold separately | Remote controller dedicated wall bracket RMC-WB1 |
Note
- In order to improve quality, product specifications may change without notice.
