This product is used for the following applications:

• Burying pipes

• Features

  Best suited for compacting concrete where necessary, even in cramped working environments. Best suited for backfilling sand and gravel around cast iron pipes and PVC pipes when burying pipes. Equipped with a robust double-insulated sealed motor made of die-cast aluminum, the compaction tamper is of the handy held vibrator series that are lightweight and user-friendly.

  Lightweight and easily operable

  The handy tamper E28DTKA is a lightweight, user-friendly product weighing about 5 kg. With a small compaction plate, the machine proves to be very easily operable according to worksite conditions even on worksites with narrow ditches.

  With a handy, single-phase 100 V power supply unit

  The operating power supply unit for the handy tamper is 100 V. With a single-phase 100 V from a small generator or commercial mains, this compaction vibrator can be used easily and anywhere.

  The motor case is made of robust die-cast aluminum

  The handy held vibrator series of motor cases are made of lightweight, strong die-cast aluminum. Robustly designed to meet the particular worksite operating conditions, these vibrators can be used with peace of mind.



  The vibrating unit is easy to replace

  If the vibrating body is worn, it is easy to replace. To replace it, you have only to detach the four bolts fastening the rubber damper of the vibrating body on the motor.



  A double-insulated structure requiring no grounding

  The handy held series of motor cases are safe, user-friendly motors with a robust die-cast aluminum body having a double-insulated structure requiring no grounding. The armature shaft is insulated from the winding core by using resin, and the motor case is insulated from the field core by using resin, thereby ensuring double insulation. That insulation is further reinforced by a resin cover on the inner lead wires.



  Excellent rubber characteristics

  Handy hard shaft, handy punches, handy scrapers, handy wall concreting, and handy tamper series are equipped with rubber dampers having damping performance that meets the particular uses. This makes this series of vibrators easy on the worker’s hands and user-friendly.



  A motor handle with a double-damped structure

  E motors employed in the handy held vibrator series are each equipped with four small rubber dampers on the handheld handle and the motor frame. The result is that the handy baby flexible series are attenuated in vibration in the flexible hose, while the handy held vibrator, handy punch, handy scraper, handy wall-concreting, and handy tamper series are of a double-damped structure together with the rubber dampers on the motor and the vibrating unit mounts. These are therefore designed to be easy on the workers’ hands.



  Control on motor exhaust sound

  The handy held vibrator series of vibrators control motor noise, thereby being easy on the worksite environment. The exhaust sound from the cooling fin of the series of motors running fast is controlled as far as possible by specially shaping the cooling fin and exhaust port. (5 dB down from our earlier models)



  A shutoff brush employed

  The motor is equipped with a shutoff brush to protect against burns. The motor is prevented from burns by employing a structure that stops the motor by shutting down the power before the brush completely reaches its wear limit in order to prevent imperfect contact with the armature and scratches in the commutator due to brush wear.

  Specification

  E28DTKA

  Model	Output (W)	Input (V)	Input (A)	Frequency （Hz）	Weight （kg）
  E28DTKA	280	100	5.0	200～242	5.2

  *The weight of the cable is included. (0.6Kg)

  Dimensions, installation, control panel

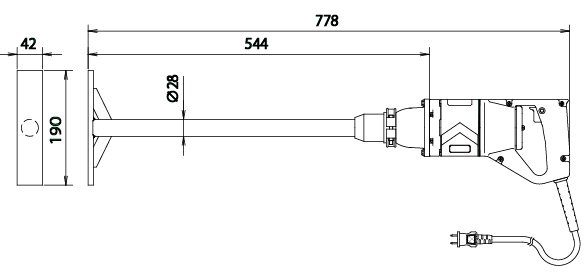

  Product dimensional table



  Model	Total length (mm)	Head length (dia.×Length) （mm）	Length shaft Assembly （mm）
  E28DTKA	778	42X190	469

This product is used for the following applications:

• Concrete placement in general

• Features

  The handy held vibrator is a small, powerful concrete vibrator consisting of a vibrating unit connected directly to a motor. Suited mainly for secondary concrete products, along with stone masonry, test piece manufacture, and the like. Equipped with a robust double-insulated sealed motor made of die-cast aluminum, the unit weighs about 5 kg, being lightweight, coming in a wide variety of models. This makes the series of handy vibrators very easy to use on a wide range of worksites. The models available are the lightweight, user-friendly EKCA and the powerful EKD.

  Easily operable in surface finishes

  The wall-concreting vibrating body is made of die-cast aluminum, being lightweight and durable. Being small, this unit can move flexibly in cramped corners and easily work on surface-finishing columns, walls, and other structures even on worksites on poorly-conditioned ground.

  A special-purpose holder makes it more easily operable

  Both the EKCA and EKD can be combined with a special-purpose holder that enlarges the vibrating surface in the vibrating unit. This enlarges the effective range of vibration, thereby reducing working time. The holder is optional.



  The motor case is made of robust die-cast aluminum

  The handy held vibrator series of motor cases are made of lightweight, strong die-cast aluminum. Robustly designed to meet the particular worksite operating conditions, these vibrators can be used with peace of mind.



  The vibrating unit is easy to replace

  If the vibrating body is worn, it is easy to replace. To replace it, you have only to detach the four bolts fastening the rubber damper of the vibrating body on the motor.



  A double-insulated structure requiring no grounding

  The handy held series of motor cases are safe, user-friendly motors with a robust die-cast aluminum body having a double-insulated structure requiring no grounding. The armature shaft is insulated from the winding core by using resin, and the motor case is insulated from the field core by using resin, thereby ensuring double insulation. That insulation is further reinforced by a resin cover on the inner lead wires.



  Concrete adherents are easy to remove

  On worksites with handy held vibrators, concrete mortar adherents close up much of the air suction and exhaust ports of the motor. Removal of hardened mortar is also hard to perform. The suction port cover and bearing case are therefore coated with fluororesin to enable the concrete to be easily cleaned, resulting in higher maintainability.



  The photo shows a baby flexible type.

  Excellent rubber characteristics

  Handy hard shaft, handy punches, handy scrapers, handy wall concreting, and handy tamper series are equipped with rubber dampers having damping performance that meets the particular uses. This makes this series of vibrators easy on the worker’s hands and user-friendly.



  A motor handle with a double-damped structure

  E motors employed in the handy held vibrator series are each equipped with four small rubber dampers on the handheld handle and the motor frame. The result is that the handy baby flexible series are attenuated in vibration in the flexible hose, while the handy hard shaft, handy punch, handy scraper, handy wall-concreting, and handy tamper series are of a double-damped structure together with the rubber dampers on the motor and the vibrating unit mounts. These are therefore designed to be easy on the workers’ hands.



  Control on motor exhaust sound

  The handy held vibrator series of vibrators control motor noise, thereby being easy on the worksite environment. The exhaust sound from the cooling fin of the series of motors running fast is controlled as far as possible by specially shaping the cooling fin and exhaust port. (5 dB down from our earlier models)



  The motor suction port equipped with a dustproof filter

  On worksites with handy held vibrators in severe dusty operating environments, it is also much feared that some fine aggregate from the dry concrete mortar may go into the motor. The suction port of the motor is therefore equipped with a dual filter. The filter is employed to minimize the incidence of the motor from accidentally being locked in revolution due to the ingress of small pebbles or something similar.



  A shutoff brush employed

  The motor is equipped with a shutoff brush to protect against burns. The motor is prevented from burns by employing a structure that stops the motor by shutting down the power before the brush completely reaches its wear limit in order to prevent imperfect contact with the armature and scratches in the commutator due to brush wear.

  E-KC

  Model	Output (W)	Input (V)	Input (A)	frequency （Hz）	Total length (mm)	Head (dia.×length) (mm)	Weight (kg)
  EKCA	280	100	5	160～200	404	Vibrating face　76×113	4.7
  With holder					407	Vibrating face　120×150	5.8
  EKD				140～180	424	Vibrating face　110×150	5.9
  With holder					427	Vibrating face　200×200	7.6

  （Imperial System）

  Model	Output (W)	Input (V)	Input (A)	frequency （Hz）	Total length (ft)	Head (dia.×length) (in)	Weight (lb)
  EKCA	280	100	5	160～200	1’4″	Vibrating face　3.0×4.4	10.4
  With holder					1’4″	Vibrating face　4.7×5.9	12.8
  EKD				140～180	1’5″	Vibrating face　4.3×5.9	13.0
  With holder					1’5″	Vibrating face　7.9×7.9	16.8

  Product masses include that of the mold cord (0.6kg).

  Dimensions, installation, control panel

  Product dimensional drawings



  Product dimensional table

  Model	Total length （mm）	Shaft length （mm）	Vibrating face (dia.×length) （mm）
  EKCA	404	170	76X113
  EKD	424	190	110×150

  （Imperial System）

  Model	Total length （ft）	Shaft length （in）	Vibrating face (dia.×length) （in）
  EKCA	1’4″	6.7	3.0X4.4
  EKD	1’5″	7.5	4.3×5.9

This product is used for the following applications:

• Concrete placement in general

• Features

  The handy held vibrator is a small, powerful concrete vibrator consisting of a vibrating unit connected directly to a motor. Suited mainly for secondary concrete products, along with stone masonry, test piece manufacture, and the like. Equipped with a robust double-insulated sealed motor made of die-cast aluminum, the unit weighs about 5 kg, being lightweight, coming in a wide variety of models. This makes the series of handy vibrators very easy to use on a wide range of worksites. The models available are the lightweight, user-friendly EKCA and the powerful EKD.

  Easily operable in surface finishes

  The wall-concreting vibrating body is made of die-cast aluminum, being lightweight and durable. Being small, this unit can move flexibly in cramped corners and easily work on surface-finishing columns, walls, and other structures even on worksites on poorly-conditioned ground.

  A special-purpose holder makes it more easily operable

  Both the EKCA and EKD can be combined with a special-purpose holder that enlarges the vibrating surface in the vibrating unit. This enlarges the effective range of vibration, thereby reducing working time. The holder is optional.



  The motor case is made of robust die-cast aluminum

  The handy held vibrator series of motor cases are made of lightweight, strong die-cast aluminum. Robustly designed to meet the particular worksite operating conditions, these vibrators can be used with peace of mind.



  The vibrating unit is easy to replace

  If the vibrating body is worn, it is easy to replace. To replace it, you have only to detach the four bolts fastening the rubber damper of the vibrating body on the motor.



  A double-insulated structure requiring no grounding

  The handy held series of motor cases are safe, user-friendly motors with a robust die-cast aluminum body having a double-insulated structure requiring no grounding. The armature shaft is insulated from the winding core by using resin, and the motor case is insulated from the field core by using resin, thereby ensuring double insulation. That insulation is further reinforced by a resin cover on the inner lead wires.



  Concrete adherents are easy to remove

  On worksites with handy held vibrators, concrete mortar adherents close up much of the air suction and exhaust ports of the motor. Removal of hardened mortar is also hard to perform. The suction port cover and bearing case are therefore coated with fluororesin to enable the concrete to be easily cleaned, resulting in higher maintainability.



  The photo shows a baby flexible type.

  Excellent rubber characteristics

  Handy hard shaft, handy punches, handy scrapers, handy wall concreting, and handy tamper series are equipped with rubber dampers having damping performance that meets the particular uses. This makes this series of vibrators easy on the worker’s hands and user-friendly.



  A motor handle with a double-damped structure

  E motors employed in the handy held vibrator series are each equipped with four small rubber dampers on the handheld handle and the motor frame. The result is that the handy baby flexible series are attenuated in vibration in the flexible hose, while the handy hard shaft, handy punch, handy scraper, handy wall-concreting, and handy tamper series are of a double-damped structure together with the rubber dampers on the motor and the vibrating unit mounts. These are therefore designed to be easy on the workers’ hands.



  Control on motor exhaust sound

  The handy held vibrator series of vibrators control motor noise, thereby being easy on the worksite environment. The exhaust sound from the cooling fin of the series of motors running fast is controlled as far as possible by specially shaping the cooling fin and exhaust port. (5 dB down from our earlier models)



  The motor suction port equipped with a dustproof filter

  On worksites with handy held vibrators in severe dusty operating environments, it is also much feared that some fine aggregate from the dry concrete mortar may go into the motor. The suction port of the motor is therefore equipped with a dual filter. The filter is employed to minimize the incidence of the motor from accidentally being locked in revolution due to the ingress of small pebbles or something similar.



  A shutoff brush employed

  The motor is equipped with a shutoff brush to protect against burns. The motor is prevented from burns by employing a structure that stops the motor by shutting down the power before the brush completely reaches its wear limit in order to prevent imperfect contact with the armature and scratches in the commutator due to brush wear.

  E-KC

  Model	Output (W)	Input (V)	Input (A)	frequency （Hz）	Total length (mm)	Head (dia.×length) (mm)	Weight (kg)
  EKCA	280	100	5	160～200	404	Vibrating face　76×113	4.7
  With holder					407	Vibrating face　120×150	5.8
  EKD				140～180	424	Vibrating face　110×150	5.9
  With holder					427	Vibrating face　200×200	7.6

  （Imperial System）

  Model	Output (W)	Input (V)	Input (A)	frequency （Hz）	Total length (ft)	Head (dia.×length) (in)	Weight (lb)
  EKCA	280	100	5	160～200	1’4″	Vibrating face　3.0×4.4	10.4
  With holder					1’4″	Vibrating face　4.7×5.9	12.8
  EKD				140～180	1’5″	Vibrating face　4.3×5.9	13.0
  With holder					1’5″	Vibrating face　7.9×7.9	16.8

  Product masses include that of the mold cord (0.6kg).

  Dimensions, installation, control panel

  Product dimensional drawings



  Product dimensional table

  Model	Total length （mm）	Shaft length （mm）	Vibrating face (dia.×length) （mm）
  EKCA	404	170	76X113
  EKD	424	190	110×150

  （Imperial System）

  Model	Total length （ft）	Shaft length （in）	Vibrating face (dia.×length) （in）
  EKCA	1’4″	6.7	3.0X4.4
  EKD	1’5″	7.5	4.3×5.9

This product is used for the following applications:

• Concrete placement in general

• Features

  The handy held punch vibrator is a small, powerful concrete vibrator consisting of a vibrating unit connected directly to a motor. The powerful vibration of the vibrating body is transmitted to the vibration plate, so that the machine effectively defoams and surface-finishes slope faces where air bubbles are stubborn. The machine is particularly suited for pouring concrete into soil-retaining plates for secondary concrete products, shelf plates, U-shaped ditches, revetments, and the slope faces of civil engineering structures, and a wide range of other surfaces. Equipped with a robust double-insulated sealed motor made of die-cast aluminum, the handy held vibrator is lightweight and user-friendly.

  Best suited for pouring concrete into thin products of narrow molds and into slope faces

  This is for removing air bubbles from slope faces with stubborn air bubbles. Vibration from the punch plate gathers air bubbles and pulls them up together with the plate, thereby ensuring neat surface finishes.

  Lightweight and very easy to operate

  The handy punches weigh about 8kg and are lightweight and user-friendly on a standard basis. They vary greatly in length and diameter. Because of their offerings that can be used according to different work environments, they prove to be very easily operable.

  The motor case is made of robust die-cast aluminum

  The handy held vibrator series of motor cases are made of lightweight, strong die-cast aluminum. Robustly designed to meet the particular worksite operating conditions, these vibrators can be used with peace of mind.



  The vibrating unit is easy to replace

  If the vibrating body is worn, it is easy to replace. To replace it, you have only to detach the four bolts fastening the rubber damper of the vibrating body on the motor.



  A double-insulated structure requiring no grounding

  The handy held series of motor cases are safe, user-friendly motors with a robust die-cast aluminum body having a double-insulated structure requiring no grounding. The armature shaft is insulated from the winding core by using resin, and the motor case is insulated from the field core by using resin, thereby ensuring double insulation. That insulation is further reinforced by a resin cover on the inner lead wires.



  Concrete adherents are easy to remove

  On worksites with handy held vibrators, concrete mortar adherents close up much of the air suction and exhaust ports of the motor. Removal of hardened mortar is also hard to perform. The suction port cover and bearing case are therefore coated with fluororesin to enable the concrete to be easily cleaned, resulting in higher maintainability.



  The photo shows a baby flexible type.

  Excellent rubber characteristics

  Handy hard shaft, handy punches, handy scrapers, handy wall concreting, and handy tamper series are equipped with rubber dampers having damping performance that meets the particular uses. This makes this series of vibrators easy on the worker’s hands and user-friendly.



  A motor handle with a double-damped structure

  E motors employed in the handy held vibrator series are each equipped with four small rubber dampers on the handheld handle and the motor frame. The result is that the handy baby flexible series are attenuated in vibration in the flexible hose, while the handy hard shaft, handy punch, handy scraper, handy wall-concreting, and handy tamper series are of a double-damped structure together with the rubber dampers on the motor and the vibrating unit mounts. These are therefore designed to be easy on the workers’ hands.



  Control on motor exhaust sound

  The handy held vibrator series of vibrators control motor noise, thereby being easy on the worksite environment. The exhaust sound from the cooling fin of the series of motors running fast is controlled as far as possible by specially shaping the cooling fin and exhaust port. (5 dB down from our earlier models)



  The motor suction port equipped with a dustproof filter

  On worksites with handy held vibrators in severe dusty operating environments, it is also much feared that some fine aggregate from the dry concrete mortar may go into the motor. The suction port of the motor is therefore equipped with a dual filter. The filter is employed to minimize the incidence of the motor from accidentally being locked in revolution due to the ingress of small pebbles or something similar.



  A shutoff brush employed

  The motor is equipped with a shutoff brush to protect against burns. The motor is prevented from burns by employing a structure that stops the motor by shutting down the power before the brush completely reaches its wear limit in order to prevent imperfect contact with the armature and scratches in the commutator due to brush wear.

  List of models

  Model	Code
  E32DP	000716000
  E32DPS	000717000

  Specification

  E-DP

  Model	Output (W)	Input (V)	Input (A)	Frequency （Hz）	Total length （mm）	Head (dia.×length) （mm）	Shaft length （mm）	Weight （kg）
  E32DP	280	100	5.0	225-275	1138	300X400	829	7.5
  E32DPS				205-280	1739	120X1219	1430	7.8

  （Imperial System）

  Model	Output (W)	Input (V)	Input (A)	Frequency （Hz）	Total length （ft）	Head (dia.×length) （in×ft）	Shaft length （ft）	Weight （lb）
  E32DP	280	100	5.0	225-275	3’9″	11.81X1’4″	2’9″	16.5
  E32DPS				205-280	5’8″	4.7X4’0″	4’8″	17.2

  ※All models single-phase 200V specification also production.

  Dimensions, installation, control panel

  Product dimensional drawings



  Product dimensional table

  Model	Total length （ft）	Head (dia.×lenght) （in×ft）	Shaft length （ft）
  E32DP	1138	300X400	829
  E32DPS	1739	120X1219	1430

  （Imperial System）

  Model	Total length （ft）	Head (dia.×lenght) （in×ft）	Shaft length （ft）
  E32DP	3’9″	11.81X1’4″	2’9″
  E32DPS	5’8″	4.72X4’0″	4’8″

This product is used for the following applications:

Concrete placement in general

Test piece manufacturing

Features

This product is used for the following applications:

• Concrete placement in general
• Test piece manufacturing

• Features

  The handy held hard shaft vibrator is a small, powerful vibrator consisting of a vibrating unit connected directly to a motor. Suited mainly for secondary concrete products, along with stone masonry. test piece manufacture, and other purposes. The product comes in a long lineup of models, with various vibrator diameters of 23 mm, 25 mm, 28 mm, and 32 mm, with diverse vibrating unit lengths. Equipped with a robust double-insulated sealed motor made of die-cast aluminum, this handy vibrator is lightweight, coming in a variety of models, which makes it easy to operate on a wide variation of worksites.

  Lightweight and highly operable

  The handy hard shaft series weigh about 5 kg and are lightweight and user-friendly on a standard basis. They vary greatly in length and diameter. Because of their offerings that can be used according to different work environments, they prove to be very easily operable.

  The motor case is made of robust die-cast aluminum

  The handy held vibrator series of motor cases are made of lightweight, strong die-cast aluminum. Robustly designed to meet the particular worksite operating conditions, these vibrators can be used with peace of mind.



  The vibrating unit is easy to replace

  If the vibrating body is worn, it is easy to replace. To replace it, you have only to detach the four bolts fastening the rubber damper of the vibrating body on the motor.



  A long lineup

  The vibrating body of the handy held hard shaft series comes in a variety of diameters and lengths, which allows you to select the appropriate model according to the condition of the particular compaction worksite with concrete and to the mold dimensions, depth, rebar arrangement, and freshly mixed concrete. The vibrating body of the electrode series comes in various lengths: 23 mm, 25 mm, 28 mm, and 32 mm.



  A double-insulated structure requiring no grounding

  The handy held series of motor cases are safe, user-friendly motors with a robust die-cast aluminum body having a double-insulated structure requiring no grounding. The armature shaft is insulated from the winding core by using resin, and the motor case is insulated from the field core by using resin, thereby ensuring double insulation. That insulation is further reinforced by a resin cover on the inner lead wires.



  Concrete adherents are easy to remove

  On worksites with handy held vibrators, concrete mortar adherents close up much of the air suction and exhaust ports of the motor. Removal of hardened mortar is also hard to perform. The suction port cover and bearing case are therefore coated with fluororesin to enable the concrete to be easily cleaned, resulting in higher maintainability.



  The photo shows a baby flexible type.

  Excellent rubber characteristics

  Handy hard shaft, handy punches, handy scrapers, handy wall concreting, and handy tamper series are equipped with rubber dampers having damping performance that meets the particular uses. This makes this series of vibrators easy on the worker’s hands and user-friendly.



  A motor handle with a double-damped structure

  E motors employed in the handy held vibrator series are each equipped with four small rubber dampers on the handheld handle and the motor frame. The result is that the handy baby flexible series are attenuated in vibration in the flexible hose, while the handy hard shaft, handy punch, handy scraper, handy wall-concreting, and handy tamper series are of a double-damped structure together with the rubber dampers on the motor and the vibrating unit mounts. These are therefore designed to be easy on the workers’ hands.



  Control on motor exhaust sound

  The handy held vibrator series of vibrators control motor noise, thereby being easy on the worksite environment. The exhaust sound from the cooling fin of the series of motors running fast is controlled as far as possible by specially shaping the cooling fin and exhaust port. (5 dB down from our earlier models)



  The motor suction port equipped with a dustproof filter

  On worksites with handy held vibrators in severe dusty operating environments, it is also much feared that some fine aggregate from the dry concrete mortar may go into the motor. The suction port of the motor is therefore equipped with a dual filter. The filter is employed to minimize the incidence of the motor from accidentally being locked in revolution due to the ingress of small pebbles or something similar.



  A shutoff brush employed

  The motor is equipped with a shutoff brush to protect against burns. The motor is prevented from burns by employing a structure that stops the motor by shutting down the power before the brush completely reaches its wear limit in order to prevent imperfect contact with the armature and scratches in the commutator due to brush wear.

  Specification

  E-D

  Model	Total length (mm)	Head (dia.×lenght) (mm)
  E23D	866	φ23×557
  E28DA	784	φ28×475
  E32D	807	φ32×498
  E25DS	756	φ25×447
  E23DL	1010	φ23×701
  E28DLA	1015	φ28×706
  E32DL	1036	φ32×727

  （Imperial System）

  Model	Total length (ft)	Head(dia.×lenght) (in×ft)
  E23D	2’10”	7/8″×1’10”
  E28DA	2’7″	1 1/16″×1’7″
  E32D	2’8″	1 1/4″×1’8″
  E25DS	2’6″	1.0″×1’6″
  E23DL	3’4″	7/8″×2’4″
  E28DLA	3’4″	1 1/16″×2’4″
  E32DL	3’5″	1 1/4″×2’5″

  ※Product masses include that of the mold cord (0.6kg).

  Dimensions, installation, control panel

  Product dimensional drawings



  Product dimensional table

  Model	Total length (mm)	Head (dia.×lenght) (mm)
  E23D	866	φ23×557
  E28DA	784	φ28×475
  E32D	807	φ32×498
  E25DS	756	φ25×447
  E23DL	1010	φ23×701
  E28DLA	1015	φ28×706
  E32DL	1036	φ32×727

  （Imperial System）

  Model	Total length (ft)	Head(dia.×lenght) (in×ft)
  E23D	2’10”	7/8″×1’10”
  E28DA	2’7″	1 1/16″×1’7″
  E32D	2’8″	1 1/4″×1’8″
  E25DS	2’6″	1.0″×1’6″
  E23DL	3’4″	7/8″×2’4″
  E28DLA	3’4″	1 1/16″×2’4″
  E32DL	3’5″	1 1/4″×2’5″

This product is used for the following applications:

• Concrete placement in general
• Test piece manufacturing

• Features

  The handy held hard shaft vibrator is a small, powerful vibrator consisting of a vibrating unit connected directly to a motor. Suited mainly for secondary concrete products, along with stone masonry. test piece manufacture, and other purposes. The product comes in a long lineup of models, with various vibrator diameters of 23 mm, 25 mm, 28 mm, and 32 mm, with diverse vibrating unit lengths. Equipped with a robust double-insulated sealed motor made of die-cast aluminum, this handy vibrator is lightweight, coming in a variety of models, which makes it easy to operate on a wide variation of worksites.

  Lightweight and highly operable

  The handy hard shaft series weigh about 5 kg and are lightweight and user-friendly on a standard basis. They vary greatly in length and diameter. Because of their offerings that can be used according to different work environments, they prove to be very easily operable.

  The motor case is made of robust die-cast aluminum

  The handy held vibrator series of motor cases are made of lightweight, strong die-cast aluminum. Robustly designed to meet the particular worksite operating conditions, these vibrators can be used with peace of mind.



  The vibrating unit is easy to replace

  If the vibrating body is worn, it is easy to replace. To replace it, you have only to detach the four bolts fastening the rubber damper of the vibrating body on the motor.



  A long lineup

  The vibrating body of the handy held hard shaft series comes in a variety of diameters and lengths, which allows you to select the appropriate model according to the condition of the particular compaction worksite with concrete and to the mold dimensions, depth, rebar arrangement, and freshly mixed concrete. The vibrating body of the electrode series comes in various lengths: 23 mm, 25 mm, 28 mm, and 32 mm.



  A double-insulated structure requiring no grounding

  The handy held series of motor cases are safe, user-friendly motors with a robust die-cast aluminum body having a double-insulated structure requiring no grounding. The armature shaft is insulated from the winding core by using resin, and the motor case is insulated from the field core by using resin, thereby ensuring double insulation. That insulation is further reinforced by a resin cover on the inner lead wires.



  Concrete adherents are easy to remove

  On worksites with handy held vibrators, concrete mortar adherents close up much of the air suction and exhaust ports of the motor. Removal of hardened mortar is also hard to perform. The suction port cover and bearing case are therefore coated with fluororesin to enable the concrete to be easily cleaned, resulting in higher maintainability.



  The photo shows a baby flexible type.

  Excellent rubber characteristics

  Handy hard shaft, handy punches, handy scrapers, handy wall concreting, and handy tamper series are equipped with rubber dampers having damping performance that meets the particular uses. This makes this series of vibrators easy on the worker’s hands and user-friendly.



  A motor handle with a double-damped structure

  E motors employed in the handy held vibrator series are each equipped with four small rubber dampers on the handheld handle and the motor frame. The result is that the handy baby flexible series are attenuated in vibration in the flexible hose, while the handy hard shaft, handy punch, handy scraper, handy wall-concreting, and handy tamper series are of a double-damped structure together with the rubber dampers on the motor and the vibrating unit mounts. These are therefore designed to be easy on the workers’ hands.



  Control on motor exhaust sound

  The handy held vibrator series of vibrators control motor noise, thereby being easy on the worksite environment. The exhaust sound from the cooling fin of the series of motors running fast is controlled as far as possible by specially shaping the cooling fin and exhaust port. (5 dB down from our earlier models)



  The motor suction port equipped with a dustproof filter

  On worksites with handy held vibrators in severe dusty operating environments, it is also much feared that some fine aggregate from the dry concrete mortar may go into the motor. The suction port of the motor is therefore equipped with a dual filter. The filter is employed to minimize the incidence of the motor from accidentally being locked in revolution due to the ingress of small pebbles or something similar.



  A shutoff brush employed

  The motor is equipped with a shutoff brush to protect against burns. The motor is prevented from burns by employing a structure that stops the motor by shutting down the power before the brush completely reaches its wear limit in order to prevent imperfect contact with the armature and scratches in the commutator due to brush wear.

  Specification

  E-D

  Model	Total length (mm)	Head (dia.×lenght) (mm)
  E23D	866	φ23×557
  E28DA	784	φ28×475
  E32D	807	φ32×498
  E25DS	756	φ25×447
  E23DL	1010	φ23×701
  E28DLA	1015	φ28×706
  E32DL	1036	φ32×727

  （Imperial System）

  Model	Total length (ft)	Head(dia.×lenght) (in×ft)
  E23D	2’10”	7/8″×1’10”
  E28DA	2’7″	1 1/16″×1’7″
  E32D	2’8″	1 1/4″×1’8″
  E25DS	2’6″	1.0″×1’6″
  E23DL	3’4″	7/8″×2’4″
  E28DLA	3’4″	1 1/16″×2’4″
  E32DL	3’5″	1 1/4″×2’5″

  ※Product masses include that of the mold cord (0.6kg).

  Dimensions, installation, control panel

  Product dimensional drawings



  Product dimensional table

  Model	Total length (mm)	Head (dia.×lenght) (mm)
  E23D	866	φ23×557
  E28DA	784	φ28×475
  E32D	807	φ32×498
  E25DS	756	φ25×447
  E23DL	1010	φ23×701
  E28DLA	1015	φ28×706
  E32DL	1036	φ32×727

  （Imperial System）

  Model	Total length (ft)	Head(dia.×lenght) (in×ft)
  E23D	2’10”	7/8″×1’10”
  E28DA	2’7″	1 1/16″×1’7″
  E32D	2’8″	1 1/4″×1’8″
  E25DS	2’6″	1.0″×1’6″
  E23DL	3’4″	7/8″×2’4″
  E28DLA	3’4″	1 1/16″×2’4″
  E32DL	3’5″	1 1/4″×2’5″

This product is used for the following applications:

• Concrete placement in general
• Test piece manufacturing

• Features

  The handy held hard shaft vibrator is a small, powerful vibrator consisting of a vibrating unit connected directly to a motor. Suited mainly for secondary concrete products, along with stone masonry. test piece manufacture, and other purposes. The product comes in a long lineup of models, with various vibrator diameters of 23 mm, 25 mm, 28 mm, and 32 mm, with diverse vibrating unit lengths. Equipped with a robust double-insulated sealed motor made of die-cast aluminum, this handy vibrator is lightweight, coming in a variety of models, which makes it easy to operate on a wide variation of worksites.

  Lightweight and highly operable

  The handy hard shaft series weigh about 5 kg and are lightweight and user-friendly on a standard basis. They vary greatly in length and diameter. Because of their offerings that can be used according to different work environments, they prove to be very easily operable.

  The motor case is made of robust die-cast aluminum

  The handy held vibrator series of motor cases are made of lightweight, strong die-cast aluminum. Robustly designed to meet the particular worksite operating conditions, these vibrators can be used with peace of mind.



  The vibrating unit is easy to replace

  If the vibrating body is worn, it is easy to replace. To replace it, you have only to detach the four bolts fastening the rubber damper of the vibrating body on the motor.



  A long lineup

  The vibrating body of the handy held hard shaft series comes in a variety of diameters and lengths, which allows you to select the appropriate model according to the condition of the particular compaction worksite with concrete and to the mold dimensions, depth, rebar arrangement, and freshly mixed concrete. The vibrating body of the electrode series comes in various lengths: 23 mm, 25 mm, 28 mm, and 32 mm.



  A double-insulated structure requiring no grounding

  The handy held series of motor cases are safe, user-friendly motors with a robust die-cast aluminum body having a double-insulated structure requiring no grounding. The armature shaft is insulated from the winding core by using resin, and the motor case is insulated from the field core by using resin, thereby ensuring double insulation. That insulation is further reinforced by a resin cover on the inner lead wires.



  Concrete adherents are easy to remove

  On worksites with handy held vibrators, concrete mortar adherents close up much of the air suction and exhaust ports of the motor. Removal of hardened mortar is also hard to perform. The suction port cover and bearing case are therefore coated with fluororesin to enable the concrete to be easily cleaned, resulting in higher maintainability.



  The photo shows a baby flexible type.

  Excellent rubber characteristics

  Handy hard shaft, handy punches, handy scrapers, handy wall concreting, and handy tamper series are equipped with rubber dampers having damping performance that meets the particular uses. This makes this series of vibrators easy on the worker’s hands and user-friendly.



  A motor handle with a double-damped structure

  E motors employed in the handy held vibrator series are each equipped with four small rubber dampers on the handheld handle and the motor frame. The result is that the handy baby flexible series are attenuated in vibration in the flexible hose, while the handy hard shaft, handy punch, handy scraper, handy wall-concreting, and handy tamper series are of a double-damped structure together with the rubber dampers on the motor and the vibrating unit mounts. These are therefore designed to be easy on the workers’ hands.



  Control on motor exhaust sound

  The handy held vibrator series of vibrators control motor noise, thereby being easy on the worksite environment. The exhaust sound from the cooling fin of the series of motors running fast is controlled as far as possible by specially shaping the cooling fin and exhaust port. (5 dB down from our earlier models)



  The motor suction port equipped with a dustproof filter

  On worksites with handy held vibrators in severe dusty operating environments, it is also much feared that some fine aggregate from the dry concrete mortar may go into the motor. The suction port of the motor is therefore equipped with a dual filter. The filter is employed to minimize the incidence of the motor from accidentally being locked in revolution due to the ingress of small pebbles or something similar.



  A shutoff brush employed

  The motor is equipped with a shutoff brush to protect against burns. The motor is prevented from burns by employing a structure that stops the motor by shutting down the power before the brush completely reaches its wear limit in order to prevent imperfect contact with the armature and scratches in the commutator due to brush wear.

  Specification

  E-D

  Model	Total length (mm)	Head (dia.×lenght) (mm)
  E23D	866	φ23×557
  E28DA	784	φ28×475
  E32D	807	φ32×498
  E25DS	756	φ25×447
  E23DL	1010	φ23×701
  E28DLA	1015	φ28×706
  E32DL	1036	φ32×727

  （Imperial System）

  Model	Total length (ft)	Head(dia.×lenght) (in×ft)
  E23D	2’10”	7/8″×1’10”
  E28DA	2’7″	1 1/16″×1’7″
  E32D	2’8″	1 1/4″×1’8″
  E25DS	2’6″	1.0″×1’6″
  E23DL	3’4″	7/8″×2’4″
  E28DLA	3’4″	1 1/16″×2’4″
  E32DL	3’5″	1 1/4″×2’5″

  ※Product masses include that of the mold cord (0.6kg).

  Dimensions, installation, control panel

  Product dimensional drawings



  Product dimensional table

  Model	Total length (mm)	Head (dia.×lenght) (mm)
  E23D	866	φ23×557
  E28DA	784	φ28×475
  E32D	807	φ32×498
  E25DS	756	φ25×447
  E23DL	1010	φ23×701
  E28DLA	1015	φ28×706
  E32DL	1036	φ32×727

  （Imperial System）

  Model	Total length (ft)	Head(dia.×lenght) (in×ft)
  E23D	2’10”	7/8″×1’10”
  E28DA	2’7″	1 1/16″×1’7″
  E32D	2’8″	1 1/4″×1’8″
  E25DS	2’6″	1.0″×1’6″
  E23DL	3’4″	7/8″×2’4″
  E28DLA	3’4″	1 1/16″×2’4″
  E32DL	3’5″	1 1/4″×2’5″

This product is used for the following applications:

• Concrete placement in general

• Features

  The handy scraper-type vibrator is a small, powerful concrete vibrator consisting of a vibrating unit connected directly to a motor. It transmits powerful vibration from the vibrating body to the scraper-shaped vibrating plate, thereby effectively producing thin products and surface finishes inaccessible to general round vibrators. Suited mainly for pouring concrete in secondary concrete products such as laggings, shelf plates, U-grooves, and other thin products. Equipped with a robust double-insulated sealed motor made of die-cast aluminum, the handy vibrator is lightweight and user-friendly.

  Best suited for pouring concrete in thin products of narrow molds

  Used in places inaccessible to electrodes, handy punches, and similar tools. Best suited for pouring concrete in very narrow thin products such as U-grooves, flat plates, laggings, shelf plates, and the like.

  Lightweight and highly operable

  The handy held punch vibrator weighs about 5 kg and are lightweight and user-friendly on a standard basis. They vary greatly in length and diameter. Because of their offerings that can be used according to different work environments, they prove to be very easily operable.

  The motor case is made of robust die-cast aluminum

  The handy held vibrator series of motor cases are made of lightweight, strong die-cast aluminum. Robustly designed to meet the particular worksite operating conditions, these vibrators can be used with peace of mind.



  The vibrating unit is easy to replace

  If the vibrating body is worn, it is easy to replace. To replace it, you have only to detach the four bolts fastening the rubber damper of the vibrating body on the motor.



  A double-insulated structure requiring no grounding

  The handy held series of motor cases are safe, user-friendly motors with a robust die-cast aluminum body having a double-insulated structure requiring no grounding. The armature shaft is insulated from the winding core by using resin, and the motor case is insulated from the field core by using resin, thereby ensuring double insulation. That insulation is further reinforced by a resin cover on the inner lead wires.



  Concrete adherents are easy to remove

  On worksites with handy held vibrators, concrete mortar adherents close up much of the air suction and exhaust ports of the motor. Removal of hardened mortar is also hard to perform. The suction port cover and bearing case are therefore coated with fluororesin to enable the concrete to be easily cleaned, resulting in higher maintainability.



  Excellent rubber characteristics

  Handy hard shaft, handy punches, handy scrapers, handy wall concreting, and handy tamper series are equipped with rubber dampers having damping performance that meets the particular uses. This makes this series of vibrators easy on the worker’s hands and user-friendly.



  A motor handle with a double-damped structure

  E motors employed in the handy held vibrator series are each equipped with four small rubber dampers on the handheld handle and the motor frame. The result is that the handy baby flexible series are attenuated in vibration in the flexible hose, while the handy hard shaft, handy punch, handy scraper, handy wall-concreting, and handy tamper series are of a double-damped structure together with the rubber dampers on the motor and the vibrating unit mounts. These are therefore designed to be easy on the workers’ hands.



  Control on motor exhaust sound

  The handy held vibrator series of vibrators control motor noise, thereby being easy on the worksite environment. The exhaust sound from the cooling fin of the series of motors running fast is controlled as far as possible by specially shaping the cooling fin and exhaust port. (5 dB down from our earlier models)



  The motor suction port equipped with a dustproof filter

  On worksites with handy held vibrators in severe dusty operating environments, it is also much feared that some fine aggregate from the dry concrete mortar may go into the motor. The suction port of the motor is therefore equipped with a dual filter. The filter is employed to minimize the incidence of the motor from accidentally being locked in revolution due to the ingress of small pebbles or something similar.



  A shutoff brush employed

  The motor is equipped with a shutoff brush to protect against burns. The motor is prevented from burns by employing a structure that stops the motor by shutting down the power before the brush completely reaches its wear limit in order to prevent imperfect contact with the armature and scratches in the commutator due to brush wear.

  Specification

  E-DH

  Model	Output (W)	Input (V)	Input (A)	Frequency （Hz）	Total length （mm）	Head (dia.×length) （mm）	Shaft　length （mm）	Weight （kg）
  E32DH	280	100	5.0	225-275	1070	50X550	761	5.6

  （Imperial System）

  Model	Output (W)	Input (V)	Input (A)	Frequency （Hz）	Total length （ft）	Head (dia.×length) （in×ft）	Shaft　length （ft）	Weight （lb）
  E32DH	280	100	5	225～275	3’6″	1.97X1’10”	2’6″	12.3

  Product masses include that of the mold cord (0.6kg).

  Dimensions, installation, control panel

  Product dimensional drawings



  Product dimensional table

  Model	Total length (mm)	Shaft　length (mm)	Head (dia.×lenght) (mm)
  E32DH	1070	761	50X550

  （Imperial System）

  Model	Total length （ft）	Shaft　length （ft）	Head (dia.×lenght) （in×ft）
  E32DH	3’6″	2’6″	1.97X1’10”

This product is used for the following applications:

• Concrete placement in general

• Features

  The handy held punch vibrator is a small, powerful concrete vibrator consisting of a vibrating unit connected directly to a motor. The powerful vibration of the vibrating body is transmitted to the vibration plate, so that the machine effectively defoams and surface-finishes slope faces where air bubbles are stubborn. The machine is particularly suited for pouring concrete into soil-retaining plates for secondary concrete products, shelf plates, U-shaped ditches, revetments, and the slope faces of civil engineering structures, and a wide range of other surfaces. Equipped with a robust double-insulated sealed motor made of die-cast aluminum, the handy held vibrator is lightweight and user-friendly.

  Best suited for pouring concrete into thin products of narrow molds and into slope faces

  This is for removing air bubbles from slope faces with stubborn air bubbles. Vibration from the punch plate gathers air bubbles and pulls them up together with the plate, thereby ensuring neat surface finishes.

  Lightweight and very easy to operate

  The handy punches weigh about 8kg and are lightweight and user-friendly on a standard basis. They vary greatly in length and diameter. Because of their offerings that can be used according to different work environments, they prove to be very easily operable.

  The motor case is made of robust die-cast aluminum

  The handy held vibrator series of motor cases are made of lightweight, strong die-cast aluminum. Robustly designed to meet the particular worksite operating conditions, these vibrators can be used with peace of mind.



  The vibrating unit is easy to replace

  If the vibrating body is worn, it is easy to replace. To replace it, you have only to detach the four bolts fastening the rubber damper of the vibrating body on the motor.



  A double-insulated structure requiring no grounding

  The handy held series of motor cases are safe, user-friendly motors with a robust die-cast aluminum body having a double-insulated structure requiring no grounding. The armature shaft is insulated from the winding core by using resin, and the motor case is insulated from the field core by using resin, thereby ensuring double insulation. That insulation is further reinforced by a resin cover on the inner lead wires.



  Concrete adherents are easy to remove

  On worksites with handy held vibrators, concrete mortar adherents close up much of the air suction and exhaust ports of the motor. Removal of hardened mortar is also hard to perform. The suction port cover and bearing case are therefore coated with fluororesin to enable the concrete to be easily cleaned, resulting in higher maintainability.



  The photo shows a baby flexible type.

  Excellent rubber characteristics

  Handy hard shaft, handy punches, handy scrapers, handy wall concreting, and handy tamper series are equipped with rubber dampers having damping performance that meets the particular uses. This makes this series of vibrators easy on the worker’s hands and user-friendly.



  A motor handle with a double-damped structure

  E motors employed in the handy held vibrator series are each equipped with four small rubber dampers on the handheld handle and the motor frame. The result is that the handy baby flexible series are attenuated in vibration in the flexible hose, while the handy hard shaft, handy punch, handy scraper, handy wall-concreting, and handy tamper series are of a double-damped structure together with the rubber dampers on the motor and the vibrating unit mounts. These are therefore designed to be easy on the workers’ hands.



  Control on motor exhaust sound

  The handy held vibrator series of vibrators control motor noise, thereby being easy on the worksite environment. The exhaust sound from the cooling fin of the series of motors running fast is controlled as far as possible by specially shaping the cooling fin and exhaust port. (5 dB down from our earlier models)



  The motor suction port equipped with a dustproof filter

  On worksites with handy held vibrators in severe dusty operating environments, it is also much feared that some fine aggregate from the dry concrete mortar may go into the motor. The suction port of the motor is therefore equipped with a dual filter. The filter is employed to minimize the incidence of the motor from accidentally being locked in revolution due to the ingress of small pebbles or something similar.



  A shutoff brush employed

  The motor is equipped with a shutoff brush to protect against burns. The motor is prevented from burns by employing a structure that stops the motor by shutting down the power before the brush completely reaches its wear limit in order to prevent imperfect contact with the armature and scratches in the commutator due to brush wear.

  List of models

  Model	Code
  E32DP	000716000
  E32DPS	000717000

  Specification

  E-DP

  Model	Output (W)	Input (V)	Input (A)	Frequency （Hz）	Total length （mm）	Head (dia.×length) （mm）	Shaft length （mm）	Weight （kg）
  E32DP	280	100	5.0	225-275	1138	300X400	829	7.5
  E32DPS				205-280	1739	120X1219	1430	7.8

  （Imperial System）

  Model	Output (W)	Input (V)	Input (A)	Frequency （Hz）	Total length （ft）	Head (dia.×length) （in×ft）	Shaft length （ft）	Weight （lb）
  E32DP	280	100	5.0	225-275	3’9″	11.81X1’4″	2’9″	16.5
  E32DPS				205-280	5’8″	4.7X4’0″	4’8″	17.2

  ※All models single-phase 200V specification also production.

  Dimensions, installation, control panel

  Product dimensional drawings



  Product dimensional table

  Model	Total length （ft）	Head (dia.×lenght) （in×ft）	Shaft length （ft）
  E32DP	1138	300X400	829
  E32DPS	1739	120X1219	1430

  （Imperial System）

  Model	Total length （ft）	Head (dia.×lenght) （in×ft）	Shaft length （ft）
  E32DP	3’9″	11.81X1’4″	2’9″
  E32DPS	5’8″	4.72X4’0″	4’8″

This product is used for the following applications:

• Concrete placement in general
• Test piece manufacturing

• Features

  The handy held hard shaft vibrator is a small, powerful vibrator consisting of a vibrating unit connected directly to a motor. Suited mainly for secondary concrete products, along with stone masonry. test piece manufacture, and other purposes. The product comes in a long lineup of models, with various vibrator diameters of 23 mm, 25 mm, 28 mm, and 32 mm, with diverse vibrating unit lengths. Equipped with a robust double-insulated sealed motor made of die-cast aluminum, this handy vibrator is lightweight, coming in a variety of models, which makes it easy to operate on a wide variation of worksites.

  Lightweight and highly operable

  The handy hard shaft series weigh about 5 kg and are lightweight and user-friendly on a standard basis. They vary greatly in length and diameter. Because of their offerings that can be used according to different work environments, they prove to be very easily operable.

  The motor case is made of robust die-cast aluminum

  The handy held vibrator series of motor cases are made of lightweight, strong die-cast aluminum. Robustly designed to meet the particular worksite operating conditions, these vibrators can be used with peace of mind.



  The vibrating unit is easy to replace

  If the vibrating body is worn, it is easy to replace. To replace it, you have only to detach the four bolts fastening the rubber damper of the vibrating body on the motor.



  A long lineup

  The vibrating body of the handy held hard shaft series comes in a variety of diameters and lengths, which allows you to select the appropriate model according to the condition of the particular compaction worksite with concrete and to the mold dimensions, depth, rebar arrangement, and freshly mixed concrete. The vibrating body of the electrode series comes in various lengths: 23 mm, 25 mm, 28 mm, and 32 mm.



  A double-insulated structure requiring no grounding

  The handy held series of motor cases are safe, user-friendly motors with a robust die-cast aluminum body having a double-insulated structure requiring no grounding. The armature shaft is insulated from the winding core by using resin, and the motor case is insulated from the field core by using resin, thereby ensuring double insulation. That insulation is further reinforced by a resin cover on the inner lead wires.



  Concrete adherents are easy to remove

  On worksites with handy held vibrators, concrete mortar adherents close up much of the air suction and exhaust ports of the motor. Removal of hardened mortar is also hard to perform. The suction port cover and bearing case are therefore coated with fluororesin to enable the concrete to be easily cleaned, resulting in higher maintainability.



  The photo shows a baby flexible type.

  Excellent rubber characteristics

  Handy hard shaft, handy punches, handy scrapers, handy wall concreting, and handy tamper series are equipped with rubber dampers having damping performance that meets the particular uses. This makes this series of vibrators easy on the worker’s hands and user-friendly.



  A motor handle with a double-damped structure

  E motors employed in the handy held vibrator series are each equipped with four small rubber dampers on the handheld handle and the motor frame. The result is that the handy baby flexible series are attenuated in vibration in the flexible hose, while the handy hard shaft, handy punch, handy scraper, handy wall-concreting, and handy tamper series are of a double-damped structure together with the rubber dampers on the motor and the vibrating unit mounts. These are therefore designed to be easy on the workers’ hands.



  Control on motor exhaust sound

  The handy held vibrator series of vibrators control motor noise, thereby being easy on the worksite environment. The exhaust sound from the cooling fin of the series of motors running fast is controlled as far as possible by specially shaping the cooling fin and exhaust port. (5 dB down from our earlier models)



  The motor suction port equipped with a dustproof filter

  On worksites with handy held vibrators in severe dusty operating environments, it is also much feared that some fine aggregate from the dry concrete mortar may go into the motor. The suction port of the motor is therefore equipped with a dual filter. The filter is employed to minimize the incidence of the motor from accidentally being locked in revolution due to the ingress of small pebbles or something similar.



  A shutoff brush employed

  The motor is equipped with a shutoff brush to protect against burns. The motor is prevented from burns by employing a structure that stops the motor by shutting down the power before the brush completely reaches its wear limit in order to prevent imperfect contact with the armature and scratches in the commutator due to brush wear.

  Specification

  E-D

  Model	Total length (mm)	Head (dia.×lenght) (mm)
  E23D	866	φ23×557
  E28DA	784	φ28×475
  E32D	807	φ32×498
  E25DS	756	φ25×447
  E23DL	1010	φ23×701
  E28DLA	1015	φ28×706
  E32DL	1036	φ32×727

  （Imperial System）

  Model	Total length (ft)	Head(dia.×lenght) (in×ft)
  E23D	2’10”	7/8″×1’10”
  E28DA	2’7″	1 1/16″×1’7″
  E32D	2’8″	1 1/4″×1’8″
  E25DS	2’6″	1.0″×1’6″
  E23DL	3’4″	7/8″×2’4″
  E28DLA	3’4″	1 1/16″×2’4″
  E32DL	3’5″	1 1/4″×2’5″

  ※Product masses include that of the mold cord (0.6kg).

  Dimensions, installation, control panel

  Product dimensional drawings



  Product dimensional table

  Model	Total length (mm)	Head (dia.×lenght) (mm)
  E23D	866	φ23×557
  E28DA	784	φ28×475
  E32D	807	φ32×498
  E25DS	756	φ25×447
  E23DL	1010	φ23×701
  E28DLA	1015	φ28×706
  E32DL	1036	φ32×727

  （Imperial System）

  Model	Total length (ft)	Head(dia.×lenght) (in×ft)
  E23D	2’10”	7/8″×1’10”
  E28DA	2’7″	1 1/16″×1’7″
  E32D	2’8″	1 1/4″×1’8″
  E25DS	2’6″	1.0″×1’6″
  E23DL	3’4″	7/8″×2’4″
  E28DLA	3’4″	1 1/16″×2’4″
  E32DL	3’5″	1 1/4″×2’5″

This product is used for the following applications:

• Concrete placement in general
• Test piece manufacturing

• Features

  Connected directly to a motor, this external vibrator transmits powerful vibration to a wedged vibration plate, effectively defoaming and surface-finishing slope faces where it is hard to remove air bubbles. The wedged vibrator can be inserted into a single cylinder from above or below and is easy to operate. The external vibrator is best suited for surface-finishing columns, walls, and other components.

  Effective wedging

  Even a light pressure by wedging effectively vibrates concrete panels, thereby producing neat surface finishes free of surface bubbles and fragile concrete.

  Applicable to both round pipe and angle pipe single cylinders

  This machine is applicable to single cylinders of both round pipe 48.6 mm in diameter and angle pipe 60 mm in diameter. They are extremely easy to use. You have only to insert them between the concrete panel and the machine.



  Reduced vibration at hand

  Our unique rubber flange controls vibration from the vibrating body, thereby reducing vibration at hand.



  Excellent work efficiency

  While keeping the machine vibrating, you can move it. You can therefore easily switch between working locations, resulting in high work efficiency. Small and lightweight with a body weight of 5.3 kg, the product allows you to work easily even on poorly-conditioned ground.



  Easy to maintain

  Even if the wedge is damaged or worn, you have only to connect the motor joint to the hexagonal shaft of the wedge to perform easy replacement.

  Specification

  EPS

  Model	Output (W)	Input (V)	Input (A)	Frequency （Hz）	Total length (mm)	Face/Head dimension （mm）	Weight (kg)
  EPS	280	100	5.0	250～300	496	80×190	5.3

  （Imperial System）

  Model	Output (W)	Input (V)	Input (A)	Frequency （Hz）	Total length (in)	Face/Head dimension （in）	Weight (lb)
  EPS	280	100	5.0	250～300	1’8″	3.12×7.41	2.4

  *The weight of mold cord 5m is included.

  Dimensions, installation, control panel

  Product dimensional drawings



This product is used for the following applications:

• Concrete placement in general
• Test piece manufacturing

• Features

  The handy held hard shaft vibrator is a small, powerful vibrator consisting of a vibrating unit connected directly to a motor. Suited mainly for secondary concrete products, along with stone masonry. test piece manufacture, and other purposes. The product comes in a long lineup of models, with various vibrator diameters of 23 mm, 25 mm, 28 mm, and 32 mm, with diverse vibrating unit lengths. Equipped with a robust double-insulated sealed motor made of die-cast aluminum, this handy vibrator is lightweight, coming in a variety of models, which makes it easy to operate on a wide variation of worksites.

  Lightweight and highly operable

  The handy hard shaft series weigh about 5 kg and are lightweight and user-friendly on a standard basis. They vary greatly in length and diameter. Because of their offerings that can be used according to different work environments, they prove to be very easily operable.

  The motor case is made of robust die-cast aluminum

  The handy held vibrator series of motor cases are made of lightweight, strong die-cast aluminum. Robustly designed to meet the particular worksite operating conditions, these vibrators can be used with peace of mind.



  The vibrating unit is easy to replace

  If the vibrating body is worn, it is easy to replace. To replace it, you have only to detach the four bolts fastening the rubber damper of the vibrating body on the motor.



  A long lineup

  The vibrating body of the handy held hard shaft series comes in a variety of diameters and lengths, which allows you to select the appropriate model according to the condition of the particular compaction worksite with concrete and to the mold dimensions, depth, rebar arrangement, and freshly mixed concrete. The vibrating body of the electrode series comes in various lengths: 23 mm, 25 mm, 28 mm, and 32 mm.



  A double-insulated structure requiring no grounding

  The handy held series of motor cases are safe, user-friendly motors with a robust die-cast aluminum body having a double-insulated structure requiring no grounding. The armature shaft is insulated from the winding core by using resin, and the motor case is insulated from the field core by using resin, thereby ensuring double insulation. That insulation is further reinforced by a resin cover on the inner lead wires.



  Concrete adherents are easy to remove

  On worksites with handy held vibrators, concrete mortar adherents close up much of the air suction and exhaust ports of the motor. Removal of hardened mortar is also hard to perform. The suction port cover and bearing case are therefore coated with fluororesin to enable the concrete to be easily cleaned, resulting in higher maintainability.



  The photo shows a baby flexible type.

  Excellent rubber characteristics

  Handy hard shaft, handy punches, handy scrapers, handy wall concreting, and handy tamper series are equipped with rubber dampers having damping performance that meets the particular uses. This makes this series of vibrators easy on the worker’s hands and user-friendly.



  A motor handle with a double-damped structure

  E motors employed in the handy held vibrator series are each equipped with four small rubber dampers on the handheld handle and the motor frame. The result is that the handy baby flexible series are attenuated in vibration in the flexible hose, while the handy hard shaft, handy punch, handy scraper, handy wall-concreting, and handy tamper series are of a double-damped structure together with the rubber dampers on the motor and the vibrating unit mounts. These are therefore designed to be easy on the workers’ hands.



  Control on motor exhaust sound

  The handy held vibrator series of vibrators control motor noise, thereby being easy on the worksite environment. The exhaust sound from the cooling fin of the series of motors running fast is controlled as far as possible by specially shaping the cooling fin and exhaust port. (5 dB down from our earlier models)



  The motor suction port equipped with a dustproof filter

  On worksites with handy held vibrators in severe dusty operating environments, it is also much feared that some fine aggregate from the dry concrete mortar may go into the motor. The suction port of the motor is therefore equipped with a dual filter. The filter is employed to minimize the incidence of the motor from accidentally being locked in revolution due to the ingress of small pebbles or something similar.



  A shutoff brush employed

  The motor is equipped with a shutoff brush to protect against burns. The motor is prevented from burns by employing a structure that stops the motor by shutting down the power before the brush completely reaches its wear limit in order to prevent imperfect contact with the armature and scratches in the commutator due to brush wear.

  Specification

  E-D

  Model	Total length (mm)	Head (dia.×lenght) (mm)
  E23D	866	φ23×557
  E28DA	784	φ28×475
  E32D	807	φ32×498
  E25DS	756	φ25×447
  E23DL	1010	φ23×701
  E28DLA	1015	φ28×706
  E32DL	1036	φ32×727

  （Imperial System）

  Model	Total length (ft)	Head(dia.×lenght) (in×ft)
  E23D	2’10”	7/8″×1’10”
  E28DA	2’7″	1 1/16″×1’7″
  E32D	2’8″	1 1/4″×1’8″
  E25DS	2’6″	1.0″×1’6″
  E23DL	3’4″	7/8″×2’4″
  E28DLA	3’4″	1 1/16″×2’4″
  E32DL	3’5″	1 1/4″×2’5″

  ※Product masses include that of the mold cord (0.6kg).

  Dimensions, installation, control panel

  Product dimensional drawings



  Product dimensional table

  Model	Total length (mm)	Head (dia.×lenght) (mm)
  E23D	866	φ23×557
  E28DA	784	φ28×475
  E32D	807	φ32×498
  E25DS	756	φ25×447
  E23DL	1010	φ23×701
  E28DLA	1015	φ28×706
  E32DL	1036	φ32×727

  （Imperial System）

  Model	Total length (ft)	Head(dia.×lenght) (in×ft)
  E23D	2’10”	7/8″×1’10”
  E28DA	2’7″	1 1/16″×1’7″
  E32D	2’8″	1 1/4″×1’8″
  E25DS	2’6″	1.0″×1’6″
  E23DL	3’4″	7/8″×2’4″
  E28DLA	3’4″	1 1/16″×2’4″
  E32DL	3’5″	1 1/4″×2’5″

This product is used for the following applications:

• Concrete placement in general
• Test piece manufacturing

• Features

  The baby flexible vibrator is small and lightweight. Unlike the electrode type, the motor is connected to the vibrating unit by a rubber flexible hose. Even if the hose is bent somewhat during concreting, it can still remain useful. This flexible concrete vibrator (inner vibrator) can be used in a wide range of applications, including mainly residential foundation works, manufacturing of secondary products and test pieces, masonry, and the construction of retaining walls.
  This handy vibrator is easy to use on a wide range of worksites because it employs a robust aluminum die-cast double-insulated sealed motor, is lightweight, and comes in a wide range of models.

  Lightweight and very easy to operate

  Lightweight baby flexible vibrators weigh about 5 to 8 kilograms on a standard basis. They are also capable of moving flexibly from place to place, resulting in user-friendliness. Also various are hose lengths and vibrating unit diameters. You can use them to meet your particular worksite environments, resulting in high ease of operation.

  Concreting is possible in deep locations as well

  Handy baby flexible vibrators are equipped standard with flexible hoses 0.6, 1.0, 1.5, and 2.0 m. Hose lengths can be selected according to the particular concreting condition on a specific worksite, resulting in convenient use. The motor, on the other hand, can be shared among different models, which makes it possible to replace parts of different lengths.

  The motor case is made of robust die-cast aluminum

  The handy held vibrator series of motor cases are made of lightweight, strong die-cast aluminum. Robustly designed to meet the particular worksite operating conditions, these vibrators can be used with peace of mind.



  The vibrating unit is easy to replace

  When the vibrating body or flexible hose gets worn, you can replace it easily. To replace it, you have only to loosen the hose gland (right-hand screw) that fastens the vibrating body flexible hose to the motor, and remove the screws (right-hand screws) of the flexible shaft and motor.
  (In installing or detaching the hose gland, hammer it lightly.)



  A double-insulated structure requiring no grounding

  The handy held series of motor cases are safe, user-friendly motors with a robust die-cast aluminum body having a double-insulated structure requiring no grounding. The armature shaft is insulated from the winding core by using resin, and the motor case is insulated from the field core by using resin, thereby ensuring double insulation. That insulation is further reinforced by a resin cover on the inner lead wires.



  Concrete adherents are easy to remove

  On worksites with handy held vibrators, concrete mortar adherents close up much of the air suction and exhaust ports of the motor. Removal of hardened mortar is also hard to perform. The suction port cover and bearing case are therefore coated with fluororesin to enable the concrete to be easily cleaned, resulting in higher maintainability.



  A motor handle with a double-damped structure

  E motors employed in the handy held vibrator series are each equipped with four small rubber dampers on the handheld handle and the motor frame. The result is that the handy baby flexible series are attenuated in vibration in the flexible hose, while the handy hard shaft, handy punch, handy scraper, handy wall-concreting, and handy tamper series are of a double-damped structure together with the rubber dampers on the motor and the vibrating unit mounts. These are therefore designed to be easy on the workers’ hands.



  Control on motor exhaust sound

  The handy held vibrator series of vibrators control motor noise, thereby being easy on the worksite environment. The exhaust sound from the cooling fin of the series of motors running fast is controlled as far as possible by specially shaping the cooling fin and exhaust port.
  (5 dB down from our earlier models)



  The motor suction port equipped with a dustproof filter

  On worksites with handy held vibrators in severe dusty operating environments, it is also much feared that some fine aggregate from the dry concrete mortar may go into the motor. The suction port of the motor is therefore equipped with a dual filter. The filter is employed to minimize the incidence of the motor from accidentally being locked in revolution due to the ingress of small pebbles or something similar.



  A shutoff brush employed

  The motor is equipped with a shutoff brush to protect against burns.
  The motor is prevented from burns by employing a structure that stops the motor by shutting down the power before the brush completely reaches its wear limit in order to prevent imperfect contact with the armature and scratches in the commutator due to brush wear.

  Specification

  E-FP

  Model	Shaft length(m)	Output (W)	Input (V)	Input (A)	Frequency (Hz)	Total length (mm)	Head (dia.×Length)(mm)	Length Hose/shaft Assembly(mm)	Weight (kg)
  E23F	0.4	280	100	5.0	220～280	1,089	φ23×336	820	5.0
  	0.8					1,489		1,235	5.5
  	1.3					1,989		1,735	6.3
  	1.8					2,489		2,235	7.1
  E28FPA	0.6				220～270	1,129	φ28×207	875	5.0
  	1.0					1,529		1,275	5.6
  	1.5					2,029		1,775	6.4
  	2.0					2,529		2,275	7.2
  E32FPA	0.6				210～270	1,109	φ32×187	825	5.2
  	1.0					1,509		1,229	5.9
  	1.5					2,009		1,729	6.7
  	2.0					2,509		2,229	7.4
  E38FPA	0.6					1,112	φ38×190	825	5.6
  	1.0					1,512		1,229	6.2
  	1.5					2,012		1,729	7.0
  	2.0					2,512		2,229	7.8

  ※Product masses include that of the mold cord (0.6kg).
  ※Because this product is a built-to-order product, contact EXEN for information of delivery time.

  Dimensions, installation, control panel

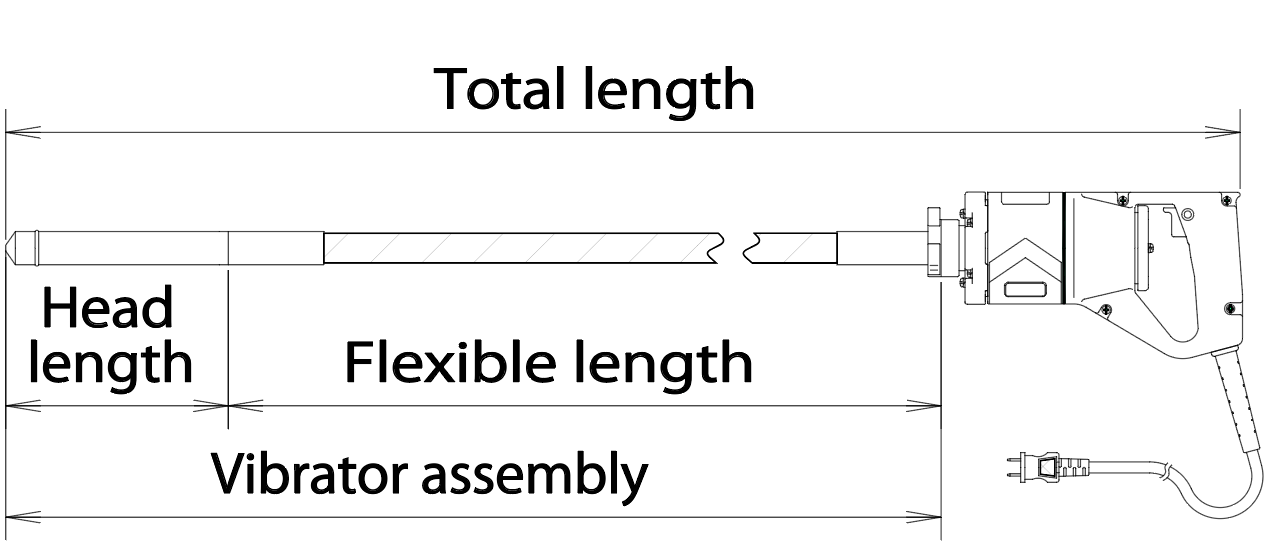

  Product dimensional drawings



  Product dimensional table

  Model	Shaft length(m)	Total length (mm)	Head	Length Hose/shaft Assembly(mm)
  			(dia.×lenght) (mm)
  E23F	0.4	1089	φ23×336	820
  	0.8	1489		1235
  	1.3	1989		1735
  	1.8	2489		2235
  E28FPA	0.6	1129	φ28×207	875
  	1.0	1529		1275
  	1.5	2029		1775
  	2.0	2529		2275
  E32FPA	0.6	1109	φ32×187	855
  	1.0	1509		1255
  	1.5	2009		1755
  	2.0	2509		2255
  E38FPA	0.6	1112	φ38×190	858
  	1.0	1512		1258
  	1.5	2012		1758
  	2.0	2512		2258

This product is used for the following applications:

• Concrete placement in general
• Test piece manufacturing

• Features

  The handy held hard shaft vibrator is a small, powerful vibrator consisting of a vibrating unit connected directly to a motor. Suited mainly for secondary concrete products, along with stone masonry. test piece manufacture, and other purposes. The product comes in a long lineup of models, with various vibrator diameters of 23 mm, 25 mm, 28 mm, and 32 mm, with diverse vibrating unit lengths. Equipped with a robust double-insulated sealed motor made of die-cast aluminum, this handy vibrator is lightweight, coming in a variety of models, which makes it easy to operate on a wide variation of worksites.

  Lightweight and highly operable

  The handy hard shaft series weigh about 5 kg and are lightweight and user-friendly on a standard basis. They vary greatly in length and diameter. Because of their offerings that can be used according to different work environments, they prove to be very easily operable.

  The motor case is made of robust die-cast aluminum

  The handy held vibrator series of motor cases are made of lightweight, strong die-cast aluminum. Robustly designed to meet the particular worksite operating conditions, these vibrators can be used with peace of mind.



  The vibrating unit is easy to replace

  If the vibrating body is worn, it is easy to replace. To replace it, you have only to detach the four bolts fastening the rubber damper of the vibrating body on the motor.



  A long lineup

  The vibrating body of the handy held hard shaft series comes in a variety of diameters and lengths, which allows you to select the appropriate model according to the condition of the particular compaction worksite with concrete and to the mold dimensions, depth, rebar arrangement, and freshly mixed concrete. The vibrating body of the electrode series comes in various lengths: 23 mm, 25 mm, 28 mm, and 32 mm.



  A double-insulated structure requiring no grounding

  The handy held series of motor cases are safe, user-friendly motors with a robust die-cast aluminum body having a double-insulated structure requiring no grounding. The armature shaft is insulated from the winding core by using resin, and the motor case is insulated from the field core by using resin, thereby ensuring double insulation. That insulation is further reinforced by a resin cover on the inner lead wires.



  Concrete adherents are easy to remove

  On worksites with handy held vibrators, concrete mortar adherents close up much of the air suction and exhaust ports of the motor. Removal of hardened mortar is also hard to perform. The suction port cover and bearing case are therefore coated with fluororesin to enable the concrete to be easily cleaned, resulting in higher maintainability.



  The photo shows a baby flexible type.

  Excellent rubber characteristics

  Handy hard shaft, handy punches, handy scrapers, handy wall concreting, and handy tamper series are equipped with rubber dampers having damping performance that meets the particular uses. This makes this series of vibrators easy on the worker’s hands and user-friendly.



  A motor handle with a double-damped structure

  E motors employed in the handy held vibrator series are each equipped with four small rubber dampers on the handheld handle and the motor frame. The result is that the handy baby flexible series are attenuated in vibration in the flexible hose, while the handy hard shaft, handy punch, handy scraper, handy wall-concreting, and handy tamper series are of a double-damped structure together with the rubber dampers on the motor and the vibrating unit mounts. These are therefore designed to be easy on the workers’ hands.



  Control on motor exhaust sound

  The handy held vibrator series of vibrators control motor noise, thereby being easy on the worksite environment. The exhaust sound from the cooling fin of the series of motors running fast is controlled as far as possible by specially shaping the cooling fin and exhaust port. (5 dB down from our earlier models)



  The motor suction port equipped with a dustproof filter

  On worksites with handy held vibrators in severe dusty operating environments, it is also much feared that some fine aggregate from the dry concrete mortar may go into the motor. The suction port of the motor is therefore equipped with a dual filter. The filter is employed to minimize the incidence of the motor from accidentally being locked in revolution due to the ingress of small pebbles or something similar.



  A shutoff brush employed

  The motor is equipped with a shutoff brush to protect against burns. The motor is prevented from burns by employing a structure that stops the motor by shutting down the power before the brush completely reaches its wear limit in order to prevent imperfect contact with the armature and scratches in the commutator due to brush wear.

  Specification

  E-D

  Model	Total length (mm)	Head (dia.×lenght) (mm)
  E23D	866	φ23×557
  E28DA	784	φ28×475
  E32D	807	φ32×498
  E25DS	756	φ25×447
  E23DL	1010	φ23×701
  E28DLA	1015	φ28×706
  E32DL	1036	φ32×727

  （Imperial System）

  Model	Total length (ft)	Head(dia.×lenght) (in×ft)
  E23D	2’10”	7/8″×1’10”
  E28DA	2’7″	1 1/16″×1’7″
  E32D	2’8″	1 1/4″×1’8″
  E25DS	2’6″	1.0″×1’6″
  E23DL	3’4″	7/8″×2’4″
  E28DLA	3’4″	1 1/16″×2’4″
  E32DL	3’5″	1 1/4″×2’5″

  ※Product masses include that of the mold cord (0.6kg).

  Dimensions, installation, control panel

  Product dimensional drawings



  Product dimensional table

  Model	Total length (mm)	Head (dia.×lenght) (mm)
  E23D	866	φ23×557
  E28DA	784	φ28×475
  E32D	807	φ32×498
  E25DS	756	φ25×447
  E23DL	1010	φ23×701
  E28DLA	1015	φ28×706
  E32DL	1036	φ32×727

  （Imperial System）

  Model	Total length (ft)	Head(dia.×lenght) (in×ft)
  E23D	2’10”	7/8″×1’10”
  E28DA	2’7″	1 1/16″×1’7″
  E32D	2’8″	1 1/4″×1’8″
  E25DS	2’6″	1.0″×1’6″
  E23DL	3’4″	7/8″×2’4″
  E28DLA	3’4″	1 1/16″×2’4″
  E32DL	3’5″	1 1/4″×2’5″

This product is used for the following applications:

• Concrete placement in general
• Test piece manufacturing

• Features

  The baby flexible vibrator is small and lightweight. Unlike the electrode type, the motor is connected to the vibrating unit by a rubber flexible hose. Even if the hose is bent somewhat during concreting, it can still remain useful. This flexible concrete vibrator (inner vibrator) can be used in a wide range of applications, including mainly residential foundation works, manufacturing of secondary products and test pieces, masonry, and the construction of retaining walls.
  This handy vibrator is easy to use on a wide range of worksites because it employs a robust aluminum die-cast double-insulated sealed motor, is lightweight, and comes in a wide range of models.

  Lightweight and very easy to operate

  Lightweight baby flexible vibrators weigh about 5 to 8 kilograms on a standard basis. They are also capable of moving flexibly from place to place, resulting in user-friendliness. Also various are hose lengths and vibrating unit diameters. You can use them to meet your particular worksite environments, resulting in high ease of operation.

  Concreting is possible in deep locations as well

  Handy baby flexible vibrators are equipped standard with flexible hoses 0.6, 1.0, 1.5, and 2.0 m. Hose lengths can be selected according to the particular concreting condition on a specific worksite, resulting in convenient use. The motor, on the other hand, can be shared among different models, which makes it possible to replace parts of different lengths.

  The motor case is made of robust die-cast aluminum

  The handy held vibrator series of motor cases are made of lightweight, strong die-cast aluminum. Robustly designed to meet the particular worksite operating conditions, these vibrators can be used with peace of mind.



  The vibrating unit is easy to replace

  When the vibrating body or flexible hose gets worn, you can replace it easily. To replace it, you have only to loosen the hose gland (right-hand screw) that fastens the vibrating body flexible hose to the motor, and remove the screws (right-hand screws) of the flexible shaft and motor.
  (In installing or detaching the hose gland, hammer it lightly.)



  A double-insulated structure requiring no grounding

  The handy held series of motor cases are safe, user-friendly motors with a robust die-cast aluminum body having a double-insulated structure requiring no grounding. The armature shaft is insulated from the winding core by using resin, and the motor case is insulated from the field core by using resin, thereby ensuring double insulation. That insulation is further reinforced by a resin cover on the inner lead wires.



  Concrete adherents are easy to remove

  On worksites with handy held vibrators, concrete mortar adherents close up much of the air suction and exhaust ports of the motor. Removal of hardened mortar is also hard to perform. The suction port cover and bearing case are therefore coated with fluororesin to enable the concrete to be easily cleaned, resulting in higher maintainability.



  A motor handle with a double-damped structure

  E motors employed in the handy held vibrator series are each equipped with four small rubber dampers on the handheld handle and the motor frame. The result is that the handy baby flexible series are attenuated in vibration in the flexible hose, while the handy hard shaft, handy punch, handy scraper, handy wall-concreting, and handy tamper series are of a double-damped structure together with the rubber dampers on the motor and the vibrating unit mounts. These are therefore designed to be easy on the workers’ hands.



  Control on motor exhaust sound

  The handy held vibrator series of vibrators control motor noise, thereby being easy on the worksite environment. The exhaust sound from the cooling fin of the series of motors running fast is controlled as far as possible by specially shaping the cooling fin and exhaust port.
  (5 dB down from our earlier models)



  The motor suction port equipped with a dustproof filter

  On worksites with handy held vibrators in severe dusty operating environments, it is also much feared that some fine aggregate from the dry concrete mortar may go into the motor. The suction port of the motor is therefore equipped with a dual filter. The filter is employed to minimize the incidence of the motor from accidentally being locked in revolution due to the ingress of small pebbles or something similar.



  A shutoff brush employed

  The motor is equipped with a shutoff brush to protect against burns.
  The motor is prevented from burns by employing a structure that stops the motor by shutting down the power before the brush completely reaches its wear limit in order to prevent imperfect contact with the armature and scratches in the commutator due to brush wear.

  Specification

  E-FP

  Model	Shaft length(m)	Output (W)	Input (V)	Input (A)	Frequency (Hz)	Total length (mm)	Head (dia.×Length)(mm)	Length Hose/shaft Assembly(mm)	Weight (kg)
  E23F	0.4	280	100	5.0	220～280	1,089	φ23×336	820	5.0
  	0.8					1,489		1,235	5.5
  	1.3					1,989		1,735	6.3
  	1.8					2,489		2,235	7.1
  E28FPA	0.6				220～270	1,129	φ28×207	875	5.0
  	1.0					1,529		1,275	5.6
  	1.5					2,029		1,775	6.4
  	2.0					2,529		2,275	7.2
  E32FPA	0.6				210～270	1,109	φ32×187	825	5.2
  	1.0					1,509		1,229	5.9
  	1.5					2,009		1,729	6.7
  	2.0					2,509		2,229	7.4
  E38FPA	0.6					1,112	φ38×190	825	5.6
  	1.0					1,512		1,229	6.2
  	1.5					2,012		1,729	7.0
  	2.0					2,512		2,229	7.8

  ※Product masses include that of the mold cord (0.6kg).
  ※Because this product is a built-to-order product, contact EXEN for information of delivery time.

  Dimensions, installation, control panel

  Product dimensional drawings



  Product dimensional table

  Model	Shaft length(m)	Total length (mm)	Head	Length Hose/shaft Assembly(mm)
  			(dia.×lenght) (mm)
  E23F	0.4	1089	φ23×336	820
  	0.8	1489		1235
  	1.3	1989		1735
  	1.8	2489		2235
  E28FPA	0.6	1129	φ28×207	875
  	1.0	1529		1275
  	1.5	2029		1775
  	2.0	2529		2275
  E32FPA	0.6	1109	φ32×187	855
  	1.0	1509		1255
  	1.5	2009		1755
  	2.0	2509		2255
  E38FPA	0.6	1112	φ38×190	858
  	1.0	1512		1258
  	1.5	2012		1758
  	2.0	2512		2258

This product is used for the following applications:

• Concrete placement in general
• Test piece manufacturing

• Features

  The baby flexible vibrator is small and lightweight. Unlike the electrode type, the motor is connected to the vibrating unit by a rubber flexible hose. Even if the hose is bent somewhat during concreting, it can still remain useful. This flexible concrete vibrator (inner vibrator) can be used in a wide range of applications, including mainly residential foundation works, manufacturing of secondary products and test pieces, masonry, and the construction of retaining walls.
  This handy vibrator is easy to use on a wide range of worksites because it employs a robust aluminum die-cast double-insulated sealed motor, is lightweight, and comes in a wide range of models.

  Lightweight and very easy to operate

  Lightweight baby flexible vibrators weigh about 5 to 8 kilograms on a standard basis. They are also capable of moving flexibly from place to place, resulting in user-friendliness. Also various are hose lengths and vibrating unit diameters. You can use them to meet your particular worksite environments, resulting in high ease of operation.

  Concreting is possible in deep locations as well

  Handy baby flexible vibrators are equipped standard with flexible hoses 0.6, 1.0, 1.5, and 2.0 m. Hose lengths can be selected according to the particular concreting condition on a specific worksite, resulting in convenient use. The motor, on the other hand, can be shared among different models, which makes it possible to replace parts of different lengths.

  The motor case is made of robust die-cast aluminum

  The handy held vibrator series of motor cases are made of lightweight, strong die-cast aluminum. Robustly designed to meet the particular worksite operating conditions, these vibrators can be used with peace of mind.



  The vibrating unit is easy to replace

  When the vibrating body or flexible hose gets worn, you can replace it easily. To replace it, you have only to loosen the hose gland (right-hand screw) that fastens the vibrating body flexible hose to the motor, and remove the screws (right-hand screws) of the flexible shaft and motor.
  (In installing or detaching the hose gland, hammer it lightly.)



  A double-insulated structure requiring no grounding

  The handy held series of motor cases are safe, user-friendly motors with a robust die-cast aluminum body having a double-insulated structure requiring no grounding. The armature shaft is insulated from the winding core by using resin, and the motor case is insulated from the field core by using resin, thereby ensuring double insulation. That insulation is further reinforced by a resin cover on the inner lead wires.



  Concrete adherents are easy to remove

  On worksites with handy held vibrators, concrete mortar adherents close up much of the air suction and exhaust ports of the motor. Removal of hardened mortar is also hard to perform. The suction port cover and bearing case are therefore coated with fluororesin to enable the concrete to be easily cleaned, resulting in higher maintainability.



  A motor handle with a double-damped structure

  E motors employed in the handy held vibrator series are each equipped with four small rubber dampers on the handheld handle and the motor frame. The result is that the handy baby flexible series are attenuated in vibration in the flexible hose, while the handy hard shaft, handy punch, handy scraper, handy wall-concreting, and handy tamper series are of a double-damped structure together with the rubber dampers on the motor and the vibrating unit mounts. These are therefore designed to be easy on the workers’ hands.



  Control on motor exhaust sound

  The handy held vibrator series of vibrators control motor noise, thereby being easy on the worksite environment. The exhaust sound from the cooling fin of the series of motors running fast is controlled as far as possible by specially shaping the cooling fin and exhaust port.
  (5 dB down from our earlier models)



  The motor suction port equipped with a dustproof filter

  On worksites with handy held vibrators in severe dusty operating environments, it is also much feared that some fine aggregate from the dry concrete mortar may go into the motor. The suction port of the motor is therefore equipped with a dual filter. The filter is employed to minimize the incidence of the motor from accidentally being locked in revolution due to the ingress of small pebbles or something similar.



  A shutoff brush employed

  The motor is equipped with a shutoff brush to protect against burns.
  The motor is prevented from burns by employing a structure that stops the motor by shutting down the power before the brush completely reaches its wear limit in order to prevent imperfect contact with the armature and scratches in the commutator due to brush wear.

  Specification

  E-FP

  Model	Shaft length(m)	Output (W)	Input (V)	Input (A)	Frequency (Hz)	Total length (mm)	Head (dia.×Length)(mm)	Length Hose/shaft Assembly(mm)	Weight (kg)
  E23F	0.4	280	100	5.0	220～280	1,089	φ23×336	820	5.0
  	0.8					1,489		1,235	5.5
  	1.3					1,989		1,735	6.3
  	1.8					2,489		2,235	7.1
  E28FPA	0.6				220～270	1,129	φ28×207	875	5.0
  	1.0					1,529		1,275	5.6
  	1.5					2,029		1,775	6.4
  	2.0					2,529		2,275	7.2
  E32FPA	0.6				210～270	1,109	φ32×187	825	5.2
  	1.0					1,509		1,229	5.9
  	1.5					2,009		1,729	6.7
  	2.0					2,509		2,229	7.4
  E38FPA	0.6					1,112	φ38×190	825	5.6
  	1.0					1,512		1,229	6.2
  	1.5					2,012		1,729	7.0
  	2.0					2,512		2,229	7.8

  ※Product masses include that of the mold cord (0.6kg).
  ※Because this product is a built-to-order product, contact EXEN for information of delivery time.

  Dimensions, installation, control panel

  Product dimensional drawings



  Product dimensional table

  Model	Shaft length(m)	Total length (mm)	Head	Length Hose/shaft Assembly(mm)
  			(dia.×lenght) (mm)
  E23F	0.4	1089	φ23×336	820
  	0.8	1489		1235
  	1.3	1989		1735
  	1.8	2489		2235
  E28FPA	0.6	1129	φ28×207	875
  	1.0	1529		1275
  	1.5	2029		1775
  	2.0	2529		2275
  E32FPA	0.6	1109	φ32×187	855
  	1.0	1509		1255
  	1.5	2009		1755
  	2.0	2509		2255
  E38FPA	0.6	1112	φ38×190	858
  	1.0	1512		1258
  	1.5	2012		1758
  	2.0	2512		2258

This product is used for the following applications:

• Concrete placement in general
• Test piece manufacturing

• Features

  The baby flexible vibrator is small and lightweight. Unlike the electrode type, the motor is connected to the vibrating unit by a rubber flexible hose. Even if the hose is bent somewhat during concreting, it can still remain useful. This flexible concrete vibrator (inner vibrator) can be used in a wide range of applications, including mainly residential foundation works, manufacturing of secondary products and test pieces, masonry, and the construction of retaining walls.
  This handy vibrator is easy to use on a wide range of worksites because it employs a robust aluminum die-cast double-insulated sealed motor, is lightweight, and comes in a wide range of models.

  Lightweight and very easy to operate

  Lightweight baby flexible vibrators weigh about 5 to 8 kilograms on a standard basis. They are also capable of moving flexibly from place to place, resulting in user-friendliness. Also various are hose lengths and vibrating unit diameters. You can use them to meet your particular worksite environments, resulting in high ease of operation.

  Concreting is possible in deep locations as well

  Handy baby flexible vibrators are equipped standard with flexible hoses 0.6, 1.0, 1.5, and 2.0 m. Hose lengths can be selected according to the particular concreting condition on a specific worksite, resulting in convenient use. The motor, on the other hand, can be shared among different models, which makes it possible to replace parts of different lengths.

  The motor case is made of robust die-cast aluminum

  The handy held vibrator series of motor cases are made of lightweight, strong die-cast aluminum. Robustly designed to meet the particular worksite operating conditions, these vibrators can be used with peace of mind.



  The vibrating unit is easy to replace

  When the vibrating body or flexible hose gets worn, you can replace it easily. To replace it, you have only to loosen the hose gland (right-hand screw) that fastens the vibrating body flexible hose to the motor, and remove the screws (right-hand screws) of the flexible shaft and motor.
  (In installing or detaching the hose gland, hammer it lightly.)



  A double-insulated structure requiring no grounding

  The handy held series of motor cases are safe, user-friendly motors with a robust die-cast aluminum body having a double-insulated structure requiring no grounding. The armature shaft is insulated from the winding core by using resin, and the motor case is insulated from the field core by using resin, thereby ensuring double insulation. That insulation is further reinforced by a resin cover on the inner lead wires.



  Concrete adherents are easy to remove

  On worksites with handy held vibrators, concrete mortar adherents close up much of the air suction and exhaust ports of the motor. Removal of hardened mortar is also hard to perform. The suction port cover and bearing case are therefore coated with fluororesin to enable the concrete to be easily cleaned, resulting in higher maintainability.



  A motor handle with a double-damped structure

  E motors employed in the handy held vibrator series are each equipped with four small rubber dampers on the handheld handle and the motor frame. The result is that the handy baby flexible series are attenuated in vibration in the flexible hose, while the handy hard shaft, handy punch, handy scraper, handy wall-concreting, and handy tamper series are of a double-damped structure together with the rubber dampers on the motor and the vibrating unit mounts. These are therefore designed to be easy on the workers’ hands.



  Control on motor exhaust sound

  The handy held vibrator series of vibrators control motor noise, thereby being easy on the worksite environment. The exhaust sound from the cooling fin of the series of motors running fast is controlled as far as possible by specially shaping the cooling fin and exhaust port.
  (5 dB down from our earlier models)



  The motor suction port equipped with a dustproof filter

  On worksites with handy held vibrators in severe dusty operating environments, it is also much feared that some fine aggregate from the dry concrete mortar may go into the motor. The suction port of the motor is therefore equipped with a dual filter. The filter is employed to minimize the incidence of the motor from accidentally being locked in revolution due to the ingress of small pebbles or something similar.



  A shutoff brush employed

  The motor is equipped with a shutoff brush to protect against burns.
  The motor is prevented from burns by employing a structure that stops the motor by shutting down the power before the brush completely reaches its wear limit in order to prevent imperfect contact with the armature and scratches in the commutator due to brush wear.

  Specification

  E-FP

  Model	Shaft length(m)	Output (W)	Input (V)	Input (A)	Frequency (Hz)	Total length (mm)	Head (dia.×Length)(mm)	Length Hose/shaft Assembly(mm)	Weight (kg)
  E23F	0.4	280	100	5.0	220～280	1,089	φ23×336	820	5.0
  	0.8					1,489		1,235	5.5
  	1.3					1,989		1,735	6.3
  	1.8					2,489		2,235	7.1
  E28FPA	0.6				220～270	1,129	φ28×207	875	5.0
  	1.0					1,529		1,275	5.6
  	1.5					2,029		1,775	6.4
  	2.0					2,529		2,275	7.2
  E32FPA	0.6				210～270	1,109	φ32×187	825	5.2
  	1.0					1,509		1,229	5.9
  	1.5					2,009		1,729	6.7
  	2.0					2,509		2,229	7.4
  E38FPA	0.6					1,112	φ38×190	825	5.6
  	1.0					1,512		1,229	6.2
  	1.5					2,012		1,729	7.0
  	2.0					2,512		2,229	7.8

  ※Product masses include that of the mold cord (0.6kg).
  ※Because this product is a built-to-order product, contact EXEN for information of delivery time.

  Dimensions, installation, control panel

  Product dimensional drawings



  Product dimensional table

  Model	Shaft length(m)	Total length (mm)	Head	Length Hose/shaft Assembly(mm)
  			(dia.×lenght) (mm)
  E23F	0.4	1089	φ23×336	820
  	0.8	1489		1235
  	1.3	1989		1735
  	1.8	2489		2235
  E28FPA	0.6	1129	φ28×207	875
  	1.0	1529		1275
  	1.5	2029		1775
  	2.0	2529		2275
  E32FPA	0.6	1109	φ32×187	855
  	1.0	1509		1255
  	1.5	2009		1755
  	2.0	2509		2255
  E38FPA	0.6	1112	φ38×190	858
  	1.0	1512		1258
  	1.5	2012		1758
  	2.0	2512		2258
