LOBTEX WM L-type Clamp Grip Handle And Soft Cap

kvt part2 — Wed, 10 Jun 2020 02:25:11 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: WM: WM2010, WM2512, WM3012

* This is no longer produced.
The grip handle enables easy and efficient tightening work.

Special heat treatment has given the body appropriate elasticity.
Proven high durability.
The plate is large and enables tightening work at angles up to 20°.

Use/Application

For attaching, fastening and holding materials

Specifications

Model No.	(Product) weight	size1	size2	size3	size4	size5	size6	Retail/User prices	Remark
WM2010	1200g	200mm	101mm	280mm	φ32mm	10.4mm	21.4mm	open price	Maximum tightening power：5.0kN * This is no longer produced. Please see the product page of successor model WM2010A.
WM2512	1300g	250mm	121mm	330mm	φ32mm	10.4mm	21.4mm	open price	Maximum tightening power：5.0kN * This is no longer produced. Please see the product page of successor model WM2512A.
WM3012	1400g	300mm	121mm	380mm	φ32mm	10.4mm	21.4mm	open price	Maximum tightening power：5.0kN

IMPORTANT SAFETY INSTRUCTIONS

Do not use this tool as a sling gear.
Do not use this clamp for connecting scaffolding, or attach this clamp to a structure used as scaffolding.
Ensure secure tightening.
Do not apply impact to this tool by hitting it with a hammer, etc.
Do not extend this tool with a pipe, etc.
When tightening a tapered or inclined workpiece, use particular caution. Slipping may occur.

CAUTIONS ON INSCRIBED VALUES

Since dimensions, weights, etc. are nominal, there possibly are changes of some numerical values.
Specifications may be changed for improvement of the product without prior notices.
Listed prices do not include VAT. Please ask our distributor in case of purchases.

The post LOBTEX WM L-type Clamp Grip Handle And Soft Cap first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX WS L-type Clamp Grip Handle And Soft Cap

kvt part2 — Wed, 10 Jun 2020 02:21:47 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: WS: S1010, S1510, S2010, WS2510

* This is no longer produced.
The grip handle enables easy and efficient tightening work.

Special heat treatment has given the body appropriate elasticity.
Proven high durability.
The plate is large and enables tightening work at angles up to 20°.

Use/Application

For attaching, fastening and holding materials

Specifications

Model No.	(Product) weight	size1	size2	size3	size4	size5	size6	Retail/User prices
WS1010	500g	100mm	99mm	158mm	φ25mm	7.5mm	15.6mm	open price
WS1510	600g	150mm	99mm	208mm	φ25mm	7.5mm	15.6mm	open price
WS2010	700g	200mm	99mm	258mm	φ25mm	7.5mm	15.6mm	open price
WS2510	800g	250mm	99mm	308mm	φ25mm	7.5mm	15.6mm	open price

IMPORTANT SAFETY INSTRUCTIONS

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX WS L-type Clamp Grip Handle And Soft Cap first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX WF L-type Clamp Grip Handle And Soft Cap

kvt part2 — Wed, 10 Jun 2020 02:16:55 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: WF: WF105, WF155, WF205, WF255, WF305, WF405

* This is no longer produced.
The grip handle enables easy and efficient tightening work.

Special heat treatment has given the body appropriate elasticity.
Proven high durability.
The plate is large and enables tightening work at angles up to 20°.

Use/Application

For attaching, fastening and holding materials

Specifications

Model No.	(Product) weight	size1	size2	size3	size4	size5	size6	Retail/User prices	Remark
WF105	300g	100mm	51mm	158mm	φ22mm	6.5mm	13.2mm	open price	Maximum tightening power：2.7kN * This is no longer produced. Please see the product page of successor model WF105A.
WF155	350g	150mm	51mm	208mm	φ22mm	6.5mm	13.2mm	open price	Maximum tightening power：2.7kN * This is no longer produced. Please see the product page of successor model WF155A.
WF205	400g	200mm	51mm	258mm	φ22mm	6.5mm	13.2mm	open price	Maximum tightening power：2.7kN * This is no longer produced. Please see the product page of successor model WF205A.
WF255	450g	250mm	51mm	308mm	φ22mm	6.5mm	13.2mm	open price	Maximum tightening power：2.7kN * This is no longer produced. Please see the product page of successor model WF255A.
WF305	500g	300mm	51mm	358mm	φ22mm	6.5mm	13.2mm	open price	Maximum tightening power：2.7kN
WF405	600g	400mm	51mm	458mm	φ22mm	6.5mm	13.2mm	open price	Maximum tightening power：2.7kN * This is no longer produced. Please see the product page of successor model WF405A.

IMPORTANT SAFETY INSTRUCTIONS

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX WF L-type Clamp Grip Handle And Soft Cap first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX B-type Clamp Standard Type

kvt part2 — Wed, 10 Jun 2020 02:11:26 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: B: B25, B38, B50, B75, B100, B125, B150, B200, B250, B300

* This is no longer produced.
LOBSTER traditional clamp, standard type

This clamp has undergone thorough heat treatment, therefore it provides the sound rigidity of special steel.
Precision forging has made this clamp strong enough to withstand long-term use.
The high-precision square thread enables smooth opening/closing without looseness.
The plate swing angle is 20°.
The plate can be replaced by user. (Except for 25 mm and 38 mm models)

Use/Application

For attaching, fastening and holding materials

Specifications

Model No.	(Product) weight	Size1	Size2	Size3	Size4	Size5	Size6	Guarantee strength	Retail/User prices
B25	130g	28.5mm	19mm	45.5mm	74mm	φ15mm	12mm	9.46	open price
B38	170g	40mm	26mm	57mm	96.5mm	φ15mm	12mm	10.06	open price
B50	320g	52mm	34mm	70mm	113mm	φ18mm	14mm	13.07	open price
B75	740g	77mm	46mm	95mm	157.5mm	φ18mm	17mm	17.4	open price
B100	1500g	102mm	60mm	120mm	201mm	φ25mm	19mm	30.4	open price
B125	2000g	126mm	65mm	132.5mm	236mm	φ27mm	21mm	30.48	open price
B150	2550g	151mm	75mm	150mm	273mm	φ30mm	23mm	32.73	open price
B200	3900g	200mm	97.0mm	180mm	340mm	φ34mm	26mm	34.57	open price
B250	7600g	250mm	110mm	207mm	415mm	φ40mm	29mm	47.22	open price
B300	10200g	301mm	130mm	241mm	490mm	φ40mm	29mm	56.31	open price

IMPORTANT SAFETY INSTRUCTIONS

Do not use this clamp as a sling gear.
Do not use this clamp for connecting scaffolding, or attach this clamp to a structure used as scaffolding.
Ensure secure tightening.
Do not apply impact to this clamp by hitting it with a hammer, etc.
Do not extend this clamp with a pipe, etc.
When tightening a tapered or inclined workpiece, use particular caution. Slipping may occur.

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX B-type Clamp Standard Type first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX BP L-type Clamp (Bar Handles Super Strong Type）

kvt part2 — Wed, 10 Jun 2020 02:05:53 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: BP: BP3017, BP4017, BP6017, BP8017, BP10017

* This is no longer produced.
　Please see the product page of successor model BP-A.

Special heat treatment has given the body appropriate elasticity. Proven high durability.
The plate is large and enables tightening work at angles up to 20°.

Use/Application

For attaching, fastening and holding materials

Specifications

Model No.	(Product) weight	size1	size2	size3	size4	size5	size6	Retail/User prices
BP3017	5100g	300mm	174mm	440mm	φ45mm	20mm	39.4mm	open price
BP4017	5600g	400mm	174mm	540mm	φ45mm	20mm	39.4mm	open price
BP6017	6600g	600mm	174mm	740mm	φ45mm	20mm	39.4mm	open price
BP8017	7600g	800mm	174mm	940mm	φ45mm	20mm	39.4mm	open price
BP10017	8600g	1000mm	174mm	1140mm	φ45mm	20mm	39.4mm	open price

IMPORTANT SAFETY INSTRUCTIONS

Do not use this clamp as a sling gear.
Do not use this clamp for connecting scaffolding, or attach this clamp to a structure used as scaffolding.
Ensure secure tightening.
Do not apply impact to this clamp by hitting it with a hammer, etc.
Do not extend this clamp with a pipe, etc.
When tightening a tapered or inclined workpiece, use particular caution. Slipping may occur.

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX BP L-type Clamp (Bar Handles Super Strong Type） first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX BH L-type Clamp (Bar Handles Powerful Type)

kvt part2 — Wed, 10 Jun 2020 02:00:41 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: BH: BH2012, BH2512, BH3012, BH4012, BH6012, BH8012, BH10012, BH12012

* This is no longer produced.
　Please see the product page of successor model BH-A.

Special heat treatment has given the body appropriate elasticity. Proven high durability.
The plate is large and enables tightening work at angles up to 20°.

Use/Application

For attaching, fastening and holding materials

Specifications

Model No.	(Product) weight	size1	size2	size3	size4	size5	size6	Retail/User prices
BH2012	2400g	200mm	119mm	315mm	φ38mm	15mm	29.4mm	open price
BH2512	2500g	250mm	119mm	365mm	φ38mm	15mm	29.4mm	open price
BH3012	2600g	300mm	119mm	415mm	φ38mm	15mm	29.4mm	open price
BH4012	2900g	400mm	119mm	515mm	φ38mm	15mm	29.4mm	open price
BH6012	3500g	600mm	119mm	715mm	φ38mm	15mm	29.4mm	open price
BH8012	4100g	800mm	119mm	915mm	φ38mm	15mm	29.4mm	open price
BH10012	4700g	1000mm	119mm	1115mm	φ38mm	15mm	29.4mm	open price
BH12012	5300g	1200mm	119mm	1315mm	φ38mm	15mm	29.4mm	open price

IMPORTANT SAFETY INSTRUCTIONS

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX BH L-type Clamp (Bar Handles Powerful Type) first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX BM L-type Clamp (Bar Handles Standard Type）

kvt part2 — Wed, 10 Jun 2020 01:55:42 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: BM: BM1010, BM1510, BM2010, BM2512, BM3012, BM3512, BM4012

* This is no longer produced.
　Please see the product page of successor model BM-A.

Special heat treatment has given the body appropriate elasticity. Proven high durability.
The plate is large and enables tightening work at angles up to 20°.

Use/Application

For attaching, fastening and holding materials

Specifications

Model No.	(Product) weight	size1	size2	size3	size4	size5	size6	Retail/User prices
BM1010	1000g	100mm	101mm	180mm	φ32mm	10.4mm	21.4mm	open price
BM1510	1100g	150mm	101mm	230mm	φ32mm	10.4mm	21.4mm	open price
BM2010	1200g	200mm	101mm	280mm	φ32mm	10.4mm	21.4mm	open price
BM2512	1300g	250mm	121mm	330mm	φ32mm	10.4mm	21.4mm	open price
BM3012	1400g	300mm	121mm	380mm	φ32mm	10.4mm	21.4mm	open price
BM3512	1500g	350mm	121mm	430mm	φ32mm	10.4mm	21.4mm	open price
BM4012	1600g	400mm	121mm	480mm	φ32mm	10.4mm	21.4mm	open price

IMPORTANT SAFETY INSTRUCTIONS

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX BM L-type Clamp (Bar Handles Standard Type） first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX BP-A L-type Clamp (Bar Handles Super Strong Type）

kvt part2 — Wed, 10 Jun 2020 01:50:37 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: BP-A: BP3017A, BP4017A, BP6017A, BP8017A, BP10017A

A top-selling product spanning half a century!
The upgraded version of this product features a new design and improved functionality!

Thanks to our company’s unique technology, we have achieved a high level of strength and high degree of plasticity.
Fastening angle of up to 20 degrees
Jaw depth approximately 1.4 times that of the standard model (BM)
The series type with the highest degree of fastening strength
Quick, one-touch fastening thanks to the axial end bar

Use/Application

Made for use in material installment and fixing/retention

Update Features

1. Increased tightening power with the same amount of torque (approximately two times the conventional model)
2. Improved quality of tightening screws

①Friction reduction
②Improved resistance
③Increased tightening power

3. Changes in arm design

Specifications

Model No.	(Product) weight	size1	size2	size3	size4	size5	size6	Retail/User prices	Remark
BP3017A	5100g	300mm	174mm	440mm	φ45mm	20mm	39.4mm	open price	Maximum tightening power：21.5kN
BP4017A	5600g	400mm	174mm	540mm	φ45mm	20mm	39.4mm	open price	Maximum tightening power：21.5kN
BP6017A	6600g	600mm	174mm	740mm	φ45mm	20mm	39.4mm	open price	Maximum tightening power：21.5kN
BP8017A	7600g	800mm	174mm	940mm	φ45mm	20mm	39.4mm	open price	Maximum tightening power：21.5kN
BP10017A	8600g	1000mm	174mm	1140mm	φ45mm	20mm	39.4mm	open price	Maximum tightening power：21.5kN

IMPORTANT SAFETY INSTRUCTIONS

* The maximum tightening power refers to values at 150 mm opening width, 70 N/m screw pressure.
Do not use this clamp as a sling gear.
Do not use this clamp for connecting scaffolding, or attach this clamp to a structure used as scaffolding.
Ensure secure tightening.
Do not apply impact to this clamp by hitting it with a hammer, etc.
Do not extend this clamp with a pipe, etc.
When tightening a tapered or inclined workpiece, use particular caution. Slipping may occur.

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX BP-A L-type Clamp (Bar Handles Super Strong Type） first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX BH-A L-type Clamp (Bar Handles Powerful Type）

kvt part2 — Wed, 10 Jun 2020 01:44:11 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: BH-A : BH2012A, BH2512A, BH3012A, BH4012A, BH6012A, BH8012A, BH10012A, BH12012A

A top-selling product spanning half a century!
The upgraded version of this product features a new design and improved functionality!

Thanks to our company’s unique technology, we have achieved a high level of strength and high degree of plasticity.
Fastening angle of up to 20 degrees
The maximum opening width is 2・3 times the standard model (BM)
Eight different maximum opening width sizes available
Quick, one-touch fastening thanks to the axial end bar

Use/Application

Made for use in material installment and fixing/retention

Update Features

3. Changes in arm design

Specifications

Model No.	(Product) weight	size1	size2	size3	size4	size5	size6	Retail/User prices	Remark
BH2012A	2400g	200mm	119mm	315mm	φ38mm	15mm	29.4mm	open price	Maximum tightening power：14.5kN
BH2512A	2500g	250mm	119mm	365mm	φ38mm	15mm	29.4mm	open price	Maximum tightening power：14.5kN
BH3012A	2600g	300mm	119mm	415mm	φ38mm	15mm	29.4mm	open price	Maximum tightening power：14.5kN
BH4012A	2900g	400mm	119mm	515mm	φ38mm	15mm	29.4mm	open price	Maximum tightening power：14.5kN
BH6012A	3500g	600mm	119mm	715mm	φ38mm	15mm	29.4mm	open price	Maximum tightening power：14.5kN
BH8012A	4100g	800mm	119mm	915mm	φ38mm	15mm	29.4mm	open price	Maximum tightening power：14.5kN
BH10012A	4700g	1000mm	119mm	1115mm	φ38mm	15mm	29.4mm	open price	Maximum tightening power：14.5kN
BH12012A	5300g	1200mm	119mm	1315mm	φ38mm	15mm	29.4mm	open price	Maximum tightening power：14.5kN

IMPORTANT SAFETY INSTRUCTIONS

* The maximum tightening power refers to values at 150 mm opening width, 40 N/m screw pressure.
Do not use this clamp as a sling gear.
Do not use this clamp for connecting scaffolding, or attach this clamp to a structure used as scaffolding.
Ensure secure tightening.
Do not apply impact to this clamp by hitting it with a hammer, etc.
Do not extend this clamp with a pipe, etc.
When tightening a tapered or inclined workpiece, use particular caution. Slipping may occur.

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX BH-A L-type Clamp (Bar Handles Powerful Type） first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX BM-A L-type Clamp (Bar Handles Standard Type）

kvt part2 — Wed, 10 Jun 2020 01:22:37 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: BM-A: BM1010A, BM1510A, BM2010A, BM2512A, BM3012A, BM3512A, BM4012A

A top-selling product spanning half a century!
The upgraded version of this product features a new design and improved functionality!

Thanks to our company’s unique technology, we have achieved a high level of strength and high degree of plasticity.
Fastening angle of up to 20 degrees
Quick, one-touch fastening thanks to the axial end bar

Use/Application

Made for use in material installment and fixing/retention

Update Features
1. Increased tightening power with the same amount of torque (approximately two times the conventional model)
2. Improved quality of tightening screws
①Friction reduction
②Improved resistance
③Increased tightening power

3. Changes in arm design

Specifications

Model No.	(Product) weight	size1	size2	size3	size4	size5	size6	Retail/User prices	Remark
BM1010A	1000g	100mm	101mm	180mm	φ32mm	10.4mm	21.4mm	open price	Maximum tightening power：6.5kN
BM1510A	1100g	150mm	101mm	230mm	φ32mm	10.4mm	21.4mm	open price	Maximum tightening power：6.5kN
BM2010A	1200g	200mm	101mm	280mm	φ32mm	10.4mm	21.4mm	open price	Maximum tightening power：6.5kN
BM2512A	1300g	250mm	121mm	330mm	φ32mm	10.4mm	21.4mm	open price	Maximum tightening power：6.5kN
BM3012A	1400g	300mm	121mm	380mm	φ32mm	10.4mm	21.4mm	open price	Maximum tightening power：6.5kN
BM3512A	1500g	350mm	121mm	430mm	φ32mm	10.4mm	21.4mm	open price	Maximum tightening power：6.5kN
BM4012A	1600g	400mm	121mm	480mm	φ32mm	10.4mm	21.4mm	open price	Maximum tightening power：6.5kN

IMPORTANT SAFETY INSTRUCTIONS

The maximum tightening power refers to values at 100 mm opening width, 20 N/m screw pressure.
Do not use this clamp as a sling gear.
Do not use this clamp for connecting scaffolding, or attach this clamp to a structure used as scaffolding.
Ensure secure tightening.
Do not apply impact to this clamp by hitting it with a hammer, etc.
Do not extend this clamp with a pipe, etc.
When tightening a tapered or inclined workpiece, use particular caution. Slipping may occur.

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX BM-A L-type Clamp (Bar Handles Standard Type） first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX B-S Clamp Stainless Steel

kvt part2 — Mon, 08 Jun 2020 02:35:53 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: B-S : B25S, B38S, B50S, B75S, B100S

Suitable for work in environments (food, marine, chemical, etc.) where damage from salt is expected

No quality deterioration even if exposed to saltwater spray continuously for 120 hours.
* Material：Body: SUS329J1,Plate・Screw：SUS304

Use/Application

For mounting/holding materials (at food, marine, chemical and other factories)

Specifications

Model No.	(Product) weight	size1	size2	size3	size4	size5	Guarantee strength	Retail/User prices
B25S	130g	25mm	19mm	45.5mm	74.0mm	φ15mm	5.88	open price
B38S	170g	38mm	26mm	57.0mm	96.5mm	φ15mm	6.74	open price
B50S	320g	50mm	34mm	70.0mm	113.0mm	φ21mm	10.62	open price
B75S	740g	75mm	46mm	95.0mm	157.5mm	φ21mm	12.17	open price
B100S	1500g	100mm	60mm	120.0mm	201.0mm	φ28mm	14.87	open price

IMPORTANT SAFETY INSTRUCTIONS

Avoid using this clamp as a sling gear, and do not connect it to scaffolding or attach it to similar structures.
Always ensure it is securely tightened.
Refrain from hitting this tool with a hammer or similar object, and do not extend it using a pipe or other means.
When working with a tapered or inclined workpiece, exercise extra caution to prevent slipping.

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX B-S Clamp Stainless Steel first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX C-type Clamp（Powerful Type）

kvt part2 — Mon, 08 Jun 2020 02:31:29 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: C-type: C50, C75, C100, C125, C150, C200

Thanks to its high loading capacity, this clamp is suitable for tightening heavy objects.

The jaw depth is approx. twice as large as that of the standard type (B-type).
This structure enables tightening to smaller diameters.

Use/Application

For attaching, fastening and holding materials

Specifications

Model No.	(Product) weight	size1	size2	size3	size4	size5	size6	Guarantee strength	Retail/User prices
C50	920g	50mm	65mm	125.5mm	142.5mm	φ22mm	19mm	26.82	open price
C75	1530g	75mm	79mm	147.7mm	182.2mm	φ25mm	21mm	33.7	open price
C100	2550g	100mm	99mm	182.5mm	225.0mm	φ28mm	23mm	47.96	open price
C125	3620g	125mm	125mm	219.0mm	270.0mm	φ30mm	26mm	51.52	open price
C150	5500g	150mm	150mm	250.0mm	305.0mm	φ30mm	26mm	58.34	open price
C200	9880g	200mm	201mm	313.0mm	393.0mm	φ33mm	29mm	67.64	open price

IMPORTANT SAFETY INSTRUCTIONS

Avoid using this clamp as a sling gear, and refrain from connecting it to scaffolding or attaching it to scaffolding structures.
Always tighten it securely.
Never hit this clamp with a hammer or similar object, and do not extend it with a pipe or other means.
When working with a tapered or inclined workpiece, exercise extra caution to prevent slipping.

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX C-type Clamp（Powerful Type） first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX B-V Clamp(Standard type ECO Series）

kvt part2 — Mon, 08 Jun 2020 02:08:09 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: B-V : B25V, B38V, B50V, B75V, B100V, B125V, B150V, B200V

New product
LOBSTER’s special clamp, Made in Japan

Approx 35% price reduction, in comparison with our earlier models
Quality (strength, etc.) is equivalent to our earlier model (B-type).
Comes in a variety of sizes (8 sizes in total).
Plate attachment:：the user can attach the plate with dedicated parts (plate kit).
Body color： Dark blue

Use/Application

For attaching, fastening and holding materials

Specifications

Model No.	(Product) weight	size1	size2	size3	size4	size5	size6	Guarantee strength	Retail/User prices
B25V	130g	28.5mm	19mm	45.5mm	74mm	φ15mm	12mm	9.46	open price
B38V	170g	40mm	26mm	57mm	96.5mm	φ15mm	12mm	10.06	open price
B50V	320g	52mm	34mm	70mm	113mm	φ18mm	14mm	13.07	open price
B75V	740g	77mm	46mm	95mm	157.5mm	φ18mm	17mm	17.4	open price
B100V	1500g	102mm	60mm	120mm	201mm	φ25mm	19mm	30.4	open price
B125V	2000g	126mm	65mm	132.5mm	236mm	φ27mm	21mm	30.48	open price
B150V	2550g	151mm	75mm	150mm	273mm	φ30mm	23mm	32.73	open price
B200V	3900g	200mm	97mm	180mm	340mm	φ34mm	26mm	34.57	open price

IMPORTANT SAFETY INSTRUCTIONS

Avoid using this clamp as a sling gear, and do not connect it to scaffolding or attach it to scaffolding structures.
Always secure it tightly.
Never hit this clamp with a hammer or similar object, and do not extend it with a pipe or other means.
When tightening a tapered or inclined workpiece, exercise extra caution to prevent slipping.

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX B-V Clamp(Standard type ECO Series） first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX WM-A L-type Clamp Grip Handle And Soft Cap

kvt part2 — Mon, 08 Jun 2020 01:52:19 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: WM-A : WM2010A, WM2512A, WM3012A

The grip handle enables easy and efficient tightening work.

Special heat treatment has given the body appropriate elasticity.
Proven high durability.
The plate is large and enables tightening work at angles up to 20°.

Use/Application

For attaching, fastening and holding materials

Specifications

Model No.	(Product) weight	size1	size2	size3	size4	size5	size6	Retail/User prices	Remark
WM2010A	1200g	200mm	101mm	280mm	φ32mm	10.4mm	21.4mm	open price	Maximum tightening power：6.5kN
WM2512A	1300g	250mm	101mm	280mm	φ32mm	10.4mm	21.4mm	open price	Maximum tightening power：6.5kN
WM3012A	1400g	300mm	121mm	380mm	φ32mm	10.4mm	21.4mm	open price	Maximum tightening power：6.5kN

IMPORTANT SAFETY INSTRUCTIONS

Avoid using this tool as a sling gear, and do not connect scaffolding or attach this clamp to scaffolding structures.
Always secure tightening.
Never hit this tool with a hammer or similar object.
Refrain from extending this tool with a pipe or other means.
When tightening a tapered or inclined workpiece, exercise extra caution to prevent slipping.

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX WM-A L-type Clamp Grip Handle And Soft Cap　 first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX WF-A L-type Clamp Grip Handle And Soft Cap

kvt part2 — Mon, 08 Jun 2020 01:40:04 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: WF-A: WF105A, WF155A, WF205A, WF405A

The grip handle enables easy and efficient tightening work.

Special heat treatment has given the body appropriate elasticity.
Proven high durability.
The plate is large and enables tightening work at angles up to 20°.

Use/Application

・For attaching, fastening and holding materials

Specifications

Model No.	(Product) weight	size1	size2	size3	size4	size5	size6	Retail/User prices	Remark
WF105A	300g	100mm	51mm	158mm	φ22mm	6.5mm	13.2mm	open price	Maximum tightening power：2.9kN
WF155A	350g	150mm	51mm	208mm	φ22mm	6.5mm	13.2mm	open price	Maximum tightening power：2.9kN
WF205A	400g	200mm	51mm	258mm	φ22mm	6.5mm	13.2mm	open price	Maximum tightening power：2.9kN
WF405A	600g	400mm	51mm	458mm	φ22mm	6.5mm	13.2mm	open price	Maximum tightening power：2.9kN

IMPORTANT SAFETY INSTRUCTIONS

Avoid using this tool as a sling gear or this clamp for connecting scaffolding or attaching it to a scaffolding structure. Always ensure secure tightening and never hit this tool with a hammer or similar object. Additionally, do not extend it with a pipe or any other means. Use extra caution when tightening a tapered or inclined workpiece to prevent slipping.

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX WF-A L-type Clamp Grip Handle And Soft Cap　 first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX WS-A L-type Clamp Grip Handle And Soft Cap

kvt part2 — Mon, 08 Jun 2020 01:32:47 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: WS-A: WS1010A, WS1510A, WS2010A, WS2510A

The grip handle enables easy and efficient tightening work.

Special heat treatment has given the body appropriate elasticity.
Proven high durability.
The plate is large and enables tightening work at angles up to 20°.

Specifications

Model No.	(Product) weight	size1	size2	size3	size4	size5	size6	Retail/User prices	Remark
WS1010A	500g	100mm	99mm	158mm	φ25mm	7.5mm	15.6mm	open price	Maximum tightening power：3.0kN
WS1510A	600g	150mm	99mm	208mm	φ25mm	7.5mm	15.6mm	open price	Maximum tightening power：3.0kN
WS2010A	700g	200mm	99mm	258mm	φ25mm	7.5mm	15.6mm	open price	Maximum tightening power：3.0kN
WS2510A	800g	250mm	99mm	308mm	φ25mm	7.5mm	15.6mm	open price	Maximum tightening power：3.0kN

IMPORTANT SAFETY INSTRUCTIONS

Do not use this tool as a sling gear, and avoid using this clamp for connecting scaffolding or attaching it to a scaffolding structure. Always ensure secure tightening. Avoid applying impact to this tool by hitting it with a hammer or similar object. Do not extend this tool with a pipe or any other means. Exercise particular caution when tightening a tapered or inclined workpiece to prevent slipping.

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX WS-A L-type Clamp Grip Handle And Soft Cap　 first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX B-type The Optional Plate Sets ( Clamp (Standard Type))

kvt part2 — Mon, 08 Jun 2020 01:27:33 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: B-type : B50AS, B100AS, B125AS, B150AS, B200AS, B250AS

The plate can be replaced without use of a dedicated tool. (Except for the B25 and B38)

Specifications

Model No.	(Product) weight	Retail/User prices	Remark
B50AS	22g	open price	B50A,B75A,B50,B75
B100AS	52g	open price	B100A,B100
B125AS	62g	open price	B125A,B125
B150AS	85g	open price	B150A,B150
B200AS	125g	open price	B200A,B200
B250AS	205g	¥4,980	B250A,B300A,B250,b300

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX B-type The Optional Plate Sets ( Clamp (Standard Type)) first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX B-Type Clamp (Standard Type）

kvt part2 — Mon, 08 Jun 2020 01:17:10 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: B-Type : B25, B38, B50A, B75A, B100A, B125A, B150A, B200A, B250A, B300A

The plate can be replaced without use of a dedicated tool. (Except for the B25 and B38)

All forging, machining and heat treatment are done in-house to ensure clamp performance.
Based on proven technologies, this clamp ensures reliable use for a long period.
The plate swing angle is 15. (Except for the B25 and B38)
Squares flat against the base material to hold it securely.
The optional plate sets are applicable with older clamps of the same size (model nos. B50 to B300)
If the plate comes off the clamp body, it can be replaced at lower cost than repurchasing the entire clamp.

Specifications

Model No.	(Product) weight	size1	size2	size3	size4	size5	size6	size7	Retail/User prices
B25	130g	28.5mm	19mm	45.5mm	74mm	φ15mm	8.8mm	12mm	open price
B38	170g	40mm	26mm	57mm	96.5mm	φ15mm	8.8mm	12mm	open price
B50A	320g	40mm	26mm	57mm	96.5mm	φ18mm	10.8mm	14mm	open price
B75A	740g	77mm	46mm	95mm	157.5mm	φ18mm	13.7mm	17mm	open price
B100A	1500g	102mm	60mm	120mm	201mm	φ25mm	15.7mm	19mm	open price
B125A	2000g	126mm	65mm	132.5mm	236mm	φ27mm	17.6mm	21mm	open price
B150A	2550g	151mm	75mm	150mm	273mm	φ30mm	19.3mm	23mm	open price
B200A	3900g	200mm	97mm	180mm	340mm	φ34mm	22.7mm	26mm	open price
B250A	7600g	250mm	110mm	207mm	415mm	φ40mm	26.6mm	29mm	open price
B300A	10200g	301mm	130mm	241mm	490mm	φ40mm	26.6mm	29mm	open price

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX B-Type Clamp (Standard Type） first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX J-PN, J-PNR Plastic Nippers (J-CRAFT series)

kvt part2 — Sun, 07 Jun 2020 09:24:52 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.

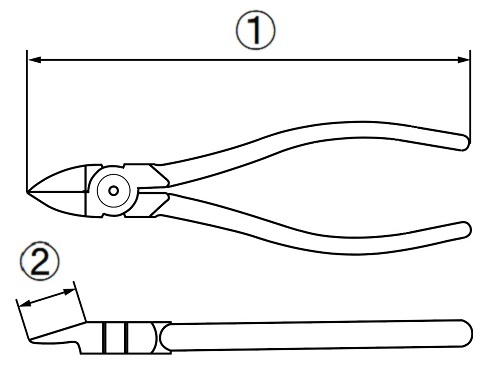

Model: J-PN, J-PNR: J125PN, J150PN, J125PNR, J150PNR

Reliable “Japanese quality”

Thanks to the sharp cutting edge, the blades are suitable for gate, gut and tie-band cutting work.
Spring-loaded grip helps reduce labor in continuous work.
Matted grip is easy to grasp and prevents slipping.

Use/Application

Round：J125PNR、J150PNR
Flat　：J125PN、J150PN

Model No.	Plastic (mm)
J125PN	ø5.0
J150PN	ø5.0
J125PNR	ø5.0
J150PNR	ø5.0

※ Piano wire cannot be cut

Specifications

Model No.	(Product) weight	size1	size2	Retail/User prices	Remark
J125PN	90g	132mm	13mm	open price	Flat blade,with spring
J150PN	145g	163mm	21mm	open price	Flat blade,with spring
J125PNR	90g	132mm	13mm	open price	Round blade,with spring
J150PNR	155g	162mm	18mm	open price	Round blade,with spring

IMPORTANT SAFETY INSTRUCTIONS

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX J-PN, J-PNR Plastic Nippers (J-CRAFT series) first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX J-MN Micro Nippers (J-CRAFT series)

kvt part2 — Sun, 07 Jun 2020 09:20:26 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: J-MN : J100MN, J115MN, J125MN

Reliable “Japanese quality”

Useful for precision work, arts and craft, etc.
The spring-loaded grip makes continuous work easy.
Matted grip is easy to grasp and prevents slipping.

Use/Application

Model No.	Soft steel wire (mm)	Copper wire (mm)	Stranded wire (mm)
J100MN	ø0.9	ø1.6	1.25
J115MN	ø1.0	ø1.8	2
J125MN	ø1.6	ø2.0	2

※ Piano wire cannot be cut　

Specifications

Model No.	(Product) weight	size1	size2	Retail/User prices	Remark
J100MN	55g	100mm	11mm	open price	with spring
J115MN	65g	118mm	13mm	open price	with spring
J125MN	70g	126mm	12mm	open price	with spring

IMPORTANT SAFETY INSTRUCTIONS

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX J-MN Micro Nippers (J-CRAFT series) first appeared on Kouei Japan Trading | Get Quotation.

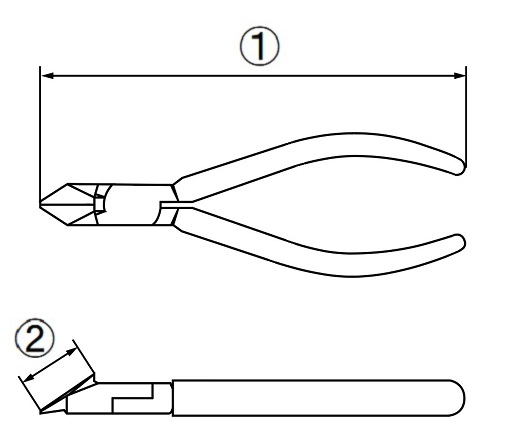

LOBTEX J-NN, J-NNH Diagonal Nippers (J-CRAFT series)

kvt part2 — Sun, 07 Jun 2020 09:14:50 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: J-NN, J-NNH: J100NN, J125NN, J150NN, J100NNH, J125NNH, J100NNH

Reliable “Japanese quality”

Two types of blades (with or without hole) can be selected depending on usage.
With the blades with holes, you can easily strip sheath without damage to core wires.
Matted grip is easy to grasp and prevents slipping.

Use/Application

Model No.	Steel wire (mm)	Copper wire (mm)
J100NN	ø1.0	ø1.2
J125NN	ø1.0	ø2.0
J150NN	ø1.2	ø2.6
J100NNH	ø1.0	ø1.2
J125NNH	ø1.0	ø2.0
J150NNH	ø1.2	ø2.6

※ Piano wire cannot be cut

Specifications

Model No.	(Product) weight	size1	size2	size3	Retail/User prices
J100NN	65g	113mm	19mm	φ1.0,φ1.5mm	open price
J125NN	100g	131mm	23mm	φ1.5,φ1.8mm	open price
J150NN	140g	158mm	25mm	φ1.5,φ1.8mm	open price
J100NNH	65g	113mm	19mm	Without hole	open price
J125NNH	100g	131mm	23mm	Without hole	open price
J150NNH	140g	158mm	25mm	Without hole	open price

IMPORTANT SAFETY INSTRUCTIONS

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX J-NN, J-NNH Diagonal Nippers (J-CRAFT series) first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX J-KN, J-KNH Heavy-duty Nippers (J-CRAFT series)

kvt part2 — Sun, 07 Jun 2020 09:03:46 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.

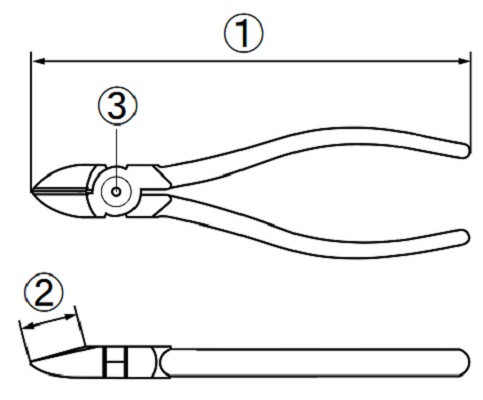

Model: J-KN, J-KNH: J125KN, J150KNG, J125KNH, J150KNH

Reliable “Japanese quality”

Two types of blades (with or without hole) can be selected depending on usage.
Because of the high hardness, cutting performance and durability of the blades, the nippers are applicable to electrical work and various other fields.
Matted grip is easy to grasp and prevents slipping.

Use/Application

Model No.	Steel wire (mm)	Copper wire (mm)
J125KN	ø1.2	ø2.0
J150KNG	ø2.0	ø2.6
J125KNH	ø1.2	ø2.0
J150KNH	ø2.0	ø2.6

※ Piano wire cannot be cut

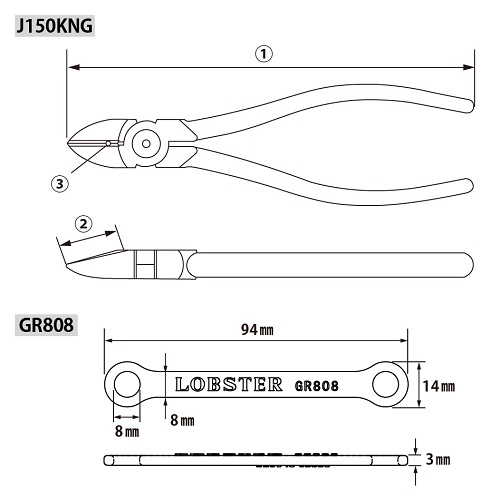

J150KNG with grip adapter

Specifications

Model No.	(Product) weight	size1	size2	size3	Retail/User prices
J125KN	100g	132mm	18mm	φ1.5mm	open price
J150KNG	150g	163mm	21mm	Without hole	open price
J125KNH	100g	132mm	18mm	Without hole	open price
J150KNH	150g	163mm	21mm	Without hole	open price

IMPORTANT SAFETY INSTRUCTIONS

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX J-KN, J-KNH Heavy-duty Nippers (J-CRAFT series) first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX J-P, J-PC Pliers (J-CRAFT series)

kvt part2 — Sun, 07 Jun 2020 08:56:54 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.

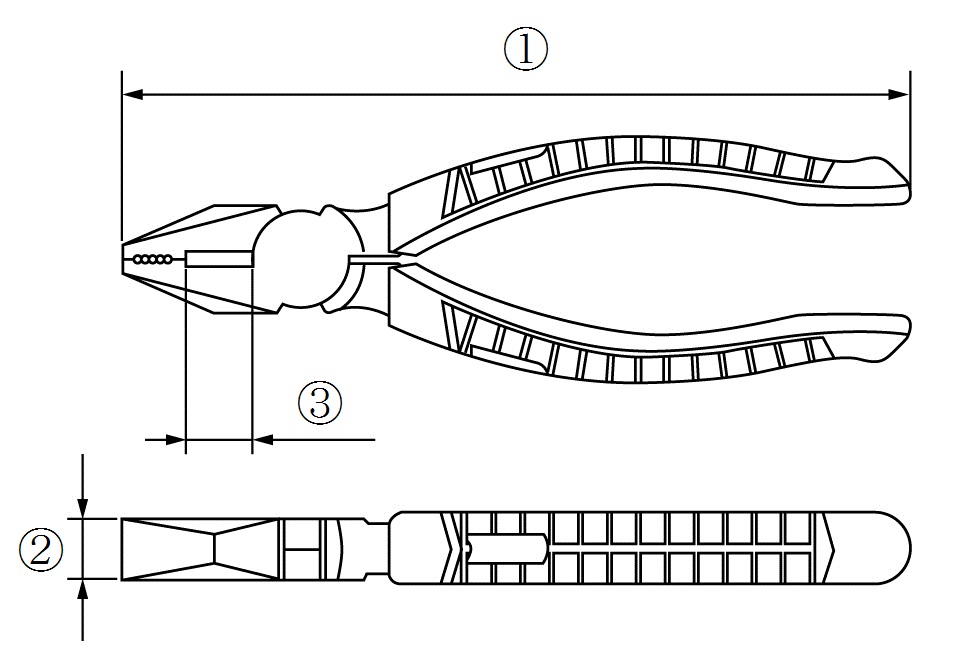

Model: J-P, J-PC: J150P: J175P, J200P, J200PC

Reliable “Japanese quality”

Suitable for electrical work, construction work, civil engineering work, and assembly and repair of machine parts.
The blade provides outstanding cutting performance.
The J200PC features simplified crimping. (1.25-2 mm2)

Use/Application

Model No.	Steel wire (mm)	Copper wire (mm)	VVF wire (mm)
J150P	2	2.6	1.6 x 3 cores
J175P	2.75	3.2	1.6 x 3 cores
J200P	3	3.6	2.0 x 3 cores
J200PC	3	3.6	2.0 x 3 cores

※ Piano wire cannot be cut

Specifications

Model No.	(Product) weight	size1	size2	size3	Retail/User prices
J150P	200g	163mm	12.5mm	14mm	open price
J175P	280g	188mm	13.5mm	15.8mm	open price
J200P	365g	213mm	14.5mm	18.5mm	open price
J200PC	375g	213mm	14.5mm	18.5mm	open price

IMPORTANT SAFETY INSTRUCTIONS

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX J-P, J-PC Pliers (J-CRAFT series) first appeared on Kouei Japan Trading | Get Quotation.

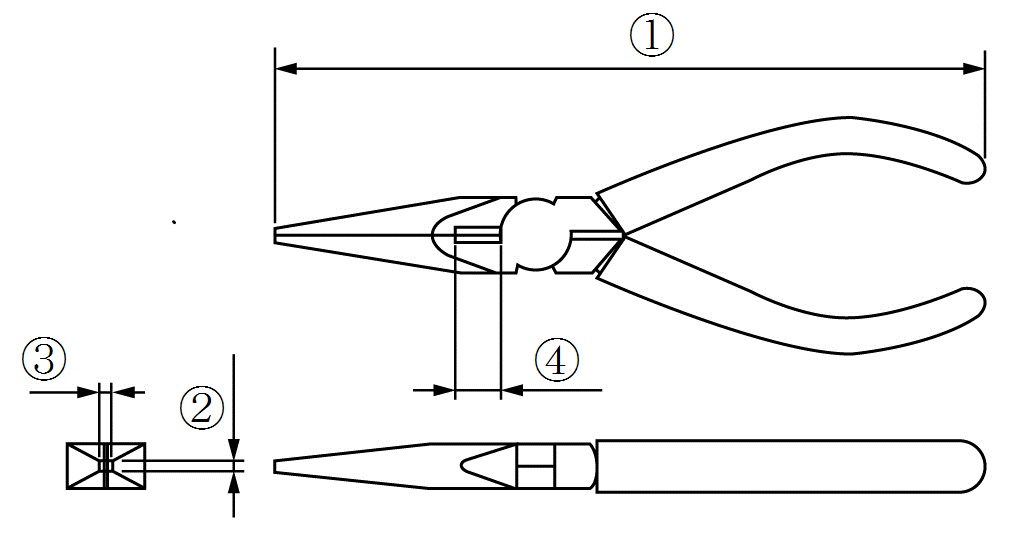

LOBTEX JR Long-nose Pliers (J-CRAFT series)

kvt part2 — Sun, 07 Jun 2020 08:50:31 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: JR: J100R, J115R, J150RG, J150RS

Reliable “Japanese quality”

Suitable for assembly, repair and disassembly work for arts and crafts, precision equipment, etc.
The tips demonstrate their durability particularly in grasping and bending work. The blades provide excellent cutting performance.
Matted grip is easy to grasp and prevents slipping.

Use/Application

Model No.	Steel wire (mm)	Copper wire (mm)	Stranded wire (mm)
J100R	1	1.6	2
J115R	1.2	2	2
J150RG	1.5	2.6	5.5
J150RS	1.5	2.6	5.5

※ J100R and J115R are only for cutting soft steel wires.
※ Not applicable for cutting piano wire.

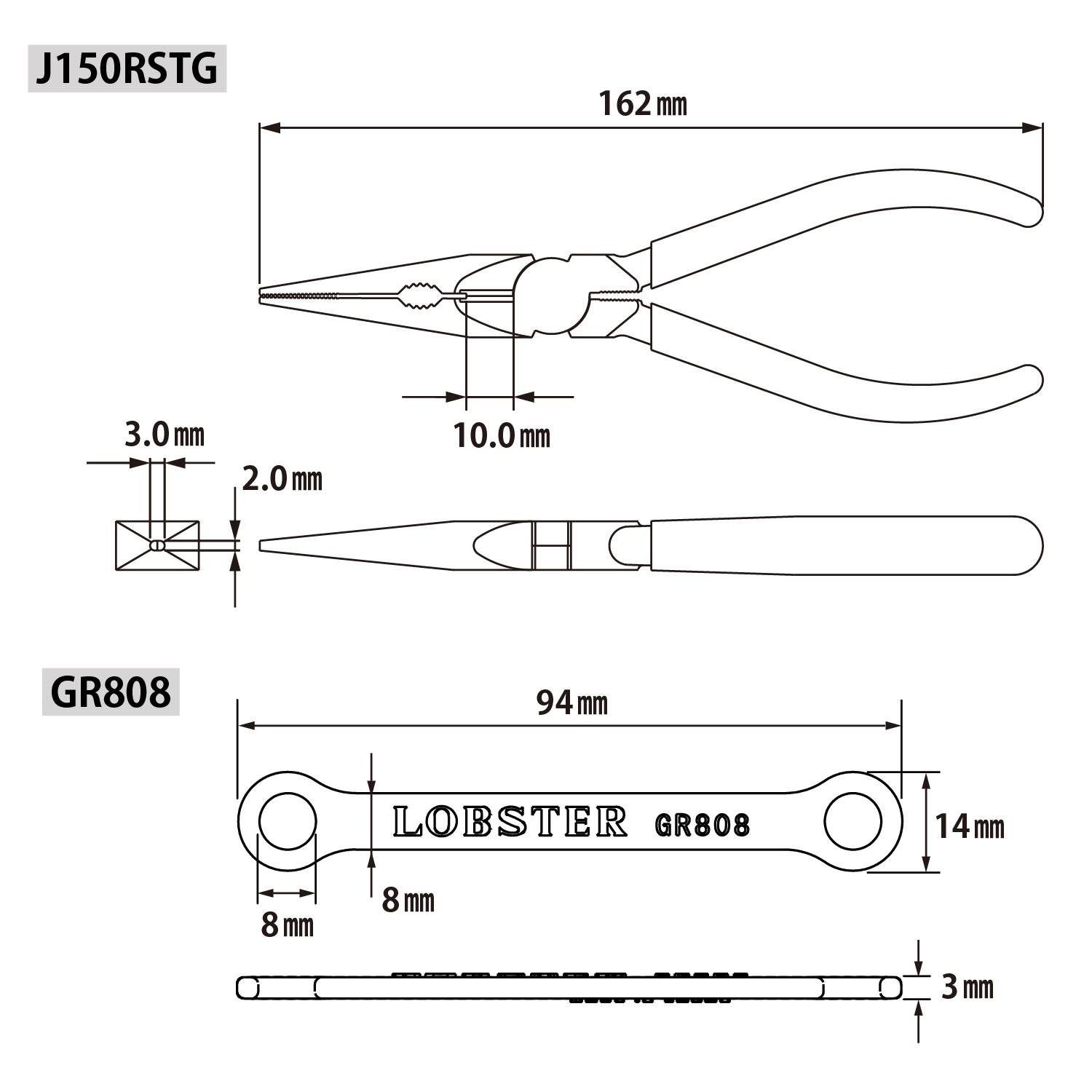

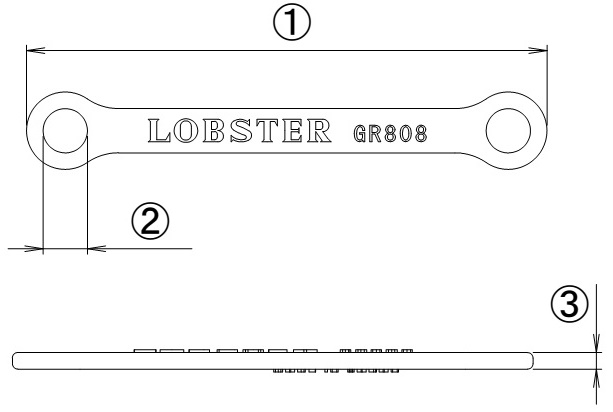

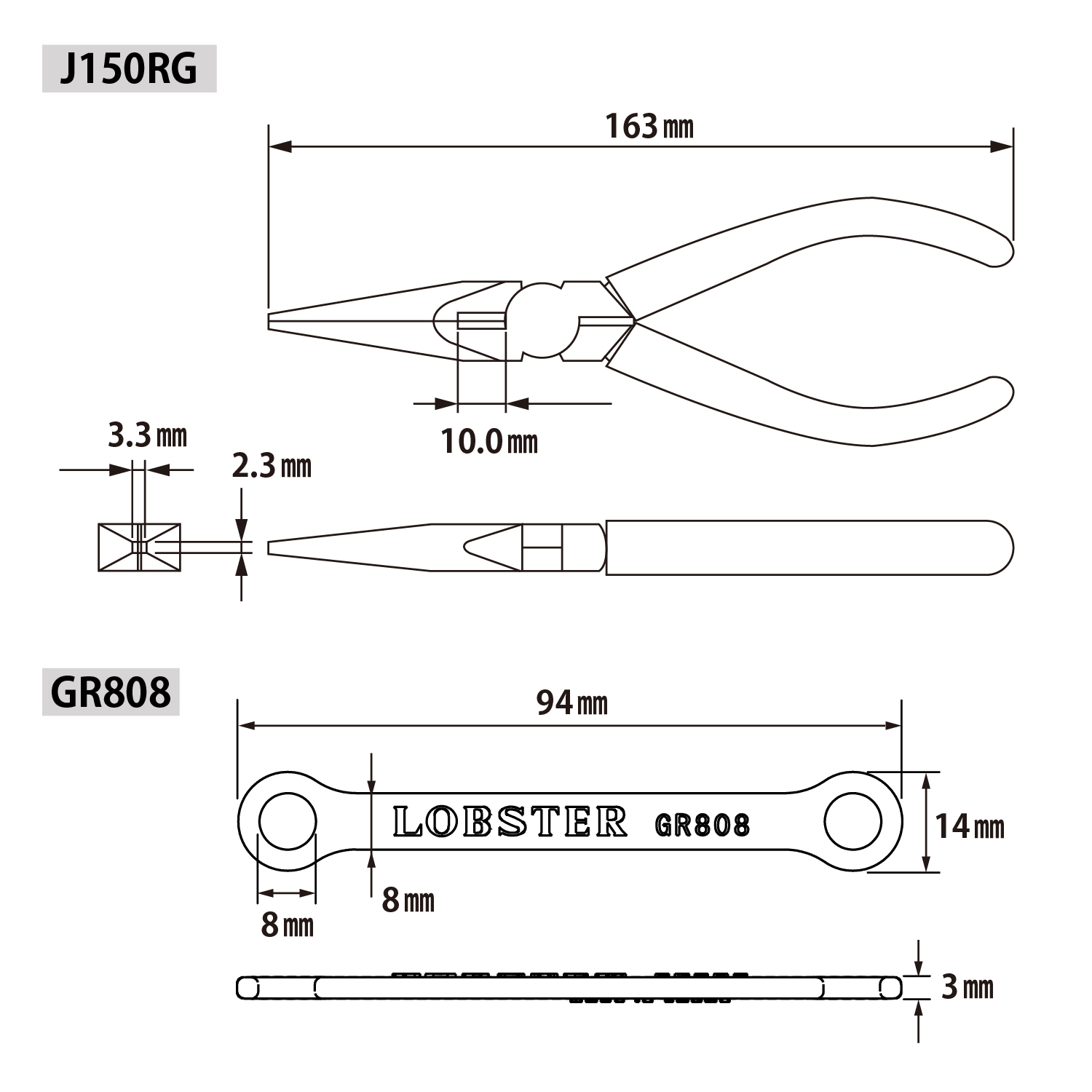

J150RG with grip adapter

Specifications

Model No.	(Product) weight	size1	size2	size3	size4	Retail/User prices	Remark
J100R	45g	103mm	2mm	2.5mm	6.5mm	open price	with spring
J115R	60g	123mm	2mm	2.5mm	6.5mm	open price	with spring
J150RG	125g	163mm	2.3mm	3.3mm	10mm	open price	With grip adapter (black)
J150RS	125g	163mm	2.3mm	3.3mm	10mm	open price	with spring

IMPORTANT SAFETY INSTRUCTIONS

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX JR Long-nose Pliers (J-CRAFT series) first appeared on Kouei Japan Trading | Get Quotation.

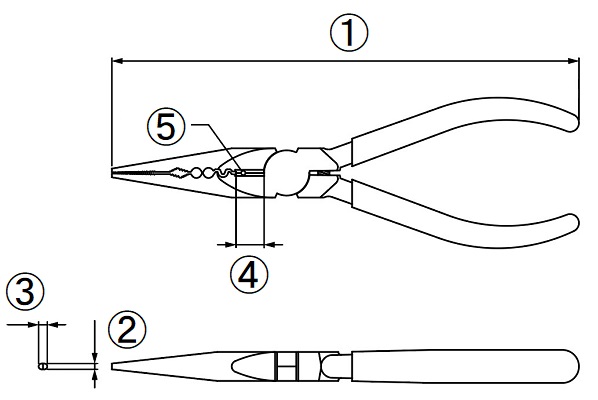

LOBTEX J150RM General-purpose Long-nose Pliers (J-CRAFT series)

kvt part2 — Sun, 07 Jun 2020 08:45:57 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: J150RM

Reliable “Japanese quality”

Super multi-functional long-nose pliers, offering seven functions in a single tool
Useful for electrical wiring work (splitting, simplified crimping, stripping, etc.)
Spring-loaded grip helps reduce labor in continuous work.
The blade provides outstanding cutting performance.
Matted grip is easy to grasp and prevents slipping.

Use/Application

Model NO.	Steel wire (mm)	Copper wire (mm)	Stranded wire (mm)
J150RM	ø1.5	ø2.6	ø3.5

※ Piano wire cannot be cut

Specifications

Model No.	(Product) weight	size1	size2	size3	size4	size5	Use range	Retail/User prices
J150RM	125g	162mm	2mm	3mm	9.7mm	φ1.5mm	1.25mm2	open price

IMPORTANT SAFETY INSTRUCTIONS

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX J150RM General-purpose Long-nose Pliers (J-CRAFT series) first appeared on Kouei Japan Trading | Get Quotation.

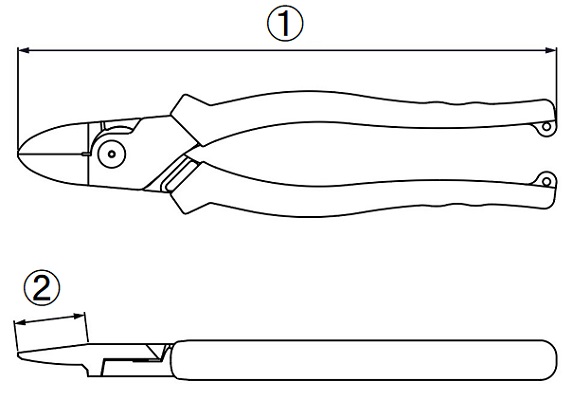

LOBTEX J-PWNU Power Nippers Thin Blades

kvt part2 — Sun, 07 Jun 2020 08:39:48 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: J-PWNU: J200PWNU, J225PWNU

Reliable “Japanese quality”

An eccentric lever mechanism enables cutting of thick wires, despite the compact body.
The thin flat blade with sharp cutting edge ensures beautifully cut surfaces.
Narrow elastomer grip is easy to grasp, enabling you to apply force efficiently.

Use/Application

Model NO.	Soft steel wire (mm)	Copper wire (mm)	VVF wire (mm)
J200PWNU	ø2.0	ø3.2	ø2.0 x 3 cores
J225PWNU	ø2.6	ø4.0	ø2.6 x 3 cores

※ Piano wire cannot be cut

Specifications

Model No.	(Product) weight	size1	size2	Retail/User prices
J200PWNU	245g	199mm	24mm	open price
J225PWNU	310g	218mm	26mm	open price

IMPORTANT SAFETY INSTRUCTIONS

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX J-PWNU Power Nippers Thin Blades first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX J-PWN Power Nippers

kvt part2 — Sun, 07 Jun 2020 08:09:34 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: J-PWN : J165PWN, J185PWN

Reliable “Japanese quality”

An eccentric lever mechanism enables cutting of thick wires, despite the compact body.
Can also cut piano wire and hard steel wire.
Lightweight compact body
Narrow elastomer grip is easy to grasp, enabling you to apply force efficiently.

Use/Application

Model No.	Steel wire (mm)	Copper wire (mm)	VVF wire (mm)	Piano wire (mm)
J165PWN	ø2.0	ø3.2	ø1.6 x 2 cores	ø1.0
J185PWN	ø2.15	ø3.5	ø1.6 x 2 cores	ø1.2

Specifications

Model No.	(Product) weight	size1	size2	Retail/User prices
J165PWN	185g	168mm	20.5mm	open price
J185PWN	240g	187mm	23.5mm	open price

IMPORTANT SAFETY INSTRUCTIONS

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX J-PWN Power Nippers first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX J-PWP Power Pliers

kvt part2 — Sun, 07 Jun 2020 07:34:54 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.

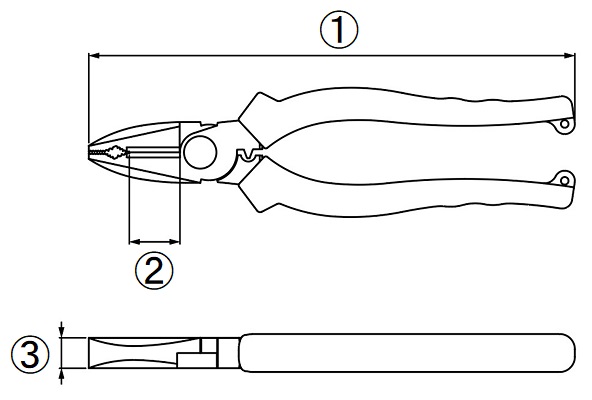

Model: J-PWP: J200PWP, J200PWP

Reliable “Japanese quality”

An eccentric lever mechanism enables cutting of thick wires, despite the compact body.
Can also cut piano wire and hard steel wire.
Lightweight compact body
Multi-functional pliers featuring simplified crimping and screwdriving (1.25-2 mm2)
・Narrow elastomer grip is easy to grasp, enabling you to apply force efficiently.

Use/Application

Cutting capacity

Model NO.	Soft steel wire (mm)	Copper wire (mm)	VVF wire (mm)	Piano wire (mm)
J200PWP	ø3.0	ø3.6	ø2.0 x 3 cores	ø1.6
J225PWP	ø3.4	ø4.0	ø2.0 x 3 cores	ø2.0

Specifications

Model No.	(Product) weight	size1	size2	size3	Retail/User prices
J200PWP	245g	192mm	20mm	12mm	open price
J225PWP	315g	218mm	22mm	13mm	open price

IMPORTANT SAFETY INSTRUCTIONS

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX J-PWP Power Pliers first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX J-CRAFT Series Stainless Steel Long-nose Pliers + J150RSTG Grip adapter

kvt part2 — Sun, 07 Jun 2020 07:19:02 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: J-CRAFT Series, J150RSTG

Makes the J-CRAFT series easier to use!

Made of rust-resistant stainless steel（SUS420J2）.
Spring-loaded grip helps reduce labor in continuous work.
Equipped with jaws that can pinch and turn a thin pipe, screw or nut.
The blade provides outstanding cutting performance.
Matted grip is easy to grasp and prevents slipping.

Use/Application

How to use the product
Serves as a grip for holding tools at oily or other work sites where the tool may easily slip from one’s hand.
Serves as a simplified spring that facilitates continuous work over extended periods of time.
※ If the tool handles do not smoothly open and close, the grip adaptor cannot be used as a simplified spring

Specifications

Model No.	(Product) weight	size1	size2	size3	size4	Set details	Retail/User prices	Remark
J150RSTG	130g	162mm	2mm	3mm	9.7mm	With grip adapter (black)	open price	With grip adapter (black)

IMPORTANT SAFETY INSTRUCTIONS

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX J-CRAFT Series Stainless Steel Long-nose Pliers + J150RSTG Grip adapter first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX J-CRAFT Series Long-nose Pliers With Vertically Angled Tip + J150RBTG Grip Adapter

kvt part2 — Sun, 07 Jun 2020 06:31:52 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: J-CRAFT, J150RBTG

Makes the J-CRAFT series easier to use!

Long-nose pliers with a vertically angled tip (or horizontally angled tip) are useful for work in tight places. With a 45° angled tip, the pliers easily grasp target objects in areas with limited height clearance.

They excel with recessed parts because the angled tip offers better visibility compared to conventional long-nose pliers. The blade delivers outstanding cutting performance, and the matted grip ensures a secure grasp while preventing slipping.

Use/Application

How to use the product
Serves as a grip for holding tools at oily or other work sites where the tool may easily slip from one’s hand.

Serves as a simplified spring that facilitates continuous work over extended periods of time.
※ If the tool handles do not smoothly open and close, the grip adaptor cannot be used as a simplified spring

Specifications

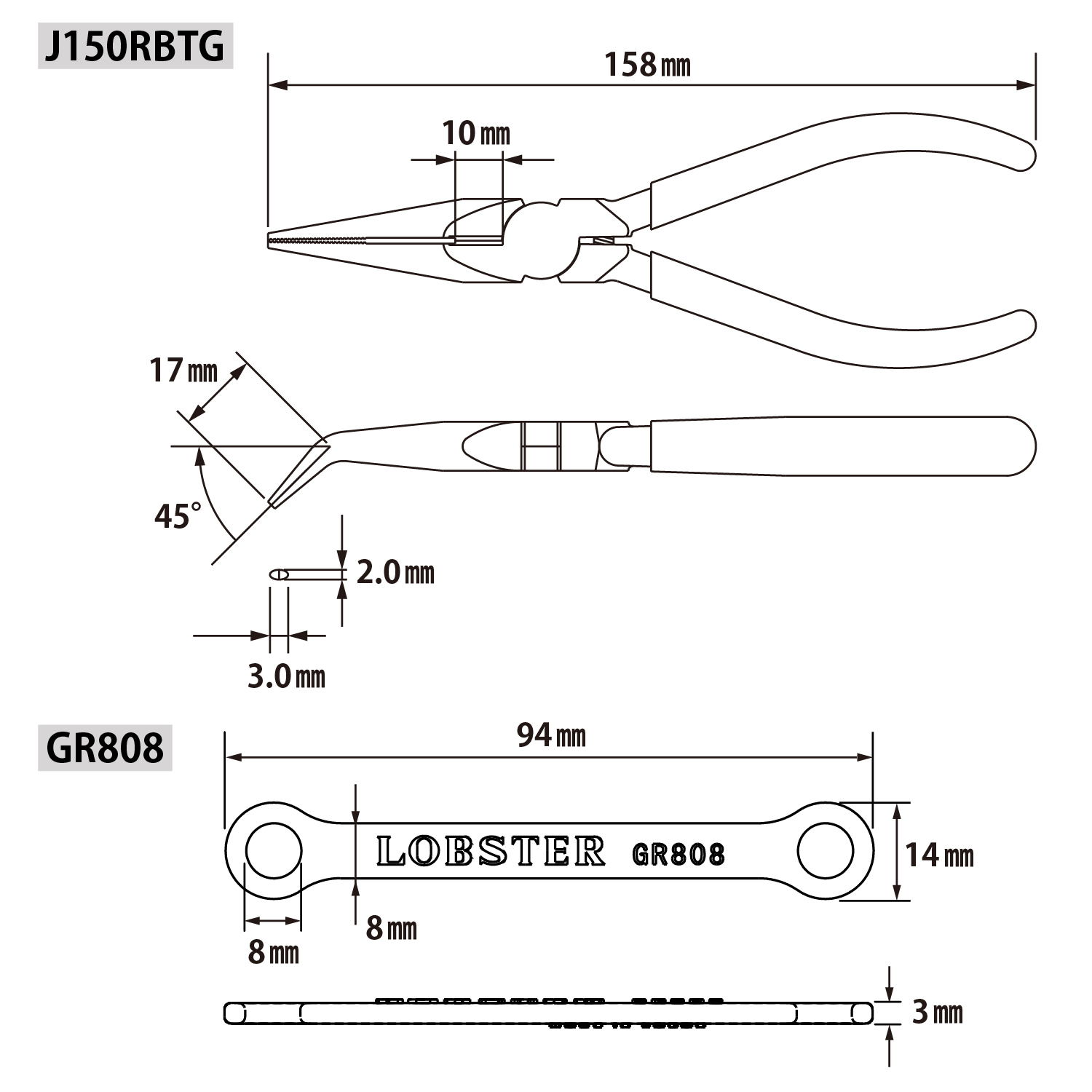

Model No.	(Product) weight	size1	size2	size3	size4	size5	Set details	Retail/User prices	Remark
J150RBTG	125g	158mm	2mm	3mm	17mm	9.7mm	With grip adapter (black)	open price	With grip adapter (black)

IMPORTANT SAFETY INSTRUCTIONS

Dimensions and weights are nominal, so some numerical values may change. Specifications may change without prior notice to improve the product. Listed prices exclude VAT; please contact our distributor for purchases. Also, avoid using the grip adapter for fall-preventive purposes.Additionally, do not use the grip adapter for fall-preventive purposes.

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX J-CRAFT Series Long-nose Pliers With Vertically Angled Tip + J150RBTG Grip Adapter first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX J-CRAFT Series Angled Tip Long-nose Pliers + J150RBG Grip Adapter

kvt part2 — Sun, 07 Jun 2020 06:14:01 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: J-CRAFT Series, J150RBG

Makes the J-CRAFT series easier to use!

Long-nose pliers with vertically angled tip (horizontally angled tip) useful for work in tight places
ROPROSS’ bending direction and angle (30°) make work easy even in tight places where conventional pliers cannot be laterally opened.
The blade provides outstanding cutting performance.
Matted grip is easy to grasp and prevents slipping.

Use/Application

How to use the product

Serves as a grip for holding tools at oily or other work sites where the tool may easily slip from one’s hand.

Specifications

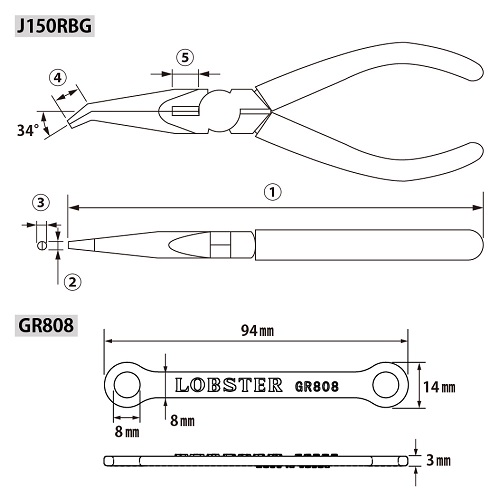

Model No.	(Product) weight	size1	size2	size3	size4	size5	Set details	Retail/User prices	Remark
J150RBG	125g	159mm	2.3mm	3.3mm	9mm	10mm	With grip adapter (black)	open price	With grip adapter (black)

IMPORTANT SAFETY INSTRUCTIONS

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX J-CRAFT Series Angled Tip Long-nose Pliers + J150RBG Grip Adapter first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX J-CRAFT Series Long-nose Pliers +J150RG Grip Adapter

kvt part2 — Sun, 07 Jun 2020 04:26:38 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: J-CRAFT, J150RG

Makes the J-CRAFT series easier to use!

Use/Application

【 How to use the product】

Serves as a grip for holding tools at oily or other work sites where the tool may easily slip from one’s hand.

Serves as a simplified spring that facilitates continuous work over extended periods of time.

※ If the tool handles do not smoothly open and close, the grip adaptor cannot be used as a simplified spring

Specifications

Model No.	(Product) weight	size1	size2	size3	size4	Set details	Retail/User prices	Remark
J150RG	125g	163mm	2.3mm	3.3mm	10mm	With grip adapter (black)	open price	With grip adapter (black)

IMPORTANT SAFETY INSTRUCTIONS

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX J-CRAFT Series Long-nose Pliers +J150RG Grip Adapter first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX J-CRAFT Series Heavy-duty Nippers + J150KNG Grip Adapter

kvt part2 — Sun, 07 Jun 2020 04:15:05 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: J150KNG

Makes the J-CRAFT series easier to use!

Use/Application

【 How to use the product】

Serves as a grip for holding tools at oily or other work sites where the tool may easily slip from one’s hand.

Specifications

Model No.	(Product) weight	size1	size2	size3	Set details	Retail/User prices	Remark
J150KNG	150g	163mm	21mm	Without hole	With grip adapter (black)	open price	With grip adapter (black)

IMPORTANT SAFETY INSTRUCTIONS

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX J-CRAFT Series Heavy-duty Nippers + J150KNG Grip Adapter first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX GR808R Grip Adapter

kvt part2 — Sun, 07 Jun 2020 03:24:16 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: GR808R

Makes the J-CRAFT series easier to use!

When attached to one handle, the grip adapter serves as a grip.
When attached to both handles, the grip adapter serves as a simplified spring.
The grip adapter can be attached to your nippers and long-nose pliers. (Available size: 150 mm only)
Serves as a grip in which you can put your fingers to enable stable work.
Serves as a simplified spring which is useful for continuous work.
* The color of the grip adapter included in the set product is black.(Note that it is not red.)

Use/Application

How to use the product

Serves as a grip for holding tools at oily or other work sites where the tool may easily slip from one’s hand.

* The photograph shows the J150KNG set product.
* The color of the grip adapter included in the set product is black. (Note that it is not red.)

Product No.	Contents
J150KNG	Heavy-duty nippers (J-CRAFT series) J150KN + Grip adapter (black) To access the webpage for J150KN,
J150RG	Long-nose pliers (J-CRAFT series) J150R + Grip adapter (black) To access the webpage for J150R,
J150RBTG	Long-nose pliers with vertically angled tip (J-CRAFT series) J150RBT + Grip adapter (black) To access the webpage for J150RBT,
J150RBG	Angled tip long-nose pliers (J-CRAFT series) J150RB + Grip adapter (black) To access the webpage for J150RB,
J150RSTG	Stainless steel long-nose pliers (J-CRAFT series) J150RST + Grip adapter (black) To access the webpage for J150RST,

Specifications

Model No.	(Product) weight	size1	size2	size3	Set details	Material, Surface finishing	Retail/User prices
GR808R	3g	94mm	8mm	3mm	Grip adapter (red) sold by itself	Rubber	open price

IMPORTANT SAFETY INSTRUCTIONS

Do not use the grip adapter for fall-preventive purposes.

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX GR808R Grip Adapter first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX 2716G Cutting Nippers (For Only Overseas Market)

kvt part2 — Sun, 07 Jun 2020 03:20:14 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: 2716G

* This product is not sold in Japan.

Specifications

Model No.	(Product) weight	size1	Retail/User prices	Remark
2716G	144g	150mm	open price	Cutthing capacity/Copper wire：φ2.6 ※① of a table is full length.

IMPORTANT SAFETY INSTRUCTIONS

Do not use this tool on live parts. The grip is not insulated.
Before cutting work, confirm the direction in which chips scatter.
During work, wear protective goggles.

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX 2716G Cutting Nippers (For Only Overseas Market) first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX 2706 Diagonal Cutting Plier (For Only Overseas Market)

kvt part2 — Sun, 07 Jun 2020 03:03:41 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: 2706

* This product is not sold in Japan.

Use/Application

Specifications

Model No.	(Product) weight	size1	Retail/User prices	Remark
2706	150g	150mm	open price	Cutthing capacity ①Iron wire：φ1.8 ②Copper wire：φ2.6 ※① of a table is full length.

IMPORTANT SAFETY INSTRUCTIONS

Do not use this tool on live parts. The grip is not insulated.
Before cutting work, confirm the direction in which chips scatter.
During work, wear protective goggles.

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX 2706 Diagonal Cutting Plier (For Only Overseas Market) first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX 2726S Plastic Nippers (For Only Overseas Market)

kvt part2 — Sun, 07 Jun 2020 02:31:31 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: 2726S

* This product is not sold in Japan.

Use/Application

Specifications

Model No.	(Product) weight	size1	Retail/User prices	Remark
2726S	135g	150mm	open price	Cutthing capacity/Plastic：φ5.0 ※① of a table is full length.

IMPORTANT SAFETY INSTRUCTIONS

Do not use this tool on live parts. The grip is not insulated.
Before cutting work, confirm the direction in which chips scatter.
During work, wear protective goggles.

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX 2726S Plastic Nippers (For Only Overseas Market) first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX RP Long Nose Pliers (For Only Overseas Market)

kvt part2 — Sun, 07 Jun 2020 01:22:33 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: RP

* This product is not sold in Japan.

Use/Application

Specifications

Model No.	(Product) weight	size1	Retail/User prices	Remark
2606	130g	150mm	open price	Cutthing capacity ①Iron wire：φ1.6 ②Copper wire：φ2.0 ※① of a table is full length.
2606G	135g	150mm	open price	Cutthing capacity ①Iron wire：φ1.6 ②Copper wire：φ2.0 ※① of a table is full length.

IMPORTANT SAFETY INSTRUCTIONS

Do not use this tool on live parts. The grip is not insulated.
Before cutting work, confirm the direction in which chips scatter.
During work, wear protective goggles.

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX RP Long Nose Pliers (For Only Overseas Market) first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX ZP Side Cutting Pliers (For Only Overseas Market)

kvt part2 — Sat, 06 Jun 2020 08:06:09 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: ZP

* This product is not sold in Japan.

Use/Application

Specifications

Model No.	(Product) weight	size1	Retail/User prices	Remark
2506	190g	150mm	open price	Cutthing capacity ①Iron wire：φ2.0 ②Copper wire：φ2.4 ※① of a table is full length.
2507	270g	175mm	open price	Cutthing capacity ①Iron wire：φ2.4 ②Copper wire：φ3.0 ※① of a table is full length.
2508	350g	200mm	open price	Cutthing capacity ①Iron wire：φ3.0 ②Copper wire：φ3.6 ※① of a table is full length.
2506G	220g	150mm	open price	Cutthing capacity ①Iron wire：φ2.0 ②Copper wire：φ2.4 ※① of a table is full length.
2507G	300g	175mm	open price	Cutthing capacity ①Iron wire：φ2.4 ②Copper wire：φ3.0 ※① of a table is full length.
2508G	400g	200mm	open price	Cutthing capacity ①Iron wire：φ3.0 ②Copper wire：φ3.4 ※① of a table is full length.
2506P	210g	150mm	open price	Cutthing capacity ①Iron wire：φ2.0 ②Copper wire：φ2.4 ※① of a table is full length.
2508P	365g	200mm	open price	Cutthing capacity ①Iron wire：φ3.0 ②Copper wire：φ3.6 ※① of a table is full length.
2508CP	348g	200mm	open price	Cutthing capacity ①Iron wire：φ2.0 ②Copper wire：φ2.4 ※① of a table is full length.
CSC225	365g	365mm	open price	Cutthing capacity ①Iron wire：φ3.6 ②Copper wire：φ4.0 ※① of a table is full length.

IMPORTANT SAFETY INSTRUCTIONS

Do not use this tool on live parts. The grip is not insulated.
Before cutting work, confirm the direction in which chips scatter.
During work, wear protective goggles.

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX ZP Side Cutting Pliers (For Only Overseas Market) first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX MC210N Mini Cutter (For Only Overseas Market)

kvt part2 — Sat, 06 Jun 2020 07:48:06 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: MC210N

* This product is not sold in Japan.

Use/Application

Specifications

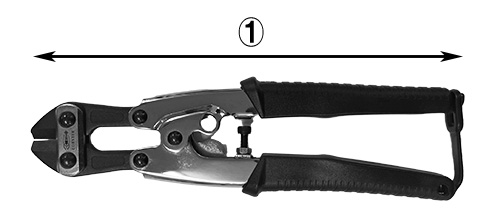

Model No.	(Product) weight	size1	Retail/User prices
MC210N	310g	210mm	open price

IMPORTANT SAFETY INSTRUCTIONS

Do not use this tool on live parts. The grip is not insulated.
Before cutting work, confirm the direction in which chips scatter.
During work, wear protective goggles.

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX MC210N Mini Cutter (For Only Overseas Market) first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX APK28 Compact Aluminum Clippers

kvt part2 — Sat, 06 Jun 2020 07:27:17 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: APK28

* This is no longer produced.

Lightweight clippers with a maximum cutting diameter of Ø12 mm for soft material, Ø5 mm for soft steel, or Ø3 mm for hard steel.
The handle and clip plate are crafted from anodized aluminum alloy.
The grip, made of luminous material, stores fluorescent or sunlight and glows in the dark, with a reflective sticker on the handle.
The soft, luminous grip fits comfortably in the hand.

Use/Application

Cuts wires, nails, fences, stainless steel strands, and more.
Ideal for disassembling scaffolding and binding materials at construction sites.
Suitable for pruning and landscape gardening.
Cuts soft materials like wire, copper pipe, and plastic in electrical and disassembly work.

Specifications

Model No.	(Product) weight	size1	size2	Retail/User prices
APK28	260g	280mm	46mm	open price

IMPORTANT SAFETY INSTRUCTIONS

Do not use this tool on live parts. The grip is not insulated.

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX APK28 Compact Aluminum Clippers first appeared on Kouei Japan Trading | Get Quotation.

LOBTEX APN20A Compact Aluminum Nippers

kvt part2 — Sat, 06 Jun 2020 07:08:53 +0000

Made in Japan
Manufacturer: LOBTEX CO., LTD.
Model: APN20A:

Redesigned!
Lightweight with aluminum handle! (40% lighter compared with steel handle in the same)

Easy to cut with open wide cutting edge
Selectable 2 holes for anti-drop hook
Easy to grip owing to the left-right unsymmetrical grip
Luminous grip can help your work in dark place

Use/Application

Specifications

Model No.	(Product) weight	size1	size2	Retail/User prices	Remark
APN20A	170g	215mm	38mm	open price	Cutting capacityФ(mm)： ①Soft material 4.0, ②Soft steel 4.0, ③Hard steel 2.0 ①Soft material： Copper pipe and electric wire ②Soft steel： Steel which less than 80HRB in hardness, less than 490N/mm2 in tensile strength ③Hard steel： Steel which less than 31HRC in hardness, less than 980N/mm2 in tensile strength

IMPORTANT SAFETY INSTRUCTIONS

Do not use this tool on live parts. The grip is not insulated.

CAUTIONS ON INSCRIBED VALUES

The post LOBTEX APN20A Compact Aluminum Nippers first appeared on Kouei Japan Trading | Get Quotation.
