Manufacturer: Seiko Time Creation Inc.
Model: FT-400

Overview

Three counting modes
You can select the counting mode from UP (normal counting), DOWN (countdown), or REPEAT (DOWN) (repeated countdown).
Timer time
Up to 9 minutes and 59 seconds can be set for the timer in one second increments.
Rotating beacon
The rotating beacon can be set in either auto or manual mode. In the auto mode, it blinks automatically for 5 seconds at 15 seconds before the set time is up, and blinks again for 5 seconds after the time is up.

Specification

Overview

Applicable to 8 events
Applicable to javelin throw, hammer throw, discus throw, shot put, long jump, triple jump, high jump and pole vault.
Online data transmission
Measured data can be fed online to the display board and computer, except in high jump and pole vault.
Easy interactive operation
Measurement can be made easily in an interactive way using an LCD monitor and button switches.
Memory of measured distance
The system retains the measured baseline distance in memory until you delete it or turn off the power.
Out-of-the-level alarm
The alarm sounds if the distance finder is out of the level beyond the specified limit. The voltage level of the backup battery can be checked on the monitor.

Prism

Manufacturer: Seiko Time Creation Inc.
Model: FD-500

Overview

Result display
The number of trials, bib No., fair/foul judgment, distance and other results can be displayed by using the operation panel on the side face of the display board or by linking it to a computer system. It can rotate 90° both ways.
Test pattern display
To check the function of the display, test pattern can be displayed.

Specification

System Configuration

Overview

Specification

Manufacturer: Seiko Time Creation Inc.
Model: WG-300

Overview

Selectable measurement duration
Measurement duration can be selected from 5, 10 and 13 seconds according to the type of events.
Real-time display of measurements
The result of measurement can be displayed instantly on the wind velocity display board (option).
Powered by battery
Relocation of the display board can be made easily.

• Ultrasonic wind gauge operation board

Sensor

Specification

System Configurations

Overview

You can set up to 99 laps for the countdown.
Each press of the grip switch decreases the set number of laps by one.
The unit operates on a built-in DC 12V battery, allowing you to move the display board easily and safely.Specification

System Configurations

Overview

Electric phase detection system
RM-200 picks up the pressure change that occur only after 0.5 seconds before the start, thus eliminating the judgement error caused by the runner’s warming up action.
False start signal
If a false start is detected, LED on the operation board lights up, and an audible alarm signal is given simultaneously to the starter through the headset.
Printout of the results
The reaction time of each runner and waveform indicating pressure changes can be printed out every time a start is made.
Automatic recall function
Signal output for automatic recall is also available.
Use in world’s leading sporting events
Continuously improved since developed first in 1984, Start Information System has been used regularly in IAAF World Championships in Athletics starting from Rome 1987,
as well as numerous other international meetings.
* In athletic meetings that fall under the classifications of (a) through (c) of Section 1 in Rule 12 of IAAF Constitution, use of a Start Information System is obligatory.

Start Information System

When the runner takes a starting action, waveform of pressure applied on the starting block shows frequencies completely different from those at the set position. RM-200 uses an electric filter circuit to detect such frequency change and judge whether the runner has taken a starting action.

Specification

Starting Block

Console

System Configurations

Options

Rack for starting blocks: 1unit

Overview

Data transfer
RT-520 logs measurement data sent from the photo beam units, and transfers it to respective display boards.
Control of equipments
It sets the functions of each equipment, selects and monitors the photo beam units, and controls respective display boards.
Increased operability
Combined use of the multiple ten-key pads and the function keys has made it easy to change the timer time, input bib No., adjust the current time, etc.
Two-channel LCD
The LCD alternately displays two channels of data that corresponds to the running time and bib No. displays.
DC power pack for data backup
RT-520 is equipped with DC power pack against power failure.

Specification

Manufacturer: Seiko Time Creation Inc.
Model: RT-100

Overview

Two measurement display modes
Minutes display mode : Measures up to 59 min. 59 sec. 99 to an accuracy of 1/100 sec. (if the measuring unit is set at 1/100)
Hours display mode : Measures up to 23 h. 59 min. 59 sec.
Double-sided display
Automatic changeover between minutes and hours display modes is possible. The current time can also be displayed.
Display of a wide range of data
Running time, lap time, preset start time, countdown of a preset period of time, and current time can be displayed.
Automatic lap time display function
Upon reception of a lap signal, the lap time remains displayed for 5 sec., and then, the display returns to the running time.

Overview

The display board shows the game time, including the 35-second rule.
It also displays penalty time, scores, number of fouls, and other information.

System Components

Item	Quantity
Mobile water polo display board	2 units
Battery box	2 pieces
Game time operation board	1 unit
Score operation board	1 unit
Penalty operation board	1 unit
Foul operation board	1 unit
Team name input device	1 unit
30-sec rule display board	4 units
Battery for 30-sec rule display board	1 unit
30-sec rule operation board	1 unit
Power supply box	1 piece

Mobile Water Polo Display Board
The Mobile Water Polo Display Board indicates the Game-time, Score,Penalty, Foul and Team name.
Equipped with a built in horn．

30-sec. rule Display board
It can be indicated a shot clock in water polo game.
Equipped with a built in horn．

Time out Display Board

Operation Boards

Specification

Mobile Water Polo Display Board

30-sec. Rule Display Board

Time-Out Display Board

Overview

Each judge operation board sends score data online to the main judge operation board.
The system automatically calculates the scores according to the event rules.

System Components

Judge terminal

sports timer ST-306 with Stand ST-020

Overview

Overview

System Configration Diagram

Overview

The moment all the people in the swimming arena — from the swimmers and audience to the officials—direct their eager attention to the scoreboard, the excitement and emotion among them reach their peak. Seiko’s scoreboard helps augment such dramatic moment.

Manufacturer: Seiko Time Creation Inc.
Model: SB-5010

Overview

Specification

Overview

In accordance with FINA Rules
The SEIKO underwater lap counter system for swimming competition displays to the swimmer the remaining number of laps in a long-distance race in a visible manner using a display board installed underwater. Operating in sync with the printing timer, the operation board automatically calculates the remaining number of laps, and displays in on the underwater display board installed in each lane. With the use of the two-digit high-intensity LED display that enables the swimmers to know the remaining number of laps to swim easily, this system supports the safe and smooth progress of the swimming competition.

Specification

Overview

5 signals sent from touch pads, relay error sensors and 3grip switches are sorted and sent to the printing timer by one unit.
In accordance with FINA Rules
Grip switch
GS-51（with 2.5m cable)
GS-52（with 5.5m cable)
GS-53（with 10m cable)

Specification

Overview

In accordance with FINA Rules
As electronic start sound is generated, start signal is sent to the printing timer simultaneously.
Two types of start sounds(gun fire, beep) are available.
Strobe position is top of the gun, easily viewable point.

Specification

Manufacturer: Seiko Time Creation Inc.
Model: TP-3000 / TP-3019

Overview

In accordance with FINA Rules
Swimmer’s touches detected are instantly converted into electric signals and sent to the printing timer.
Does not react to water pressure or splashes.

Touch pads storage cart TF-40

Specification

Manufacturer: Seiko Time Creation Inc.
Model: BSL-120

Overview

In accordance with FINA Rules
The SEIKO Backstroke ledge BSL-120 is a starting aid for backstroke swimmers designed for exclusive use with the SEIKO starting block SB-400 series for swimming competition.

Specification

Manufacturer: Seiko Time Creation Inc.
Model: SB-400 / SB-420

Overview

In accordance with FINA Rules
The starting block has a built-in sensor, which detects even the slightest illegal take-off of a swimmer in a relay race.
Starting block without relay error sensor, SB-420 is also available.
Built-in speaker, back stroke ladge are available as options.

Starting block cart SB-460

Specification

Specification	Details
Material	FRP & Stainless steel
Platform Dimensions	500 x 750 mm
Height Above Water Surface	670 mm
Footrest	5 steps, variableness-style footrest available (30°)
Total Weight	Approx. 43 kg

Manufacturer: Seiko Time Creation Inc.
Model: PT-8000X

Overview

In accordance with FINA Rules
1. Automatic operation backup function to offset mistakes in operation.
2The system integrates all the functions required for swimming timing into one unit, providing constant and stable performance.
3. Specially designed for timing of swimming races – no need of all-purpose PCs or software.
4. Dedicated keys for inputting data and an LED display for confirming settings enhance the system’s operation.
5. Memorizes data of up to 400 races.
6. Easy-to-read display panel of intensified LCD.
7. High-speed built-in printer to print out large volume of data.

Rece details setting section

Function

Data Printout: Data can be printed as needed.
Ranking Table Compilation: Rankings can be compiled for heats or entire events.
Touch Pad Signal Checking: Checks swimmer touches at both the start and turn pads.
Relay Take-Off Judgment: LED shows early relay take-offs; LCD displays relay lap times.
Simultaneous Arrival Judgment: Tied swimmers receive the same ranking.
Start Signal Memory: Remembers the last start signal even after a race resets.
Reset Cancellation: Cancels accidental reset and resumes normal timing.

Button switch section

Distance setting correction: You can correct event data, such as distance, at any time after the race has started.
Hold time setting: The hold time, which is the duration during which the touch pad sensor is disabled, can be adjusted from 5 to 90 seconds.
Lap No. correction: If PT-8000X receives incorrect lap signals, you can increase or decrease the lap number as needed during the race using the keys.
Various forms of printout: You can print out entire lap data, entire touch data, early relay take-off data, and more in various formats as required.

Specification

Specification	Details
Time Accuracy	Crystal oscillator type, less than 1 ppm at normal temperatures
Measurement Unit and Place Judgment	1/100 sec., same place assigned to same finish time
Maximum Time Measured	59 minutes 59 seconds 99
Maximum Number of Lanes for Measurement	10 lanes
Selection of Distance	25, 50, 100, 200, 300, 400, 800, 1,500 m and (not specified)
Memory Capacity	Up to 400 races
Selection of Pool Length	25/50 m
Power Supply	DC 12 V battery with recharger for exclusive use with PT-8000X (built-in NiCd battery)
Operational Temperature and Humidity Ranges	0℃～＋40℃, 30～80 %
External View	Attache case type with control panel on the top
Overall Dimensions	W474×H136×D328mm (excluding protruded portion)
Weight	Approx. 8.0 kg (including the case)

Overview

Seiko has always led advancements in swimming systems, leveraging the expertise it has gained from participating in numerous international competitions. Its ongoing pursuit of technological innovation is evident in all its products, ranging from highly precise timing devices to large scoreboard systems that track the progress of the competition.

Overview

The Slit video system allows two or more computers to connect and share the picture data among them.
As a result, it is possible to check the finish order of the previous race and judge that of the current one at the same time.
In another use of the network, using one computer exclusively for capturing races and the other for judging finish order will reduce the burden of the photo finish judge.
2.　Photo Beam Function

The Slit video system can serve the function of a photo beam unit.The System, when used with the sports timer ST-306 (available as an option), outputs and displays the winner’s finish time as soon as the runner crosses the finish line.
3.　Capturing During Judgement Work
Before completing the judgment of the current race’s finish order, you can start a new race and perform capturing.
4.　Auto-Crop Function

The system automatically cuts off the blank space among the runners, which is irrelevant to the finish order judgment. The function streamlines the judgment process and minimizes the amount of data stored on the hard disk.
5.　Manual Deletion Function
You can selectively delete a part of the picture taken. In long distance track races, for example, deleting runners one or more laps behind those finishing the race can prevent confusion in judging the finish order.
6.　Failsafe against Accidental Timer Reset
Even if the timer is accidentally reset during an event, the system can resume normal timekeeping using the measurements stored in memory.
7.　Name Display Only by Inputting Bib No.

During the finish order judgment, the runner’s name is displayed on the monitor screen by inputting the pre-registered bib number. The resulting finish order can also be printed out from the screen.
8.　Automatic Capturing
The camera monitors the finish line all the time, automatically recognizing and capturing the runners who crossed it. This function can eliminate mistakes in operation. Manual capturing using a grip switch is also possible.
9.　Remote Control of Camera’s Iris

When the camera’s iris needs urgent adjustment, such as in the case of sudden weather changes, it can be remotely controlled by the capturing PC.
10.　Easy Event Registration

Once the list of event names is prepared, they can be easily registered for a particular meet by simply clicking them on the display. Additionally, new event names can be effortlessly added using the keyboard.
11.　Gamma Compensation Function

Gamma compensation can be easily performed after photographing. Pictures taken in bad weather, against the sun, or in poorly lit stadiums can be enhanced and reproduced into clearer images on the monitor display, aiding the judgment process.

The Slit Video system takes a digital video through a slit installed in line with the finish line at a rate of 2,000 pictures per second (when the scanning speed is set at 0.5 msec/line).
Each picture obtained covers an ultrathin vertical line which is approximately 1cm in width and 15m in length.
Picture shown on the monitor screen of PC

The pictures are patched together in order of the time when they were taken, and then the picture at right will be shown on the PC screen.
In the finish order judgment procedure, the finish time and order will be displayed only by aligning the judgment line with the runner’s torso and pressing the enter key.

Specification

Camera

Specification	2200HD Pro.	5000HD Pro.	10000HD Pro.
Scanning Speed	1/2,000 sec.	1/5,000 sec.	1/10,000 sec.
Image Pickup System	Vertical scanning by CCD line sensor	Vertical scanning by CCD line sensor	Vertical scanning by CCD line sensor
Lens	Nikon F-mount lens	Nikon F-mount lens	Nikon F-mount lens
Power Supply	AC100V～240V ±10％ 50/60Hz	AC100V～240V ±10％ 50/60Hz	AC100V～240V ±10％ 50/60Hz
Power Consumption	300W (Max.)	300W (Max.)	300W (Max.)

Judgment/capturing PC

Specification	2200HD Pro.	5000HD Pro.	10000HD Pro.
CPU	1.60GHz or more	3.0GHz or more	3.0GHz or more
HDD	80GB 5,400rpm or more	160GB 5,400rpm or more	160GB 5,400rpm or more
Removable Disk Device	CD-RW	DVD-RW	DVD-RW
Monitor Output	1,024×768 pixels, 64,000 colors or more	1,024×768 pixels, 64,000 colors or more	1,024×768 pixels, 64,000 colors or more
Image Memory	20,000 screens	8,000 screens	4,000 screens
Continuous Scanning	666 minutes (at scanning speed 1/1,000 sec.)	666 minutes (at scanning speed 1/1,000 sec.)	666 minutes (at scanning speed 1/1,000 sec.)
I/O Ports	Serial port, USB2.0-compliant four-terminal, RJ45 Ethernet port	Serial port, USB2.0-compliant four-terminal, RJ45 Ethernet port	Serial port, USB2.0-compliant four-terminal, RJ45 Ethernet port
Event Registration	Choice from word bank or free keyboard input	Choice from word bank or free keyboard input	Choice from word bank or free keyboard input
Timer Accuracy	1ppm (at normal temperatures)	1ppm (at normal temperatures)	1ppm (at normal temperatures)
Scale of Image Enlargement/Reduction	Zoom In: 2, 4, 8, 16, 32 times or moreZoom Out: 1/2, 1/4, 1/8, 1/16, 1/32 times or lessArbitrary setting available	Zoom In: 2, 4, 8, 16, 32 times or moreZoom Out: 1/2, 1/4, 1/8, 1/16, 1/32 times or lessArbitrary setting available	Zoom In: 2, 4, 8, 16, 32 times or moreZoom Out: 1/2, 1/4, 1/8, 1/16, 1/32 times or lessArbitrary setting available
Monitor	LCD	LCD	LCD
Monitor Size	15 inches or more	15 inches or more	15 inches or more
Power Supply	AC100V～240V ±10％ 50/60Hz	AC100V～240V ±10％ 50/60Hz	AC100V～240V ±10％ 50/60Hz
Power Consumption	200～400W	550W (Max.)	550W (Max.)

Color printer

Specification	Details
Printing System	MACH jet
Full Resolution	2,880×1,440dpi or more
Paper Size	A4 (max.)
Power Supply	AC100V～240V ±10％ 50/60Hz
Power Consumption	40W (Max.)

System configuration

Item	Quantity
Camera	1 unit
Lens	1 unit
Pan Head	1 unit
Connector Box	1 unit
Grip Switch for Capturing	1 unit
Network Cable	3 pieces
Camera Control Cable	1 piece
AC Cable for Camera	1 piece
Uninterrupted Power Supply (for Capturing PC)	1 unit
HUB	1 unit

Overview

The Photo Beam Unit measures finish time and split time for track event.
The Photo Beam Unit consists of transmitter and receiver.
When a runner passes between them, the receiver detects the interception of the beam　and instantaneously outputs an electric signal for measurement and display of the time.
The longest distance between transmitter and receiver is 100m.
By using with a Sports Printer (CT-2000), the runner’s speed can be measured.

Overview

For sports, events, meetings, or classes: A multifunctional timer that can be adapted to suit your purposes
This is a compact, multifunctional digital timer with a wide variety of uses, such as displaying times and scores for sporting events, measuring remaining speaking time in meetings, and counting days remaining until events.
Can be used as a clock or as a score display for sporting events
It can be configured as a desk clock, a portable clock, or a wall clock.
Can be remote-controlled from a distance
EXAMPLE

Includes various modes for various applications

Events/functions	Example of display	Display details and features
Countdown timer		Countdown from set time Max time setting: 99 min 59 sec 1 second or 1/10 second display Program setting for first-bell time
Count-up timer		Count-up to set time Max time setting: 99 min 59 sec 1 second or 1/10 second display Program setting for first-bell time
Stop watch		Max measurement time: 9 hr 59 min 59 sec 9 Lap/split display
Programmable timer		Time from 0 sec to 99 min 59 sec Program settings (max 9 types) Number of repetitions (max setting: 99 times)
Clock		Hour and minute display 12/24 hr time display switchable Alarm settings (max 5 types)
Score		Score Set/game win Serve/possession Timeout
Game mode (Countdown)		Countdown timer and point display switchover
Game mode (Count-up)		Count-up timer and point display switchover
Tennis		Point Game win Serve Tie-break point
4-digit numerical display		Display of any 4-digit numerical value (0 – 9999)
Display of remaining days		Time setting range: 1 min – 9998 d 23 hr 59 min

Stand KT-011

Carring bag　DT-01

Specification

Dimensions	Main unit: Approx. W570 × H200 × D120 mm
	Remote control: Approx. W50 × H160 × D22 mm
Character height	Timer section: 140 mm, Set win section: 70 mm
Display	LED (White/orange/red/green)
Weight	Approx. 2.3 kg, Adapter with power cord (5 m): approx. 0.7 kg
Power	AC 100 – 240 V, 50/60 Hz (Max power consumption 8.4 W)
Material	ABS resin
Clock	Display: 12 hr time or 24 hr time
	Time adjustment: Set from infrared remote control
	Accuracy: ±0.5 seconds per day

Remarks

The batteries included are for the monitor, to check the functions
Interconnection between multiple units (max 4) is possible using interlocking cables
The digital timer is only for indoor use
The appearance, specifications, or other aspects of products described in this catalog may change without prior notice due to product improvements.

Overview

Overview

Stand for exclusive use with ST-306.

Specification

Dimensions: W760×H1000×D1025mm

Manufacturer: Seiko Time Creation Inc.
Model: ST-306

Overview

Specification

Overview

Specification

Features

The SEIKO Sports Printer CT-2000II serves as a multi-purpose printer/timer used for various sports events requiring timing, such as track and road running races, swimming, skiing, and skating.

Overview

The CT-2000II offers multiple timing modes for various sports events, including [Counting Mode], [Parallel Counting Mode], [Speed Measurement Mode], and more. It allows precise timing to 1/1,000 of a second with 10 selectable calculation methods, including rounding up, down, or off.
The resin case ensures high durability. When using the AC adapter, the system automatically switches to dry batteries (2 sets of 6 AA cells) in case of power failure, ensuring continuous operation. By replacing the unused battery set with new ones, the device can run continuously on dry batteries.
Rechargeable batteries replace alkaline ones, and the CT-2000II powers with an external battery (DC11V–DC14V). You must purchase dry, rechargeable, and external batteries separately, as they do not come included.

Main Functions

The Auto Measurement Mode allows measurement during individual practices, including reaction time, lap time, and split time in swimming, speed skating, track, and other races.
CT-2000II can control an external buzzer to generate a starting sound automatically.
The Time Correction Mode adjusts the scheduled start time in secondary CT-2000II units, synchronizing them with the master unit, even if the actual start time differs.
The Speed Measurement Mode calculates the average speed over a given section of the total distance.
CT-2000II is compatible with CT-1000, allowing the use of existing grip switches, extension units, synchronization cables, and scoreboard connections (except for the PC connection cable). You need optional devices.

New model with significantly upgraded functions CT-2000II

1.Counting Mode Counting Mode

The system prints the order of arrival from 0001 to 9999, but it continues the measurement after the 9,999th racer, restarting the order from 0000 (9999 → 0000 → 0001 → 0002). It prints the order of arrival and split time each time a measurement is made from the start to the finish. The running time (time elapsed from the start) and the measured split time can be displayed on the scoreboard (ST-306, etc.).
2.Parallel Counting Mode rallel Counting Mode

The system can measure split time lane by lane (or racer by racer). It prints out the lane number (CH No.), number of laps, and split time. TYou can also display the running time (time elapsed from the start) and the measured split time on the scoreboard (ST-306, etc.).
3.Parallel Lap/Split Time Measurement Mode

The system can measure lap times and split times lane by lane (or racer by racer). It prints out the lane number (CH No.), number of laps, lap time, and split time. You can also display the running time (time elapsed from the start) and the measured lap or split time on the scoreboard (ST-306, etc.).
4.Parallel Delayed Start Mode rallel Delayed Start Mode

You can measure the time for each racer in a race where the racers start at different times, with certain intervals between their starts. You can record different time measurements based on the start times. The system will print out the group number, finish time (current time at the finish line), order of arrival, and split time, classified by the start time. You can also display the running time (time elapsed from the start) and the measured split time on the scoreboard (ST-306, etc.).
5.Time Correction Mode Time Correction Mode (Starting Time Difference Input )

You can use this measurement mode to measure times at intermediate points on the course in events like marathons and Nordic ski races.You can synchronize the CT-2000II placed at the start point (Master) with other CT-2000II units at intermediate measurement points (Secondary). You can set the scheduled start time in advance, and input the time difference between the scheduled and actual start times into the Secondary units of the CT-2000II. The system will print out the order of arrival and split time. You can also display the running time (time elapsed from the start) and the measured split time on the scoreboard (ST-306, etc.).

6.Auto Measurement-1 Mode(Swimming Training)

ou can measure and print out reaction time (the time from the start sound until the swimmer’s feet leave the starting block), lap time, and split time. You can display reaction time, lap time, or split time on the scoreboard (ST-306, etc.).
7.Parallel Lap/Split Time Measurement Mode(Circling Training )

You can measure and print out lap time and split time lap by lap. You can display the lap or split time on the scoreboard (ST-306, etc.).
*In ‘Auto Measurement’ modes, you can measure the time of only one athlete at a time. You cannot measure the times of more than one athlete simultaneously.”
8.Speed Measurement Mode

To measure the average speed over a given section of the entire distance, you can set the distance of the measurement section from 1m to 100m in 10-cm increments. Additionally, you can choose the measurement unit for speed from km/h, m/s, and mph (miles per hour).The system will print out the measured speed. You can measure speed within the range of 1–1,000 km/h, 1–250 m/s, or 1–600 mph. You can also display the measured speed on the scoreboard (ST-306, etc.).

Manufacturer: Seiko Time Creation Inc.
Model: TK-S3

Overview

Overview

Overview

Manufacturer: Seiko Time Creation Inc.
Model: QP-400GS

Overview

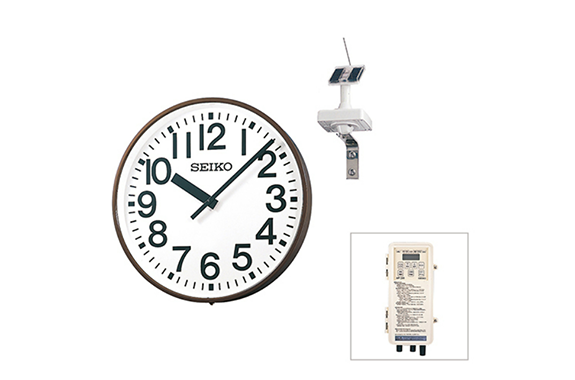

The GNSS receiver automatically receives GNSS signals from GNSS satellites to synchronize the time of the clock.
The energy generated by the solar panel is stored in the capacitor inside the clock controller, powering the clock unit during the nighttime.

Specification

Overview

Overview

Overview

Overview

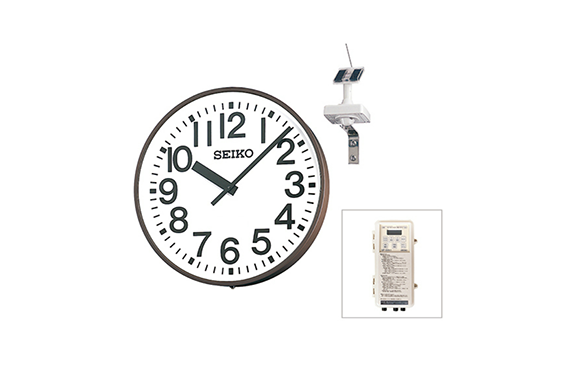

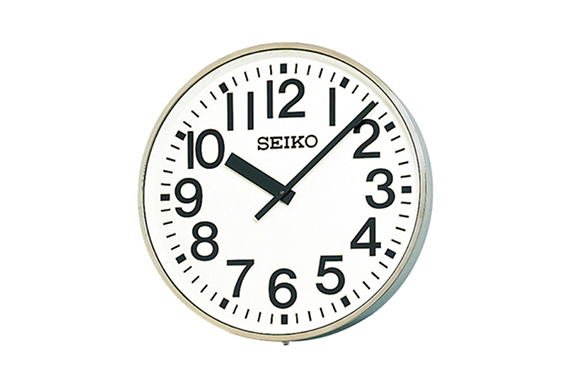

Automatic time corerection with GPS.
Controller (QP-400GS) automatically receives GPS signals from GPS satellites.
We include the controller (QP-400GS).

Specification
