Seiko Time Creation Underwater Lap Counter System

Manufacturer: Seiko Time Creation Inc
Overview
In accordance with FINA Rules

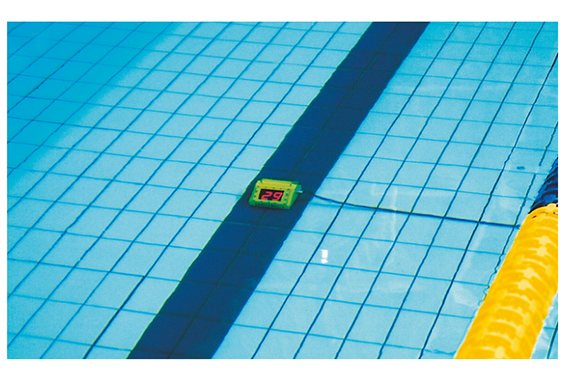

The SEIKO underwater lap counter system for swimming competition displays to the swimmer the remaining number of laps in a long-distance race in a visible manner using a display board installed underwater. Operating in sync with the printing timer, the operation board automatically calculates the remaining number of laps, and displays in on the underwater display board installed in each lane. With the use of the two-digit high-intensity LED display that enables the swimmers to know the remaining number of laps to swim easily, this system supports the safe and smooth progress of the swimming competition.

Specification
| Category | Item | Details |
|---|---|---|

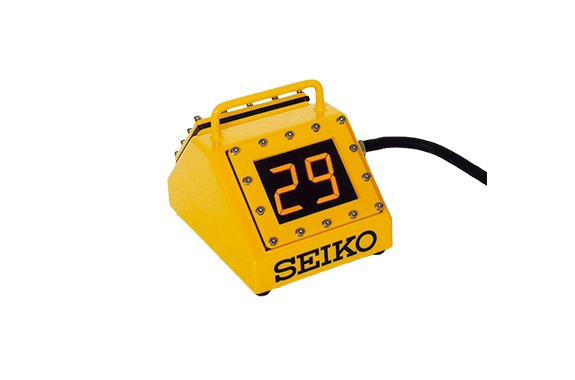

| Overall Dimensions | Underwater display board | W150 × H117 × D200 mm |
| Repeater (underwater display board) | W171 × H55 × D121 mm | |
| Operation board | W305 × H155 × D255 mm (excluding protrusions) | |
| Material | Underwater display board | Stainless (yellow matte baked acrylic resin coating) |
| Repeater (underwater display board) | ABS resin | |
| Operation board | Stainless / Aluminum trunk (Panel: gray matte acrylic resin coating) | |
| Display | Underwater display board | 7-segment LED, Red, 45 mm character height |
| Operation board | 7-segment LED, Red, 15 mm character height | |
| Input Power Supply | Underwater display board | DC 12V (supplied from repeater) |
| Repeater (underwater display board) | DC 12V | |
| Weight | Underwater display board | Approx. 9.5 kg (including cables) |
| Repeater (underwater display board) | Approx. 0.6 kg | |
| Operation board | Approx. 5.1 kg |
