Seiko Time Creation Inc.

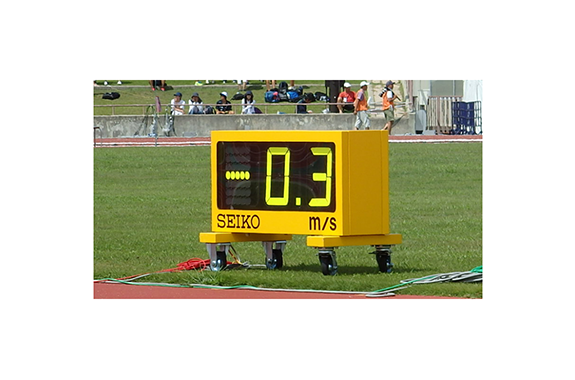

Seiko Time Creation WD-200/WD-100 Wind Velocity Display Board
Manufacturer: Seiko Time Creation Inc.
Model: WD-200/WD-100
Overview

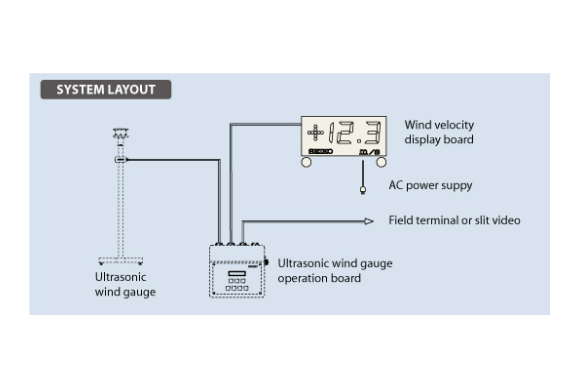

Displays the wind velocity measured by the ultrasonic wind gauge.
The display range is +0.1 to +19.9 m/s for the tail winds and -0.1 to -19.9 m/s for the head winds in 0.1 m/s increments.
Specification
| Category | Details |
|---|---|
| Display | Electromagnetic 7-segment (yellow), 3 digits (tens digit shows only “1”) |
| Character Height | 305 mm |
| Power Supply | AC 100–240 V |
| Enclosure | Outdoor-use, drip-proof |
| Operating Temperature | 0°C to +50°C |
| Overall Dimensions | W1,200 × H770 × D500 mm |
| Weight | Approx. 60 kg |
