Features

This is a panel-embedded servo controller with a 20-dot bar graph and digital display. Feedback resistance can be used from 100Ω to 2kΩ. Output can be selected from relay contact or SSR and contact. Potentiometer has automatic zero span adjustment function. Three external control inputs are standard equipment. Dustproof and compliant with IP66 standards.

Specification

Features

This temperature control unit houses a controller and single-phase power regulator in a slim case. It has a handle for easy portability. You can choose between the SR83 and SR23A digital controllers and the FP93 and FP23A program controllers. Phase control system. A voltmeter is standard equipment, allowing constant monitoring of the load. A circuit protector is standard equipment, providing protection against overcurrent. A power regulator is attached to the front, making it easy to adjust the output amount. Rated currents of 20 and 30A are available. The phase control system includes frequency switching.

Specification

Features

This is a relatively inexpensive power regulator in the popular price range. Its compact, integrated structure allows for a slim width. It allows for high panel mounting density. Four rated currents are available, ranging from 20 to 60A. A power adjustment function (internal) is standard. The phase control method includes frequency switching.

Specification

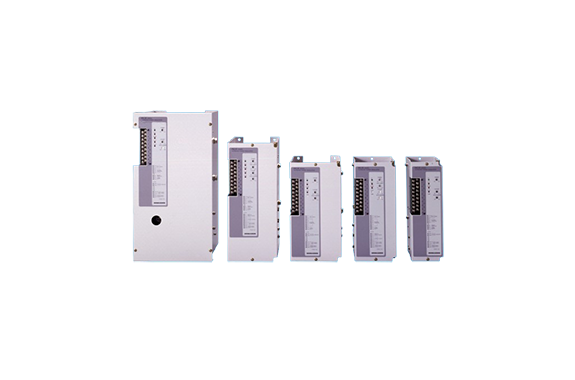

Features

This is a power regulator with a feedback function.
Its compact, integrated structure allows for a slim width. It allows for high panel mounting density.
Six types of rated current are available, ranging from 20 to 100A.
Current capacities up to 100A are CE marking compliant. (A specified noise filter is required.)

Specification

Features

Featuring a feedback function, functionality, performance, and safety, the compact, integrated structure achieves a slim width.
Ten types of rated currents are available, ranging from 20 to 450A.

Specification

Power Supply Voltage: 100-110V, 110-120V, 200-220V, 220-240V, 380-400V, 400-440V AC 50/60Hz.
Current Capacity: 20, 30, 45, 60, 80, 100, 150, 250, 350, 450A.
Control Output Range: 0-97% or greater.
Feedback Function (Phase Control): Constant Voltage, Constant Current, Constant Power, Linear Power Output.
Applicable Loads: Resistive Loads, Inductive Loads.
Cooling Method: 20-100A
Natural Cooling; 150-450A: Air Cooling.
Protection Functions: Overcurrent Detection (Shuts off at 130% of rated current), Fast-Acting Fuse.
Control Input: 4-20mA, 0-10V, 1-5V. DC, Contact, Other
Soft Start: 1-10 sec

Optional
External Output Adjustment : Requires connection of an external regulator (sold separately)
Startup Output Limit: 0-60%, 1-60 sec
Current Limit: 50-100%
Output Current Detection: Built-in CT
Alarm Output: 1A 240V AC 1A System Insulation, Overcurrent, Fan, Fuse, etc.
Heater Break Alarm : 0-100% of Rated Current
Fast-Acting Fuse: Built-in
Auto Power Adjustment : 4-20 mA, 0-10V DC
Insulation Resistance: 500V DC 20MΩ or greater between power terminal and ground terminal
Dielectric Strength:
100-240V between power terminal and ground terminal: 2000V AC for 1 minute
380-440V between power terminal and ground terminal: 2500V AC for 1 minute
Operating Temperature Range: -10-50°C, 90% RH or less (non-condensing)
Weight:
20/30A: Approx. 3.0kg, 45/60A: Approx. 3.8kg, 80/100A: Approx. 6.1kg,
150/250A: Approx. 8.7kg, 350/450A: Approx. 17kg

Features

This is a highly functional power regulator with a feedback function, pursuing functionality, performance, and safety. The current status can be monitored using various parameters. A compact, integrated structure achieves a slim width, allowing for high panel mounting density. Phase control or cycle calculation control can be selected. Nine types of rated current are available, ranging from 20 to 450A. A variety of alarm functions allow for monitoring of abnormal conditions. Current capacities up to 100A are CE marking compliant. (A specified noise filter is required.)

Specification

Features

Achieves a slim width with a compact integrated structure.
Allows for high panel mounting density.
You can select either phase control or cycle calculation control.
Six rated currents are available, ranging from 20 to 100A.
You can monitor abnormal conditions with various alarm functions.
CE marking compliant. (Specified noise filter required)

Specification

Power Supply: 100-240V AC 50/60Hz
Current Capacity: 20, 30, 45, 60, 80, 100A
Minimum Load Current: 0.6A
Control Output Range: 0-97% or greater
Applicable Load: Resistive load, Inductive load
Cooling Method: Self-cooling
Protection Functions: Overcurrent detection (stops at 130% of rated current), fast-acting fuse (sold separately)
Control Input: 4-20mA, 0-10V, 1-5V DC, contact
Output Adjustment: Upper limit (0.1-100%), lower limit (0-99.9%)
Slow Up/Down Function: 0.0-99.9 seconds
External Output Adjustment (Optional): Requires connection of an external regulator (sold separately) Output
Current Detection: Built-in CT
Alarm Function (1a contact is optional): 1a 240V AC 1A System and isolation power supply abnormalities, current abnormalities, hardware abnormalities, heater open circuit
Data communication function (optional): Sets and reads various parameters
Insulation resistance: 500V DC 20MΩ or more between power terminal and chassis
Withstand voltage: 2000V AC for 1 minute between power terminal and chassis
Operating temperature range: -10 to 55°C, 90% RH or less (non-condensing)
Weight: 20A/30A: Approx. 0.8kg, 45A/60A: Approx. 1.8kg, 80A/100A: Approx. 3.0kg
Safety standards: CE marking (requires specified noise filter)

Features

This is a basic power regulator that thoroughly eliminates additional functions.
There are three control methods to choose from.
There are six rated currents available, ranging from 20 to 135A.

Specification

Features

This is a high-performance power regulator with a feedback function that pursues functionality, performance, and safety. It can handle loads with various temperature coefficients, such as constant resistance and variable resistance. Its integrated structure makes installation easy. Eleven types of rated current are available, ranging from 20 to 600A. A wide variety of optional functions can be selected.

Specification

Features

This is a power regulator with minimal distortion of the output waveform and extremely low noise. Two-phase control makes connection wiring easy. The integrated structure makes installation easy. Ten types of rated current are available, ranging from 18 to 450A. Alarm output and protection circuits are standard equipment. An electric shock prevention cover can be selected.

Specification

Features

Compared to previous models, the 6-arm control unit is roughly half the size and weight.
The split European terminals reduce wiring labor.
Safety is taken into consideration with a body structure designed to prevent electric shock.
Various high-precision feedback functions are available.

Specification

Features

It can reduce and eliminate various noise interferences in general environments. With a reduced size and lighter structure, it achieves about 50% greater compactness compared to traditional models. It exhibits excellent high attenuation characteristics when used with our power regulators. Single-phase types are available in 20 to 200A, and three-phase types in 20 to 600A.

Specification

NF2 — Single-phase
Rated voltage: 500 VAC, 50/60 Hz
Current capacity (A): 20, 30, 50, 60, 80, 100, 150, 200
Withstand voltage: 2000 VDC × 1 min
Insulation resistance (terminals ↔ case): ≥ 100 MΩ after 1 min at 500 VDC
Leakage current (terminals ↔ case): ≤ 3 mA at 500 VAC, 50 Hz
Operating temp: −20 °C … +50 °C
Approx. weights (see downloadable tables below): 20/30 A ≈ 0.8 kg · 50 A ≈ 1.5 kg · 60 A ≈ 1.6 kg · 80 A ≈ 2.4 kg · 100 A ≈ 2.6 kg · 150 A ≈ 6.0 kg · 200 A ≈ 8.5 kg
NF3 — Three-phase
Rated voltage: 20–300 A: 500 VAC, 50/60 Hz; 500/600 A: 480 VAC, 50/60 Hz
Current capacity (A): 20, 40, 50, 60, 100, 150, 200, 300, 500, 600
Withstand voltage: 2000 VAC or 2828 VDC × 1 min
Insulation resistance (terminal ↔ earth): ≥ 500 MΩ after 1 min at 500 VDC
Leakage current (terminal ↔ case): 20–300 A: ≤ 2.5 mA @ 400 VAC 50 Hz (≤ 1.5 mA @ 200 VAC 60 Hz); 500/600 A: ≤ 10 mA @ 400 VAC 50 Hz (≤ 5 mA @ 200 VAC 60 Hz)
Operating temp: −20 °C … +50 °C

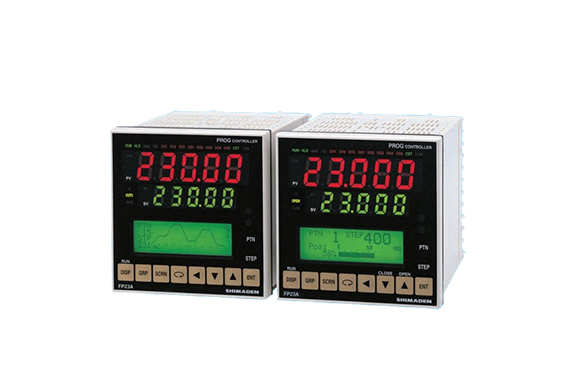

Features

This program controller offers high-resolution 1/1000°C display (resistance thermometer 0.000 to 30.000°C) for high-precision processes. You can choose between two-input and servo output specifications. It supports up to 20 program patterns and 400 program steps. Event output: 3 points, external control input: 4 points, and external control output: 3 points (Darlington), 2 points (open collector) are standard. It features a dustproof and waterproof construction equivalent to IP66.

Specifications

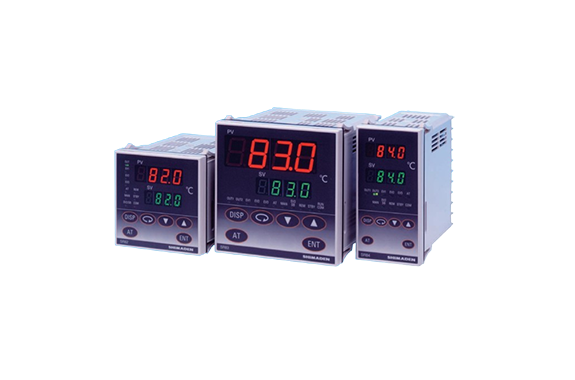

Features

This controller has a wide range of optional functions.You can select two SV settings and two PID values (optional). Heating/cooling dual output control (optional) can be selected.You can select the event output (optional).You have the option to select the heater break alarm (optional). The remote setting input (optional) is available for selection. The analog output (optional) can be chosen by you. You may select the communication function (optional). Dustproof and compliant with IP66 standards.

Specifications

Input types
Thermocouple input: 14 types
Resistance thermometer input: 2 types
Voltage (mV) input: 6 types
Current (mA) input: 2 types
Voltage (V) input: 6 types
Display accuracy: ±0.25%FS+1digit
Reference junction compensation accuracy
Ambient temperature: 5 to 45°C: ±2°C
Display update cycle: 0.25 seconds
Adjustment: Expert PID with auto-tuning function
Output types
Contact: 1c 240V AC 2.5A (resistive load)
Current: 4 to 20mA DC Load resistance: 600Ω or less
SSR drive voltage: 12V±1.5V DC 30mA or less
Voltage: 0 to 10V DC Load current: 2mA or less
Optional
Control output 2: Contact, current, SSR drive voltage, voltage (except SR82)
Event output: 3 points 1a 240V AC 1A (resistive load)
Remote setting: 4 to 20mA, 1 to 5V, 0 to 10V
Heater break: 1 point 30A, 50A CT included
Analog output: 1 point 0 to 10mV, 4 to 20mA, 0 to 10V
External control input: 2 points
Communication function: RS-485, RS-232

General specifications

Power supply
100 to 240V ±10% AC 50/60Hz
Power consumption: 100 to 240V AC 15VA or less
Operating environment: -10 to 50°C, 90% RH or less (no condensation)
External dimensions
SR82: H72 x W72 x D111mm (inside panel depth 100mm)
SR83: H96 x W96 x D111mm (inside panel depth 100mm)
SR84: H96 x W48 x D111mm (inside panel depth 100mm)
Weight
SR82: approx. 300g
SR83: approx. 420g
SR84: approx. 280g

Features

A multi-loop temperature controller with a modular structure and 2 input channels and 2 output channels. Its slim design allows for close-coupled installation with a width of 22.6 mm, and DIN rail mounting saves space, allowing installation in narrow spaces. The use of European terminals reduces wiring work, and the detachable structure makes installation and replacement easy.

Specifications

Input Types:

Thermocouple: 14 types
Resistance Thermometer: 2 type
Voltage Input (mV): 6 types
Voltage Input (V): 6 types
Current Input: Achieved by attaching a separately sold shunt resistor to the voltage input.
Accuracy:
Input Accuracy: ±0.25% FS + 1 digit
Reference Junction Compensation Accuracy: Ambient Temperature: 5°C to 45°C → ±3°C
Sampling:
Sampling Period: 0.5 seconds
Control:
Control Method: Expert PID with Auto-Tuning
Output Types:
Transistor Open Collector: 24V DC, 100mA
Current (4 to 20mA DC): Load Resistance ≤ 500Ω
SSR Drive Voltage: 12V ±1.5V DC, 30mA or less
Voltage (0 to 10V DC): Load Current ≤ 2mA
Optional Features:
Programming: Up to 4 patterns, 32 total steps
Analog Output: 1 point (0 to 10mV, 4 to 20mA, 0 to 10V)
DI Input: 3 points

General Specifications

Power Supply :　24V DC ±10%
Power Consumption :
Communication Module: Max. 1.9W
Temperature Control Module: Max. 2.9W
Operating Environment:　-10 to 55°C　90% RH or less (no condensation)
External dimensions:　H108 x W22.6 x D113.6 mm
Weight:
Communication module: approx. 120 g
Temperature control module: approx. 150 g

Features

Thermocouple and voltage switching is possible for up to six points.

Specifications

Number of switching points: 6 points
Switching operation: Rotary type
Applicable signals: Thermocouple, DC voltage contact
Rated contact method: Slide type
Voltage: 30V DC
Current: 100mA DC
Contact resistance: 300mΩ
Power supply: Not required
Operating environment conditions:
Temperature: -10 to 50°C
Humidity: 90% RH or less (no condensation)
External dimensions: H48 x W96 x D127mm (inside panel depth 100mm)
Weight: Approximately 250g

Features

This is a highly functional indicator with high accuracy of ±0.1%FS+1digit and 1/1000°C display (Pt 0.000 to 30.000°C). It comes standard with peak hold, bottom hold, display hold functions, and two external control inputs.

Specifications

Features

This is a highly functional indicator with high accuracy of ±0.1%FS+1digit and 1/1000°C display (Pt 0.000 to 30.000°C). It comes standard with peak hold, bottom hold, display hold functions, and two external control inputs.

Specifications

Features

The input signal is multiplied by a ratio and output. You can also set the bias value.

Specifications

Features

This is an X characteristic converter that converts the input signal into a positive characteristic and an inverse characteristic and outputs it.

Specifications

Features

Converts open collector and voltage contacts into relay contacts (c contacts).

Specifications

Features

Any DC signal can be output by manual setting.

Features

Setting range: 0 to 99%
Output types: 0 to 10mV DC, 0 to 100mV DC, 0 to 1V DC, 0 to 10V DC, 1 to 5V DC , 4 to 20mA DC
Conversion accuracy: Within ±0.1%
Power supply : 24VDC ±10%, 100 to 240V ±10%, AC 50/60Hz
Power consumption: 1-output type: 6.0VA (AC), 1.7W (DC) , 2-output type: 6.5VA (AC), 2.1W (DC)
Operating environment: -10 to 60°C, 90% RH or less (no condensation)
External dimensions: H86 x W29 x D125mm
Weight: Main unit 120g or less, socket terminal block 80g or less

Features

This is a hold converter that holds the input signal using an external contact signal.

Specifications

Features

It inputs two DC current/voltage signals and outputs a signal proportional to the value calculated by addition, subtraction, multiplication, or division. It is an arithmetic operation device.

Specifications

Features

This is a signal isolator that extracts amplifier drive power from the input current signal.

Specifications

Input Type: 4–20mA DC
Output Type: 1–5V DC, 4–20mA DC
Conversion Accuracy: ±0.15%
Input Resistance: ~250Ω
Response Speed: <15ms

Maximum Output Load:
Voltage output: ≥50kΩ
Current output: ≤350Ω
Operating Environment: -5 to 55°C, 5–90% RH (no condensation)
Dimensions: H86 × W29 × D125 mm
Weight: ~120g (main unit), ~80g (socket)

Features

This is a subtraction converter that inputs two DC current/voltage signals and outputs a signal proportional to the difference between them.

Specifications

Input Types: 0–1V DC, 0–5V DC, 1–5V DC, 0–10V DC, 4–20mA DC
Output Types: 0–10mV DC, 0–1V DC, 0–5V DC, 1–5V DC, 0–10V DC, 4–20mA DC
Conversion Accuracy: ±0.1% (25°C ±5°C)
Input Resistance: ≥1MΩ
Response Time: ≤85ms

Output Load:
1V span: load current ≤2mA
10mV span: load resistance ≥10kΩ
100mV span: load resistance ≥100kΩ
Output 1 current only: load ≤750Ω
Output 1 & 2 together: Output 1 ≤550Ω, Output 2 ≤350Ω
Power Supply: 100–240V AC ±10% 50/60Hz, 24V DC ±10%
Power Consumption: AC ≤5.5VA, DC ≤1.7W
Operating Environment: -5 to 55°C, 5–90% RH (no condensation)
Dimensions: H86 × W29 × D125 mm
Weight: 120g (main unit), 80g (socket)

Features

This is an additive converter that inputs two DC current/voltage signals and outputs a signal proportional to their sum.

Specifications

Input Types: 0–1V DC, 0–5V DC, 1–5V DC, 0–10V DC, 4–20mA DC
Output Types: 0–10mV DC, 0–1V DC, 0–5V DC, 1–5V DC, 0–10V DC, 4–20mA DC
Conversion Accuracy: ±0.1% (25°C ±5°C)
Input Resistance: ≥1MΩ
Response Time: ≤85ms

Output Load:
1V span: load current ≤2mA
10mV span: load resistance ≥10kΩ
100mV span: load resistance ≥100kΩ
Output 1 current only: load ≤750Ω
Output 1 & 2 together: Output 1 ≤550Ω, Output 2 ≤350Ω
Power Supply: 100–240V AC ±10% 50/60Hz, 24V DC ±10%
Power Consumption: AC ≤5.5VA, DC ≤1.7W
Operating Environment: -5 to 55°C, 5–90% RH (no condensation)
Dimensions: H86 × W29 × D125 mm
Weight: 120g (unit), 80g (socket)

Features

This is an inverting converter that converts DC current/voltage signals into various DC signals with inverse characteristics.

Specifications

Features

This is a DC-frequency converter that converts DC current/voltage signals into unit pulse signals and outputs them.

Specifications

Input Types: 0–1V DC, 0–5V DC, 1–5V DC, 0–10V DC, 4–20mA DC
Output Types: Open collector, PhotoMOS relay
Accuracy: ±0.1% (25°C ±5°C)
Input Resistance: ≥1MΩ
Response Speed: ≤65ms (50Hz), ≤35ms (≥500Hz)
Output Load:
Open collector: max 30V, 100mA (resistive)
PhotoMOS: max 400V AC (peak), 0.15A AC (continuous)
Power Supply: 100–240V AC ±10% 50/60Hz, 24V DC ±10%
Power Consumption: AC ≤4VA, DC ≤1.22W
Environment: -5 to 55°C, 5–90% RH (no condensation)
Dimensions: H86 × W29 × D125 mm
Weight: 120g (unit), 80g (socket)

Features

This is a 2-channel non-isolated distributor that supplies power to various 2-wire transmitters and converts input signals into various DC signals.

Specifications

Input type :4 to 20mA DC
Output type: Primary output: 1 to 5V DC
Secondary output: 4 to 20mA DC

Conversion accuracy: Within ±0.1% (depending on the accuracy of the receiving resistor)
Input resistance: 1MΩ or more
Response time: Input frequency: 50Hz: 65ms or less, 500Hz or more: 35ms or less
Output load : Open collector: Maximum rating 30V, 100mA (resistive load)PhotoMos relay: Maximum load voltage 400V (peak AC).
Maximum continuous load current 0.15A (peak AC)
General specifications
Power supply: 100 to 240V ±10% AC 50/60Hz
24V DC ±10%
Power consumption: 100 to 240V AC 5VA or less,
24V DC 1.5W or less
Operating environment: -5 to 55°C
 5 to 90% RH or less (no condensation)
External dimensions: H86 x W29 x D125 mm
Weight: Approx. 120 g (main unit) Approx. 80 g (socket terminal block)

Features

Input DC signals at two points and output either the larger value or the smaller value.

Specifications

High selector: Outputs the larger value of two input values.
Low selector: Outputs the smaller value of two input values.
Input types: 0-1V DC, 0-10V DC, 0-5V DC,1-5V DC,4-20mA DC.
Output types: 0-10mV DC, 0-100mV DC, 0-1V DC, 0-10V DC, 0-5V DC, 1-5V 　DC , 　4-20mA DC.
Number of inputs: 2.
Number of outputs : 2.
Response time: 85ms or less.
General specifications
Power supply 　: 24VDC ±10%, 100-240V ±10%, AC 50/60Hz.
Power consumption: 1-output type: 4.5VA (AC), 1.4W (DC);
2-output type: 5.5VA (AC), 1.7W (DC).
Operating environment: -10 to 60°C. 90% RH or less (no condensation)
External dimensions: H86 x W29 x D125 mm
Weight: Main unit 120g or less, socket terminal block 80g or less

Features

The CP3716 is a slim, plug-in Change-rate Limiting Converter that adds a first-order delay to DC current or voltage input signals, converts them into commonly used DC signals, and provides isolated single or dual output.

Features

The DC current/voltage signal is converted into various DC signals and the output is limited within the user-defined upper and lower limits. It is a signal limiter.

Specification

Features

The DC current/voltage signal is square root calculated and converted into various DC signals for output. It is a square root calculator.

Specification

Input Types:
0–1V DC
0–10V DC
0–5V DC
1–5V DC
4–20mA DC
Output Types:
0–10mV DC
0–1V DC
0–10V DC
0–5V DC
1–5V DC
4–20mA DC
Conversion Accuracy: ±0.2% (within input range of 1–100%, at 25°C ±5°C)
Input Resistance: ≥1MΩ
Response Time: ≤120ms
Output Load:
1V span or higher: Load current ≤ 2mA

10mV span or higher: Load resistance ≥ 10kΩ
100mV span or higher: Load resistance ≥ 100kΩ
First output only (current): Load resistance ≤ 750Ω
Both first and second outputs (current):
First output: Load resistance ≤ 550
Second output: Load resistance ≤ 350Ω
General Specifications:
Power Supply:
100–240V ±10% AC, 50/60Hz
24V DC ±10%
Power Consumption:
100–240V AC: ≤ 6VA
24V DC: ≤ 2W
Operating Conditions:
Temperature: -5 to 55°C
Humidity: ≤ 90% RH (without condensation)
External Dimensions: H86×W29×D125 mm
Weight:
Approx. 120g (main unit)
Approx. 80g (socket terminal block)
