Manufacturer: SHIMADEN CO., LTD.

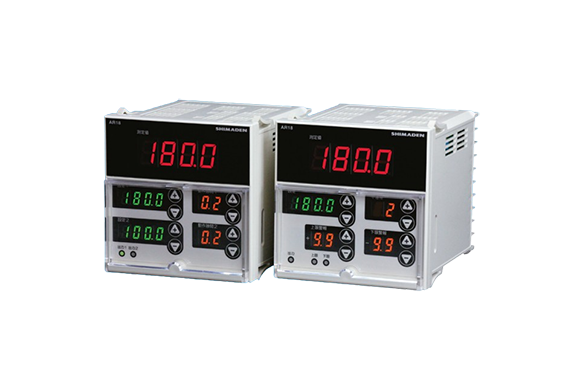

Model: AR18 Series　

Features

This is an easy-to-operate controller that allows you to select the control method from one-setting two-position, two-setting two-position, and three-position. You can select whether to have a display or not. The rated current of the contact output is 5A (resistive load), and it can drive it. Alarm output (optional) can be selected. Analog output (optional) can be selected. It has a dustproof and waterproof structure equivalent to IP66.

Specifications

Input Types
Thermocouple Input: 13 types
Resistance Thermometer Input: 2 types
Voltage (mV) Input: 6 types
Current (mA) Input: 2 types
Voltage (V) Input: 6 types
Display Accuracy: ±0.25% FS + 1 digit
Reference Junction Compensation Accuracy
Ambient Temperature: 5 to 45°C: ±2°C
Display Update Period: 0.25 seconds
Control: ON/OFF Control
Output Types
Contact: 1c 240V AC 5A (Resistive Load)
SSR Drive Voltage: 12V ±1.5V DC 30mA or less
Options
Control Output 2: Contact, SSR Drive Voltage
Selectable only for two-position setting
Alarm Output: 2 points, 1a 240V AC 2A (Resistive Load)
Selectable only for one-position setting, two-position setting, or three-position setting
Analog Output: 1 point, 0 to 10mV, 4 to 20mA, 0 to 10V

General Specifications

Power Supply: 100 to 240V ±10% AC 50/60Hz
Power Consumption: 100-240V AC 14VA or less
Usage Environment: -10 to 50°C, 90% RH or less (no condensation)
Dimensions: H96 x W96 x D120mm (inner panel depth 100mm)
Weight: Approx. 340g
