Manufacturer: SHIMADEN CO., LTD.
Model:  CP3764

Features

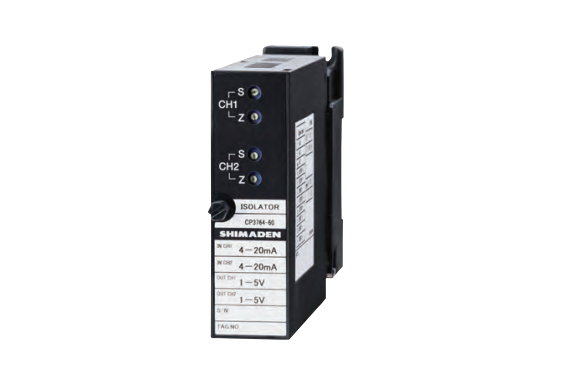

This is a signal isolator that extracts amplifier drive power from the input current signal.

Specifications

Input Type: 4–20mA DC
Output Type: 1–5V DC, 4–20mA DC
Conversion Accuracy: ±0.15%
Input Resistance: ~250Ω
Response Speed: <15ms

Maximum Output Load:
Voltage output: ≥50kΩ
Current output: ≤350Ω
Operating Environment: -5 to 55°C, 5–90% RH (no condensation)
Dimensions: H86 × W29 × D125 mm
Weight: ~120g (main unit), ~80g (socket)
