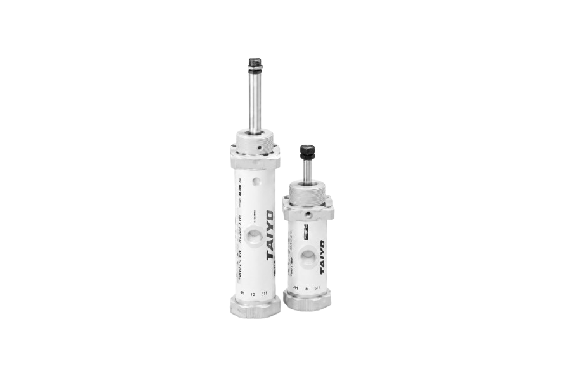

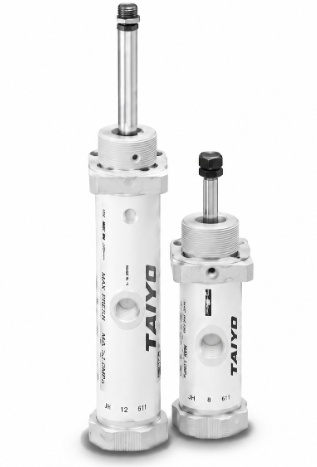

TAIYO AS-06 Series Shock Absorber (Adjustment Type)
Manufacturer: TAIYO
Model: AS-06 Series
Feature
- Shock absorbers which can absorb impact load energy of 353 J or less and can be easily adjusted only by operating the adjusting dial according to change in impact load energy
- If correctly adjusted, the shock absorbers of multi-orifice type have lower resisting force compared to single-orifice type shock absorbers. Therefore, you can select a cost-efficient shock absorber.
- The shock absorbers are designed so that they can be adjusted in a wide range to cope with fluctuation of actual corresponding weight.
Specifications
| Model Number | AS□-06-10 F | ASU-06-10 | AS□-06-24 F | ASU-06-24 | |
|---|---|---|---|---|---|
| Max. Energy Absorption Range | J | 141 | 97.1 | 353 | 245 |
| Stroke | mm | 25.4 | 63.5 | ||
| Corresponding (Equivalent) Weight Range | kg | 11 to 11000 | |||
| Max. Energy Capacity per Minute | J/min | 735 | 1330 | ||
| Collision Speed Range | m/s | 5 | |||
| Max. Resisting Force | N | 11300 | 7790 | 11300 | 7870 |
| Rod Returning Force | N | 73.5 | 79.4 | ||
| Rod Return Time | s | 0.1 | 0.3 | ||
| Max. Working Cycle | times/min | 30 | |||
| Working Temperature Range | °C | -5 to +50 (No freezing) | |||
| Mounting Style | – | F style (Front flange) E style (Rear flange) | U style (Cap clevis) | ||
| Weight | kg | E:1.19 F:1.19 U:1.26 | E:1.62 F:1.62 U:1.68 | ||
| Accessory | – | Auxiliary oil reservoir | |||
