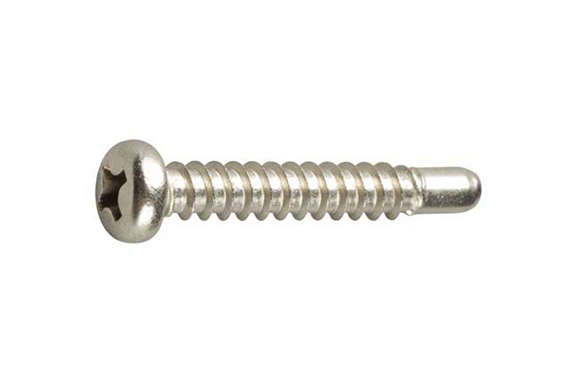

21-U500 (+) Tapping BRP Pan (Import)
Model: 21-U500
Stainless steel (303, 304,…).
Plain.

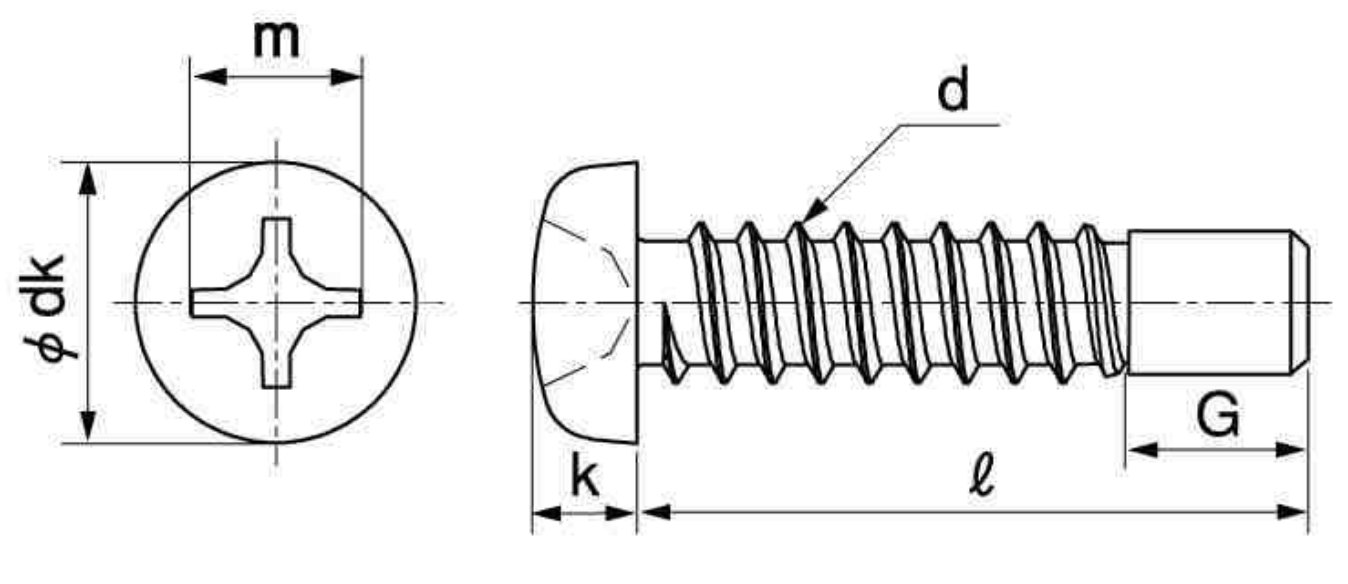

| Thread Nominal Diameter | 4 | 4.5 | ||
|---|---|---|---|---|
| dk | Standard Dimension | 7.0 | 8.0 | |
| Tolerance | 0 —0.5 | 0 —0.6 | ||
| k | Standard Dimension | 2.6 | 2.9 | |
| Tolerance | ±0.15 | |||
| Cross Slot | m | Reference | 4.2 | 4.6 |
| Cross Slot No. | 2 | |||
| Guide Section G | Approx. 5 | |||
| d | Max | 4.0 | 4.5 | |
| Min | 3.85 | 4.35 | ||
| Based on 25.4 mm thread pitch | 18 | 16 | ||
