Azbil Corporation

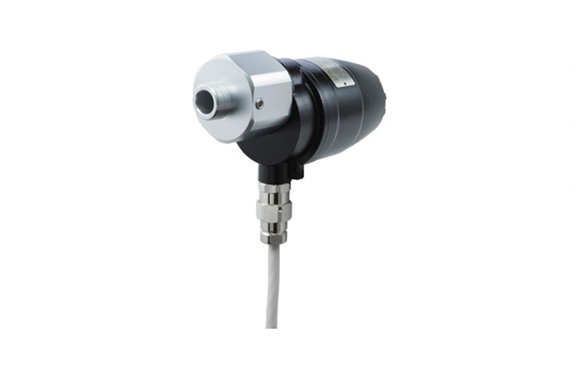

Azbil AUD500 Advanced Ultraviolet Flame Detector
Manufacture: Azbil Corporation
Model: AUD500
The model AUD500C11000 explosion-proof advanced ultraviolet flame detector is designed to detect ultraviolet radiation from an oil or gas burner flame, for use with both batch and continuous operation.
- Replacement and maintenance work is easy with the AUD maintenance kit (model AUD60A1010), which includes the tube and shutter units.
- As a self-checking explosion-proof flame detector, the model AUD500 is compact and light weight, thus, facilitating installation.
- Excellent environmental specifications. Ambient temperature: 60 °C, IP67, vertical mounting possible, and wiring distance: 200 m max.
Summary
The model AUD500 is used in combination with a dedicated burner controller. By means of the built-in shutter, any malfunction of the UV flame detector or burner controller is detected by the continuous self-checking (Dynamic Self-Check) function, ensuring highly reliable combustion safety control.
