Manufacture: Azbil Corporation
Model: AVP30

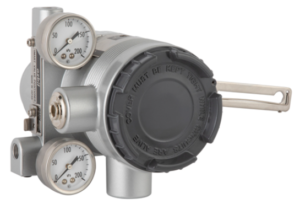

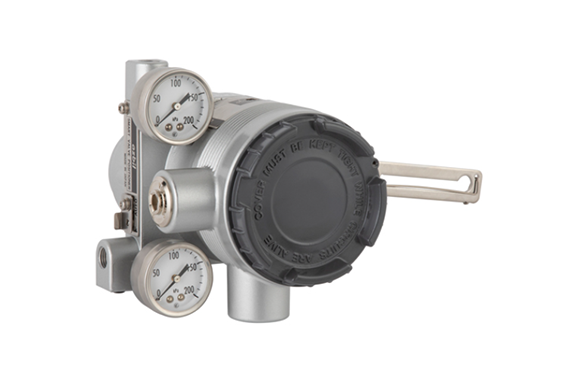

The Smart Valve Positioner 300 Series is a smart, simple and convenient electric/pneumatic positioner with control valve diagnostic parameters that reduce maintenance man-hours and spare parts.

• Global valve vendors, no matter what valve you choose to install
• Built-in auto-setup for easy adjustment
• Equipped with a forced full close function that does not shift the zero point
• Equipped with diagnostic parameters for early detection of control valve abnormalities

Positioner type	Smart Valve Positioner 300 Series
Model No.	AVP300/301/302/307
Input signal	4 to 20mADC, split range setting available
Stroke range	14.3 to 100 mm Stroke (Feedback Lever Angle ±4° to ±20°)
Air supply pressure	140 to 700kPa {1.4 to 7.0kgf/cm²}
Ambient temperature	-40 to +80°C
Features	Single action/Double action Auto set-up Compact, high performance, multifunctional Valve travel transmitter function Easy zero/span adjustments, wide applicability
