Azbil CFS100 Field Communication Software

Manufacture: Azbil Corporation
Model: CFS100

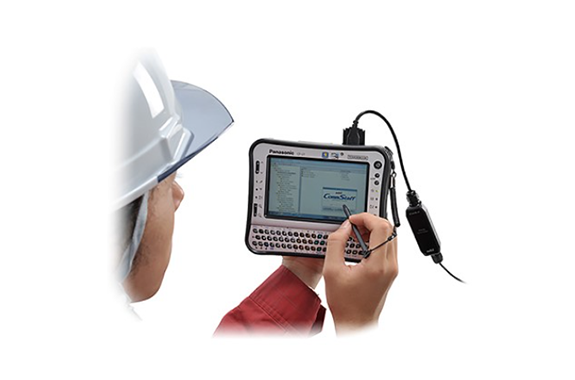

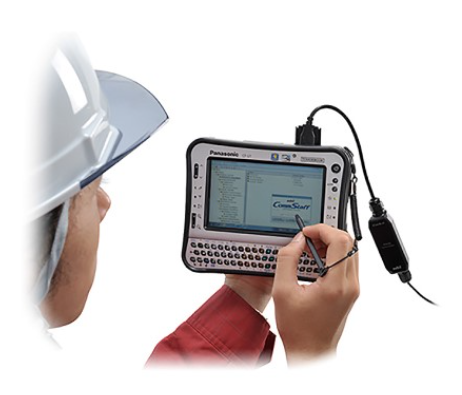

Field Communication Software CommStaff Model CFS100 allows the user to configure and adjust smart field devices using a PC. In addition to supporting Azbil Corporation’s proprietary SFN communication protocol for smart field devices, with a change of the communication interface, CommStaff supports the HART communication protocol. Parameter settings can be saved to simplify field device management.

Supports HART and Azbil Corporation’s SFN communication protocols.

With the use of Azbil’s communication interface Smart HART modem Model AZ-1SHM, CommStaff now supports both HART and Azbil Corporation’s SFN communication protocol.

Ease-of-use increases field work efficiency

The ease-of-use of the five-point check function increases efficiency during loop checks.

Easy management of configured parameters

Parameter settings can be saved by Tag No.
As needed, parameter settings can be exported as either a CSV file (text file) or as a PDF.

Supported models

Supported models	Communication Protocol
Supported models	SFN	DE	HART
Smart Transmitter	✓	✓	✓
Advanced Transmitter Model GTX / Pressure Transmitter Model JT_ _ _ _ _	✓	✓	✓
Smart Multivariable Flow Transmitter Model JTD720A	✓	✓	Not supported
Smart Pressure Transmitters Model PTG_ _ _	✓	✓	✓
Advanced Temperature Transmitters Model ATT082	Not supported	Not supported	✓
Advanced Temperature Transmitter Model ATT_ _ _ (In case of SFN/DE communication, can apply for software version 3.5 or later.)	Ver 3.5 or later	Ver 3.5 or later	✓
Steam Flow Meter Model MVC3_ _	✓	Not supported	Not supported
Displacement type Level Transmitter Model SLX_ _ _	✓	Not supported	Not supported
Immersion Type Liquid Level Transmitter Model JTL32_/JTL33_	✓	Not supported	Not supported
Smart ESD Device 700 Series Model AVP 77_/78_79_ for Safety Instrumented Systems(SIS)	Not supported	Not supported	✓
Smart Valve Positioner 700 series Model AVP70_	Not supported	Not supported	✓
Smart Valve Positioner 200/300 Series Model AVP20_/30_ (In case of HART® communication, can apply for software version 3.9 or later.)	✓	✓	Ver 3.9 or later
Smart Valve Positioner for Rotary Valve Model SVX10_ (In case of HART® communication, can apply for software version 4.A or later.)	✓	✓	Ver 4.A or later
Electromagnetic Flowmeter Converter MagneW™ FLEX+ Model MGG_ _ _ (In case of SFN/DE communication, can apply for software version 6.0 or later. In case of HART® communication, can apply for software version 5.0 or later.)	Ver 6.0 or later	Ver 6.0 or later	Ver 5.0 or later
Two-wire Electromagnetic Flowmeter MagneW™ Neo PLUS / Two-wire PLUS+ Model MTG_ _ _ (In case of SFN/DE communication, can apply for software version 5.0 or later.)	Ver 5.0 or later	Ver 5.0 or later	✓
Natural Gas Calorimeter GasCVD Model CVM400	Not supported	Not supported	✓
Multivariable Vortex Flow Meters Models AX22_ _/23_ _ （In case of HART® communication, can apply for software ver. 78.02 or later.)	Not supported	Not supported	Ver 78.02 or later

PC system

Software	OS	Windows 10 Pro , Windows 11 Pro (32-bit or 64-bit Japanese or English edition)*Not compatible with ARM-based Windows
Hardware	HDD	500 MB mininum
	USB	One, USB 2.0 or Higher
	CD-ROM	Needed for installation only
