Manufacturer: BIG DAISHOWA—Americas

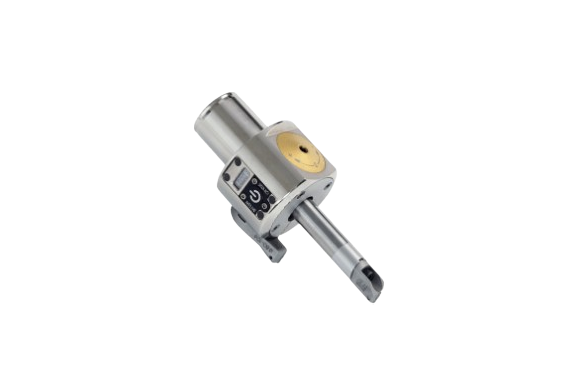

Model: EWE 2-152

Features

• Operators use the same accessories for precision boring heads EWN.
• Indirect and distortion-free locking of the tool carrier ensures stability and accuracy.
• A large dial disc allows for parallax-free reading of the adjustment and vernier.
• The tool features a digital readout for precise measurements.
• It also offers a wireless connection to the BIG KAISER app for enhanced monitoring and control.

◆ Variable Tool Length Adjustment of the Tool Holder

• The tool achieves fine balance when the tool carrier is set in the center position.
• The EWE 2-152 digital fine boring heads feature variable length adjustment of the tool holders, ensuring the shortest and most rigid tool assembly.
• Manufacturers make tool holders from carbide with adjustable insert holders, which allow for diameter setting on the insert holder.
• The heavy tool holder remains in the center position, preventing any imbalance.
• The imbalance created by the insert holder is typically insignificant.
