Manufacturer: BIG DAISHOWA—Americas
Model: MEGA NEW BABY CHUCK

Features

• Balanced for high speed machining
• High precision collet guarantees max runout of 1 micron at the collet nose
• 2-way coolant supply
• Wide assortment of tapers and lengths
• Only produced by BIG DAISHOWA for strict quality control

◆High Speed Collet Chucks

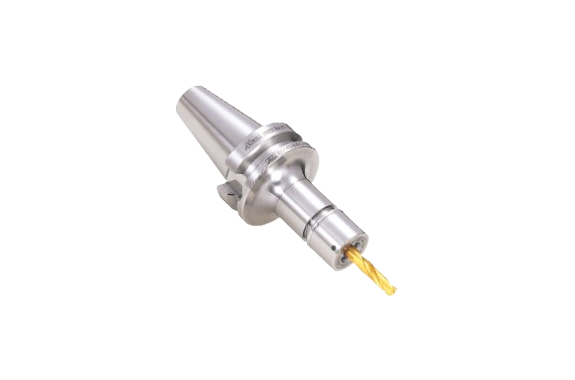

• • MEGA NEW BABY CHUCK tool holders are collet chucks that are precision ground and balanced for high-speed machining.
  • All components, including the body, collet, nut, and clamping wrench, are specifically engineered for high-speed applications.
  • The system offers excellent runout and supports a wide range of tooling options.
  • It is a core product suitable for drilling, reaming, tapping, and end milling.
  • The chuck uses NEW BABY collets, the world’s first with an etched AA grade guaranteeing top-level runout accuracy.
  • Each NEW BABY COLLET undergoes two inspections to ensure .00004″ runout at the collet nose and .00012″ at 4xD.
  • Excellent runout accuracy greatly improves part quality, surface finish, tool life, and machine utilization.
