Manufacturer: BIG DAISHOWA—Americas
Model:SPERONI STP MAGIS

Features

Specifications

• The SPERONI STP MAGIS tool presetter and measuring systems revolutionize the value of tool measurement. The innovative MAGIS SIMPLE VISION control delivers all the necessary measuring features and functions in a user-friendly, clean, and trouble-free single-screen interface with unmatched ergonomic solutions.
• The result is better parts, longer tool life, and less spindle downtime.
• Leading manufacturers from all industries take advantage of the time-saving, accuracy-enhancing benefits of tool presetters to make their companies more competitive in today’s tight market.

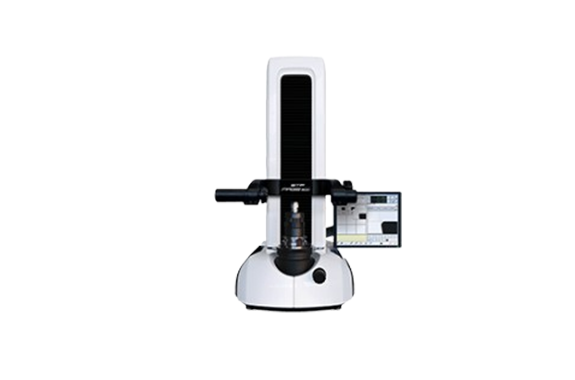

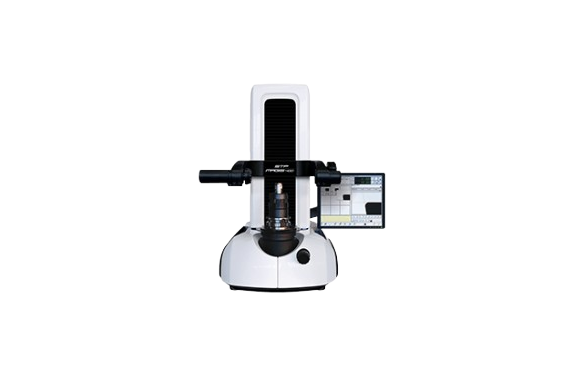

◆MAGIS 400

• Z Axis Max Length: 16″
  X Axis Max: -2.0″+14.0″
  Length: 33.5″
  Width: 23″
  Height: 36″
  Weight: 440 lbs

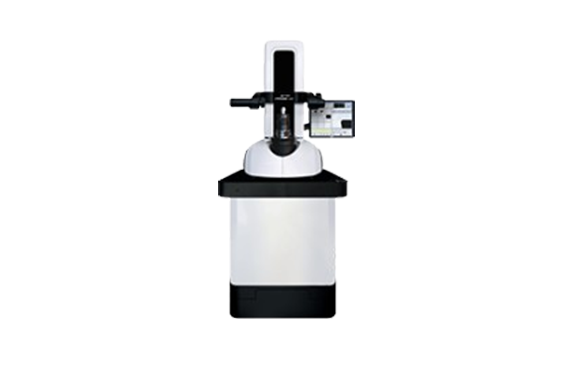

◆MAGIS 400 CNC

• Z Axis Max Length: 16″
  X Axis Max: -2.0″+14.0″
  Length: 37″
  Width: 29″
  Height: 67.5″
  Weight: 505 lbs

◆MAGIS 600

• Z Axis Max Length: 24″
  X Axis Max: -2.0″+14.0″
  Length: 33.5″
  Width: 23″
  Height: 44″
  Weight: 570 lbs

◆MAGIS 600 CNC

• Z Axis Max Length: 24″
  X Axis Max: -2.0″+14.0″
  Length: 37″
  Width: 29″
  Height: 75.5″
  Weight: 595 lbs
