CCS Inc.
CCS BC-CBL-3 Basler Camera Light Series
Manufacturer: CCS Inc.
Model: BC-CBL-3
Features
- Basler Camera Light dedicated cable.
Specification
| Cable permitted bending radius | 41.6 mm (Not a hi-flex cable) |
|---|---|
| Input connector | Host Side Connector : WR-TBL series 691381000006 |
| Output connector | Camera Side Connector : 6 pin [HR10A-7P-6S (73)] |
| Conformed standards | RoHS, CE, UKCA |
| Operating temperature and humidity | Temperature: 0 to 40°C (Light intensity may vary due to the change in ambient temperature) Temperature: 0 to 40°C, Humidity: 20% to 85%RH (with no condensation) (Should not be frozen, condensed or exposed to the rapid change in temperature) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Material | Cable jacket material : PVC |
| Notes | AWG : 26 |

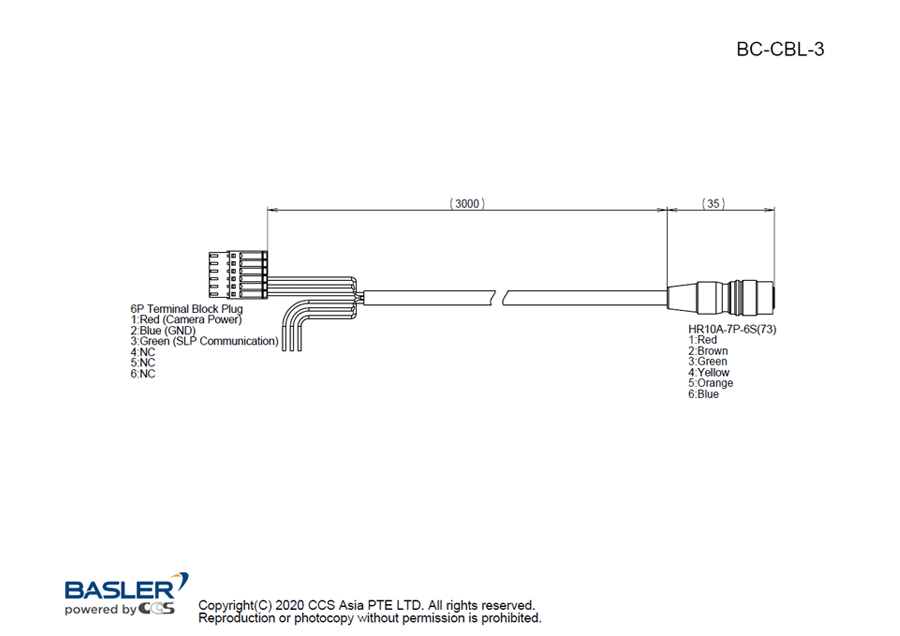

Dimensions (mm)
