Manufacturer: CCS Inc.

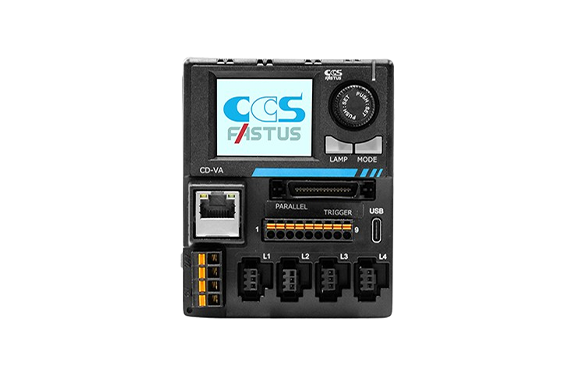

Model: CD-VA Series

Features

• Compact design with balanced operability and functionality
• Lighting output of 100 W with 2 channels and 200 W with 4 channels available (Max 50 W for each channel)
• Up to 4 units can be connected via infrared communication
• 3 intensity control methods can be set by channel
• (PWM control, variable-voltage control, strobe overdrive)
• Clear and visible display screen and intuitive operation

Emits light in any pattern

• Program up to 16 steps of ON input for a pattern of light emission with desired intensity and emission time.
• For example, when using 4-quadrant bar lights or segmented lights to illuminate from multiple directions, the emission patterns for each channel can be stored and switched ON/OFF by trigger input.
