CCS Inc.

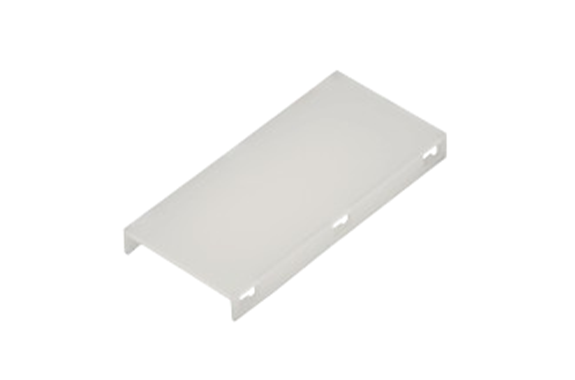

CCS DF-LDL-247X16 Diffusion Plates [For Bar Lights]
Manufacturer: CCS Inc.
Model: DF-LDL-247X16
Features
- For the LDL-247X16-series Bar Lights.
- Bar type diffusion plate.
- Use the diffusion plate to prevent glare, which is a problem when making images of glossy workpieces.
Specifications
| Dimensions | D 18 mm X W 257 mm X H 2 mm |
|---|---|
| Heat resistant temperature | 80 ℃ |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 15 g |
| Accessories | Fixing screws x 3, Operation Guide |
| Caution | The shape or color of the diffusion plate may change due to heat in the application environment. If this occurs, you may not be able to get the intended results. Please perform periodic inspections. |
| Notes | Applicable products: LDL-247X16 |
Dimensions (mm)
