CCS Inc.

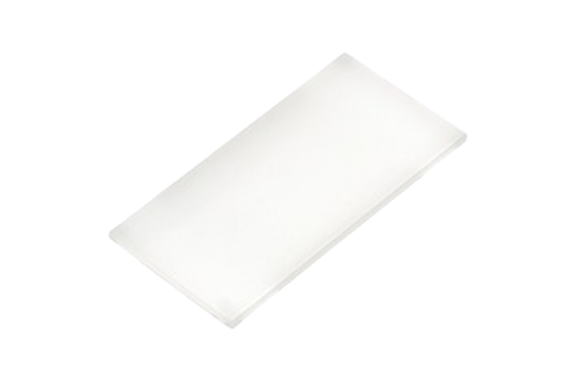

CCS DF-LDL-PF-102X18 Diffusion Plates [For LDL-PF Series]
Manufacturer: CCS Inc.
Model: DF-LDL-PF-102X18
Features
- For the LDL-PF-102X18-series High Power Strobe Bar Lights.
- Bar type diffusion plate.
- Use the diffusion plate to prevent glare, which is a problem when making images of glossy workpieces.
Specifications
| Dimensions | W 58 mm ｘ D 22 mm ｘ H 2 mm |
|---|---|
| Heat resistant temperature | 80 ℃ |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Accessories | Operation Guide |
| Caution | Heat may cause deformation or discoloring depending on the use environment. If this occurs, you may not be able to get the intended results. Please perform periodic inspections. |
| Notes | Applicable products: LDL-PF-102X18 |
Dimensions (mm)
