CCS Inc.

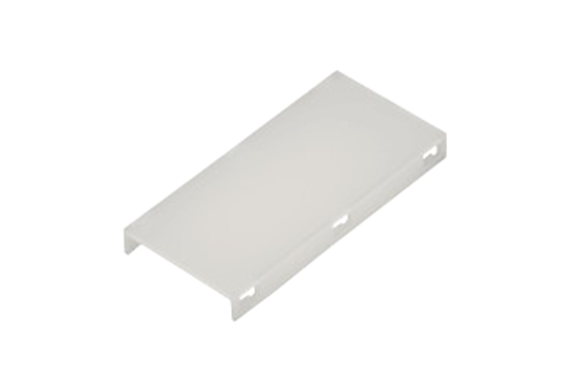

CCS DF-LDL2-509X16 Diffusion Plates [For Bar Lights]
Manufacturer: CCS Inc.
Model: DF-LDL2-509X16
Features
- For the LDL2-509X16-series Bar Lights.
- Bar type diffusion plate.
- Use the diffusion plate to prevent glare, which is a problem when making images of glossy workpieces.
Specifications
| Dimensions | W 514 mm x D 23.2 mm x H 8.4 mm |
|---|---|
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 36 g max. |
| Accessories | Operation Guide |
| Caution | Heat may cause deformation or discoloring depending on the use environment. If this occurs, you may not be able to get the intended results. Please perform periodic inspections. |
| Notes | Applicable products: LDL2-509×16(-WD) |
Dimensions (mm)
