CCS Inc.

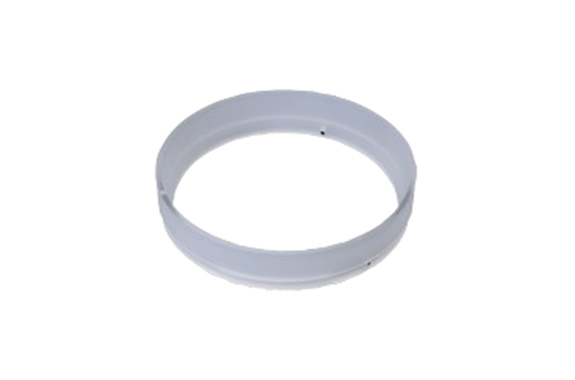

CCS DF-LDR-170LA Diffusion Plates [For Low-angle Ring Lights]
Manufacturer: CCS Inc.
Model: DF-LDR-170LA
Features
- For the LDR2-170-LA-series Low-Angle Ring Lights.
- Ring type diffusion plate.
- Use the diffusion plate to prevent glare, which is a problem when making images of glossy workpieces.
Specifications
| Dimensions | Outer diameter 136 mm, Inner diameter 120 mm, Height 26 mm |
|---|---|
| Heat resistant temperature | 80 ℃ |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 85 g max. |
| Accessories | Fixing screws x 4, Hexagonal wrench, Operation Guide |
| Caution | Heat may cause deformation or discoloring depending on the use environment. If this occurs, you may not be able to get the intended results. Please perform periodic inspections. |
| Notes | Applicable products: LDR2-170-LA |
Dimensions (mm)
