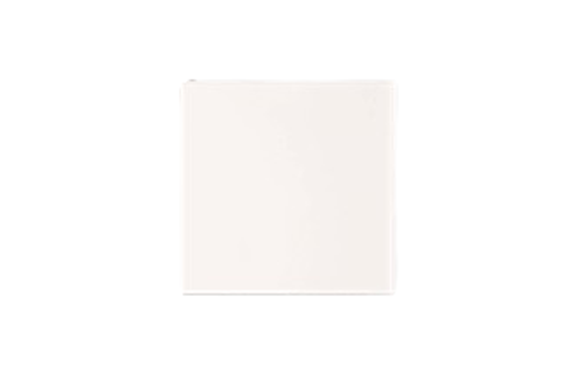

CCS DF-LFV3-130-UF Diffusion Plates [For Coaxial Lights]
Manufacturer: CCS Inc.
Model: DF-LFV3-130-UF
Features
- For the LFV3-130-series Coaxial Lights.Square type diffusion plate (deep-color).
*The diffusion plate has a front side and a back side. Install it with the glossy, smooth side facing the LED base plate. - The transmission ratio can be changed by replacing the default diffusion plate of the Light.
- And, the install position of the diffusion plate can be adjusted to achieve various imaging effects.
Specifications
| Dimensions | W 138 mm x D 130 mm x H 2 mm |
|---|---|
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 45 g max. |
| Accessories | Operation Guide |
| Caution | Heat may cause deformation or discoloring depending on the use environment. If this occurs, you may not be able to get the intended results. Please perform periodic inspections. |
| Notes | Applicable products: LFV3-130(A) This is the default Diffusion Plate inside the BL type. |
Dimensions (mm)
