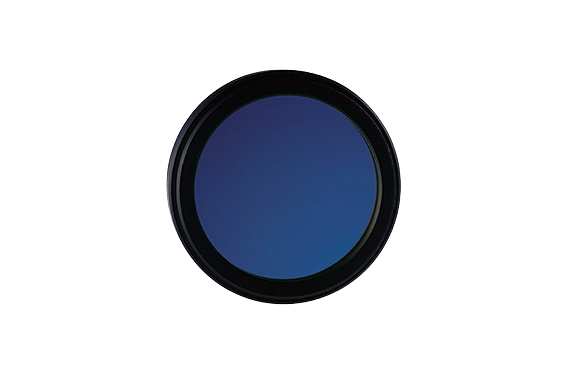

CCS F-BP470-52 Filters
Manufacturer: CCS Inc.
Model: F-BP470-52
Features
- Band-pass filter for blue LED Light Units.
- Transmits the light of 425 to 495 nm and prevents the influence of ambient light.
- Compatible with a lens filter thread diameter of M52 x P0.75 mm.
Specifications
| Dimensions | Outer diameter 54 mm, Inner diameter 47 mm, Height 7 mm |
|---|---|
| Screw hole diam. x Screw pitch | M52 x P0.75 |
| Useful range | 425 to 495 nm |
| Full width at half max | 85 nm |
| Wavelength tolerance | +/-10 nm |
| Peak transmission | >90 % |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Lens material | Glass |

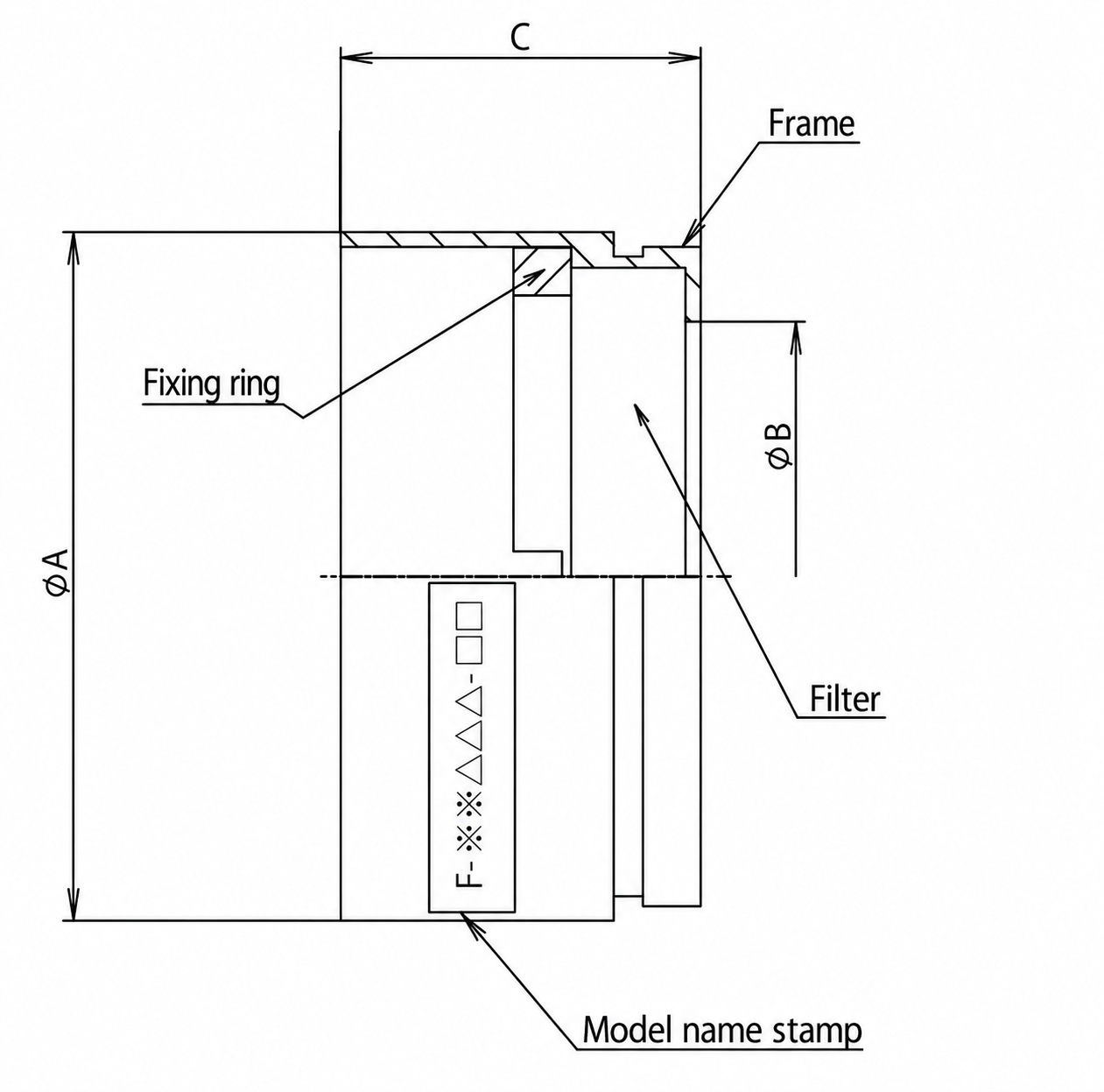

Dimensions (mm)
F-BP324-nn / F-BP365-nn / F-BP470-nn / F-BP505-nn
F-BP525-nn / F-BP590-nn / F-BP635-nn / F-BP660-nn
F-BP850-nn / F-LP920-nn / F-LP340-nn / F-SP700-nn
Unit: mm
| nn | Filter size | φ A | φ B | C |
|---|---|---|---|---|
| 13.25 | M13.5XP0.5 | 14.75 | 10.5 | 7.5 |
| 22.5 | M22.5XP0.5 | 24 | 18.5 | 7 |
| 25.5 | M25.5XP0.5 | 27.5 | 21 | 7 |
| 27 | M27XP0.5 | 29 | 22.5 | 7 |
| 30.5 | M30.5XP0.5 | 32.5 | 25.5 | 7 |
| 34 | M34XP0.5 | 36 | 29 | 7 |
| 35.5 | M35.5XP0.5 | 37.5 | 30.5 | 7 |
| 37 | M37XP0.75 | 39 | 32.5 | 7 |
| 37.5 | M37.5XP0.5 | 39.5 | 32.5 | 7 |
| 39 | M39XP0.5 | 41 | 34 | 7 |
| 40.5 | M40.5XP0.5 | 42.5 | 35.5 | 7 |
| 43 | M43XP0.75 | 45 | 38 | 7 |
| 46 | M46XP0.75 | 48 | 41 | 7 |
| 49 | M49XP0.75 | 51 | 44 | 7 |
| 52 | M52XP0.75 | 54 | 47 | 7 |
| 55 | M55XP0.75 | 57 | 50 | 7 |
| 58 | M58XP0.75 | 60 | 53 | 7 |
| 62 | M62XP0.75 | 64 | 57 | 7 |
| 67 | M67XP0.75 | 70 | 62.5 | 8.3 |
| 72 | M72XP0.75 | 75 | 67.5 | 8.3 |
| 77 | M77XP0.75 | 80 | 73 | 8.3 |
| 82 | M82XP0.75 | 84 | 77.5 | 8 |
| 86 | M86XP1.0 | 89 | 81.7 | 8.3 |
| 95 | M95XP1.0 | 98.2 | 89.9 | 10 |
| 105 | M105XP1.0 | 107.8 | 100 | 8.5 |
