CCS Inc.

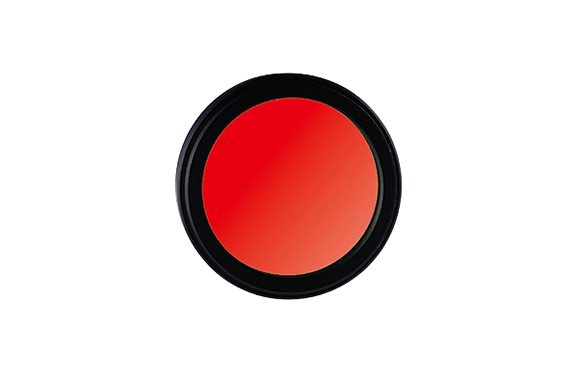

CCS F-BP635-37 Filters
Manufacturer: CCS Inc.
Model: F-BP635-37
Features
- Band-pass filter for red LED Light Units.
- Transmits the light of 615 to 645 nm and prevents the influence of ambient light.
- Compatible with a lens filter thread diameter of M35.5 x P0.5 mm.
Specifications
| Dimensions | Outer diameter 37.5 mm, Inner diameter 30.5 mm, Height 7 mm |
|---|---|
| Screw hole diam. x Screw pitch | M35.5 x P0.5 |
| Useful range | 615 to 645 nm |
| Full width at half max | 60 nm |
| Wavelength tolerance | +/-10 nm |
| Peak transmission | >90 % |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Lens material | Glass |
Dimensions (mm)
