CCS Inc.

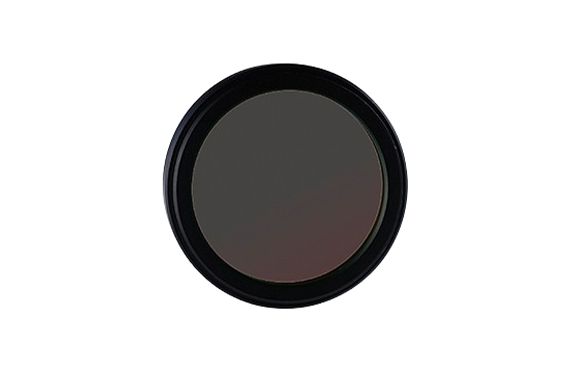

CCS F-LP920-37.5 Filters
Manufacturer: CCS Inc.
Model: F-LP920-37.5
Features
- Sharp-cut filter for infrared LED Light Units.
- Blocks the light of 930 nm or shorter and transmits the longer wavelengths.
- Compatible with a lens filter thread diameter of M37.5 x P0.5 mm.
Specifications
| Dimensions | Outer diameter 39.5 mm, Inner diameter 32.5 mm, Height 7 mm |
|---|---|
| Screw hole diam. x Screw pitch | M37.5 x P0.5 |
| Useful range | 930 to 1,100 nm |
| Wavelength tolerance | +/-10 nm |
| Peak transmission | >90 % |
| Cut-on wavelength (50% transmission) | 920 nm |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Lens material | Glass |
Dimensions (mm)
