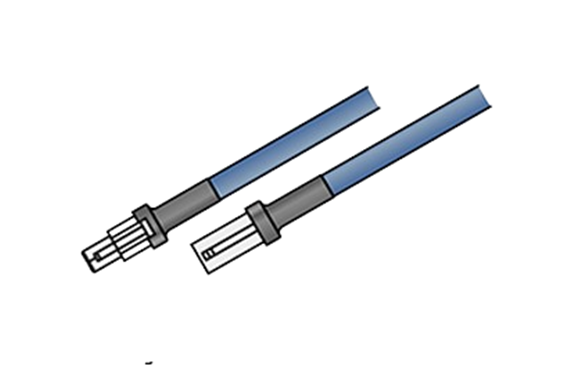

CCS FCB-2-EL2 Straight Cables [EL Connector Type]
Manufacturer: CCS Inc.
Model: FCB-2-EL2
Features
- Extension cable used to connect a 24 V input LED Light Unit and a 24 V output Control Unit.
- 2-m length cable with 2-pin EL connectors.
Specifications
| Cable length | 2 m |
|---|---|
| Minimum bending radius (reference value) | 29.6 mm |
| Connectors (Control Unit side) | EL connector (2-pin, plug) *ELR-02VF Pin Polarity: 〇= (+), □= (-) |
| Connectors (Light Unit side) | EL connector (2-pin, socket) *ELR-02VF Pin Polarity: 〇= (+), □= (-) |
| Conformed standards | CE, UKCA、RoHS |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 165 g max. |
| Caution | The light intensity might be unstable if you join cables. |
Dimensions (mm)
