CCS Inc.
CCS FCB-3 Straight Cables
Manufacturer: CCS Inc.
Model: FCB-3
Features
- Extension cable used to connect a 24 V input LED Light Unit and a 24 V output Control Unit.
- 3-m length cable with 3-pin SM connectors.
Specifications
| Cable length | 3 m |
|---|---|
| Minimum bending radius (reference value) | 28.8 mm |
| Connectors (Control Unit side) | SM connector (3-pin, plug) |
| Connectors (Light Unit side) | SM connector (3-pin, socket) |
| Conformed standards | CE, UKCA、RoHS |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 95 g max. |
| Caution | The light intensity might be unstable if you join cables. |

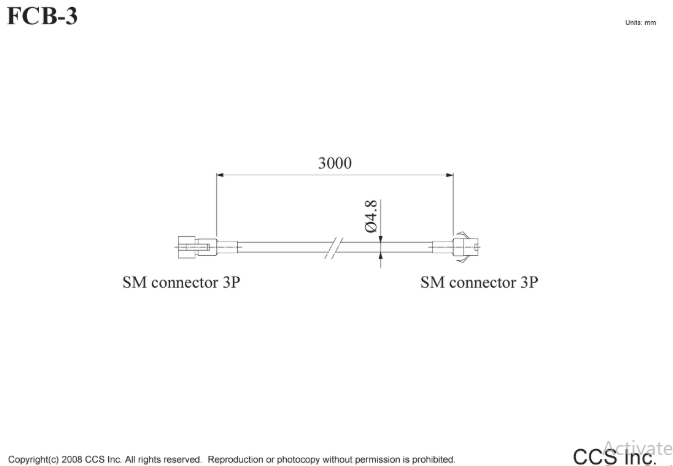

Dimensions (mm)
