CCS Inc.

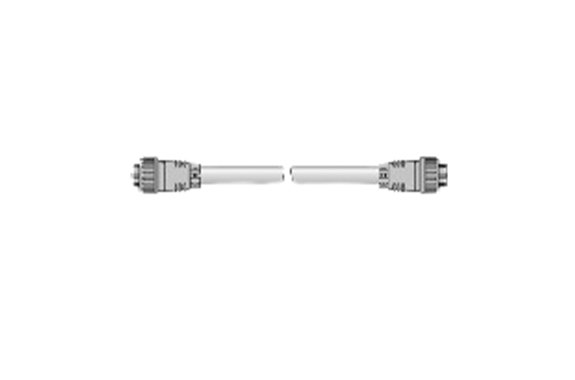

CCS FCB-5-1.25SQ-ME7 Straight Cables for Metal Connector (7 Pins)
Manufacturer: CCS Inc.
Model: FCB-5-1.25SQ-ME7
Features
- Extension cable used to connect an LED Light Unit and a Control Unit.
- 5-m length cable with 7-pin metal connectors.
Specifications
| Cable length | 5 m |
|---|---|
| Minimum bending radius (reference value) | 63.6 mm |
| Connectors (Control Unit side) | Metal connector (7-pin, plug) |
| Connectors (Light Unit side) | Metal connector (7-pin, socket) |
| Conformed standards | CE, UKCA、RoHS |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 1,000 g max. |
Dimensions (mm)
