CCS Inc.

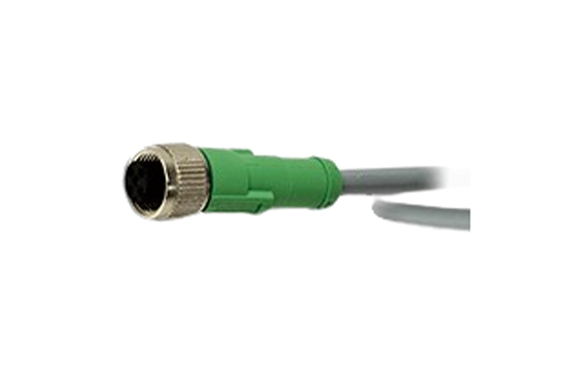

CCS FECB-2-M12-5F Straight Cables For M12 Connector
Manufacturer: CCS Inc.
Model: FECB-2-M12-5F
Features
- Supplies power to the Light Unit and inputs signals for light intensity control or for turning the light ON and OFF.
- 2-m length cable provided with a waterproof connector on the Light Unit end and flying leads on the other end.
Specifications
| Cable length | 2 m |
|---|---|
| Minimum bending radius (reference value) | 25.5 mm |
| Connectors (Control Unit side) | Flying leads |
| Connectors (Light Unit side) | M12 connector (5-pin, socket), waterproof type. |
| Conformed standards | CE, UKCA、RoHS |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 90 g max. |
Dimensions (mm)
