CCS Inc.

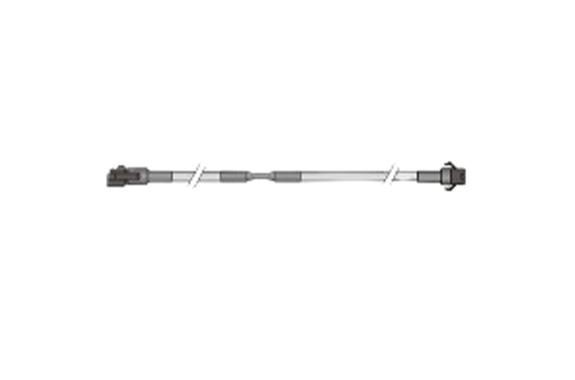

CCS FRCB-1 Robot Cables
Manufacturer: CCS Inc.
Model: FRCB-1
Features
- Robot cable used to connect a 24 V input LED Light Unit and a 24 V output Control Unit.
- 1-m length cable with 3-pin SM connectors.
- This cable has excellent flexibility and durability.
Specifications
| Cable length | 1 m |
|---|---|
| Minimum bending radius (reference value) | 29.4 mm |
| Connectors (Control Unit side) | SM connector (3-pin, plug) |
| Connectors (Light Unit side) | SM connector (3-pin, socket) |
| Conformed standards | CE, UKCA、RoHS |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Weight | 40 g max. |
| Caution | The light intensity might be unstable if you join cables. |
Dimensions (mm)
