CCS Inc.

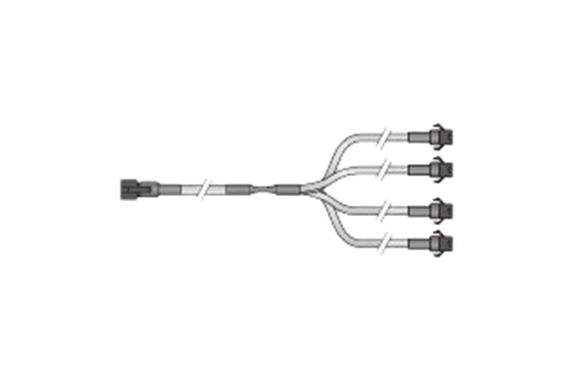

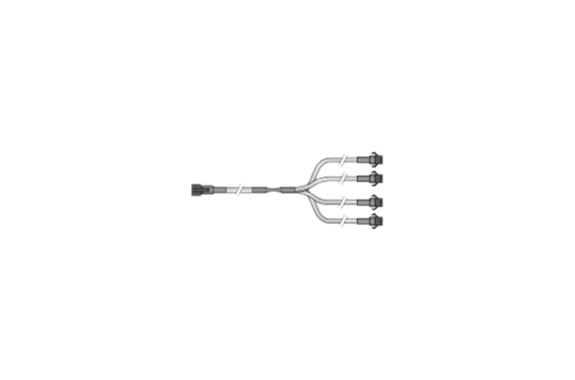

CCS FRCB-F-10 4-way Robot Cables
Manufacturer: CCS Inc.
Model: FRCB-F-10
Features
- 10 m length 4-branch cable used to connect a 24 V input LED light to a 24 V control unit.
- It features a 3-pin SM connector and is a robot cable with excellent flexibility and durability.
Specifications
| Cable length | 10 m |
|---|---|
| Minimum bending radius (reference value) | 27.6 mm |
| Connectors (Control Unit side) | SM connector (3-pin, plug) |
| Connectors (Light Unit side) | SM connector (3-pin, socket) |
| Conformed standards | CE, UKCA、RoHS |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Caution | The light intensity might be unstable if you join cables. |

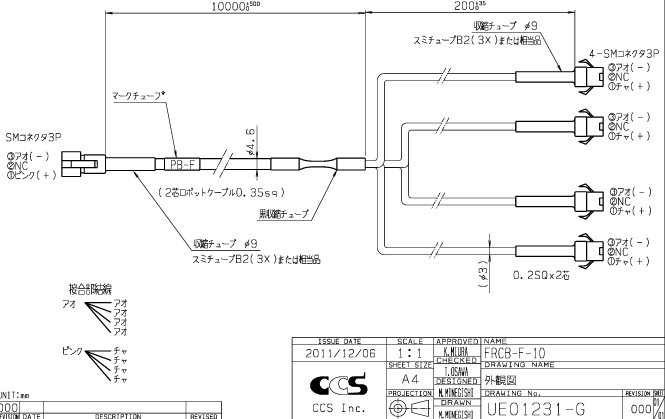

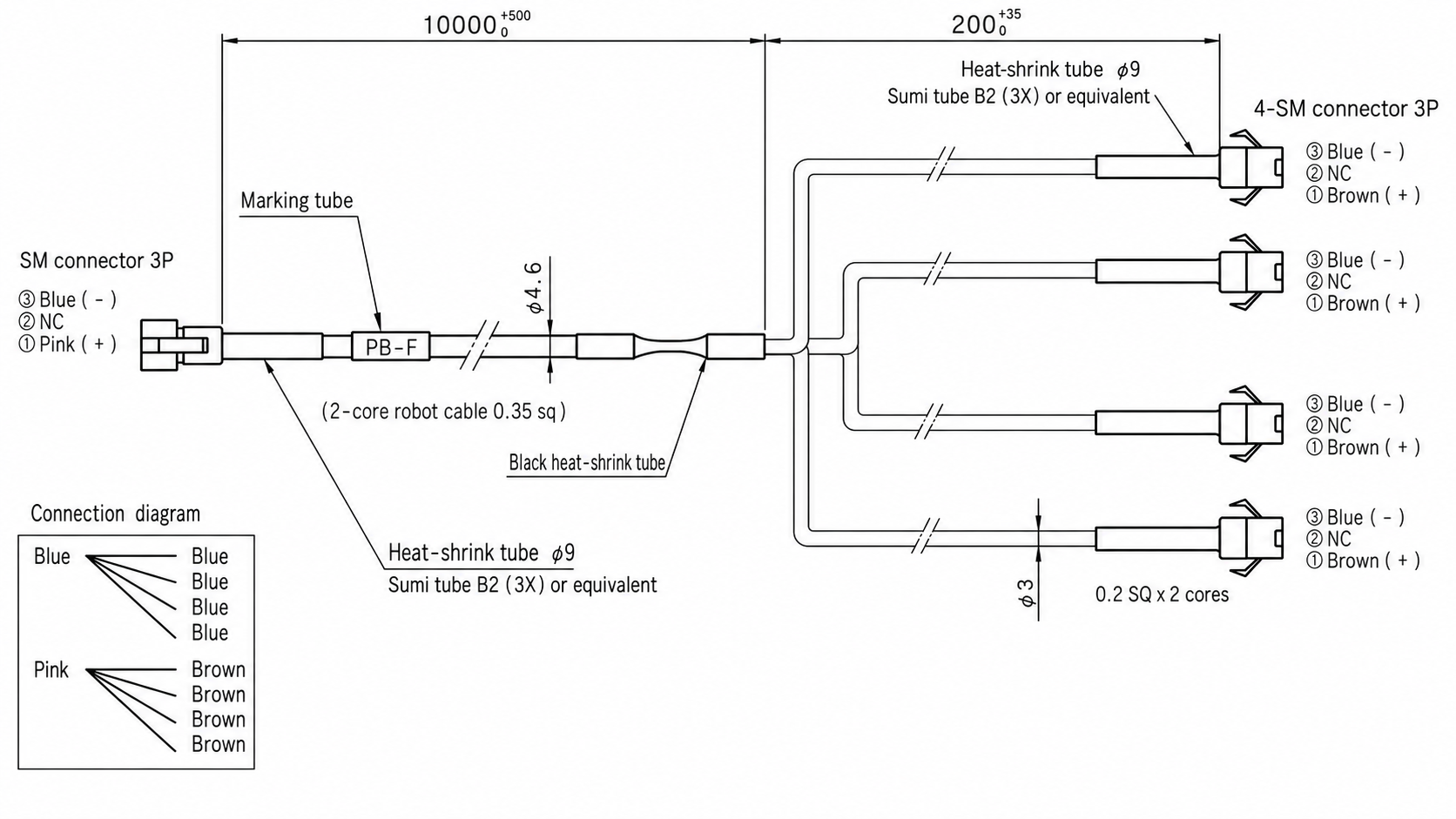

Dimensions (mm)
