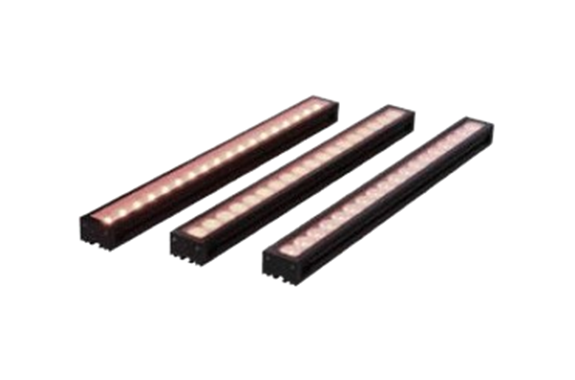

CCS HLDL3-1050X28IR-DF-N / HLDL3-1050X28IR-DF-M / HLDL3-1050X28IR-DF-W Bar (Area)
Manufacturer: CCS Inc.
Model: HLDL3-1050X28IR-DF-N / HLDL3-1050X28IR-DF-M / HLDL3-1050X28IR-DF-W
Features
- Bar type infrared LED light for long distance illumination.
- Three types of light directivity depending on the application conditions:
・Narrow type (HLDL3-1050X28IR-DF-N)
・Medium type (HLDL3-1050X28IR-DF-M)
・Wide type (HLDL3-1050X28IR-DF-W)
Measures W 1070 mm x D 44 mm x H 30 mm, the light-emitting surface measures 1050 x 28 mm.
Specifications
| LED color | Infrared |
|---|---|
| Peak wavelength | 860 nm typ. |
| Dimensions | W 1070 mm x D 44 mm x H 30 mm |
| Input voltage | 24 VDC |
| Power consumption | 103 W max. |
| Polarity & signal | 1: (+), 2: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy |
| Input connector | ELP-02V |
| Conformed standards | CE, UKCA, RoHS IEC 62471 HLDL3-1050X28IR-DF-N: Mod risk HLDL3-1050X28IR-DF-M: Low risk HLDL3-1050X28IR-DF-W: Exempt |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | HLDL3-1050X28IR-DF-N: 2110 g max. HLDL3-1050X28IR-DF-M: 2110 g max. HLDL3-1050X28IR-DF-W: 2180 g max. |
| Accessories | User Manual |
| Notes | Please inquire if you would like to use in combination with a strobe control unit (overdrive type) |
Dimensions (mm)
