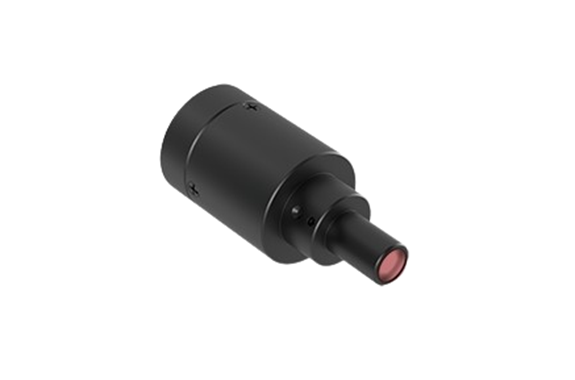

CCS HLV-22IR130 IR Lights [Infrared Lighting] (over 1000-nm type)
Manufacturer: CCS Inc.
Model: HLV-22IR130
Features
- Spot-type infrared illumination HLV-22IR130 with an outer diameter of 22 mm, a total length of 50 mm, a tip diameter of 8 mm, a light emitting surface of 6.4 mm, and a peak wavelength of 1300 nm.
Specifications
| LED color | Infrared |
|---|---|
| Peak wavelength | 1300 nm typ. |
| Dimensions | Outer diameter 22 mm, Total length 50 mm, Tip diameter 8 mm, Light emitting surface 6.4 mm |
| Power consumption | 1.1 W max. |
| Polarity & signal | 1: Signal、2: (+)、3: (-) |
| Cable length | 300 mm |
| Case material | Aluminum alloy |
| Input connector | SMR-03V-B |
| Input current | 0.7A max. |
| Conformed standards | CE, UKCA, RoHS, IEC 62471（Exempt） |
| Operating temperature and humidity | Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation) |
| Storage temperature and humidity | Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation) |
| Cooling method | Natural air cooling |
| Weight | 32 g max. |
| Accessories | User Manual |
Dimensions (mm)
